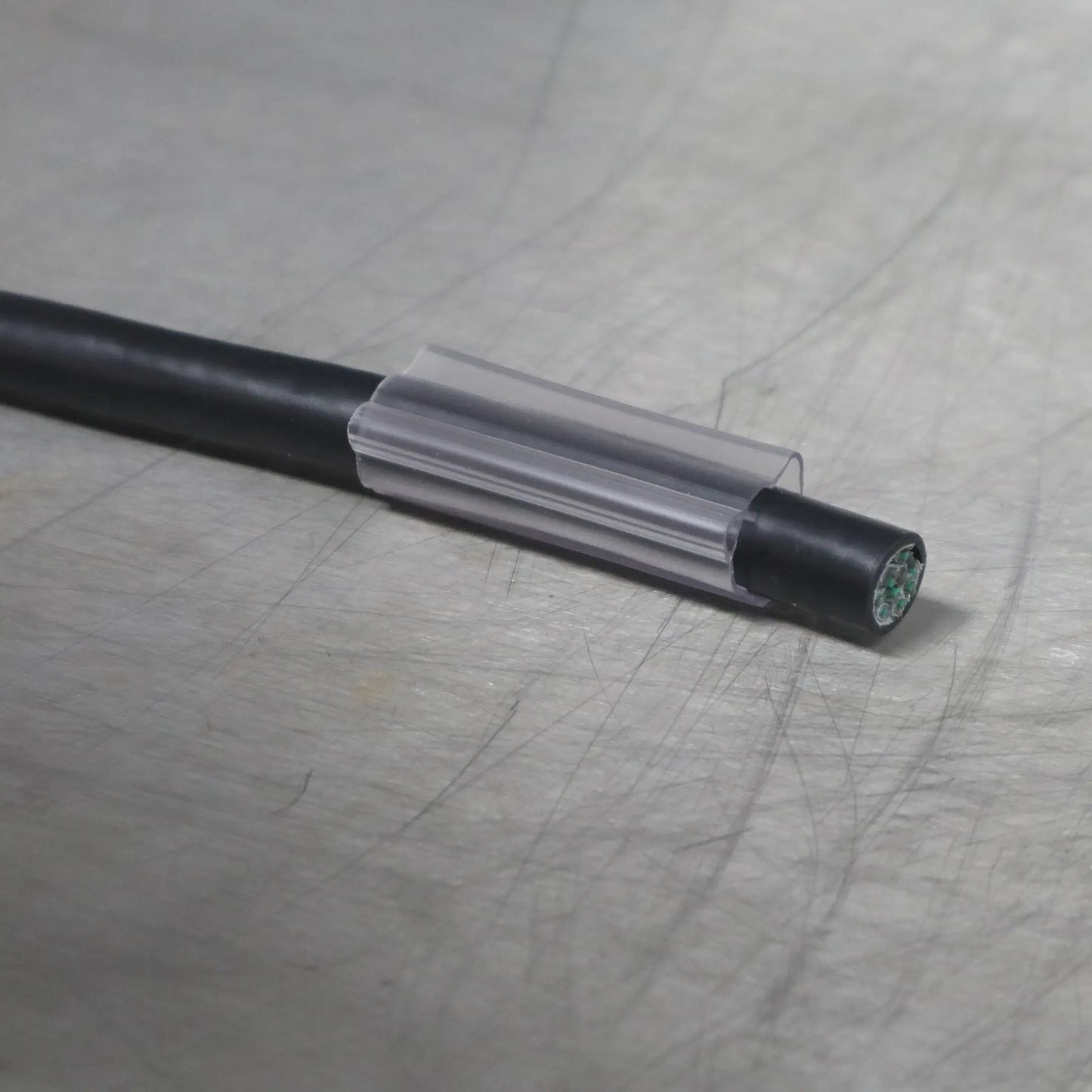

Legend™ 2-Part Cable Marker System Tubing
Legend™ 2-Part Cable Marker System Tubing
The Silver Fox Legend™ 2-part labelling system label available in both laser and thermal printable formats fits inside our off-the-shelf 2-part labelling system tube which acts as a carrier and also protects the ident.
Download Datasheet Here
SKU:LT/1-2/20
Couldn't load pickup availability
Time Saving with Legend™ 2-Part Labelling System

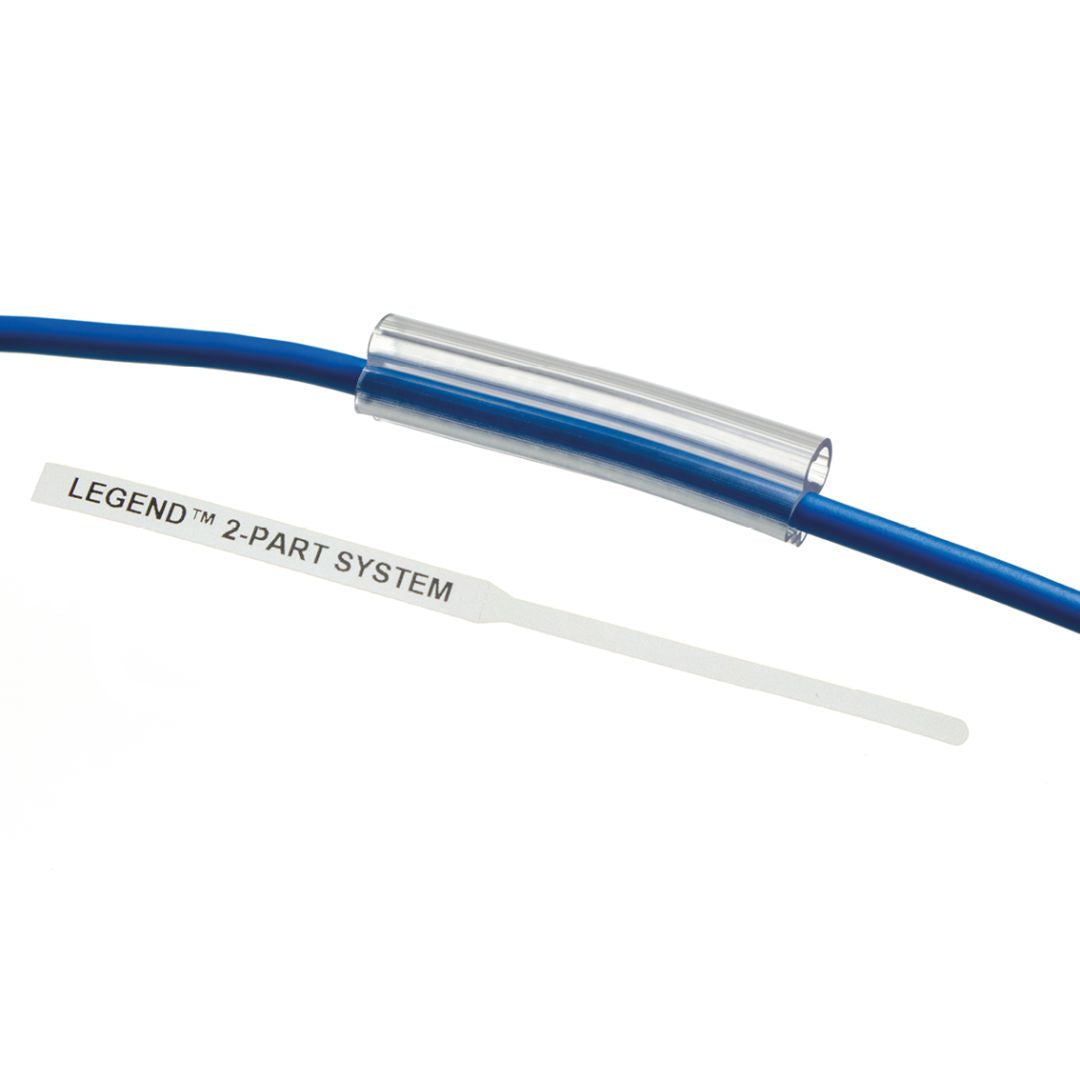

The key benefit of the 2-part system is that the wire ID can be changed even after termination without cutting off the wire. The flexible label has a special ‘bottle’ shape allowing it to be pulled into the clear tubing, this style makes it quick and easy to ‘load/unload’ label.
-
3 Available Sizes
Choice of 3 lengths: 20mm, 30mm and 50mm. Tubing is available in various sizes depending on the diameter of the cable; whatever the size, it still takes the same label.
-
Change Terminated Idents
Due to this special design, it is possible to slide blank tubing onto the wire prior to termination. The label can then be inserted at any time during or after termination. The longer the label, the more characters that can be printed.
-
Manufactured in-house in the UK
We take pride in our in-house manufacturing facility located right here in the UK. By producing locally, we can ensure fast turnaround times from production to delivery.
Technical Information
Material Specification
- Material: PVC
Available Diameters
- Available in 3 lengths; 20mm, 30mm and 50mm and a wide variety of diameters for each length.
Product Testing
- Moisture Resistance: MIL-STD-202G Method 106G
- Low Temperature: 72 hours @ -40°C MIL-STD-810F Method 502.4
- High Temperature: 500 hours @ 70°C MIL-STD-202G Method 108A
- Hydrogen Sulphide: H2S Sour Gas Exposure (2% H2S)
- UV Weathering: 500 hours* ISO 4982 Part 3 Method A Cycle 1
- Salt Mist Spray: IEC60068-2-52 Test Kb Salt Mist (Cyclic)
- Flammability: class (UL94): V2

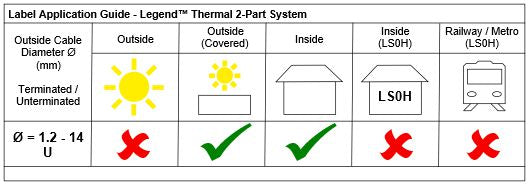

*Limited external applications generally away from direct sunlight but may be suitable
in control boxes etc. Labels generally for internal use such as, control rooms, power
stations, substations etc
Printing & Software Requirements
The Silver Fox Legend™ 2-part labelling system label available in both laser and thermal printable formats fits inside our 2-part labelling system tube which acts as a carrier and also protects the ident.
Available Colours
- Clear
Storage Instructions
- Storage Instructions: Store between 50ºF (10ºC) and 77ºF (25ºC)
- Conditions: Keep in dark conditions
- Humidity Resistance: 35% to 65% RH
Typical Applications
Typical uses include; sub-stations, control rooms or any application where the ID is likely to need frequent changes.

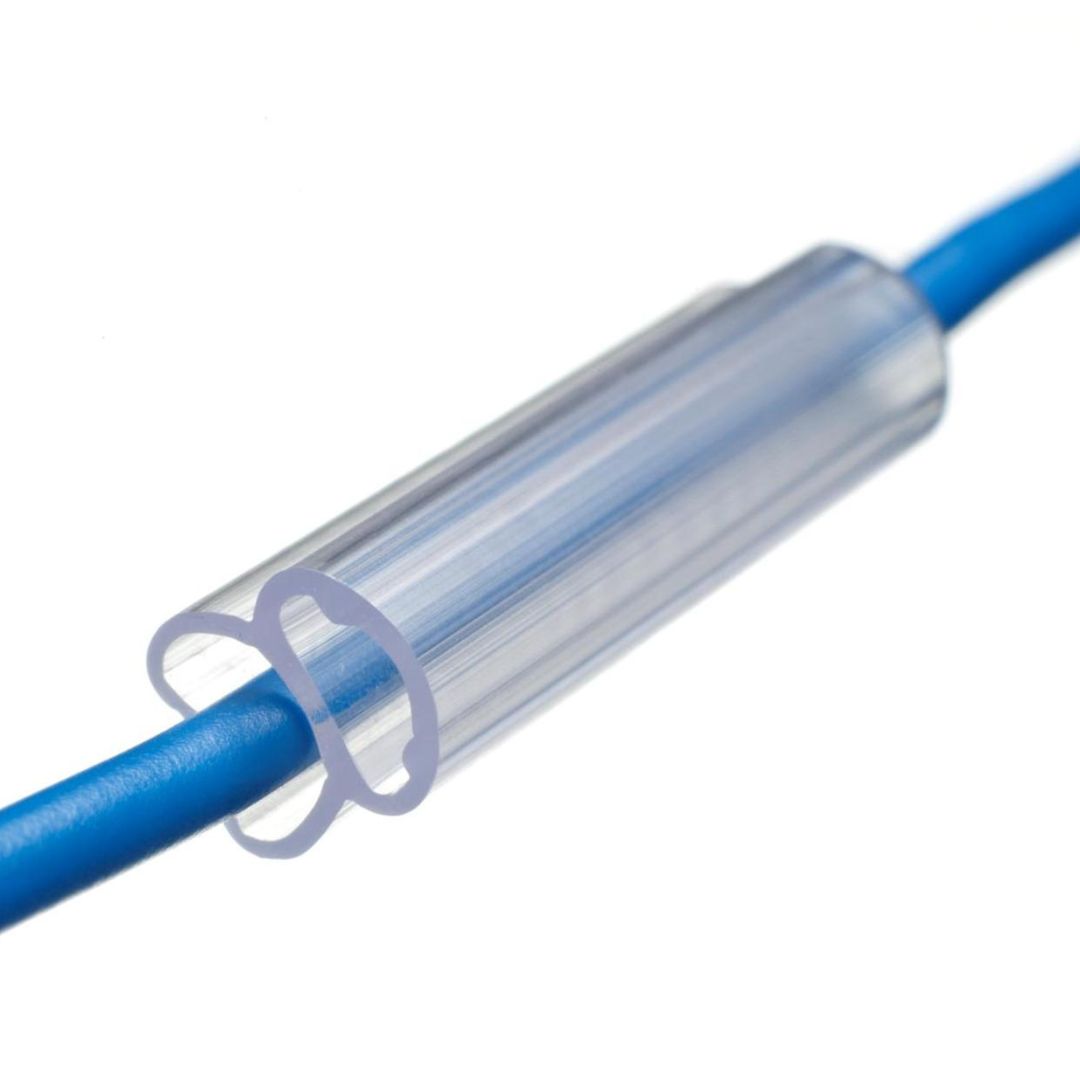

How to use the 2-Part System
Clear tubing for use with the 2-part labelling system. The tubing acts as both the carrier and protector for the label. The tail of the label is pulled through the tube then torn or cut after insertion leaving the label in the tube. For more information call our Sales Team on +44 (0)1707 37 37 27 or email sales@silverfox.co.uk
