Silver Fox Limited

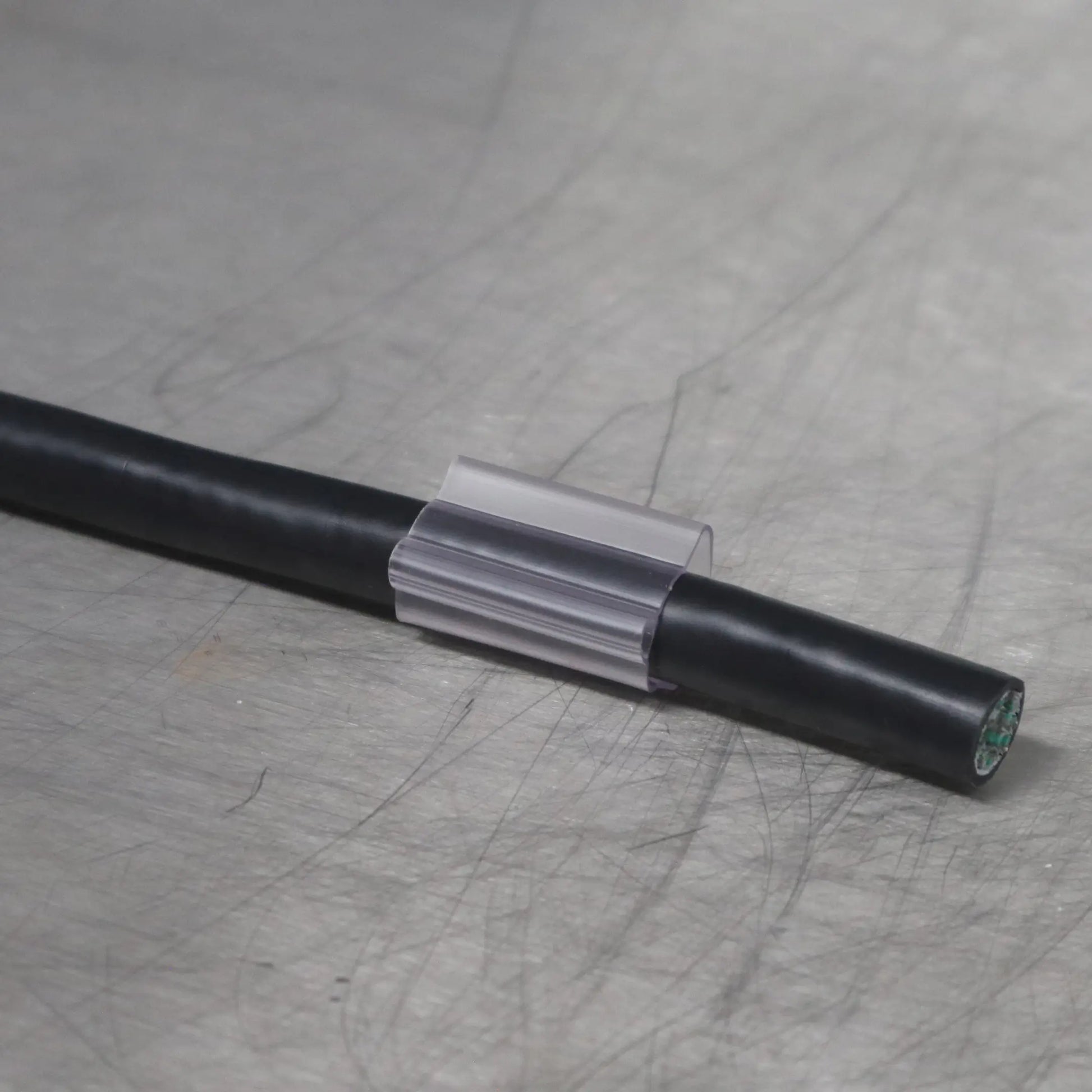

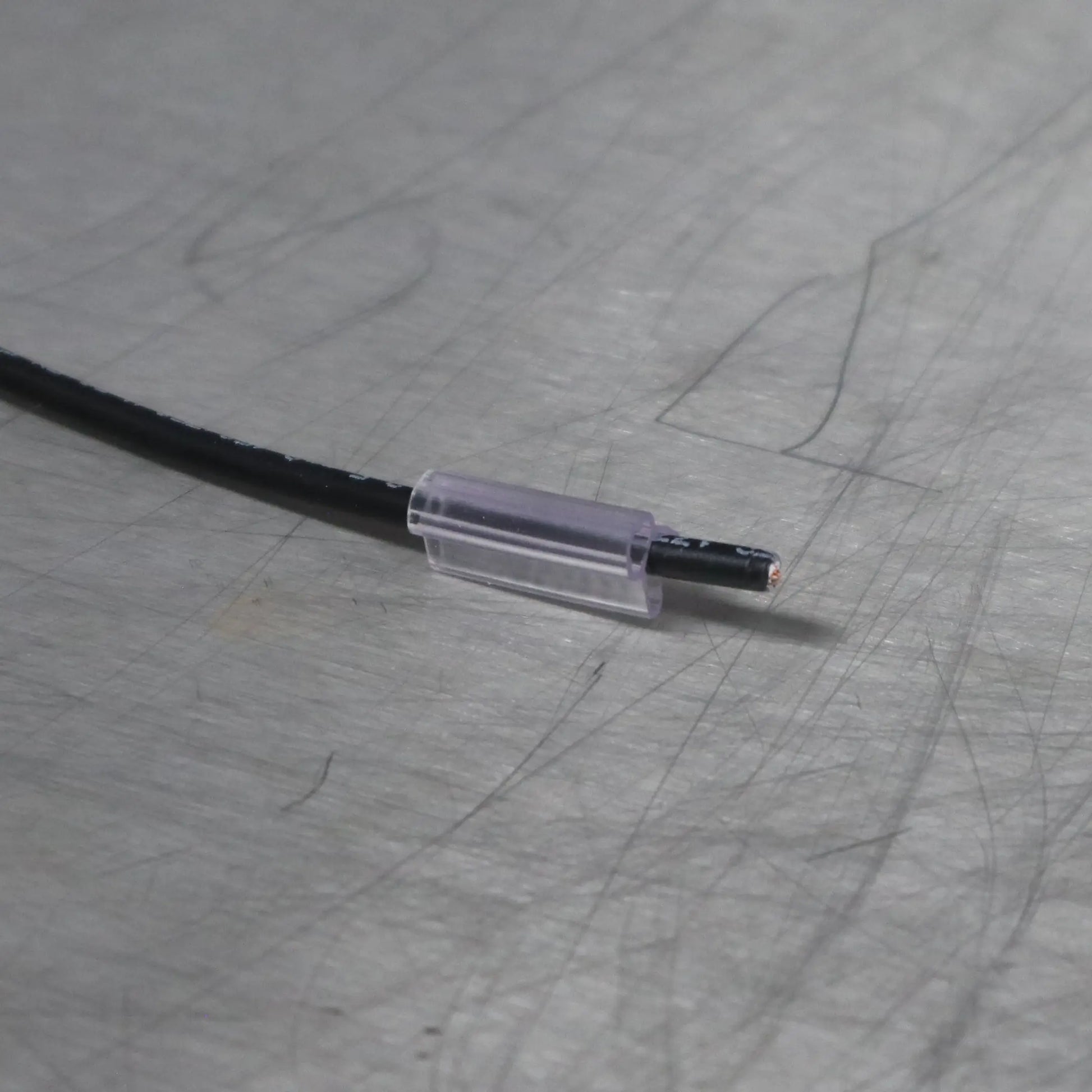

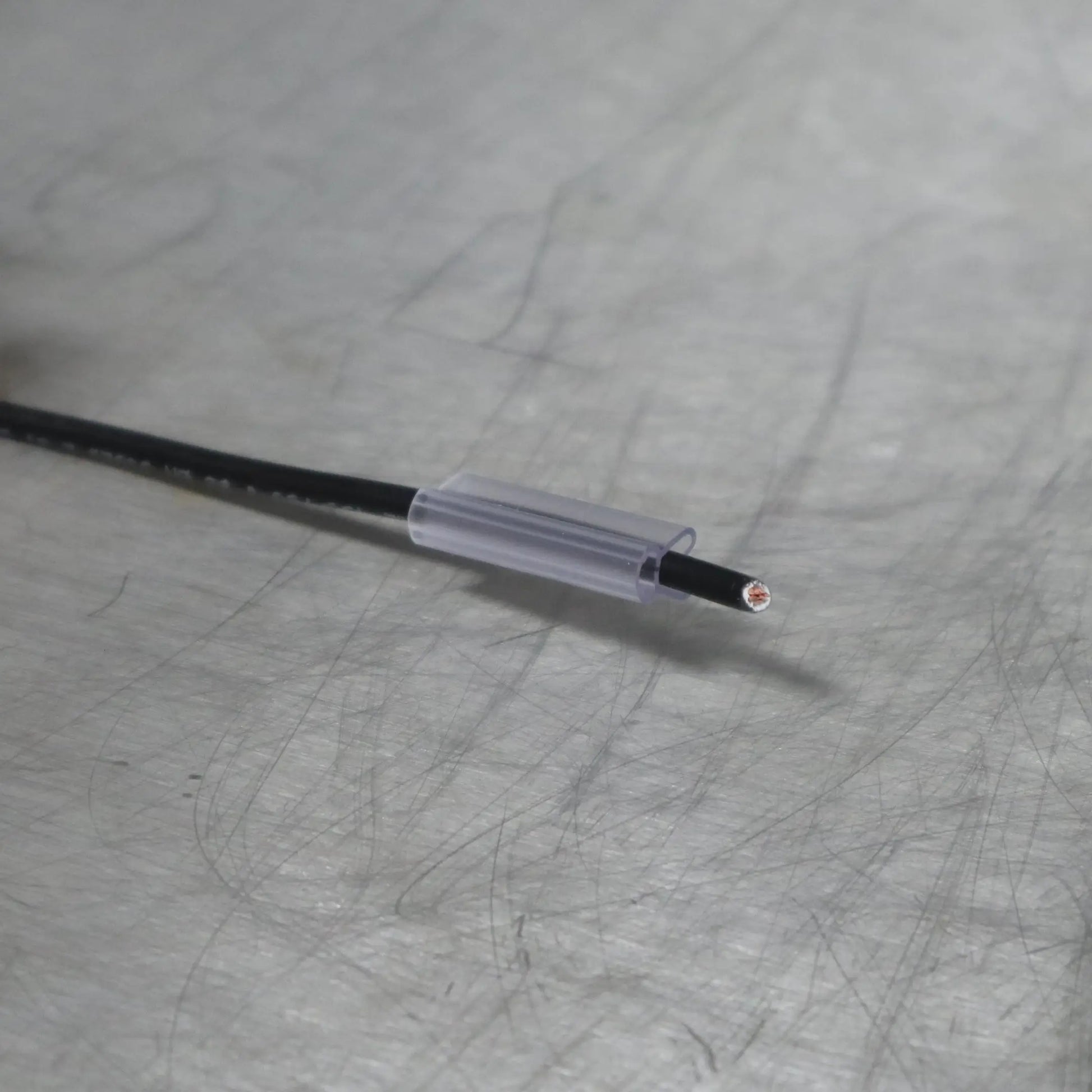

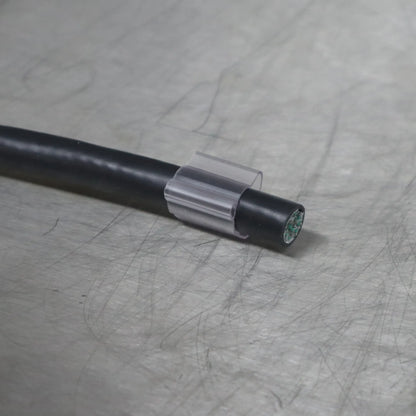

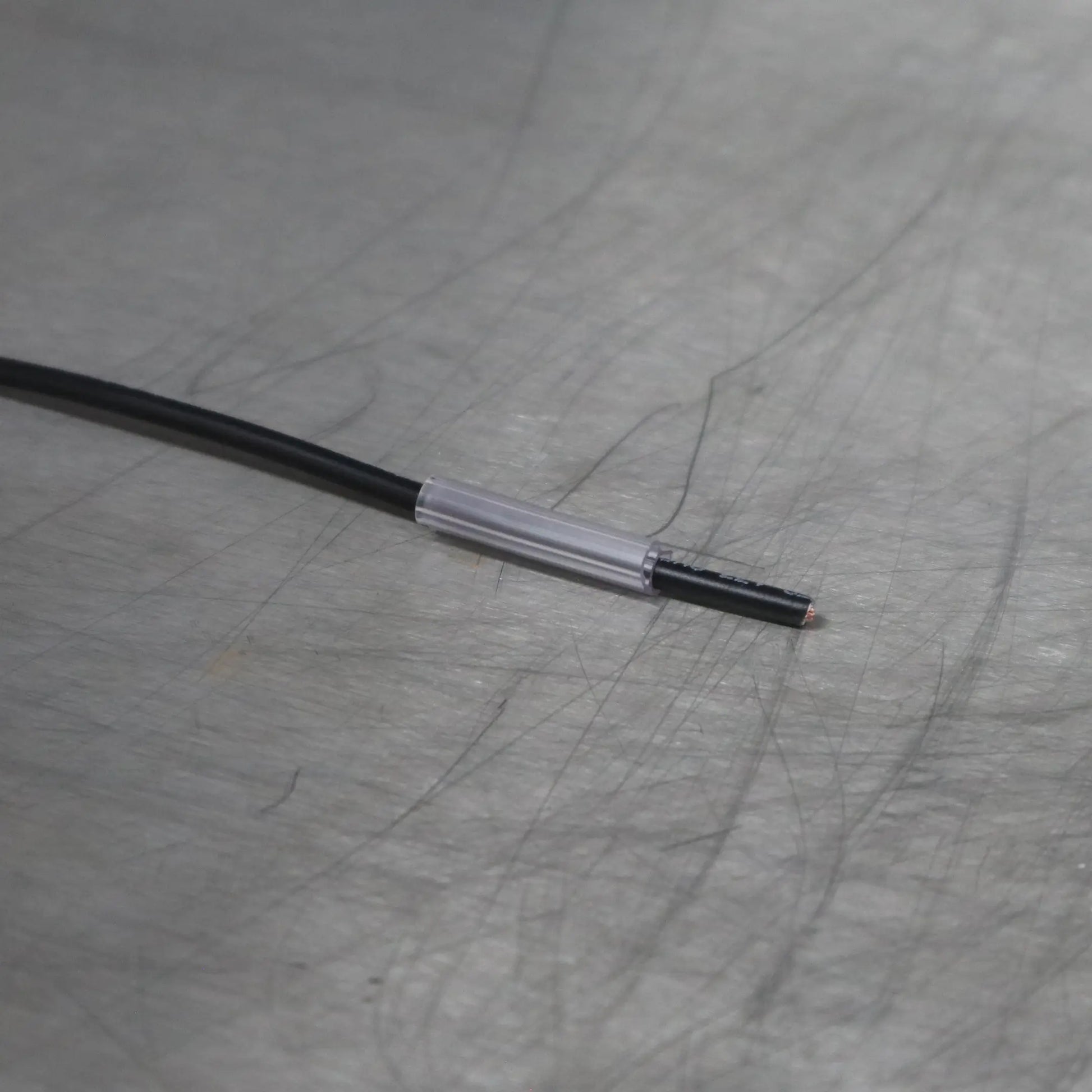

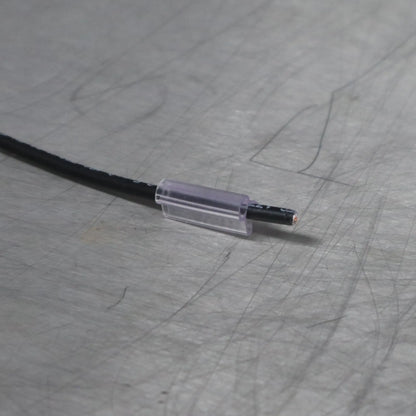

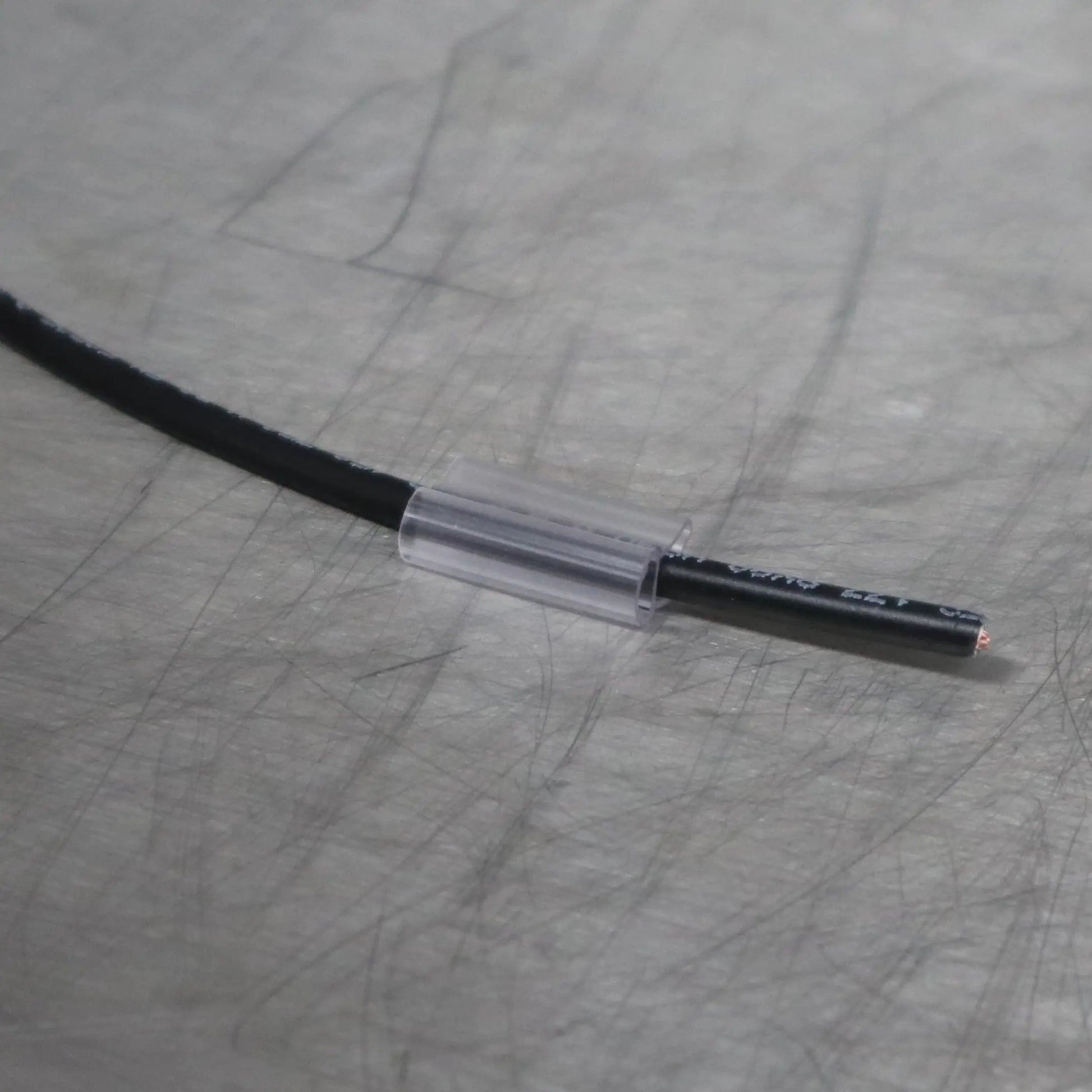

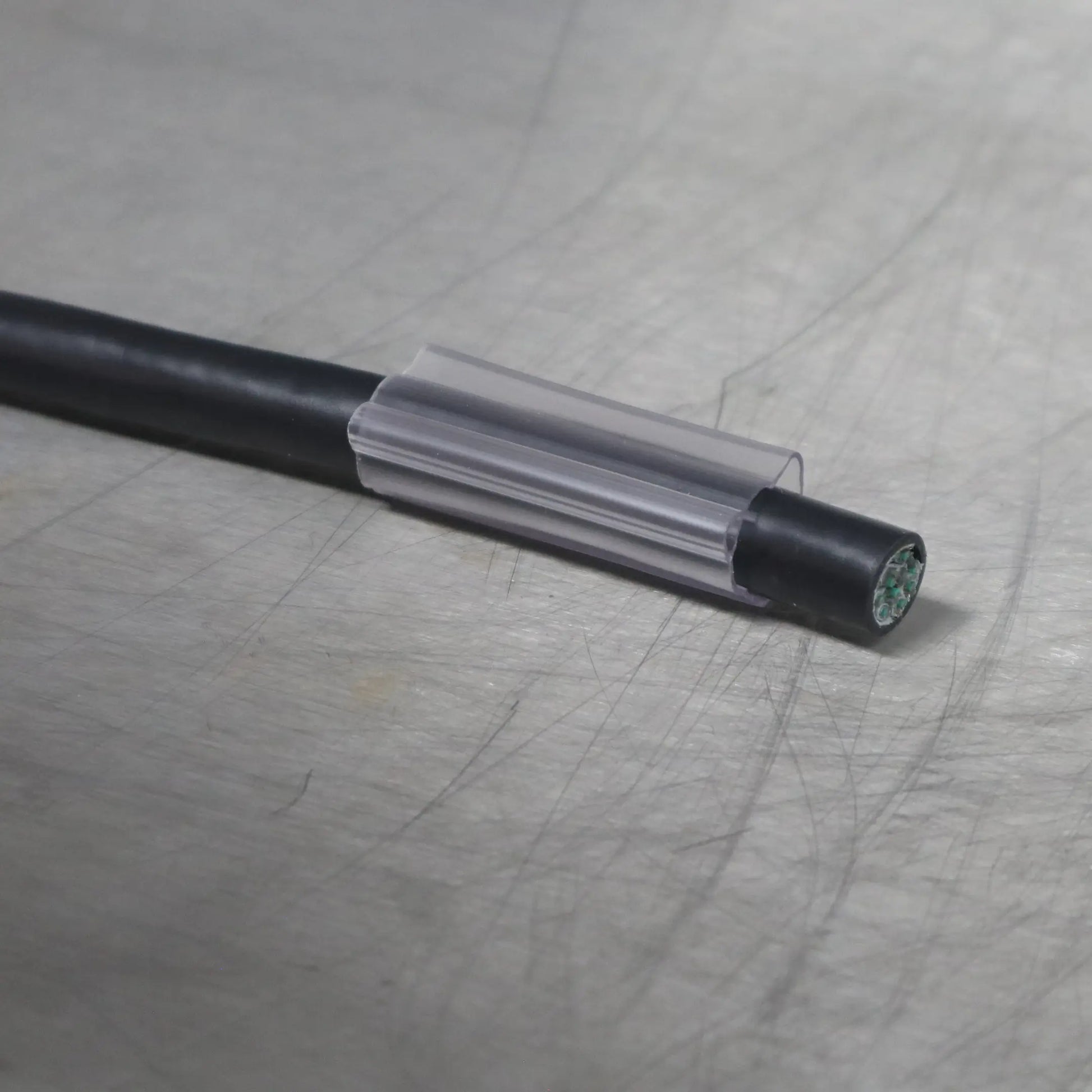

Legend™ 2-Part Cable Marker System Tubing

Legend™ 2-Part Cable Marker System Tubing

Regular price £41.80 GBP
Regular price Sale price £41.80 GBP
Sale Sold out

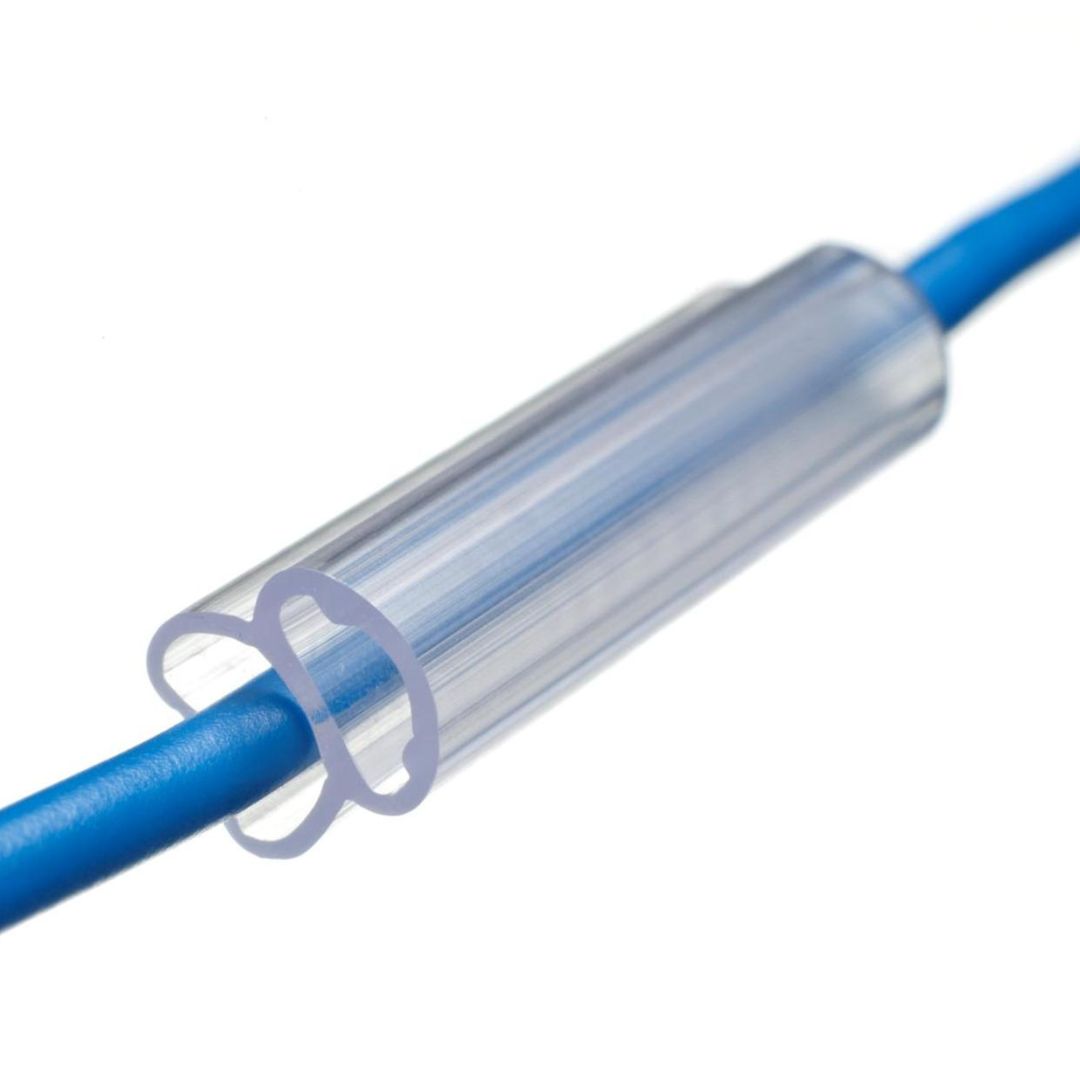

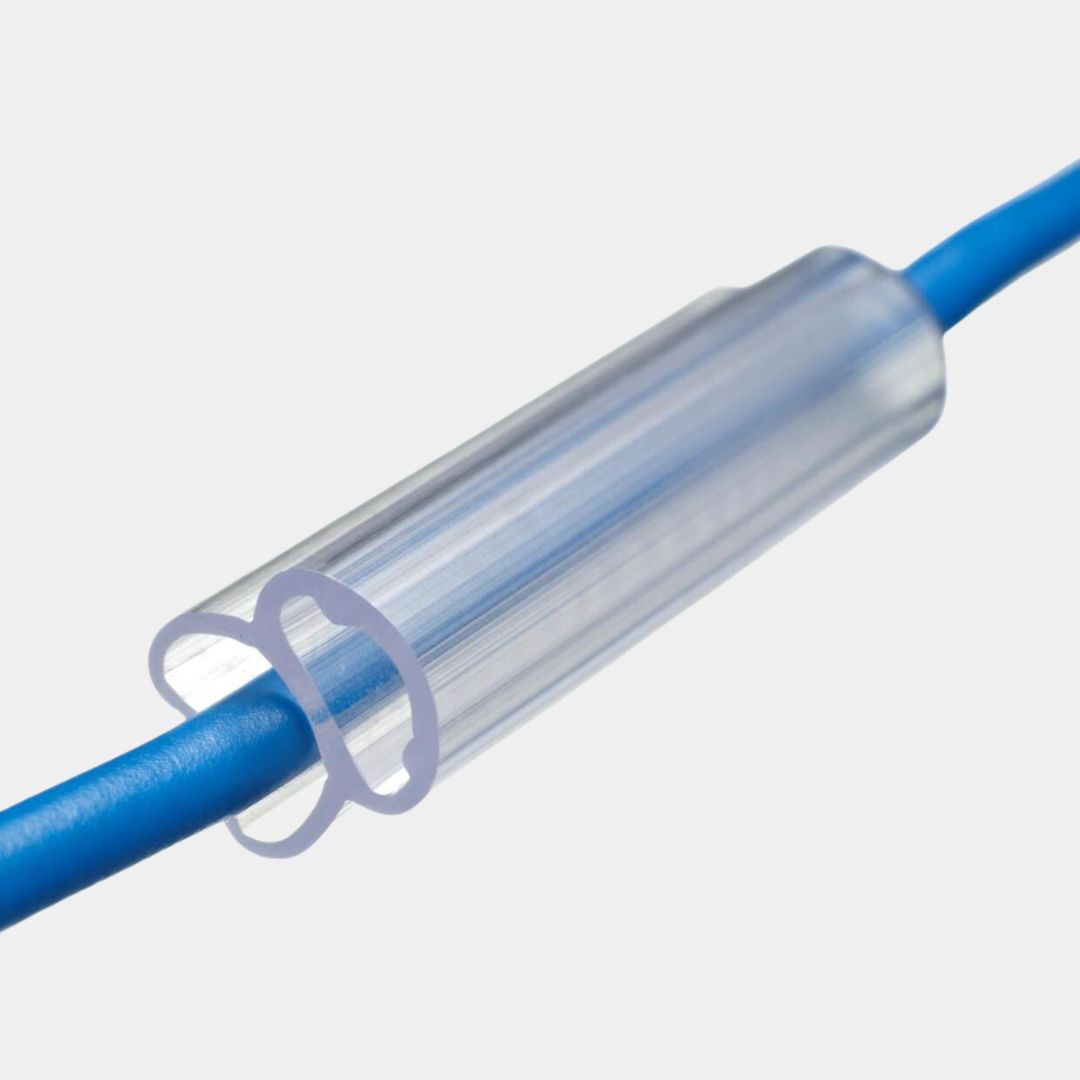

The Silver Fox Legend™ 2-part labelling system label available in both laser and thermal printable formats fits inside our off-the-shelf 2-part labelling system tube which acts as a carrier and also protects the ident.

Download Datasheet Here

SKU:LT/1-2/20

View full details

Time Saving with Legend™ 2-Part Labelling System

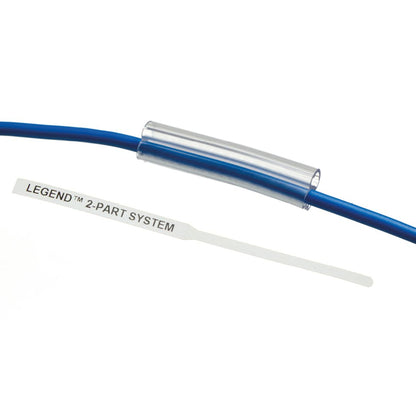

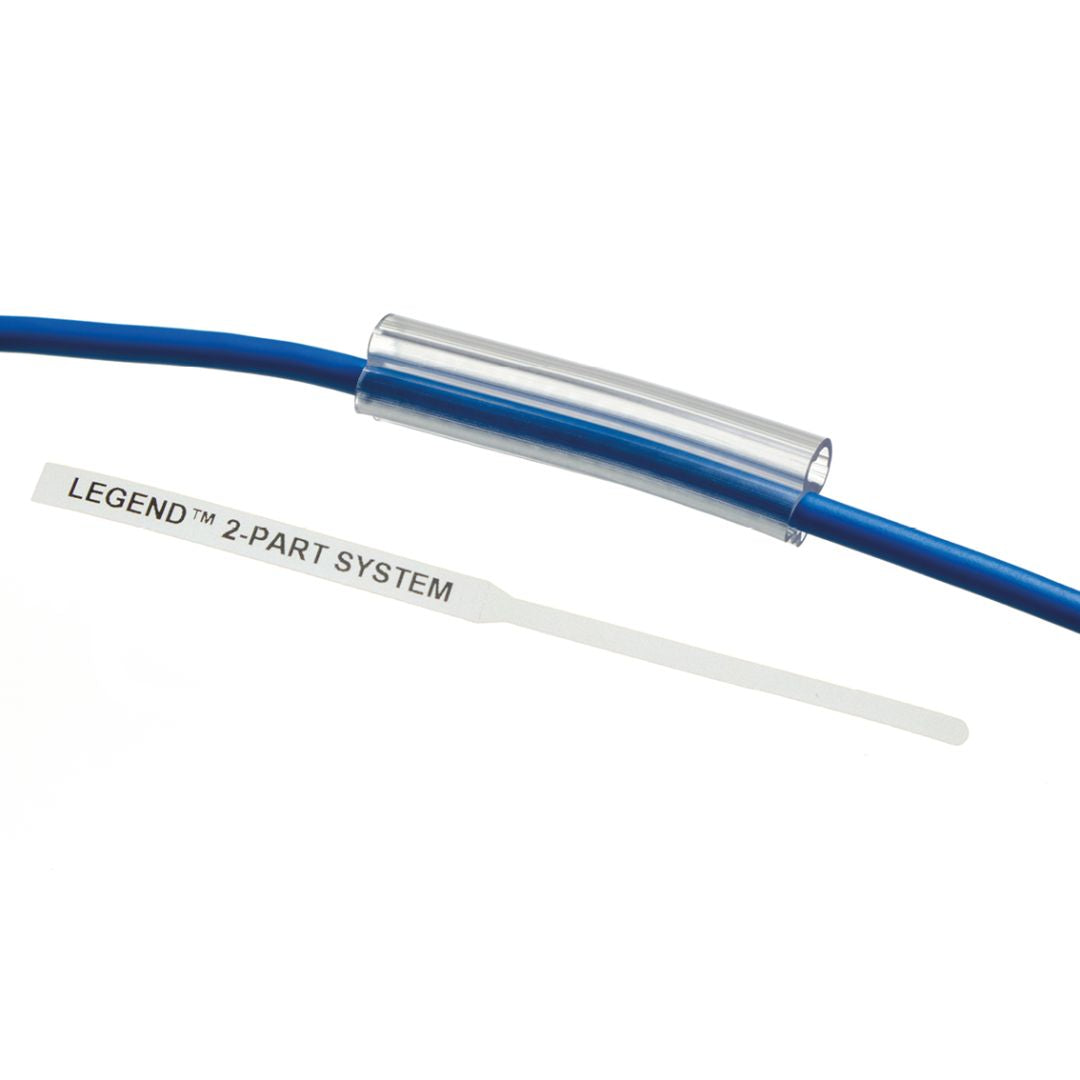

The key benefit of the 2-part system is that the wire ID can be changed even after termination without cutting off the wire. The flexible label has a special ‘bottle’ shape allowing it to be pulled into the clear tubing, this style makes it quick and easy to ‘load/unload’ label.

Purchase Legend™ 2-Part Tubing
  • 3 Available Sizes

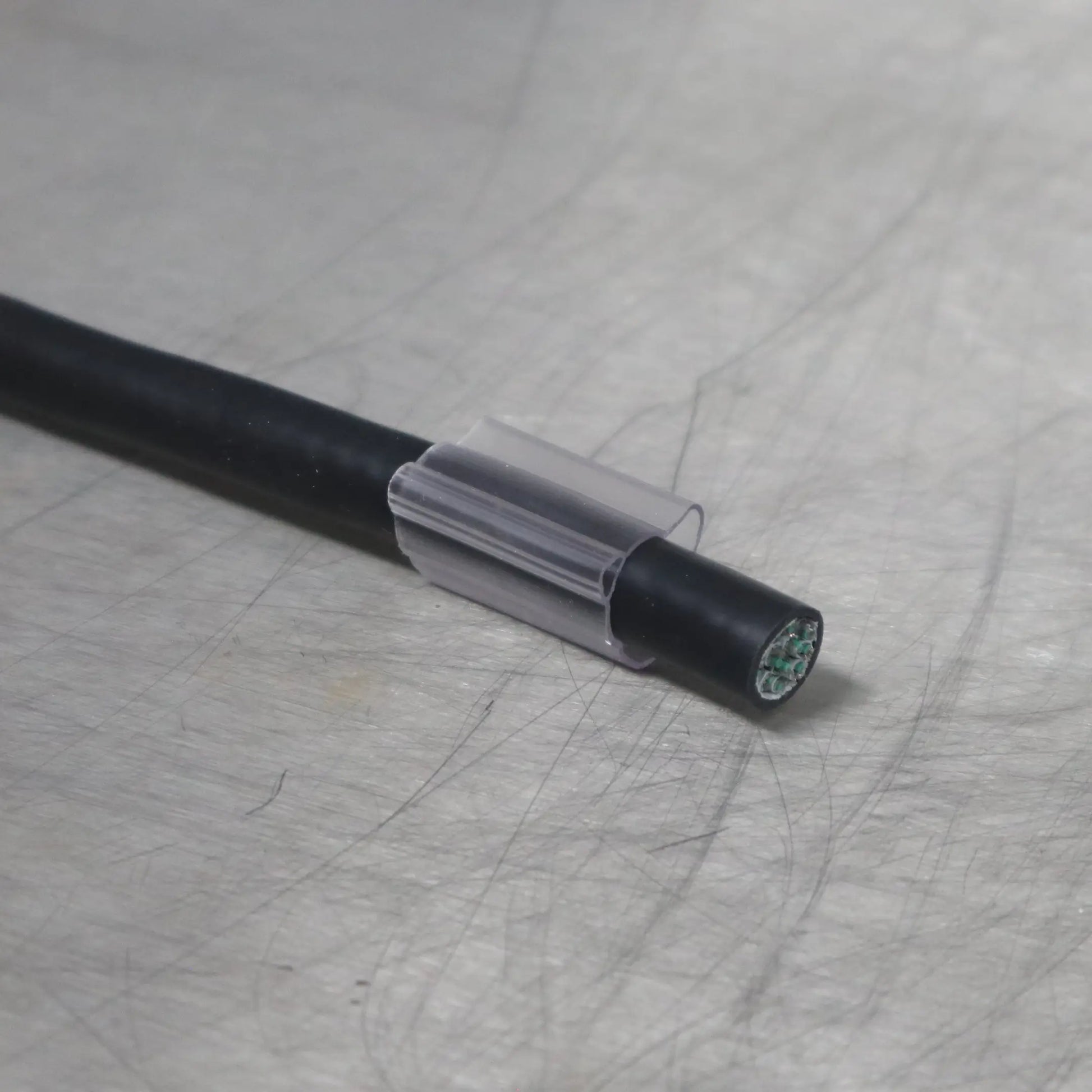

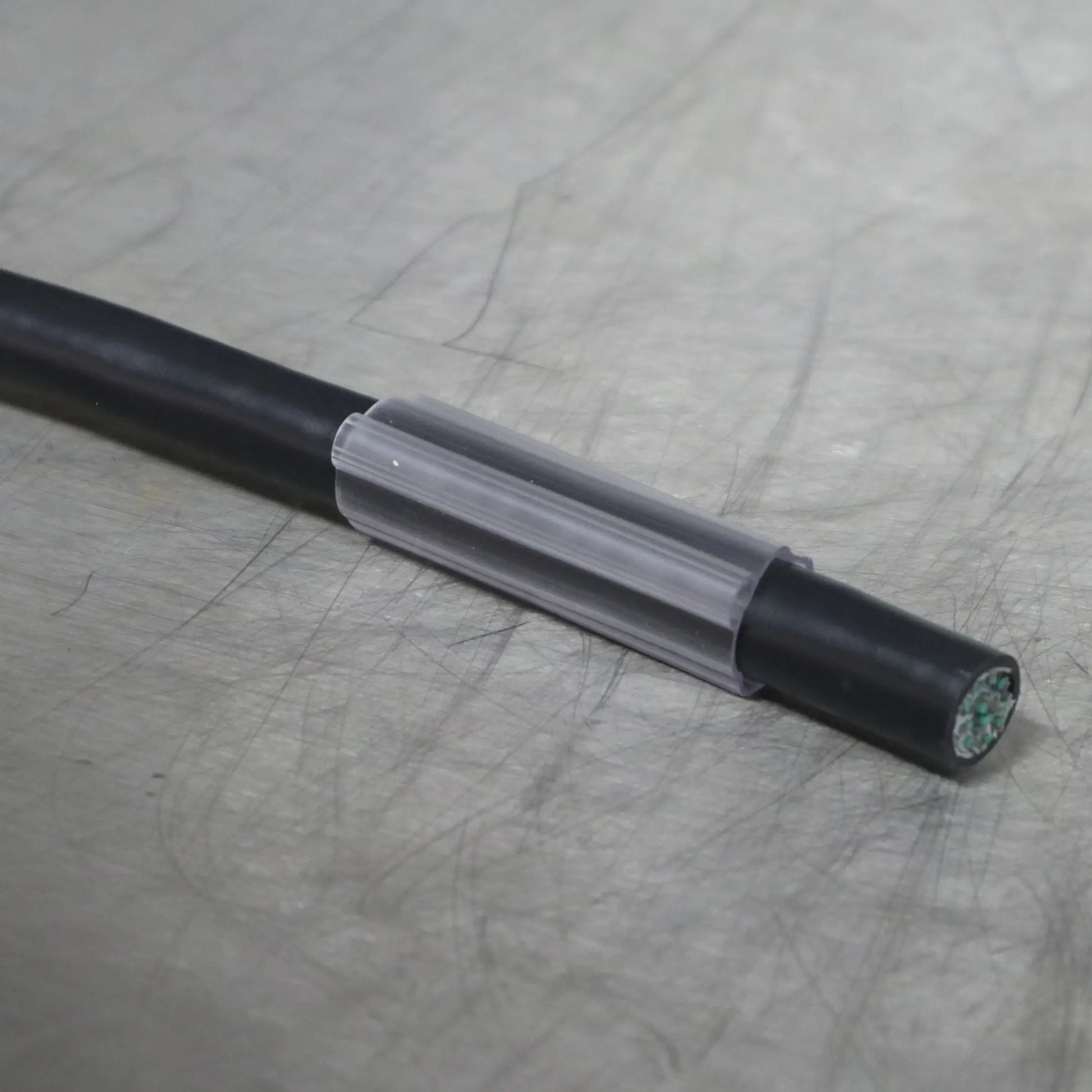

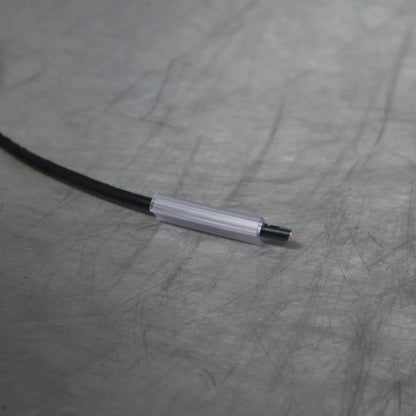

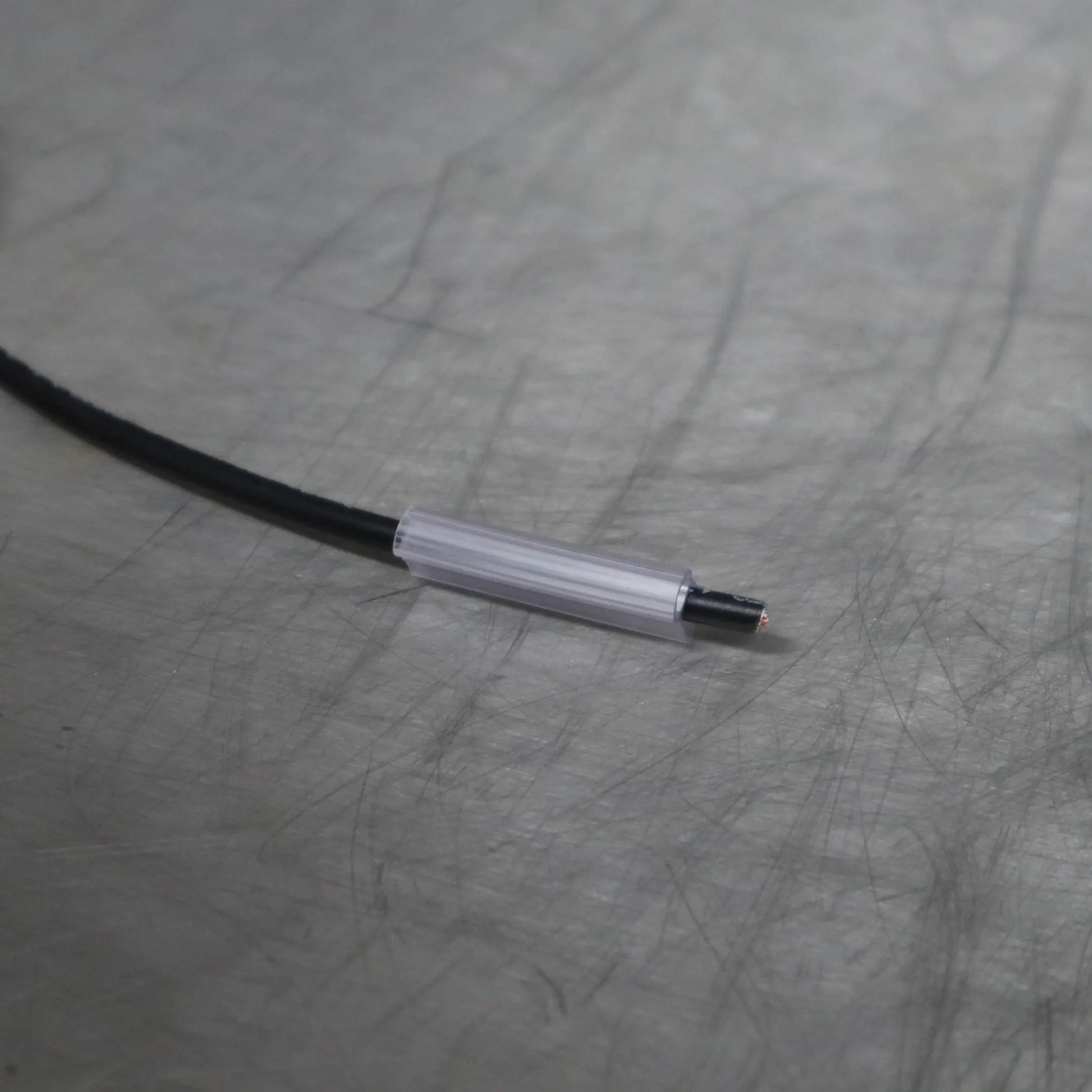

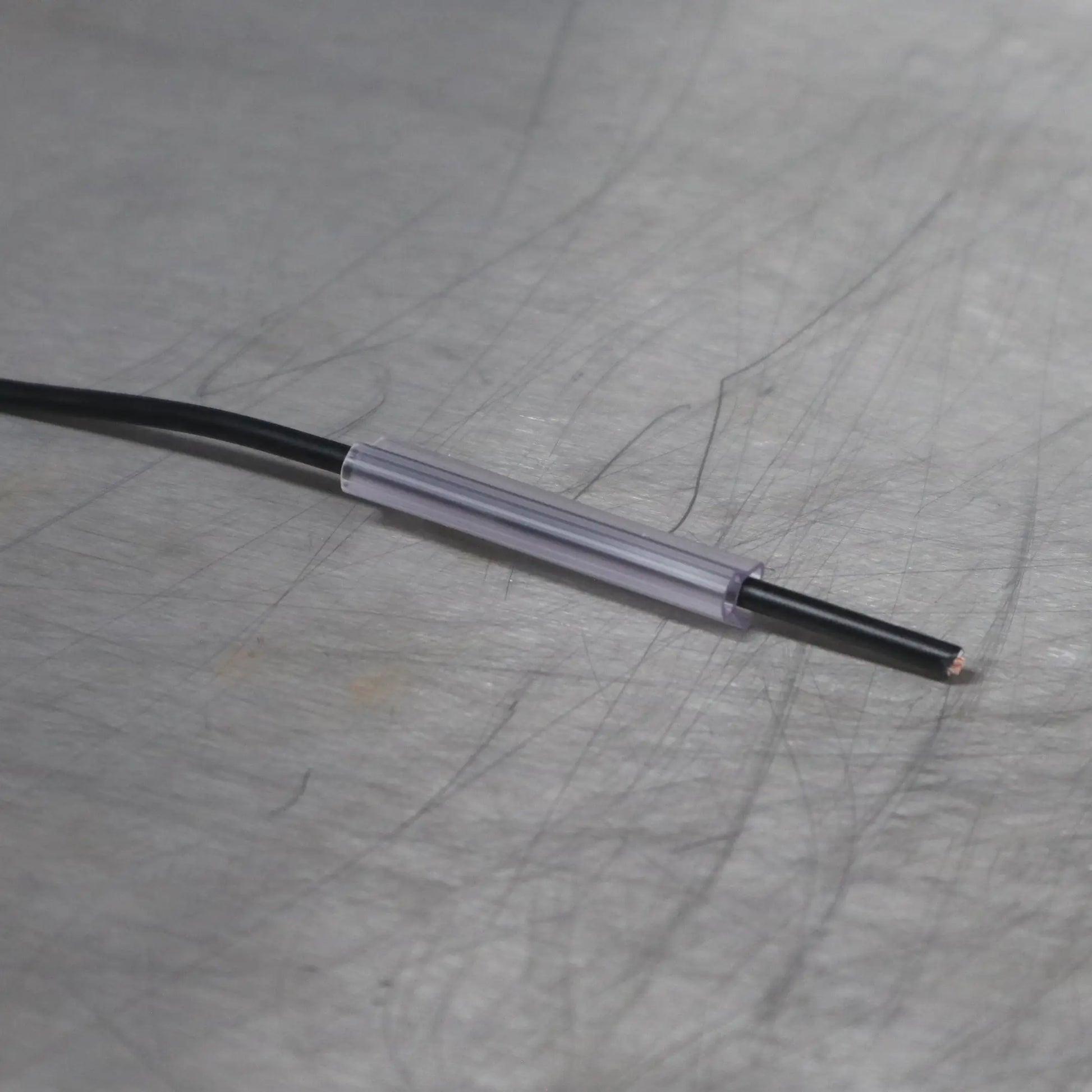

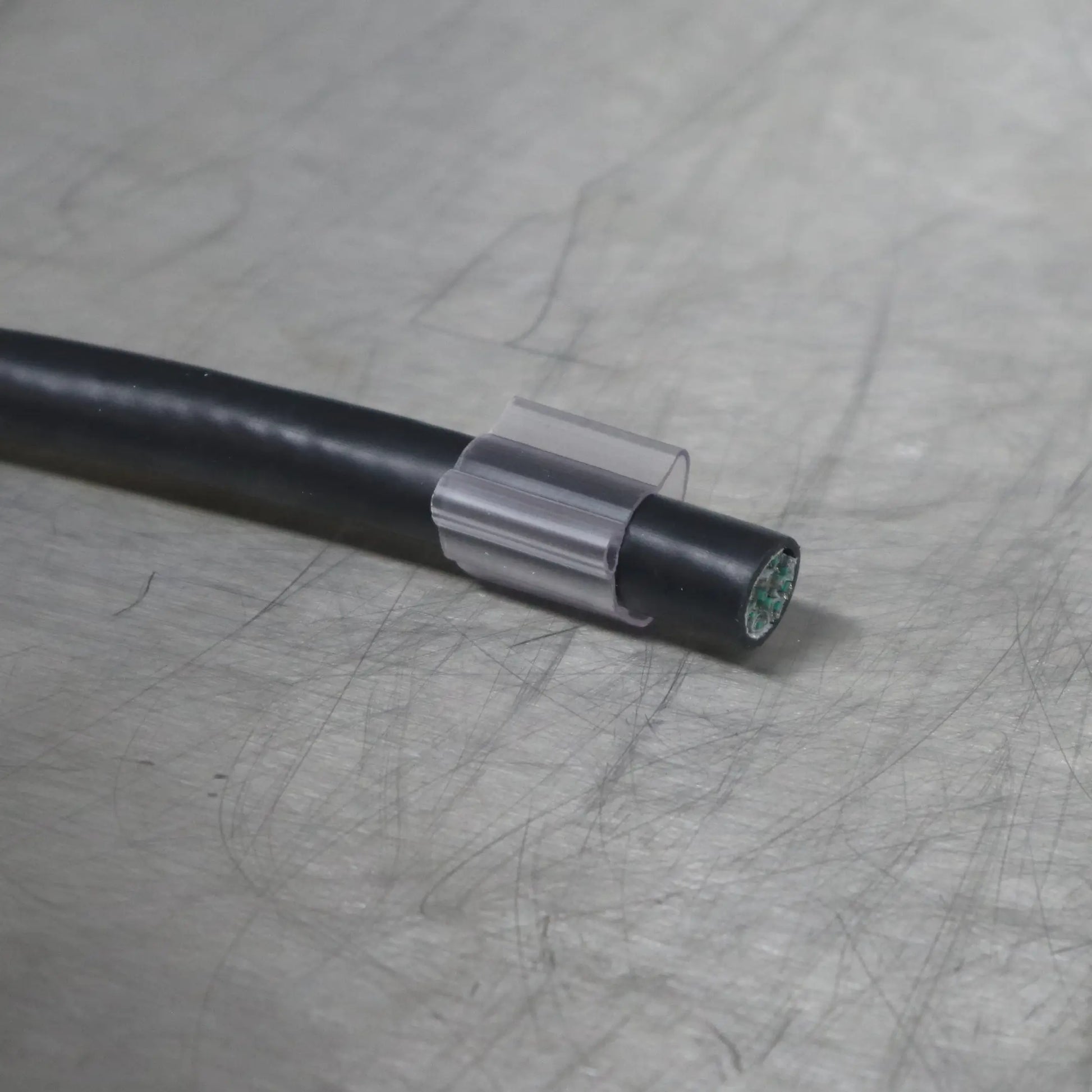

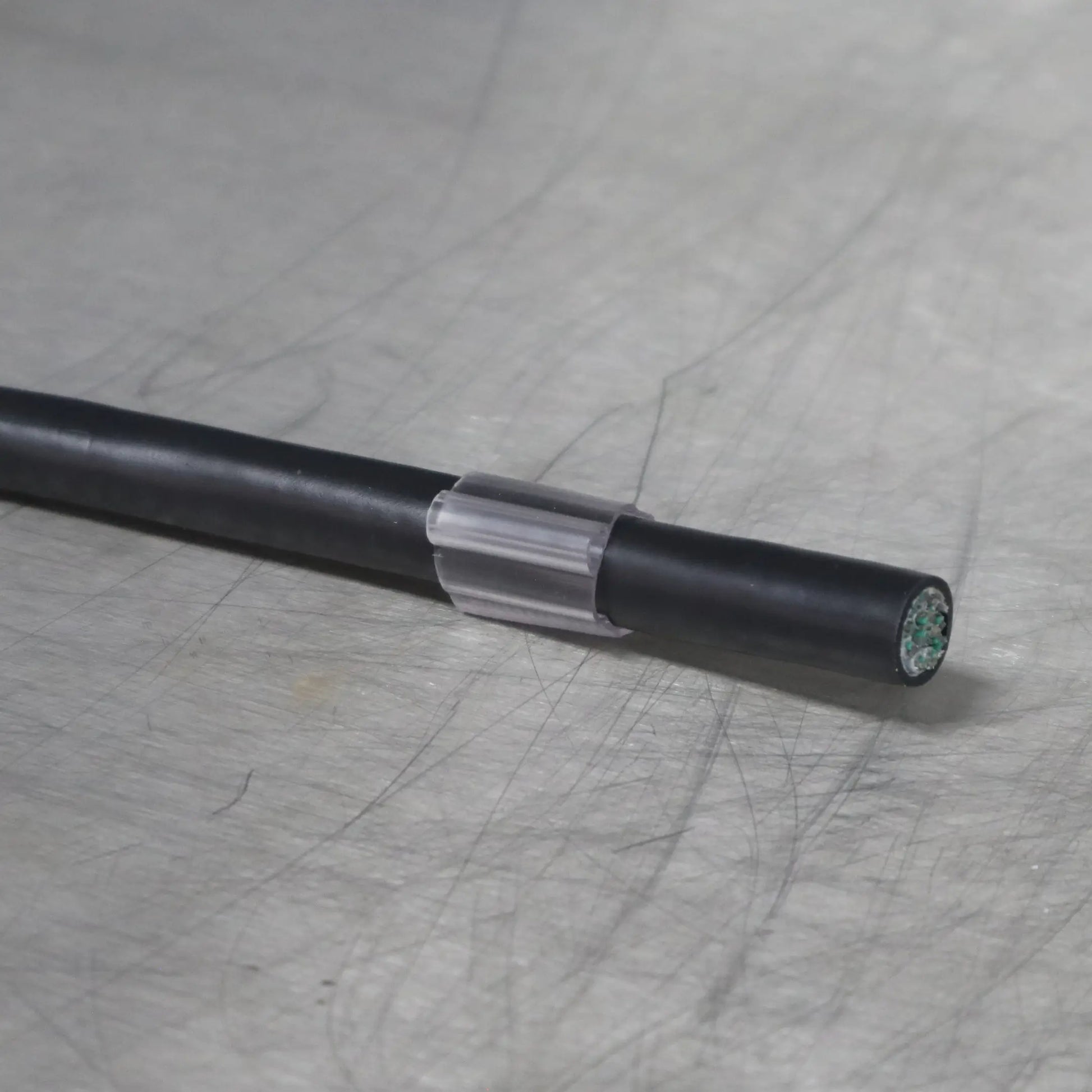

    Choice of 3 lengths: 20mm, 30mm and 50mm. Tubing is available in various sizes depending on the diameter of the cable; whatever the size, it still takes the same label.

  • Change Terminated Idents

    Due to this special design, it is possible to slide blank tubing onto the wire prior to termination. The label can then be inserted at any time during or after termination. The longer the label, the more characters that can be printed.

  • Manufactured in-house in the UK

    We take pride in our in-house manufacturing facility located right here in the UK. By producing locally, we can ensure fast turnaround times from production to delivery.

Technical Information

Material Specification

  • Material: PVC

Available Diameters

  • Available in 3 lengths; 20mm, 30mm and 50mm and a wide variety of diameters for each length.

Product Testing

  • Moisture Resistance: MIL-STD-202G Method 106G
  • Low Temperature: 72 hours @ -40°C MIL-STD-810F Method 502.4
  • High Temperature: 500 hours @ 70°C MIL-STD-202G Method 108A
  • Hydrogen Sulphide: H2S Sour Gas Exposure (2% H2S)
  • UV Weathering: 500 hours* ISO 4982 Part 3 Method A Cycle 1
  • Salt Mist Spray: IEC60068-2-52 Test Kb Salt Mist (Cyclic)
  • Flammability: class (UL94): V2

*Limited external applications generally away from direct sunlight but may be suitable

in control boxes etc. Labels generally for internal use such as, control rooms, power

stations, substations etc

Printing & Software Requirements

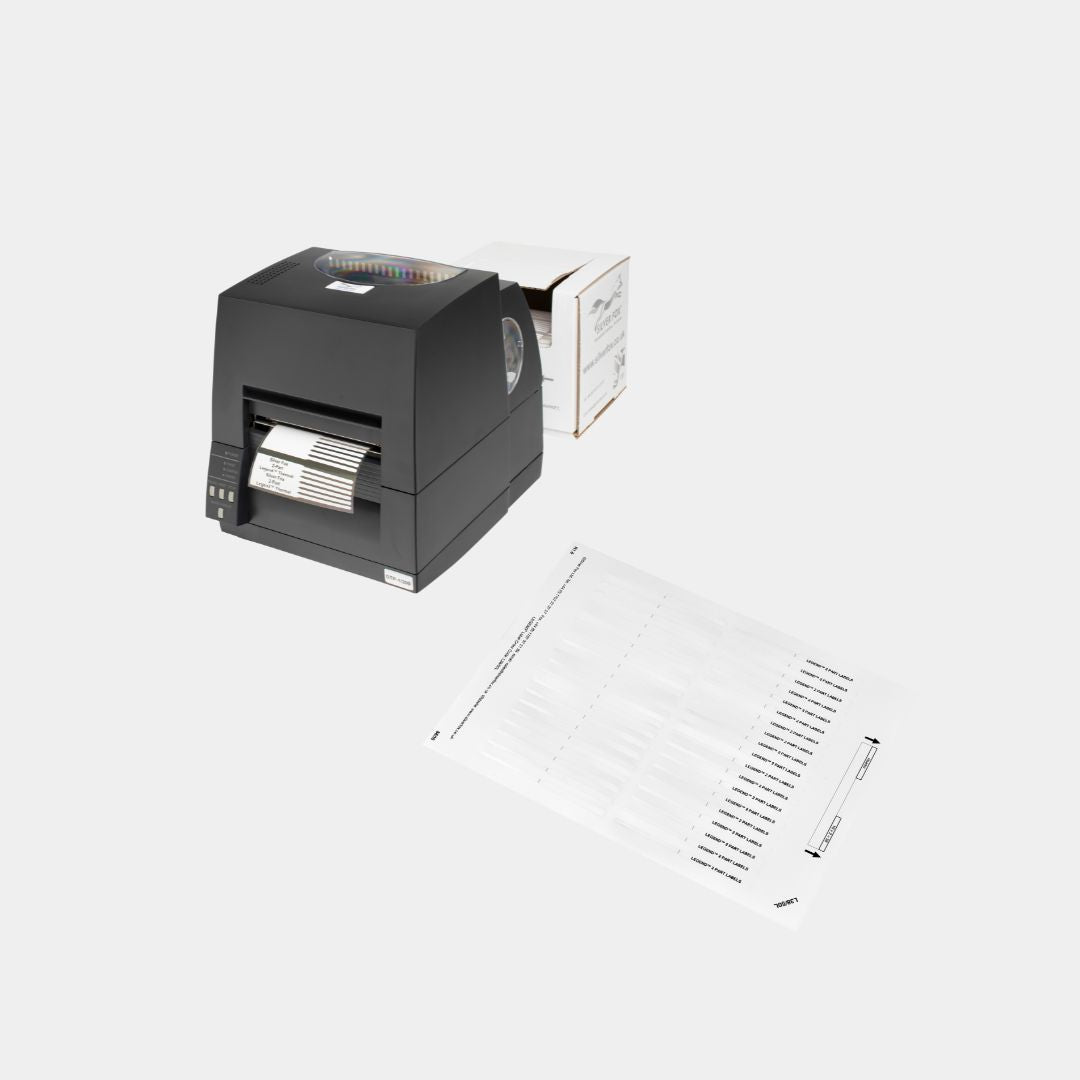

The Silver Fox Legend™ 2-part labelling system label available in both laser and thermal printable formats fits inside our 2-part labelling system tube which acts as a carrier and also protects the ident.

Available Colours

  • Clear

Storage Instructions

  • Storage Instructions: Store between 50ºF (10ºC) and 77ºF (25ºC)
  • Conditions: Keep in dark conditions
  • Humidity Resistance: 35% to 65% RH

Typical Applications

Typical uses include; sub-stations, control rooms or any application where the ID is likely to need frequent changes.

Purchase Legend™ 2-Part Tubing

How to use the 2-Part System

Clear tubing for use with the 2-part labelling system. The tubing acts as both the carrier and protector for the label. The tail of the label is pulled through the tube then torn or cut after insertion leaving the label in the tube. For more information call our Sales Team on +44 (0)1707 37 37 27 or email sales@silverfox.co.uk
