FOX-IN-A-BOX® RANGE

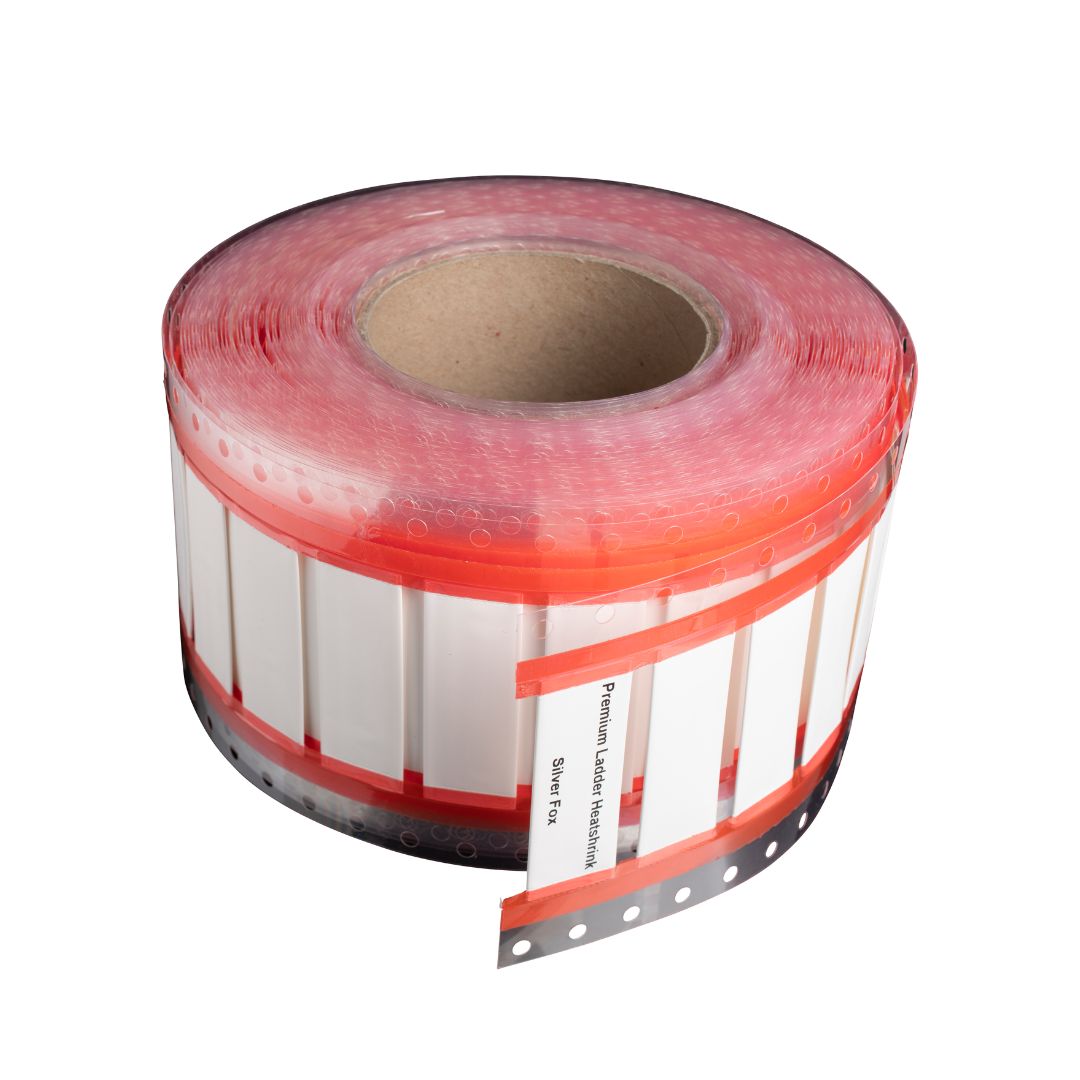

Legend™ Premium Ladder Heatshrink Cable Markers

Legend™ Premium Ladder Heatshrink Cable Markers

Regular price £353.40 GBP
Regular price Sale price £353.40 GBP
Sale Sold out

Legend™ Premium Ladder Heatshrink are shrinkable markers that are conveniently supplied in a ladder style format. With our bio-degradable all-in-one delivery, storage and dispenser boxes they can be rapidly printed with Silver Fox’s premium Fox-in-a-Box® thermal printer.

  • 3:1 shrink ratio
  • Low minimum shrink temperature
  • Self-extinguishing material
  • Available in yellow & white
  • Available in continuous roll format

*Barcoding/QR Coding/Graphics functionality is available via the Professional level Fox-in-a-Box®

SKU:SKU: LHS/L50/24-8T(PF)Y | Labels Per Roll: 250

View full details
1 of 5

FOX-IN-A-BOX® RANGE

Efficient Ladder Format

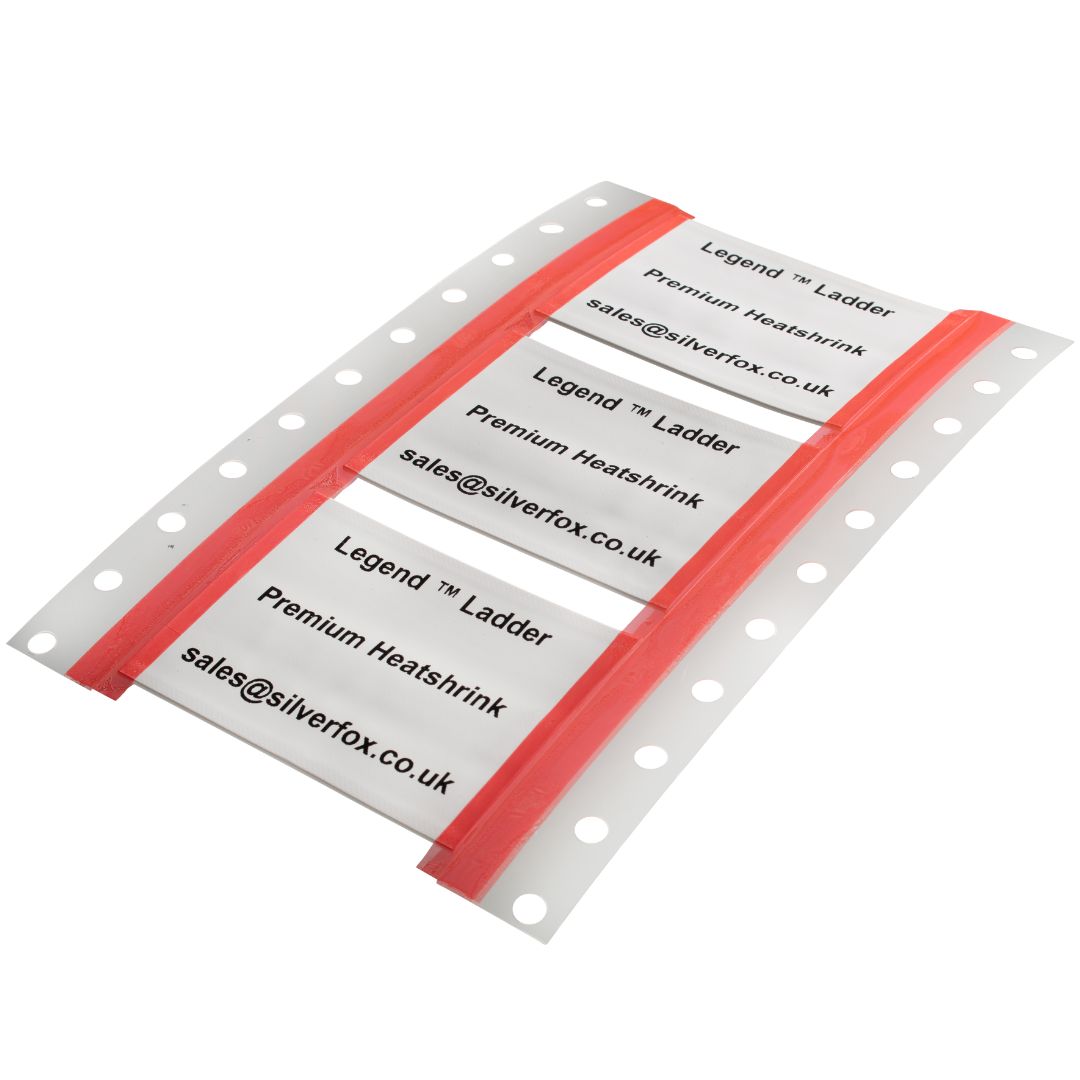

With the ladder style format you can choose a predetermined 25mm or 50mm ident length that is supplied within a format that retains its structure, so that you can pull individual idents within a printed sequence.

Purchase Legend™ Premium Ladder Heatshrink >
  • 3:1 shrink ratio

    With a 3:1 shrink ratio each size covers a wider range of cable diameters. Specially designed with a lower minimum shrink temperature, saving you time when shrinking onto your cable.

  • Expertly Design with Labacus Innovator

    With the 25mm width ladder style heat shrink you can print two idents at once cutting printing efforts in half.

  • Range of Diameters

    Choose from an extensive range of diameters and colours to create a labelling system that aligns perfectly with your businesses needs and application environment.

And that's not all!

  • Includes free of charge training
  • Includes free of charge support
  • Includes free of charge software updates

Technical Information

Material Specification

  • Flame retardant single wall matt polyolefin
  • Shrink ratio: 3:1
  • Dielectric strength: ≥ 37kV/mm
  • Minimum shrink temperature: 90°C (194°F) – fully recovered
  • Operating temperature: -55°C to 135°C (-67°F to 275°F)

Available Dimensions

  • Cable Shrink Diameter Ø (mm): 2.4-1.2, 3.2-1.6, 4.8-2.4, 6.4-3.2, 9.5-4.8, 12.7-6.4, 19.1-9.5, 25.4-12.7, 38.1-19.1

Product Testing

  • Reach Compliant: Yes
  • Successfully tested for High & Low Temperature
  • Salt Mist Spray according to Lloyds Register Type Approval System.
  • Successfully tested for 3000 hours accelerated UV ageing.
  • Standards: UL 224 125°C (257°F) 600V VW-1 (File No. E48762)
  • CSA C 22.2 No. 198.1: 125°C (257°F) 600V VW-1

Printing & Software Requirements

  • To achieve the best printing results, we recommend using a Fox-in-a-Box® DTP-1 thermal printer along with TSR3/300 thermal transfer ribbons.
  • Print via Fox-in-a-Box® thermal printer using ‘One software, One printer, One ribbon’ for our complete range of thermal labels.

*We are often asked whether the print will shrink when the tubing shrinks. Like all heatshrink yes, it does. Suggested ways to minimise the reduction in print size: Shrink the tubing from the reverse side to the printing. Some customers also advise using a font like Arial Narrow.

**For more information call our Sales Team on +44 (0)1707 37 37 27 or email sales@silverfox.co.uk

Available Colours

  • Yellow & White

Storage Instructions

  • Storage Instructions: Store between 50ºF (10ºC) and 77ºF (25ºC)
  • Conditions: Keep in dark conditions
  • Humidity Resistance: 35% to 65% RH

Printable Areas

  • LEGEND™ Ladder Premium Heatshrink Ø 12 - 4 | LHS/L50/12-4T: 50 x 19.5mm
  • LEGEND™ Ladder Premium Heatshrink Ø 24 - 8 | LHS/L50/24-8T: 50 x 39mm
  • LEGEND™ Ladder Premium Heatshrink Ø 3 - 1 | LHS/L50/3-1T: 49 x 4.8mm
  • LEGEND™ Ladder Premium Heatshrink Ø 39 - 13 | LHS/L50/39-13T: 49 x 64mm
  • LEGEND™ Ladder Premium Heatshrink Ø 4.8 - 1.6 | LHS/L50/4.8-1.6T: 49 x 7.5mm
  • LEGEND™ Ladder Premium Heatshrink Ø 6 - 2 | LHS/L50/6-2T: 50 x 9mm

FOX-IN-A-BOX® RANGE

Typical Applications

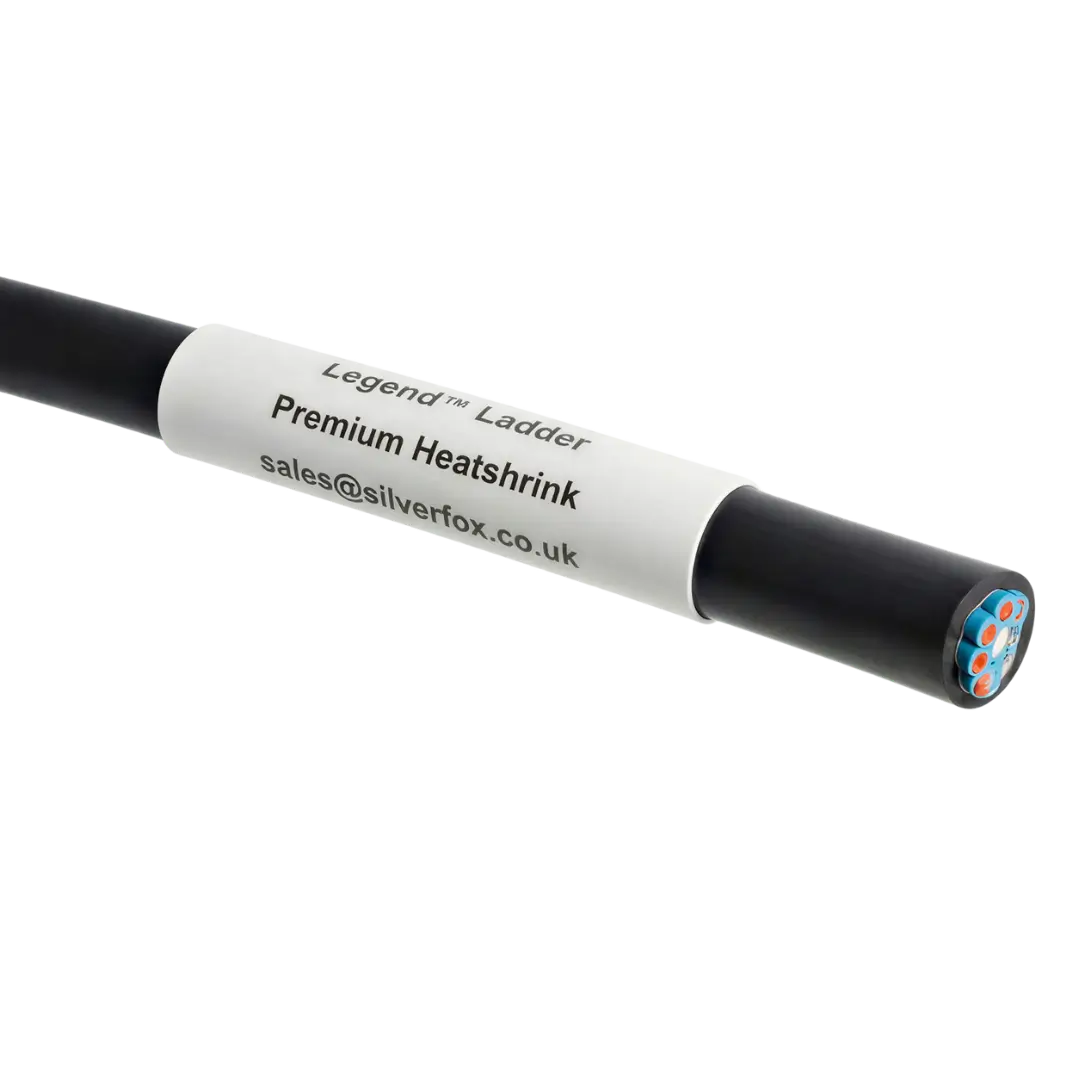

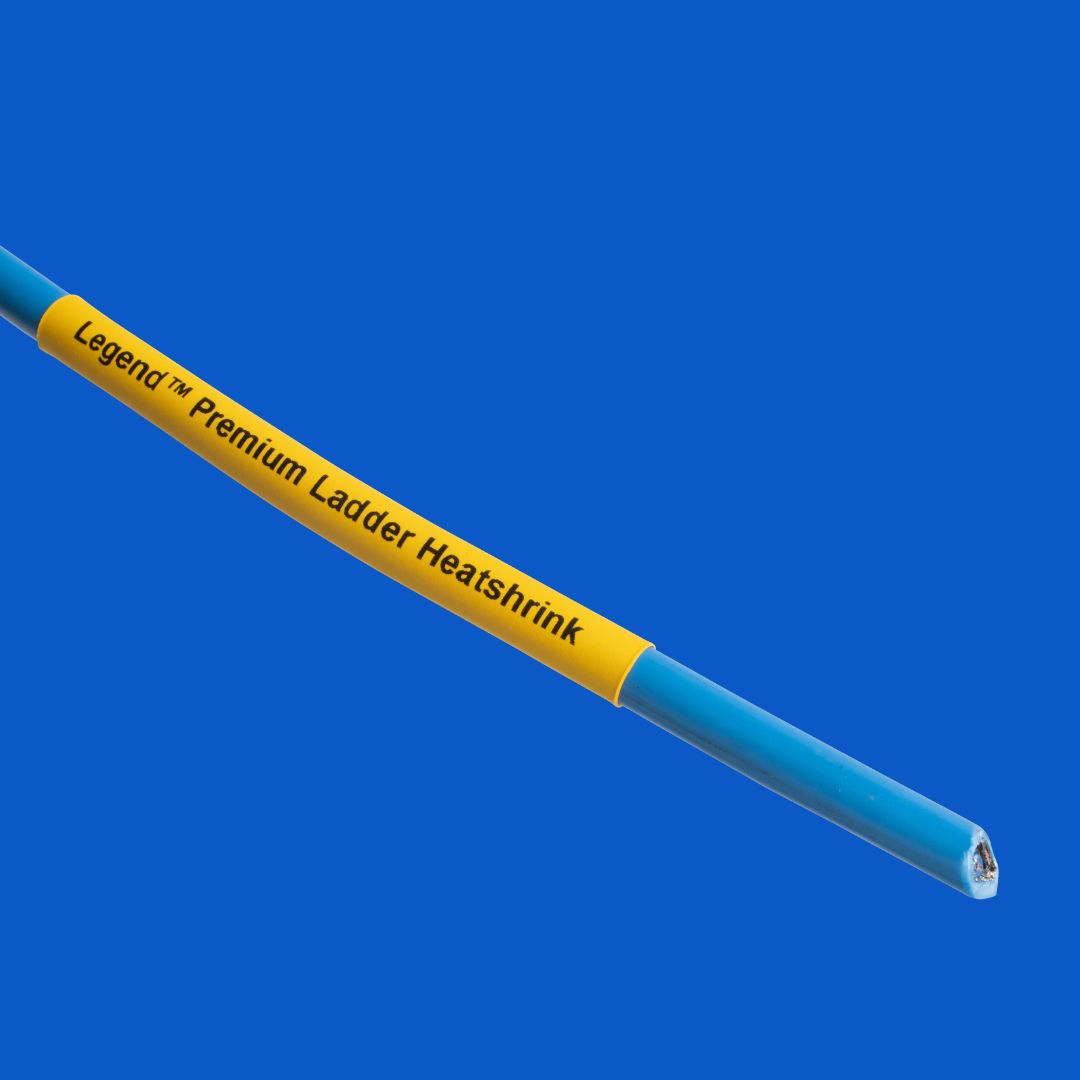

Heatshrink markers are highly adaptable and tolerant to elevated temperatures. They can conform to the shape of the cable or wire, providing a secure fit. This is particularly useful in environments where cables may be subject to movement or vibration.

Purchase Legend™ LSZH Heatshrink Rolls >

How to load Legend™ Premium Ladder Heatshrink

FOX-IN-A-BOX® RANGE

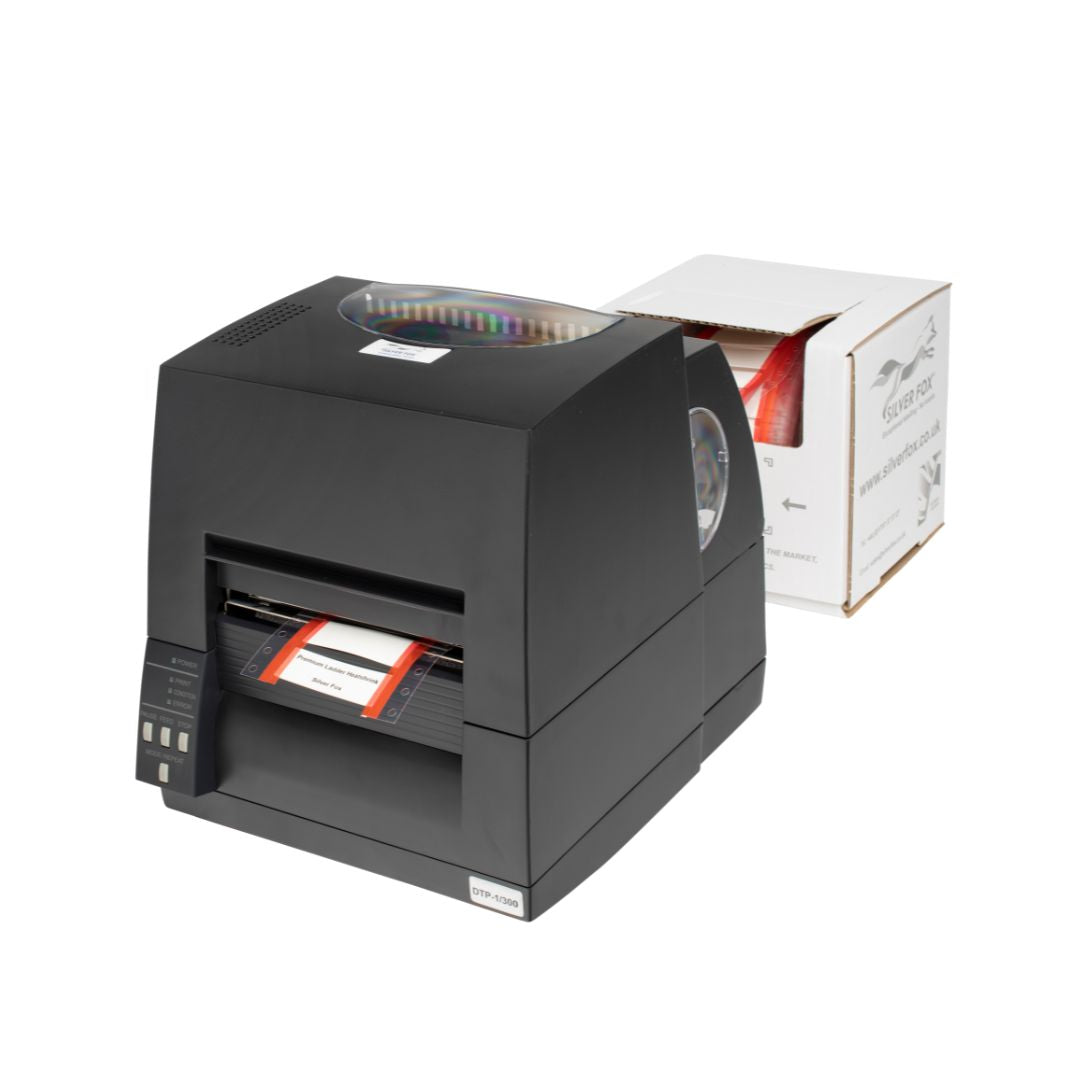

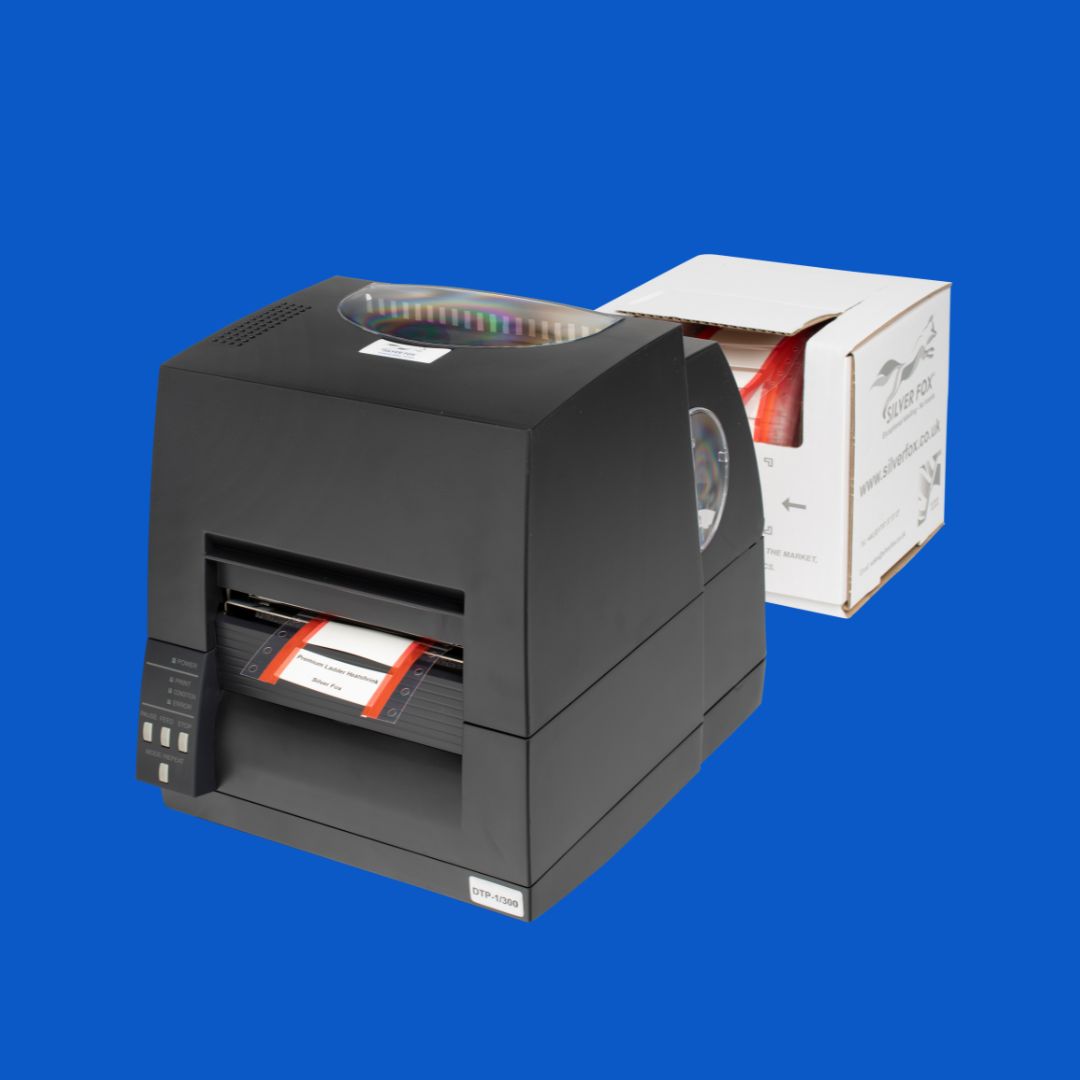

Print via the Fox-in-a-Box®

Designed for seamless compatibility, the Fox-in-a-Box® integrates with the Legend™ heatshrink range, ensuring optimal printing results. With the included Labacus Innovator® software, you can easily design and customise your labels, incorporating essential information, symbols, and barcodes.
