Prolab® Laser Fibre Optic Flag labels
Prolab® Laser Fibre Optic Flag labels

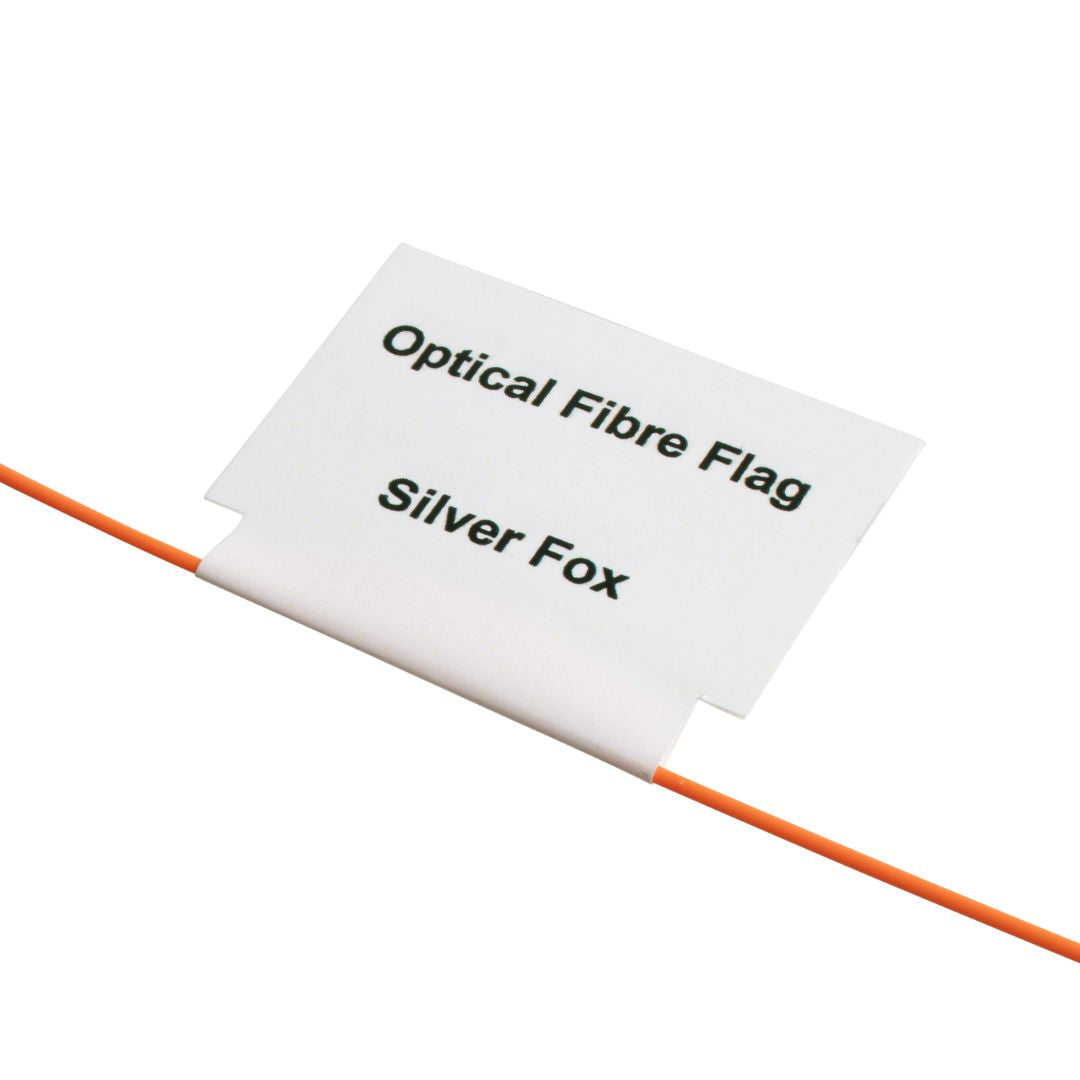

The Prolab® self-adhesive optical fibre flag labels are designed to be used on individual optical fibres. These polyester labels incorporate a strong acrylic adhesive to ensure long term bonding to the cable. Supplied as A4 sheets for convenient printing through any ordinary office laser printer with its normal cartridge.
- Laser Printable A4 Sheets
- Unique design for easy alignment
- Pre-cut for rapid removal from sheet
- Super strength acrylic adhesive
- Print both sides of the wire
Download Datasheet Here
*Barcoding/QR Coding/Graphics functionality is available via the Professional level Labacus Innovator®
SKU:PF/3225L(10) | Labels Per Pack: 240
Couldn't load pickup availability
The Prolab® Range is Trusted by...
-
Unique shoulder design for easy alignment
-
Print both side of the label
-
No special equipment required
Technical Information
Material Specification
- Material: 36 micron self-adhesive polyester
- Release liner: 94 micron kraft paper
Available Dimensions
- Label Dimensions (mm): 10 x 20, 30 x 20, 32 x 25
*Available in packs of 10 or 100 sheets
Product Testing
- Low Temperature* MIL-STD-810F Method 502.4 - 72 hours @ -40°C
- Elevated Temperature MIL-STD-202G Method 108A - 1000 hours @ 85°C
- Hydrogen Sulphide H2S Sour Gas Exposure (2% H2S)
- UV Weathering ISO 4982 Part 3 Method A Cycle 1 - 500 hours
- Salt Mist Spray IEC60068-2-52 Test Kb Salt Mist (Cyclic)
Printing & Software Requirements
- Print with your standard office laser printer.
- Labacus Innovator® Basic/Advanced/Professional - Windows Only
- All templates included in Labacus Innovator® Software. To trial labels, no need to buy software. Download FOC Lite software (includes 3 days trial FOC of Basic/Advanced/Professional levels).
*For more information call our Sales Team on +44 (0)1707 37 37 27 or email sales@silverfox.co.uk
Printable Areas
- PROLAB® Fibre Flag Label - 10x20 Laser | PF/1020L: 19mm x 9mm
- PROLAB® Fibre Flag Label - 30x20 Laser | PF/3020L: 29mm x 19mm
- PROLAB® Fibre Flag Label - 32x25 Laser | PF/3225L: 31mm x 24.5mm
Available Colours
- White
Storage Instructions
- Storage Instructions Store between 50ºF (10ºC) and 77ºF (25ºC)
- Conditions Keep in dark conditions
- Humidity Resistance 35% to 65% RH
LASER RANGE
Typical Applications
The Prolab® self-adhesive optical fibre flag labels are designed to be used on individual optical fibres.
Why should you choose our laser labels?
LASER RANGE
Print With Your Office Laser Printer & Labacus Innovator® Software
Since no special equipment is required, up to 75 labels can be printed in 20 seconds (the time it takes for the sheet to run through the printer) - using this solution is simple and fast.
