Prolab® Laser Self-Laminating Wrap-Around Cable Labels
Prolab® Laser Self-Laminating Wrap-Around Cable Labels
Prolab® polyethylene self-laminating wrap-around labels incorporate a strong, long-lasting acrylic adhesive and are ideal for data cabling. Supplied as A4 sheets for convenient printing through any ordinary office laser printer with its normal cartridge.
- Laser Printable A4 Sheets
- Large print areas available
- Strong acrylic adhesive
- Available for multiple diameters
- Resistor colour coding with a colour laser printer and the Advanced or Professional Labacus Innovator® Software
Download Datasheet Here
*Barcoding/QR Coding/Graphics functionality is available via the Professional level Labacus Innovator®
When printing with the Labacus Innovator® software, the user will receive the following, free of charge:
- Remote training to get you up and running as soon as possible.
- Ongoing remote support to ensure you hit your project deadlines.
- Feature updates to future-proof your investment so you stay on trend and don't need to buy a new solution next year.
SKU:P05/2508L(10)W | Labels Per Pack: 800
Couldn't load pickup availability
The Prolab® Range is Trusted by...
LASER RANGE
Print With Your Office Laser Printer & Labacus Innovator® Software

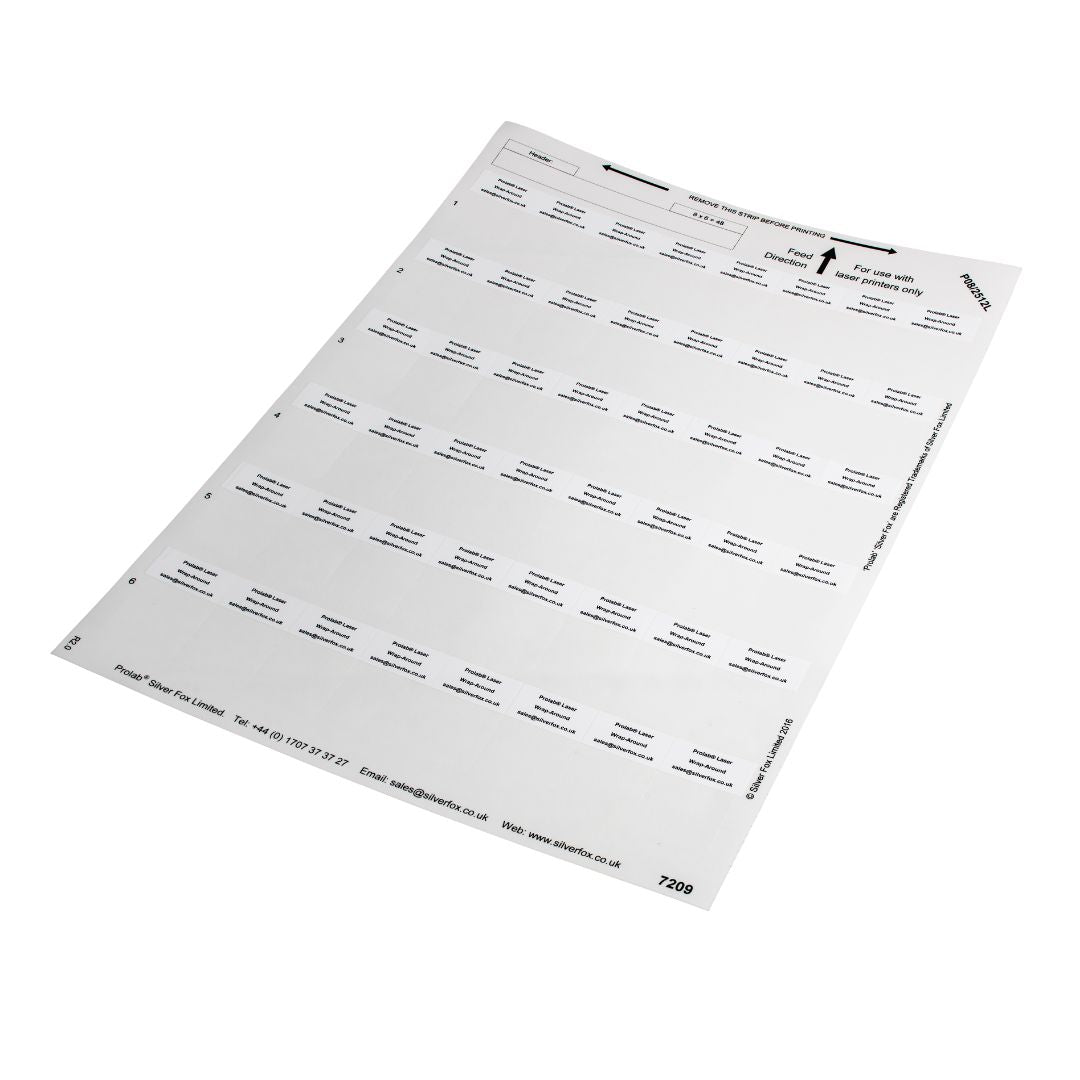

Print up to 90 labels in the same time it takes to print a piece of paper. Supplied in pre-perforated A4 sheets, the labels can then be easily removed from the sheet by folding along the perforations.
-
Print All Around The Cable

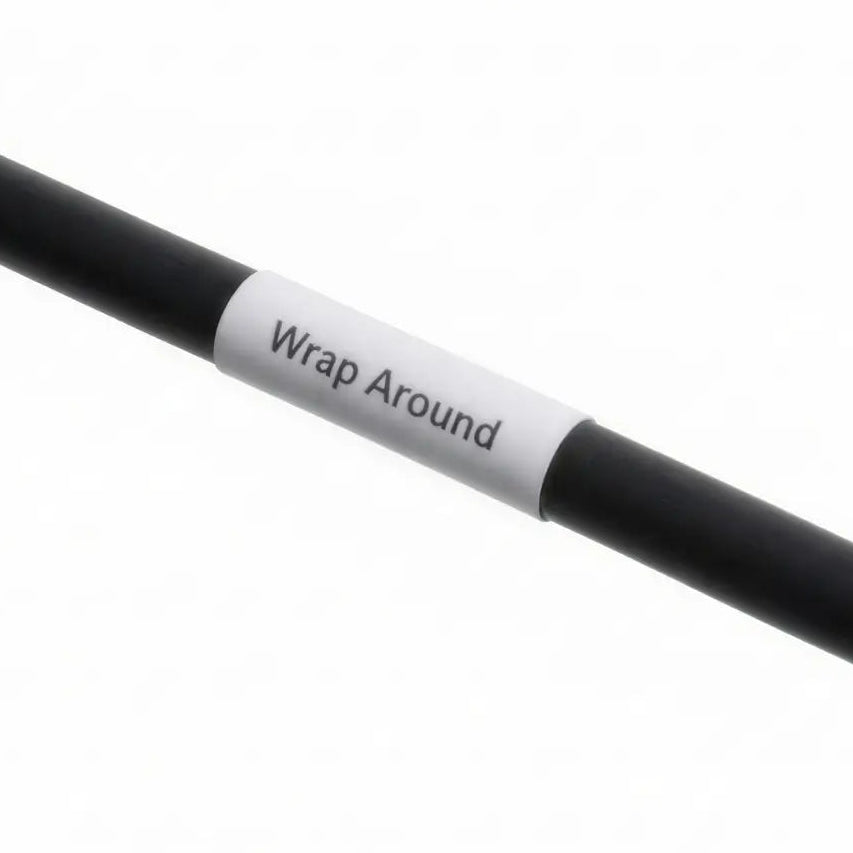

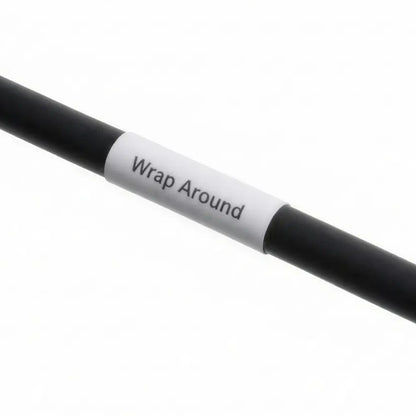

By choosing the labels with the deeper print areas such as the P06/2419L this allows you to print your ID all around a 6 mm wide cable.
-
Multiple Diameters & Print Areas
The labels incorporate a highly opaque printable area ensuring excellent levels of clarity for your message whatever the colour of the cable. Offer both 25mm and 50mm width labels the latter is useful for longer ID’s.
-
Print Resistor Colour Coding
Uniquely the Advanced and Professional levels of Labacus Innovator® Software allow labels to be printed with resistor colour coding - colour laser printer required.
Technical Information
Material Specification
- Polyester
- Thickness: 25 micron
- Sheet Size: A4
Available Dimensions
- Cable OD Ø (mm): 13-17, 17-20, 4-5, 6-8, 36, 5, 5-6, 5-8, 5-13, 8-13, 8-17, 10-20
- Printable Area (mm): 25×8, 25 x 19, 12 x 12, 25 x 12, 50 x 12, 25 x 20, 50 x 20, 25 x 25
*To help you identify the label size. You require, the maximum cable ODØ diameter and printable area are included in the order code e.g.; P08/2512L
Cable ODØ = 8mm Printable area
**Available in packs of 10 or 100 sheets
Product Testing
- Independently tested to 85°C for 1000 hours.
- Tested for Salt Mist Spray according to Lloyds Register Type Approval System.
- Low Temperature MIL-STD-810F Method 502.4 - 72 hours @ -40°C
- Elevated Temperature* MIL-STD-202G Method 108A - 2000 hours @ 70°C to 100°C
- H2S Sour Gas Exposure (2% H2S)
- UV Weathering ISO 4982 Part 3 Method A Cycle 1 - 500 hours*
- Salt Mist Spray IEC60068-2-52 Test Kb Salt Mist (Cyclic)
- Reach Compliant: Yes
Printing & Software Requirements
- Print with your regular office laser printer
- Labacus Innovator® Basic/Advanced/Professional - Windows Only
- All templates included in Labacus Innovator® Software. To trial labels, no need to buy software. Download FOC Lite software (includes 3 days trial FOC of Basic/Advanced/Professional levels).
*For more information call our Sales Team on +44 (0)1707 37 37 27 or email sales@silverfox.co.uk
Printable Areas
- PROLAB® Self-Lam Cable Label =<5mm - 25x8 | P05/2508L: 22 x 7.2mm
- PROLAB® Self-Lam Cable Label =<6mm - 25x19 | P06/2519L: 22.5 x 17mm
- PROLAB® Self-Lam Cable Label =<8mm - 12x12 | P08/1212L: 11.5 x 12mm
- PROLAB® Self-Lam Cable Label =<8mm - 25x12 | P08/2512L: 22.5 x 10mm
- PROLAB® Self-Lam Cable Label =<8mm - 50x12 | P08/5012L: 46 x 10mm
- PROLAB® Self-Lam Cable Label =<13mm - 25x20 | P13/2520L: 22 x 18mm
- PROLAB® Self-Lam Cable Label =<13mm - 50x20 | P13/5020L: 48 x 19mm
- PROLAB® Self-Lam Cable Label =<17mm - 25x25 | P17/2525L: 22 x 23mm
- PROLAB® Self-Lam Cable Label =<20mm - 25x20 | P20/2520L: 23 x 18.5mm
- PROLAB® Self-Lam Cable Label =<20mm - 50x20 | P20/5020L: 46 x 18mm
- PROLAB® Self-Lam Cable Label =<36mm - 25x12 | P36/2515L: 23.5 x 14mm
Available Dimensions
Depending on size - up to 5 colours available: White, Yellow, Blue, Red & Green.
Storage Instructions
- Storage Instructions Store between 50ºF (10ºC) and 77ºF (25ºC)
- Conditions Keep in dark conditions
- Humidity Resistance 35% to 65% RH
LASER RANGE
Typical Applications
Typical applications include: LAN’s, Data Centres, and Industrial Ethernet as well as marine data applications.
Why should you choose our laser labels?
LASER RANGE
Print on Standard Office Laser Printer
Since no special equipment is required, up to 90 labels can be printed in 20 seconds (the time it takes for the sheet to run through the printer) - using this solution is simple and fast.
