Silver Fox Limited
Endurance® Acrylic Laser Engraved Patch Panel Labels
Endurance® Acrylic Laser Engraved Patch Panel Labels

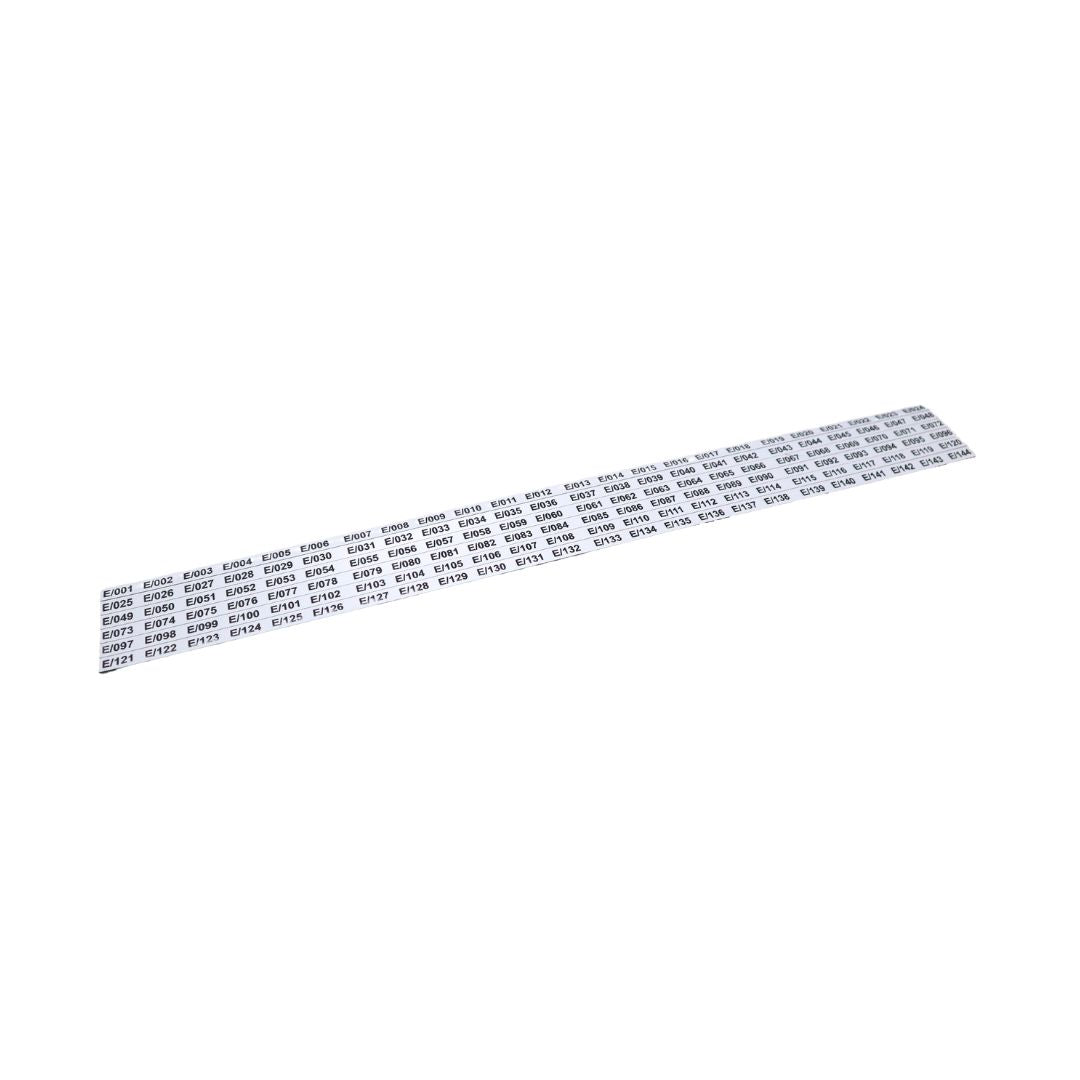

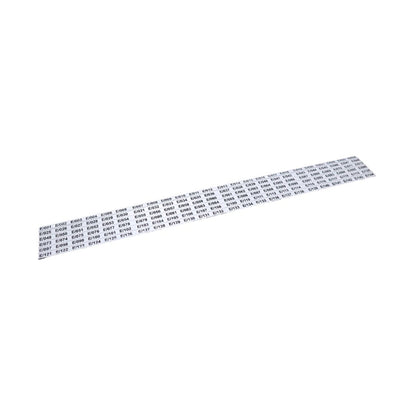

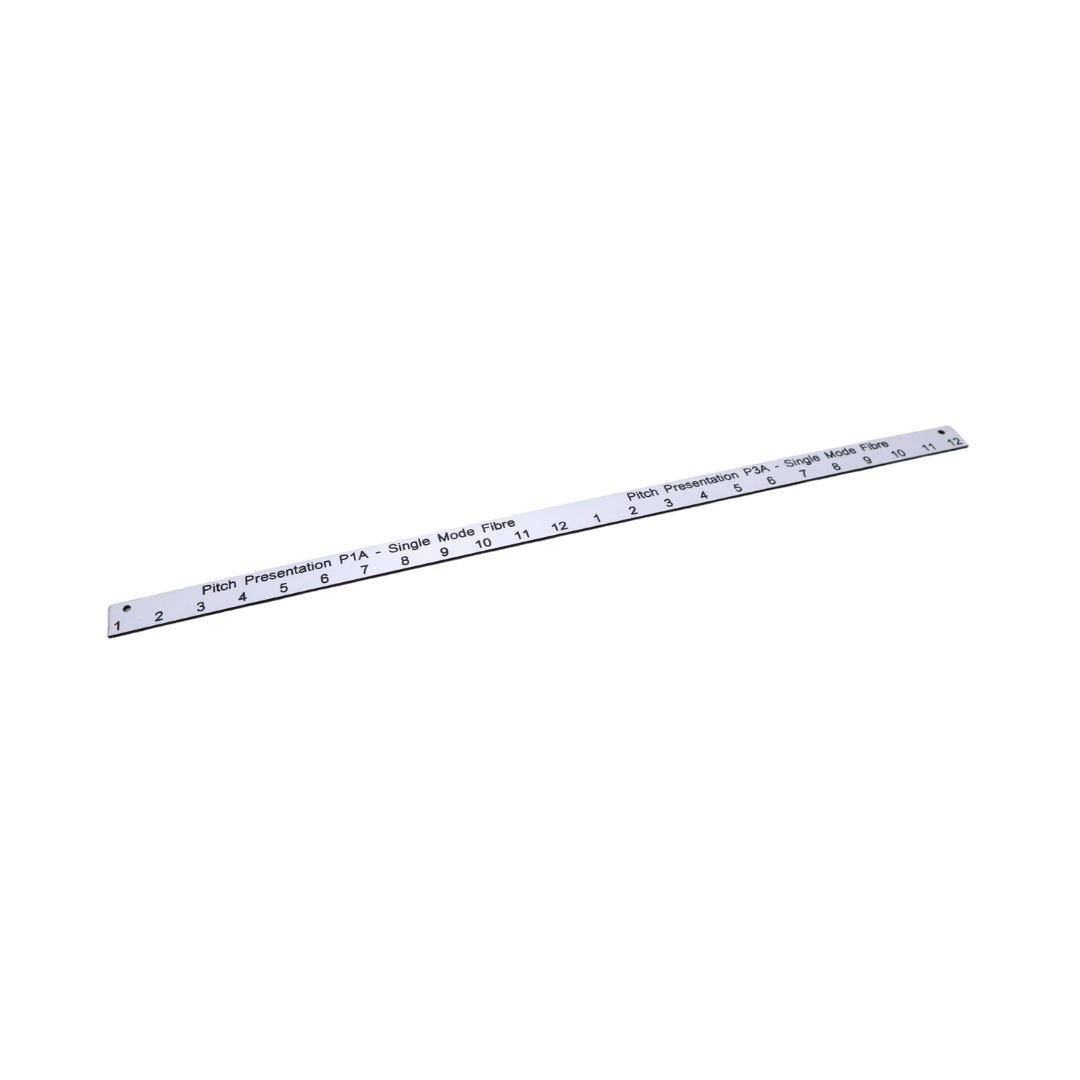

Endurance® Acrylic Laser Engraved Labels are an extremely durable factory produced tie-on cable label. We can produce them with whatever information is required, in one or more lines and with different font styles/sizes (even on the same label).
- 8000 hours accelerated UV testing
- 2 thicknesses available; 0.5mm and 1.6mm
- Available in a range of colour options
- High quality acrylic with a self-adhesive backing
- Screw holes can be added if required
Download Datasheet Here
The Endurance® Range is Trusted by...
Time Saving with Endurance® Laser Engraved
They are produced in our factory to your exact requirements and we can produce them with whatever information is required, in one or more lines and with different font styles/sizes (even on the same label).
-
8000 Hours Accelerated UV
Our Endurance® Laser Engraved labels have been shown to withstand prolonged exposure to sunlight for 8000 accelerated UV hours, which is equivalent to 12-15 years in a Northern European climate.
-
Bespoke to your requirements
We take pride in our in-house manufacturing facility located right here in the UK. By producing locally, we can ensure fast turnaround times from production to delivery and ensure that the labels meet your exact requirements.
-
Range of colours and sizes
There are 2 thicknesses available; 0.5mm and 1.6mm in a range of colour options depending on thickness.
How Silver Fox’s Endurance® Laser Engraved Labels Saved Deploy Over £10000+
Technical Information
Material Specification
- Material: Acrylic
- Thickness: 0.5mm (0.020″) or 1.6mm (0.063″)
- Adhesive: High-tack acrylic adhesive
- Temperature Tolerance: 70°C (158°F)
- Engraving: Laser engraved
Available Dimensions
- There are 2 thicknesses available; 0.5mm and 1.6mm in a range of colour options depending on thickness.
Product Testing
- Reach: Reach Compliant
- Low Temperature: MIL-STD-810F Method 502.4 - 72 hrs @ -40°C
- Elevated Temperature*: MIL-STD-202G Method 108A - 1000 hrs @ 70°C
- H2S Sour Gas: Exposure (2% H2S)
- UV Weathering: ISO 4982 Part 3 Method A Cycle 1 - 8000 hrs
- Salt Mist Spray: IEC60068-2-52 Test Kb Salt Mist (Cyclic)
Printing Requirements
- Factory produced to your exact requirements.
*We can also supply both stainless steel and plastic cable ties. These can also be pre-mounted onto the labels.
**For more information call our Sales Team on +44 (0)1707 37 37 27 or email sales@silverfox.co.uk
Available Colours
Popular colours (depending on thickness) include:
- Black Print (White Background)
- Red Print (White Background)
- Black Print (Yellow Background)
- White Print (Red Background)
- White Print (Green Background)
- White Print (Blue Background)
Typical Applications

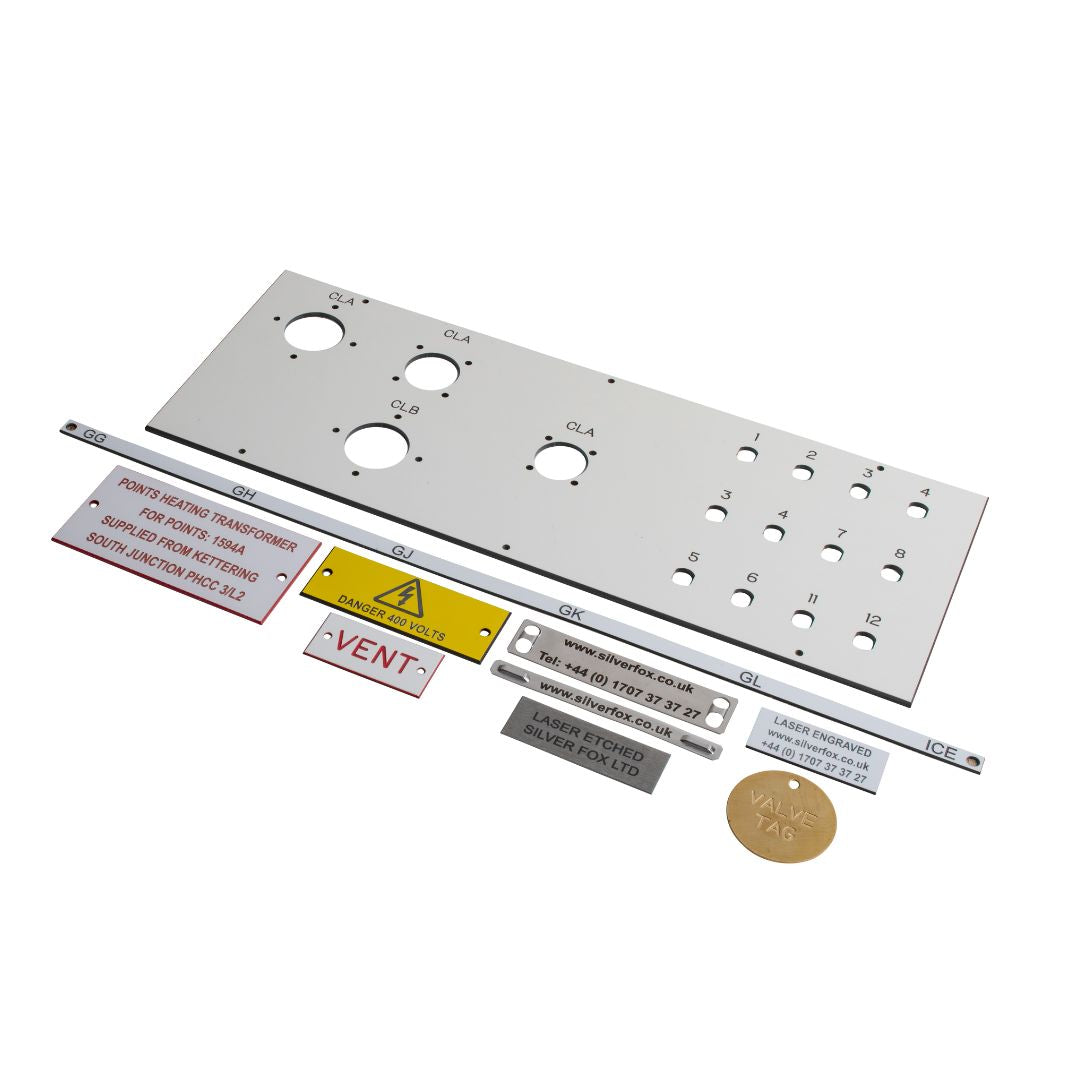

Laser acrylic engraved labels are widely used for signage (indoor and outdoor), equipment identification (industrial settings), control panels and switches labelling amongst a range of other use cases.
Traffolyte vs Laser Engraved
We've Got You Covered...
Our Custom pre-print service helps free-up valuable extra resource. We will pre-print your labels then deliver to UK (or international) sites, making a very real contribution by helping you to meet tight project deadlines.
Laser Engraved Testing
