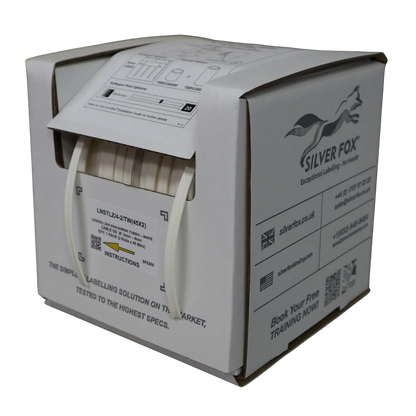

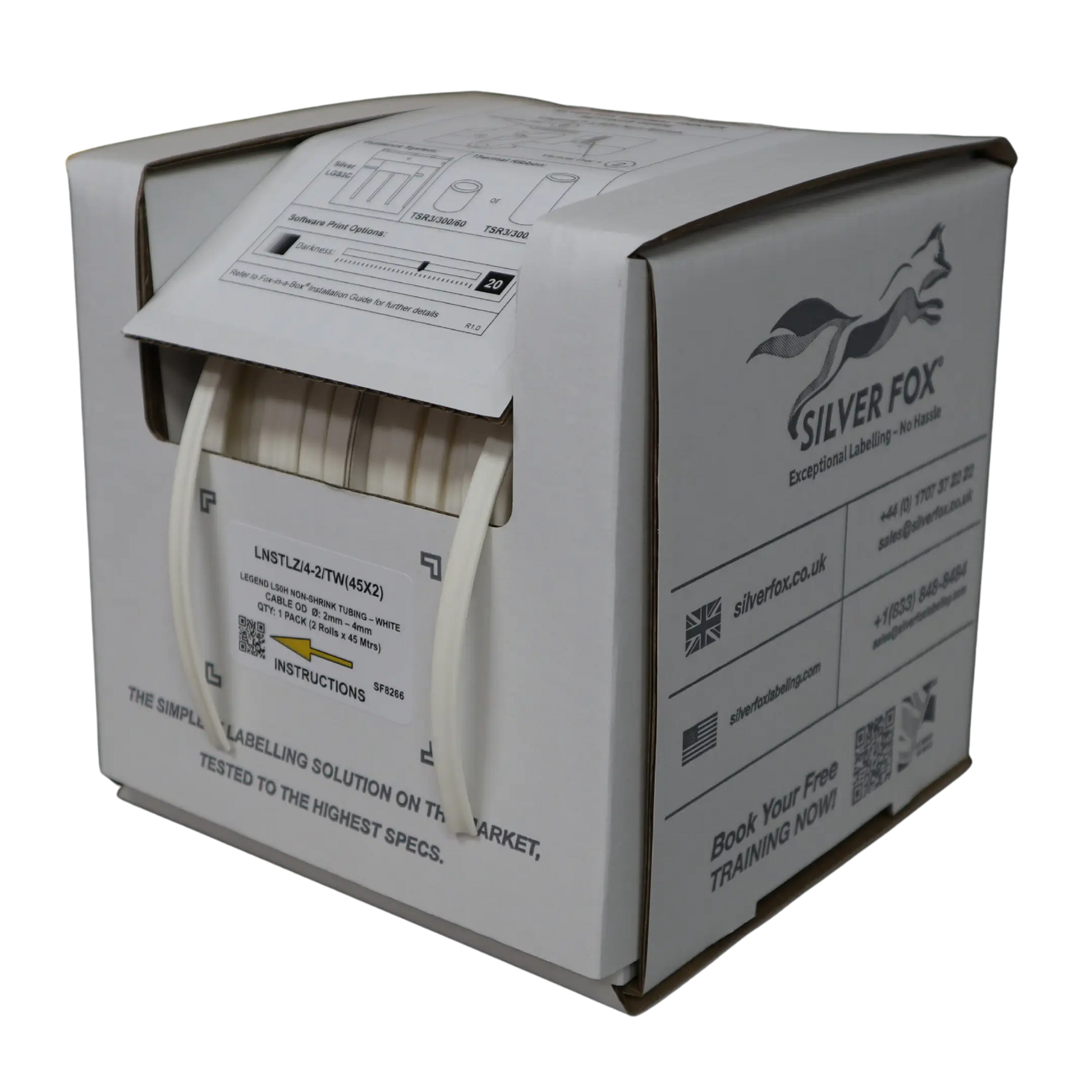

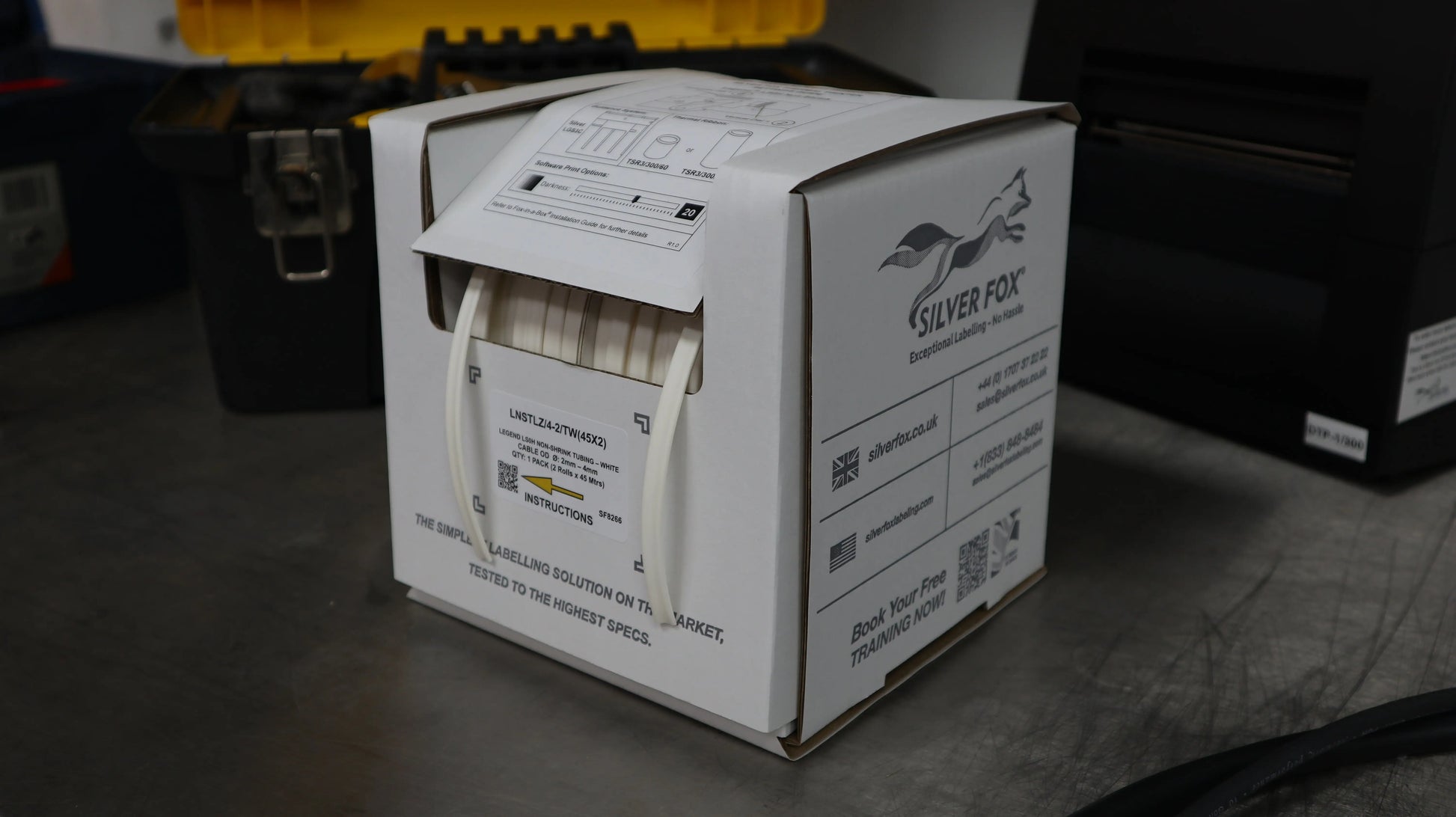

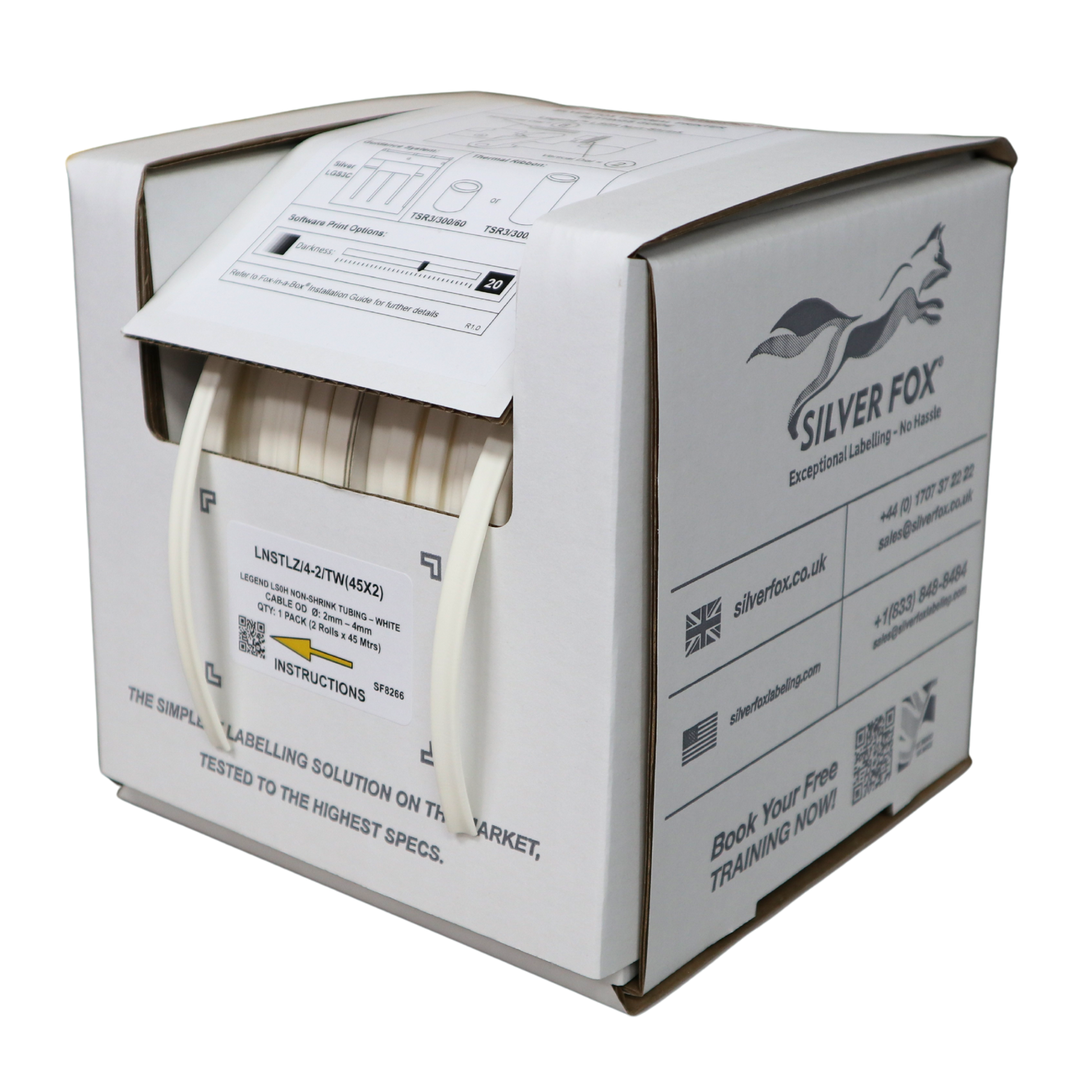

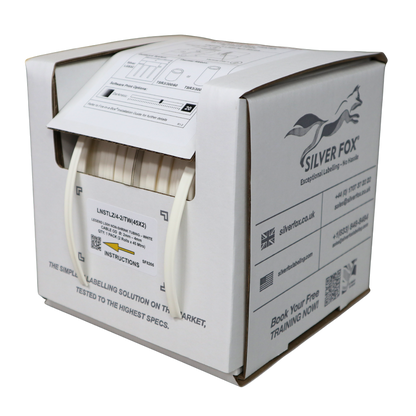

LNSTLZ/4-2/TW(45X2)

LSZH, UV-Stable Non-Shrink Cable Marker

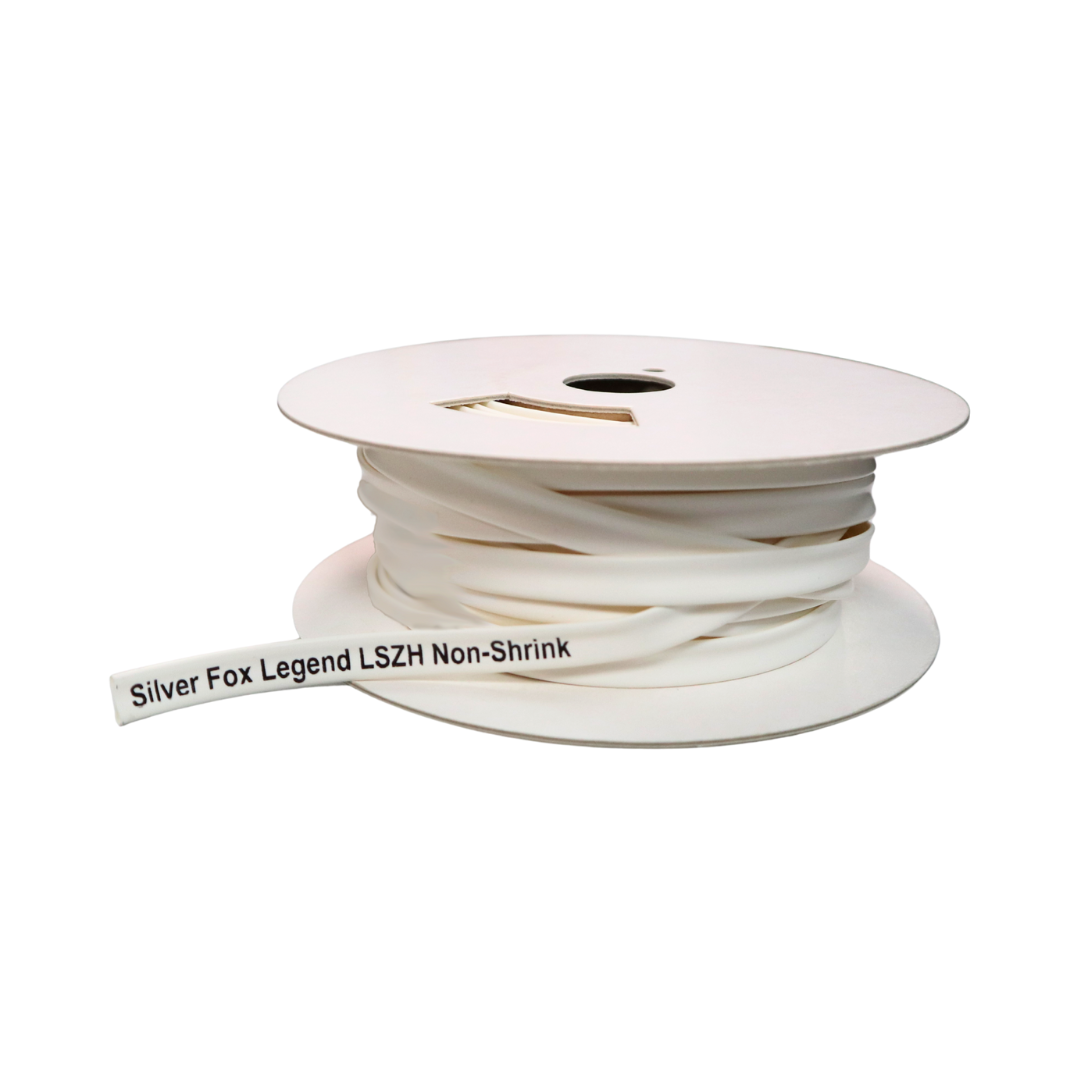

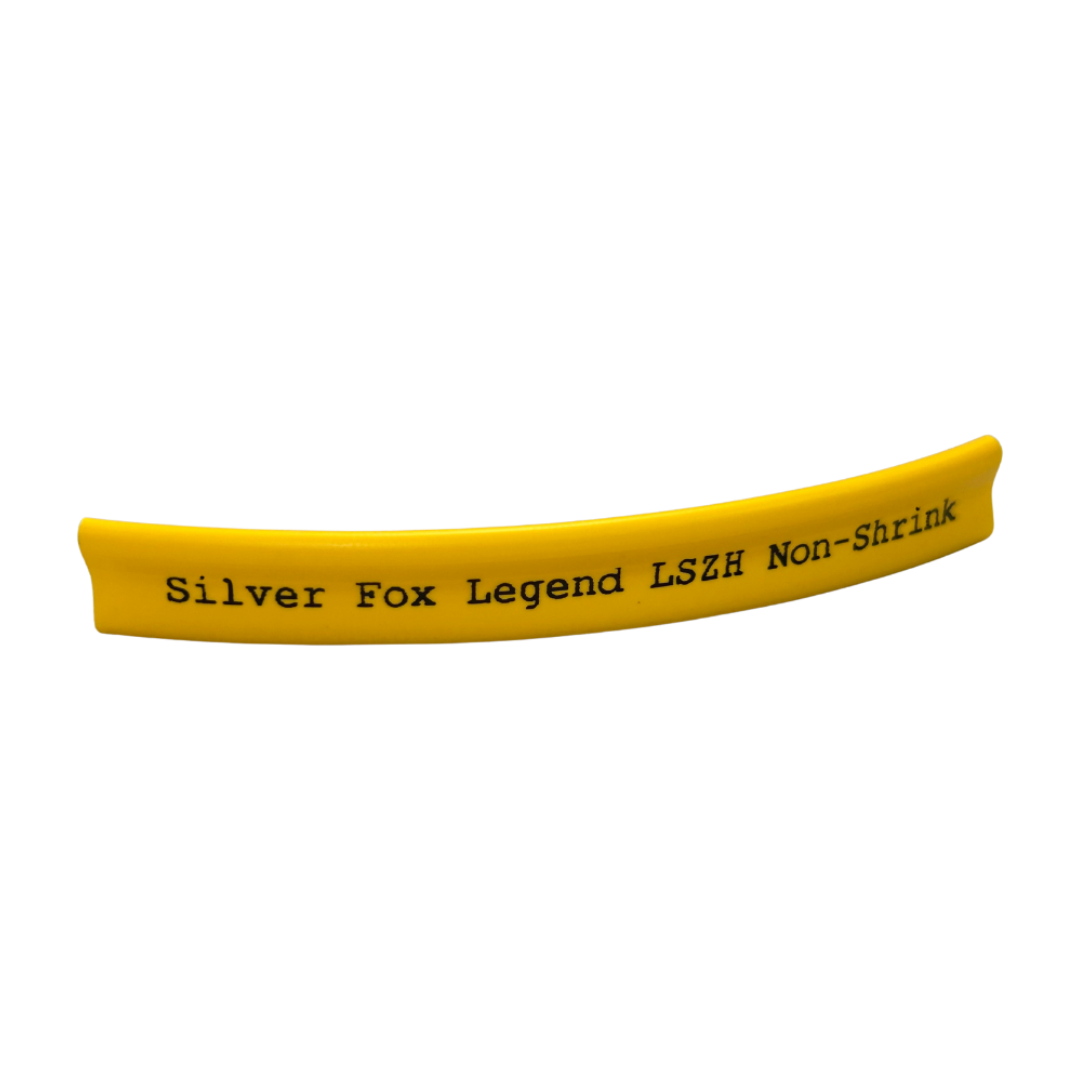

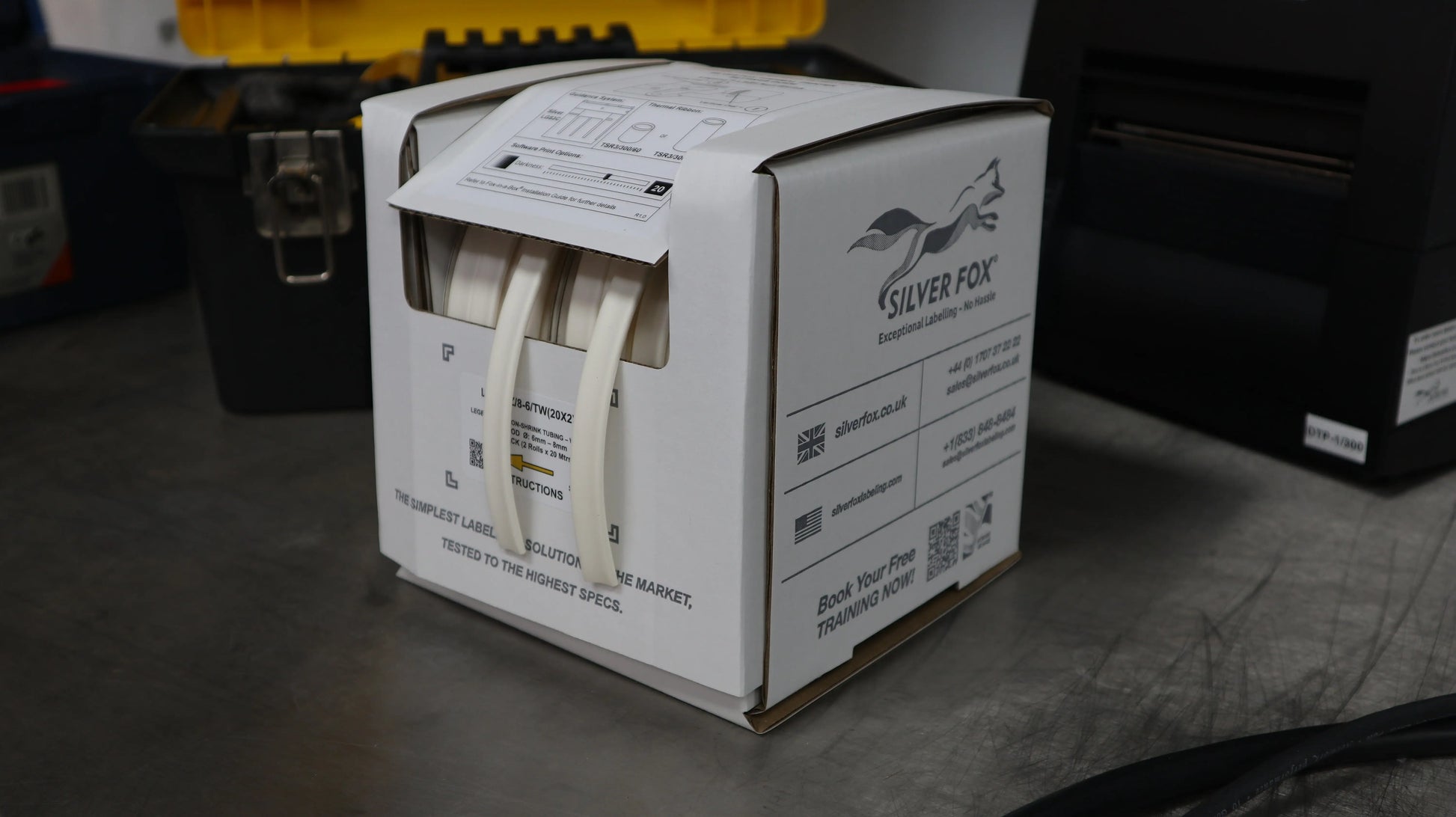

Fox-Flo® Non-Shrink is a low smoke zero halogen cable marker supplied on a continuous roll for cut-to-length installation. Its tool-free figure-of-eight twin-loop design grips without adhesive or heat, giving fast application even on small diameters. Printed using the Fox-in-a-Box® thermal transfer system for durable, high-contrast identification.

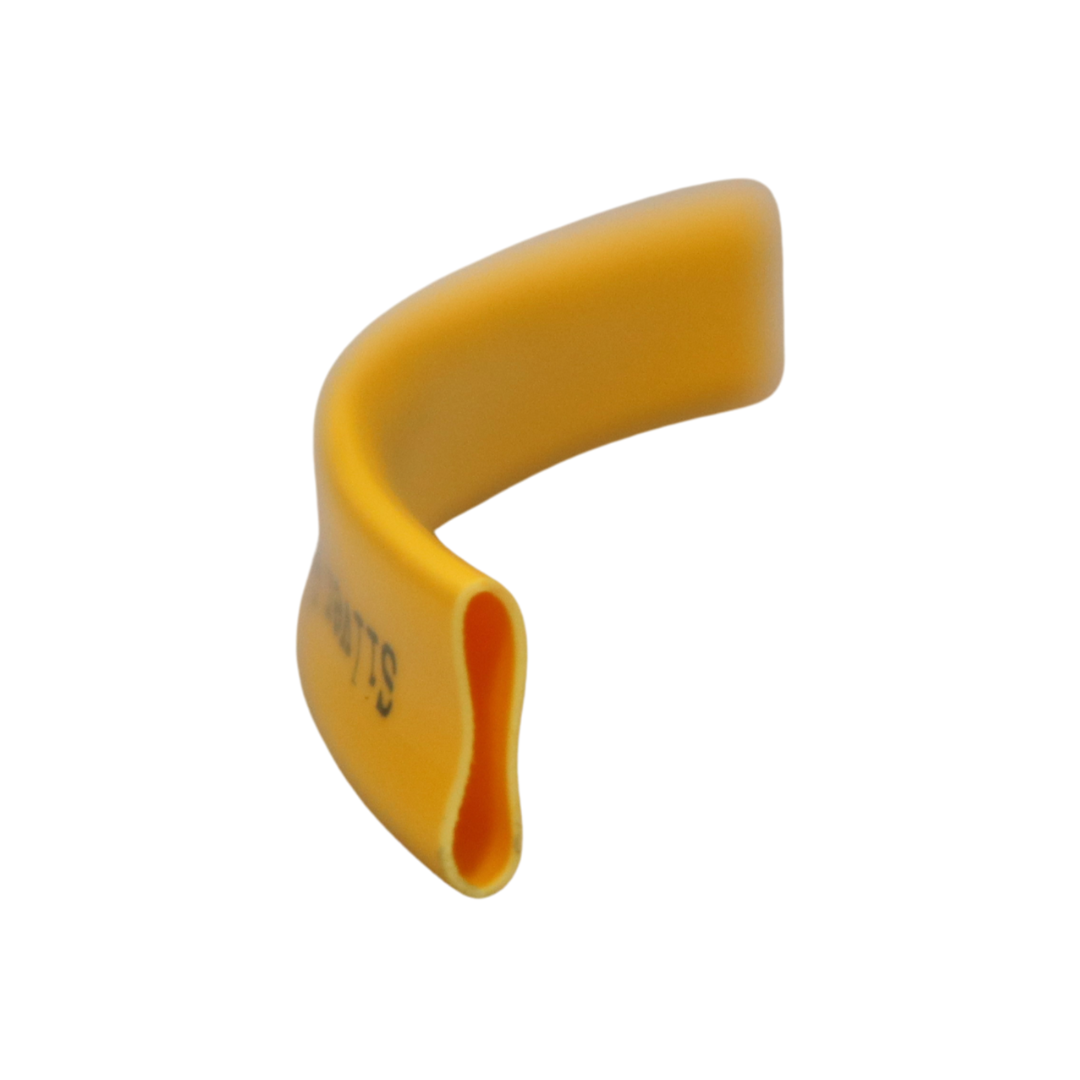

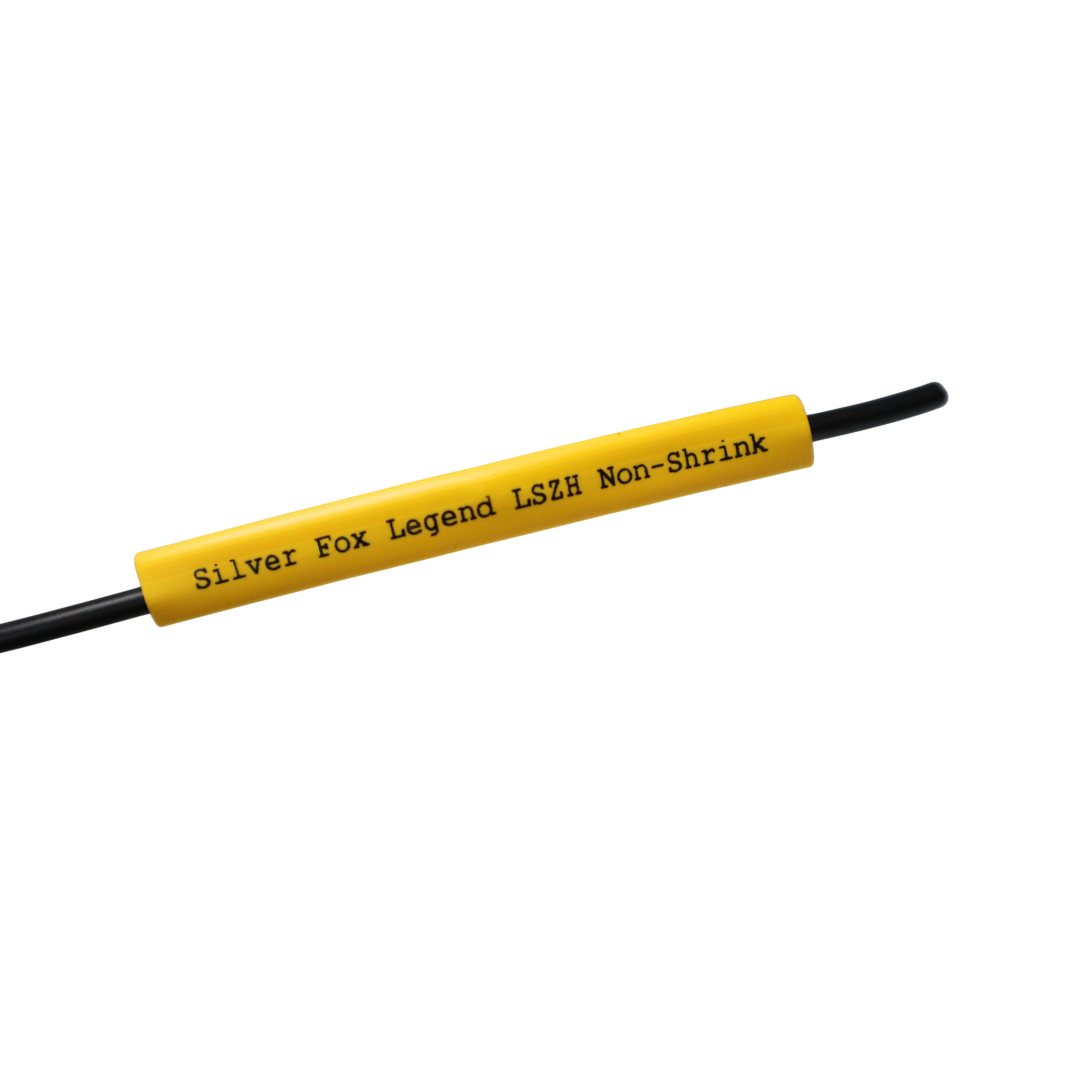

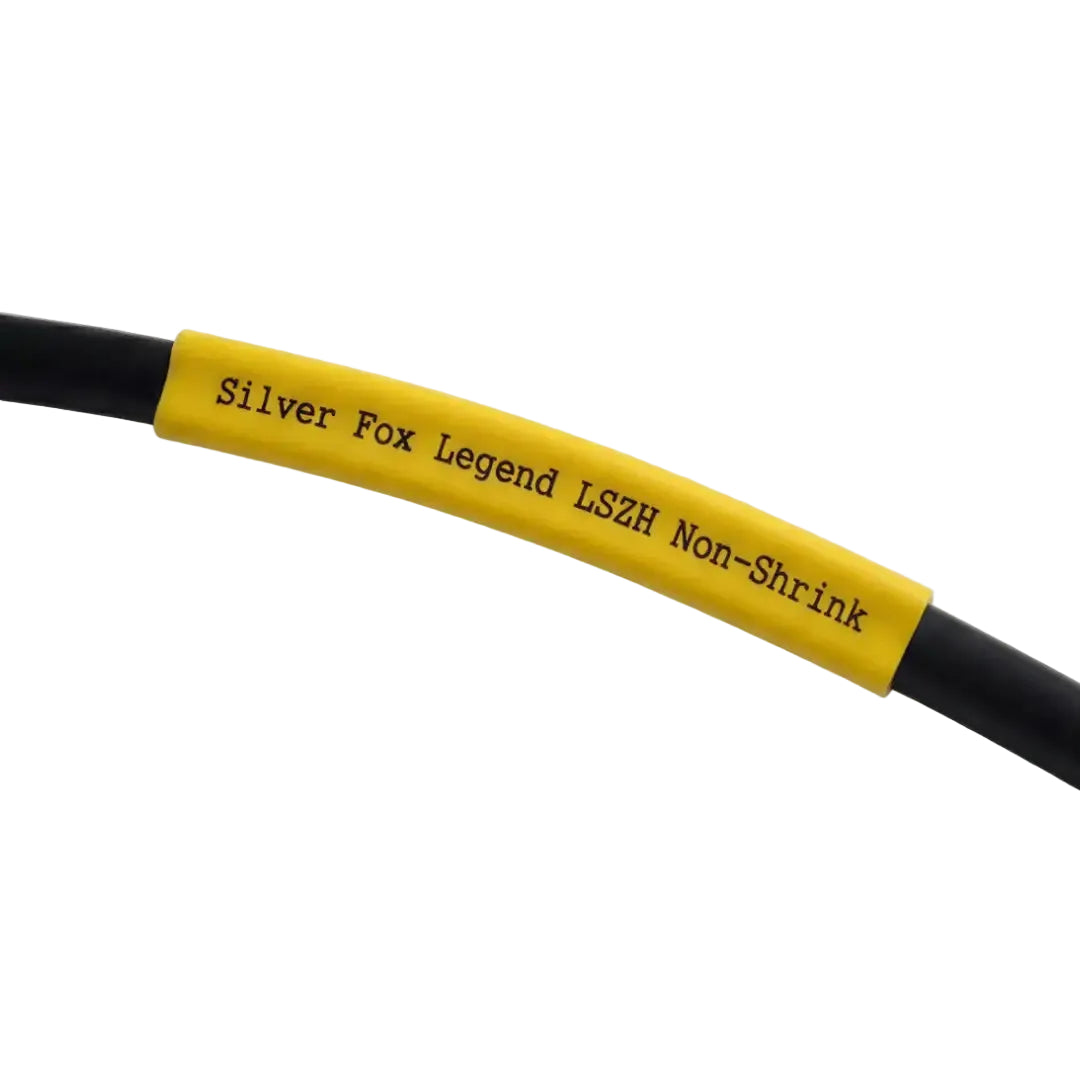

Tool-Free Figure-of-Eight Grip

Twin loops wrap and lock securely to resist slip and rotation under vibration, moisture and temperature change. No heat gun or special tools required, improving safety and speed on site.

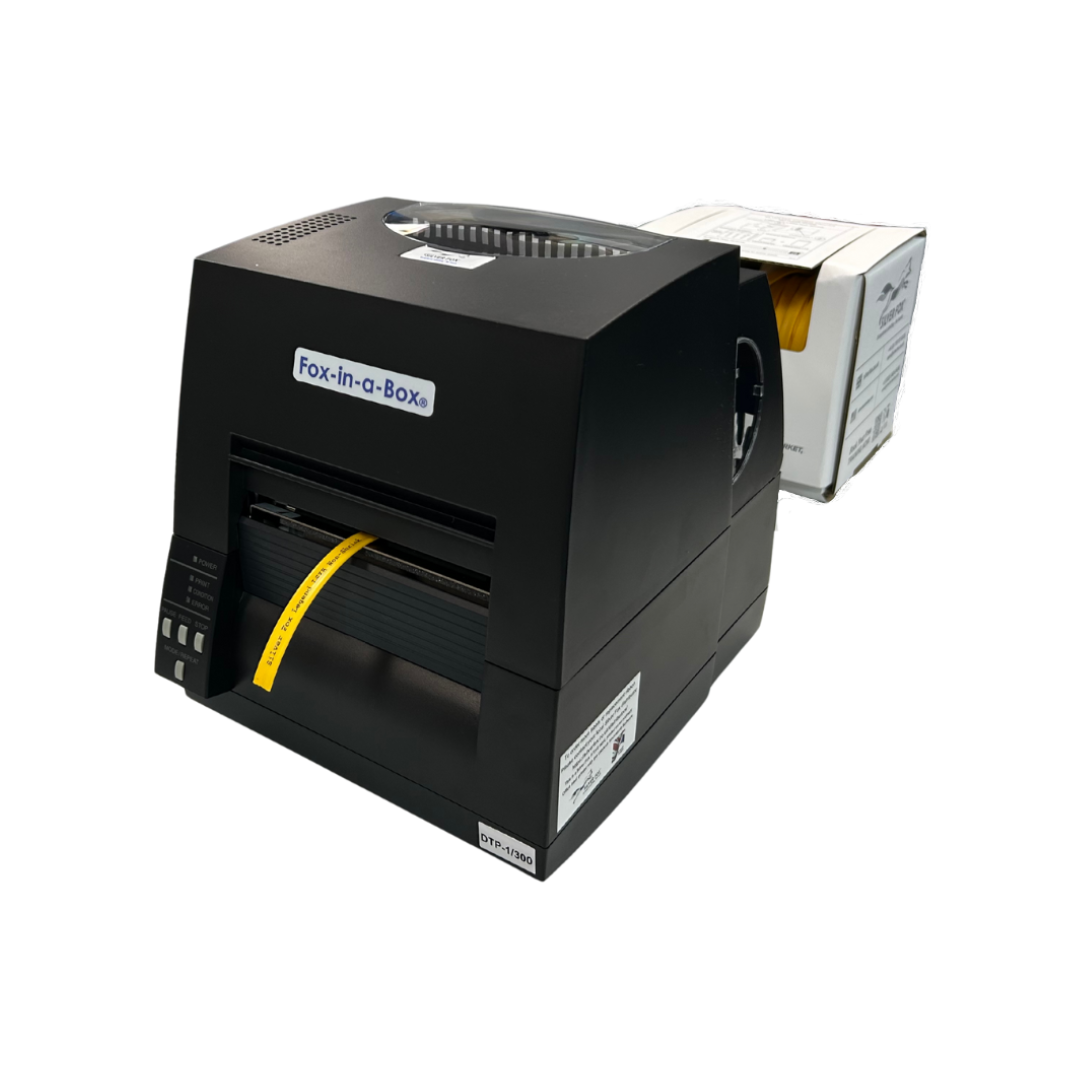

Engineered for Fox-in-a-Box®

Designed for the Fox-in-a-Box® printer and Labacus Innovator® software. Supports Excel import, barcodes, QR and GS1 DataMatrix. Advanced and Professional editions enable cross-ferruling to print two rolls in one pass. One ribbon works across the label range, with 300 m length for long runs.

Sizes and Colours

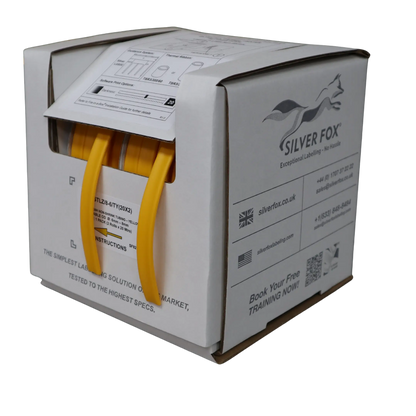

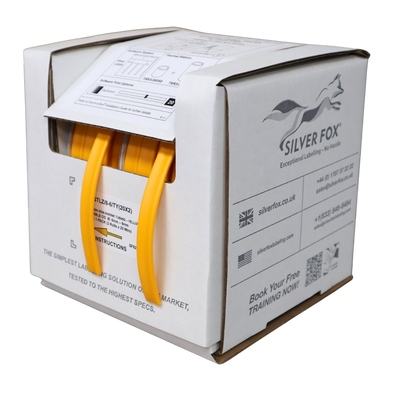

Available in three size ranges and two colours to suit common control and instrumentation diameters: 4-2 (fits 2–4 mm), 6-4 (fits 4–6 mm) and 8-6 (fits 6–8 mm) in white or yellow. Supplied in dispenser boxes for clean handling and fast feed during installation.

Environmental Performance

Tested for 72 hours at −40°C and for 2,000 hours at 70–100°C. Proven UV weathering performance with 8,000 hours accelerated exposure. Salt-mist cyclic tested for 8,000 hours and evaluated for resistance in 2% hydrogen sulphide atmospheres.

Fire, Smoke and Toxicity

Demonstrates strong resistance to ignition and low smoke and fume output. Compliant with EN 45545-2 R22, UL94 V-0 and UL 2043 plenum. Meets IMO FTPC Part 2 smoke and toxicity and Part 5 surface spread of flame requirements. Oxygen Index assessed to BS EN ISO 4589-2. Suitable for use in safety-critical and air-handling locations.

Chemical and Solvent Resistance

Print and substrate show no effect after rub when exposed to water, IPA, SAE30 oil, 10% HCl and 10% NaOH, among others. Initial stability with loss of legibility after rub with MEK, petrol and WD-40. Complete removal after rub with toluene, jet fuel and DOT4 brake fluid.

Typical Applications

Electrical and instrumentation panels, data and telecoms, power and renewables, oil, gas and petrochemicals, commercial building services and transport infrastructure. Ideal where LSZH materials, long outdoor life and fast, tool-free installation are required.

Storage and Logistics

Store between 10°C and 25°C at 35–65% RH in dark conditions. UK same-day despatch available for urgent projects.

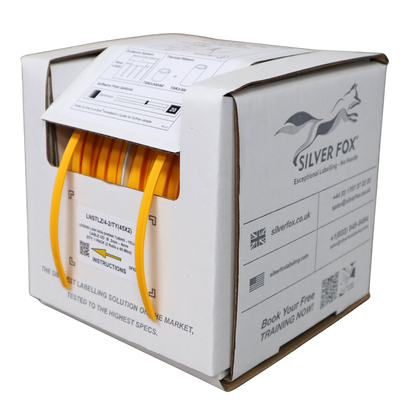

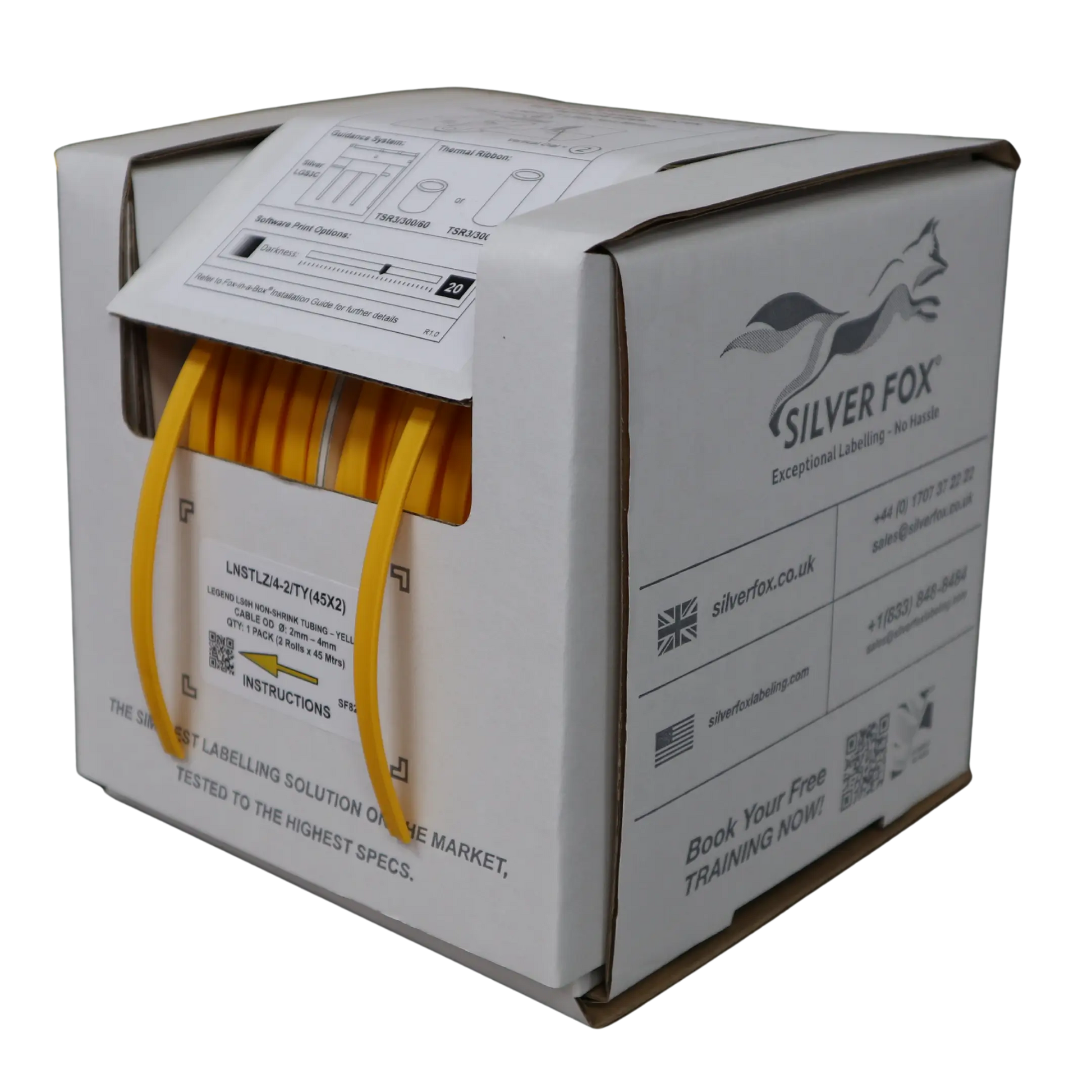

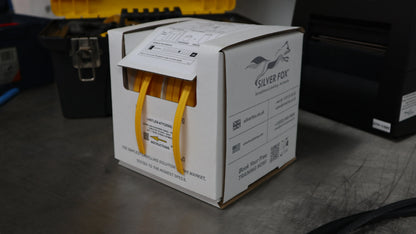

LNSTLZ/4-2/TY(45X2)

LSZH, UV-Stable Non-Shrink Cable Marker

Fox-Flo® Non-Shrink is a low smoke zero halogen cable marker supplied on a continuous roll for cut-to-length installation. Its tool-free figure-of-eight twin-loop design grips without adhesive or heat, giving fast application even on small diameters. Printed using the Fox-in-a-Box® thermal transfer system for durable, high-contrast identification.

Tool-Free Figure-of-Eight Grip

Twin loops wrap and lock securely to resist slip and rotation under vibration, moisture and temperature change. No heat gun or special tools required, improving safety and speed on site.

Engineered for Fox-in-a-Box®

Designed for the Fox-in-a-Box® printer and Labacus Innovator® software. Supports Excel import, barcodes, QR and GS1 DataMatrix. Advanced and Professional editions enable cross-ferruling to print two rolls in one pass. One ribbon works across the label range, with 300 m length for long runs.

Sizes and Colours

Available in three size ranges and two colours to suit common control and instrumentation diameters: 4-2 (fits 2–4 mm), 6-4 (fits 4–6 mm) and 8-6 (fits 6–8 mm) in white or yellow. Supplied in dispenser boxes for clean handling and fast feed during installation.

Environmental Performance

Tested for 72 hours at −40°C and for 2,000 hours at 70–100°C. Proven UV weathering performance with 8,000 hours accelerated exposure. Salt-mist cyclic tested for 8,000 hours and evaluated for resistance in 2% hydrogen sulphide atmospheres.

Fire, Smoke and Toxicity

Demonstrates strong resistance to ignition and low smoke and fume output. Compliant with EN 45545-2 R22, UL94 V-0 and UL 2043 plenum. Meets IMO FTPC Part 2 smoke and toxicity and Part 5 surface spread of flame requirements. Oxygen Index assessed to BS EN ISO 4589-2. Suitable for use in safety-critical and air-handling locations.

Chemical and Solvent Resistance

Print and substrate show no effect after rub when exposed to water, IPA, SAE30 oil, 10% HCl and 10% NaOH, among others. Initial stability with loss of legibility after rub with MEK, petrol and WD-40. Complete removal after rub with toluene, jet fuel and DOT4 brake fluid.

Typical Applications

Electrical and instrumentation panels, data and telecoms, power and renewables, oil, gas and petrochemicals, commercial building services and transport infrastructure. Ideal where LSZH materials, long outdoor life and fast, tool-free installation are required.

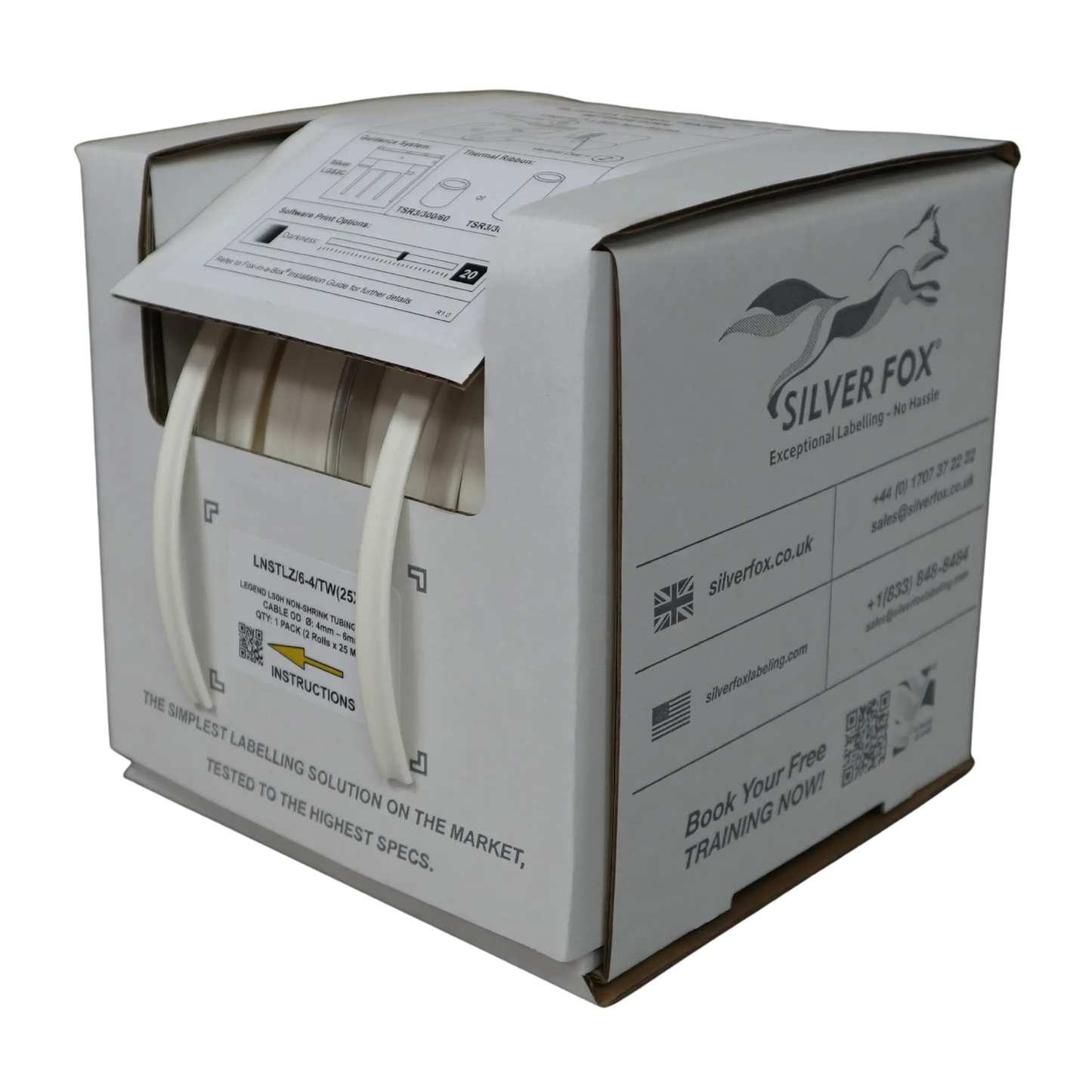

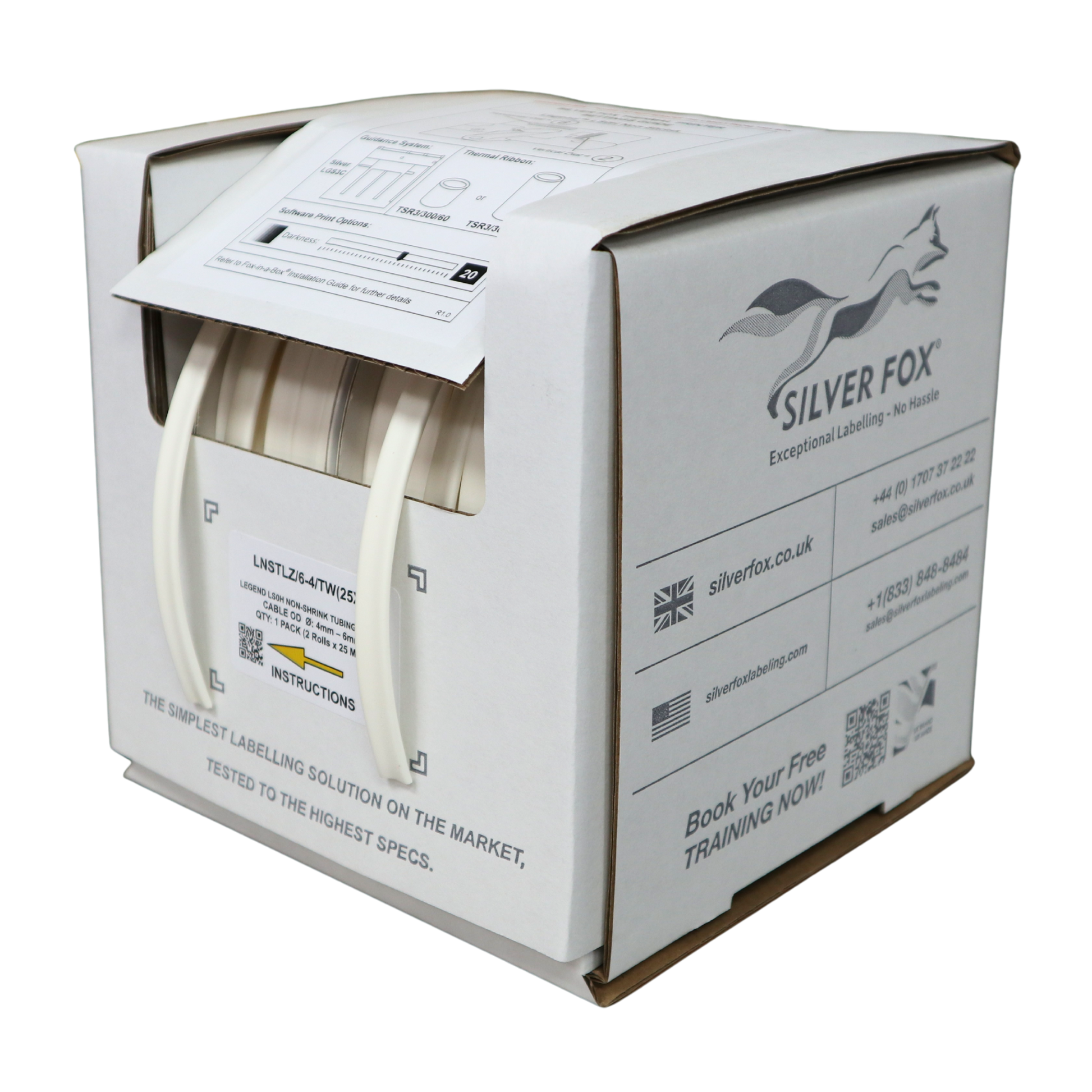

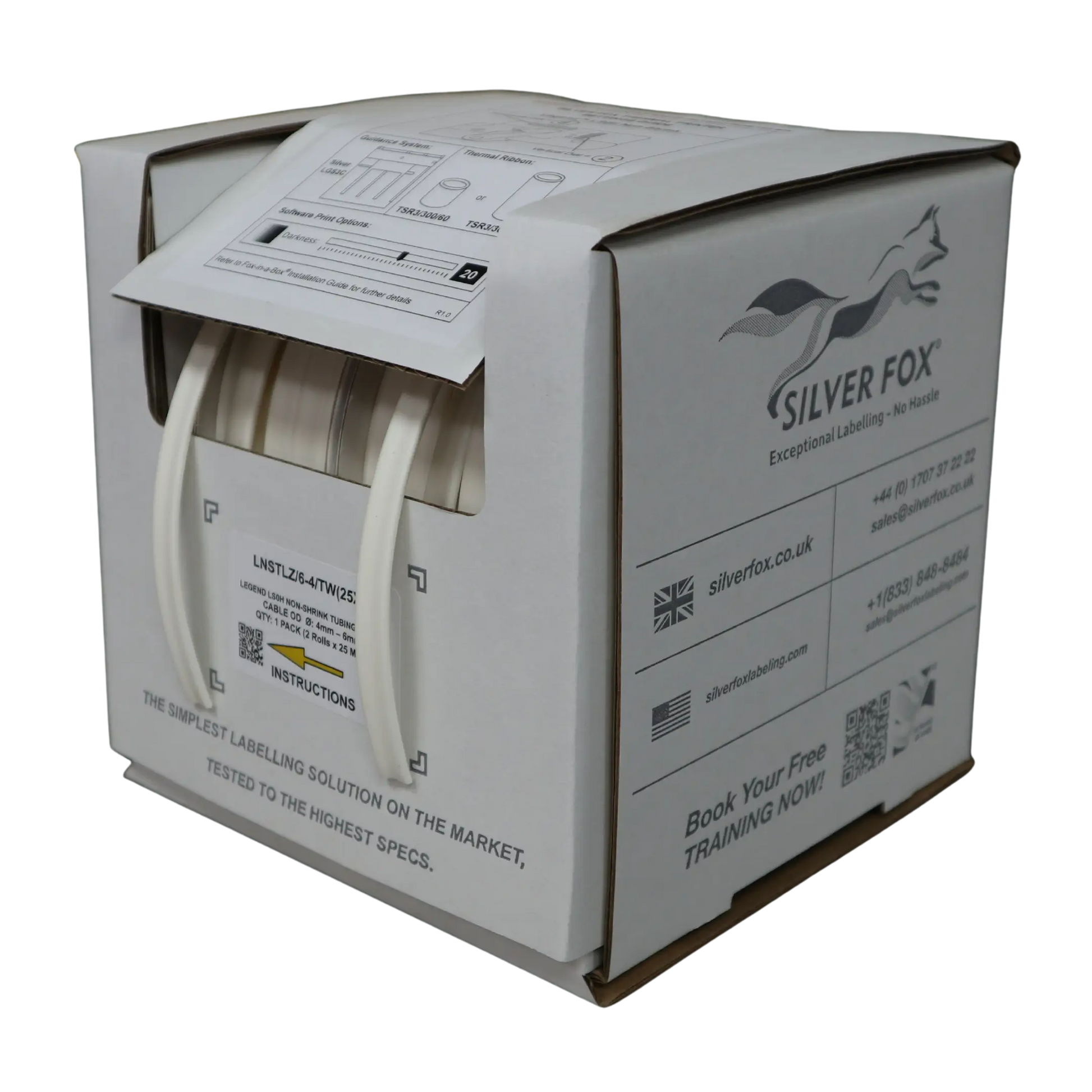

LNSTLZ/6-4/TW(25X2)

LSZH, UV-Stable Non-Shrink Cable Marker

Fox-Flo® Non-Shrink is a low smoke zero halogen cable marker supplied on a continuous roll for cut-to-length installation. Its tool-free figure-of-eight twin-loop design grips without adhesive or heat, giving fast application even on small diameters. Printed using the Fox-in-a-Box® thermal transfer system for durable, high-contrast identification.

Tool-Free Figure-of-Eight Grip

Twin loops wrap and lock securely to resist slip and rotation under vibration, moisture and temperature change. No heat gun or special tools required, improving safety and speed on site.

Engineered for Fox-in-a-Box®

Designed for the Fox-in-a-Box® printer and Labacus Innovator® software. Supports Excel import, barcodes, QR and GS1 DataMatrix. Advanced and Professional editions enable cross-ferruling to print two rolls in one pass. One ribbon works across the label range, with 300 m length for long runs.

Sizes and Colours

Available in three size ranges and two colours to suit common control and instrumentation diameters: 4-2 (fits 2–4 mm), 6-4 (fits 4–6 mm) and 8-6 (fits 6–8 mm) in white or yellow. Supplied in dispenser boxes for clean handling and fast feed during installation.

Environmental Performance

Tested for 72 hours at −40°C and for 2,000 hours at 70–100°C. Proven UV weathering performance with 8,000 hours accelerated exposure. Salt-mist cyclic tested for 8,000 hours and evaluated for resistance in 2% hydrogen sulphide atmospheres.

Fire, Smoke and Toxicity

Demonstrates strong resistance to ignition and low smoke and fume output. Compliant with EN 45545-2 R22, UL94 V-0 and UL 2043 plenum. Meets IMO FTPC Part 2 smoke and toxicity and Part 5 surface spread of flame requirements. Oxygen Index assessed to BS EN ISO 4589-2. Suitable for use in safety-critical and air-handling locations.

Chemical and Solvent Resistance

Print and substrate show no effect after rub when exposed to water, IPA, SAE30 oil, 10% HCl and 10% NaOH, among others. Initial stability with loss of legibility after rub with MEK, petrol and WD-40. Complete removal after rub with toluene, jet fuel and DOT4 brake fluid.

Typical Applications

Electrical and instrumentation panels, data and telecoms, power and renewables, oil, gas and petrochemicals, commercial building services and transport infrastructure. Ideal where LSZH materials, long outdoor life and fast, tool-free installation are required.

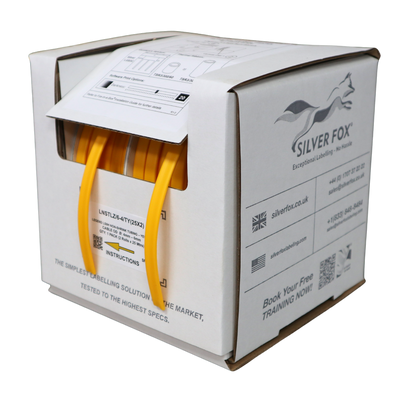

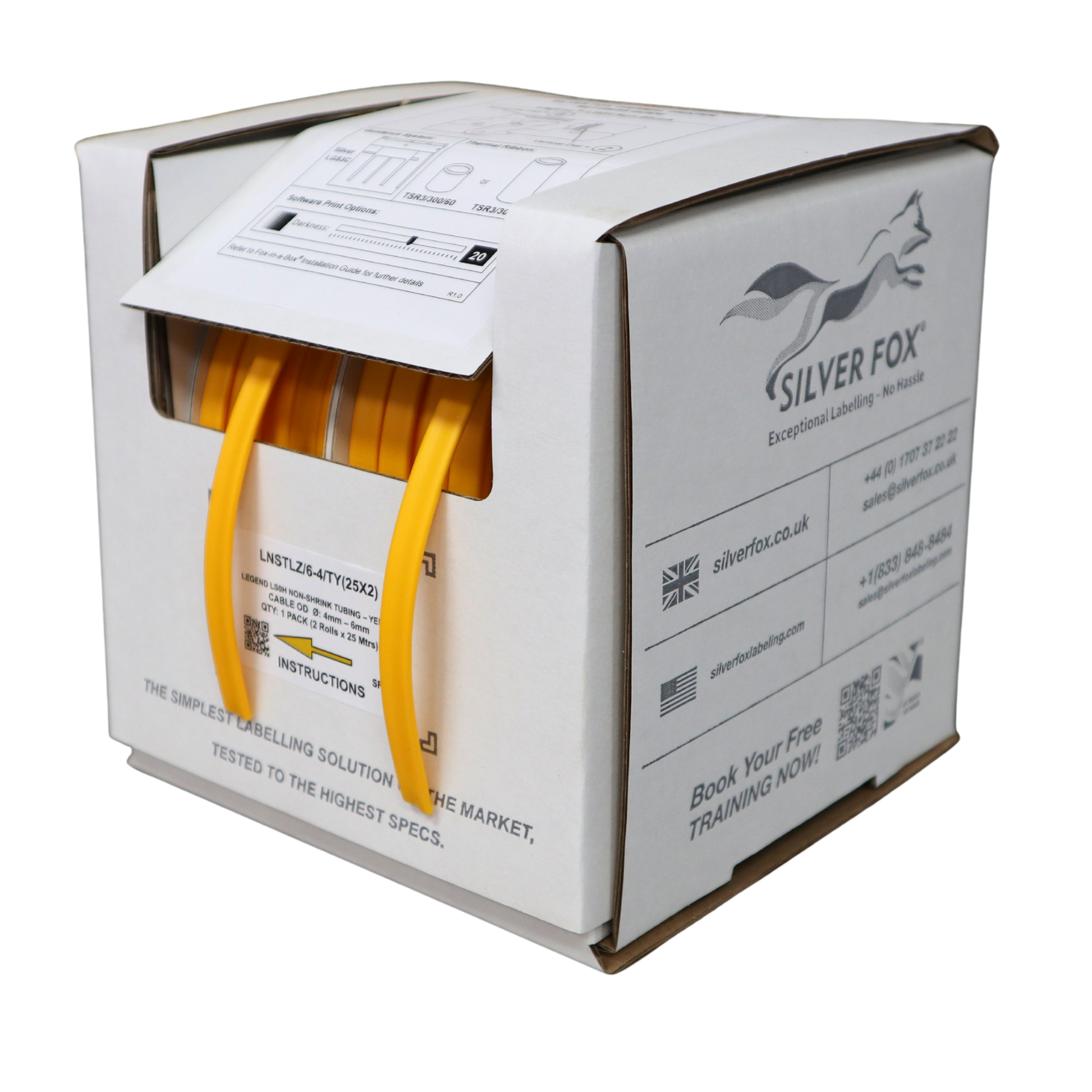

LNSTLZ/6-4/TY(25X2)

LSZH, UV-Stable Non-Shrink Cable Marker

Fox-Flo® Non-Shrink is a low smoke zero halogen cable marker supplied on a continuous roll for cut-to-length installation. Its tool-free figure-of-eight twin-loop design grips without adhesive or heat, giving fast application even on small diameters. Printed using the Fox-in-a-Box® thermal transfer system for durable, high-contrast identification.

Tool-Free Figure-of-Eight Grip

Twin loops wrap and lock securely to resist slip and rotation under vibration, moisture and temperature change. No heat gun or special tools required, improving safety and speed on site.

Engineered for Fox-in-a-Box®

Designed for the Fox-in-a-Box® printer and Labacus Innovator® software. Supports Excel import, barcodes, QR and GS1 DataMatrix. Advanced and Professional editions enable cross-ferruling to print two rolls in one pass. One ribbon works across the label range, with 300 m length for long runs.

Sizes and Colours

Available in three size ranges and two colours to suit common control and instrumentation diameters: 4-2 (fits 2–4 mm), 6-4 (fits 4–6 mm) and 8-6 (fits 6–8 mm) in white or yellow. Supplied in dispenser boxes for clean handling and fast feed during installation.

Environmental Performance

Tested for 72 hours at −40°C and for 2,000 hours at 70–100°C. Proven UV weathering performance with 8,000 hours accelerated exposure. Salt-mist cyclic tested for 8,000 hours and evaluated for resistance in 2% hydrogen sulphide atmospheres.

Fire, Smoke and Toxicity

Demonstrates strong resistance to ignition and low smoke and fume output. Compliant with EN 45545-2 R22, UL94 V-0 and UL 2043 plenum. Meets IMO FTPC Part 2 smoke and toxicity and Part 5 surface spread of flame requirements. Oxygen Index assessed to BS EN ISO 4589-2. Suitable for use in safety-critical and air-handling locations.

Chemical and Solvent Resistance

Print and substrate show no effect after rub when exposed to water, IPA, SAE30 oil, 10% HCl and 10% NaOH, among others. Initial stability with loss of legibility after rub with MEK, petrol and WD-40. Complete removal after rub with toluene, jet fuel and DOT4 brake fluid.

Typical Applications

Electrical and instrumentation panels, data and telecoms, power and renewables, oil, gas and petrochemicals, commercial building services and transport infrastructure. Ideal where LSZH materials, long outdoor life and fast, tool-free installation are required.

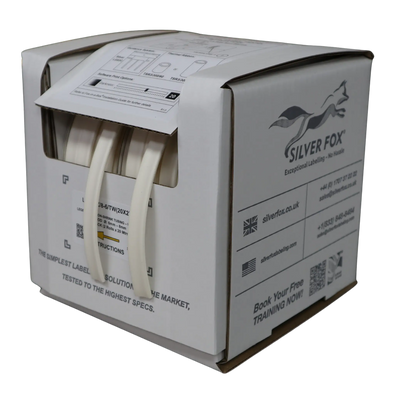

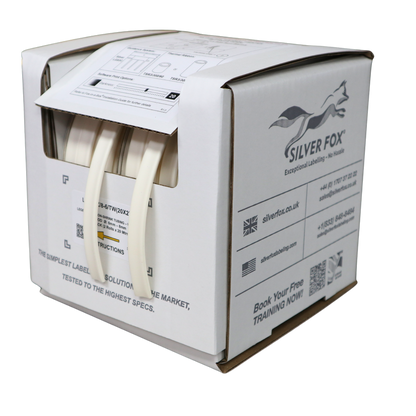

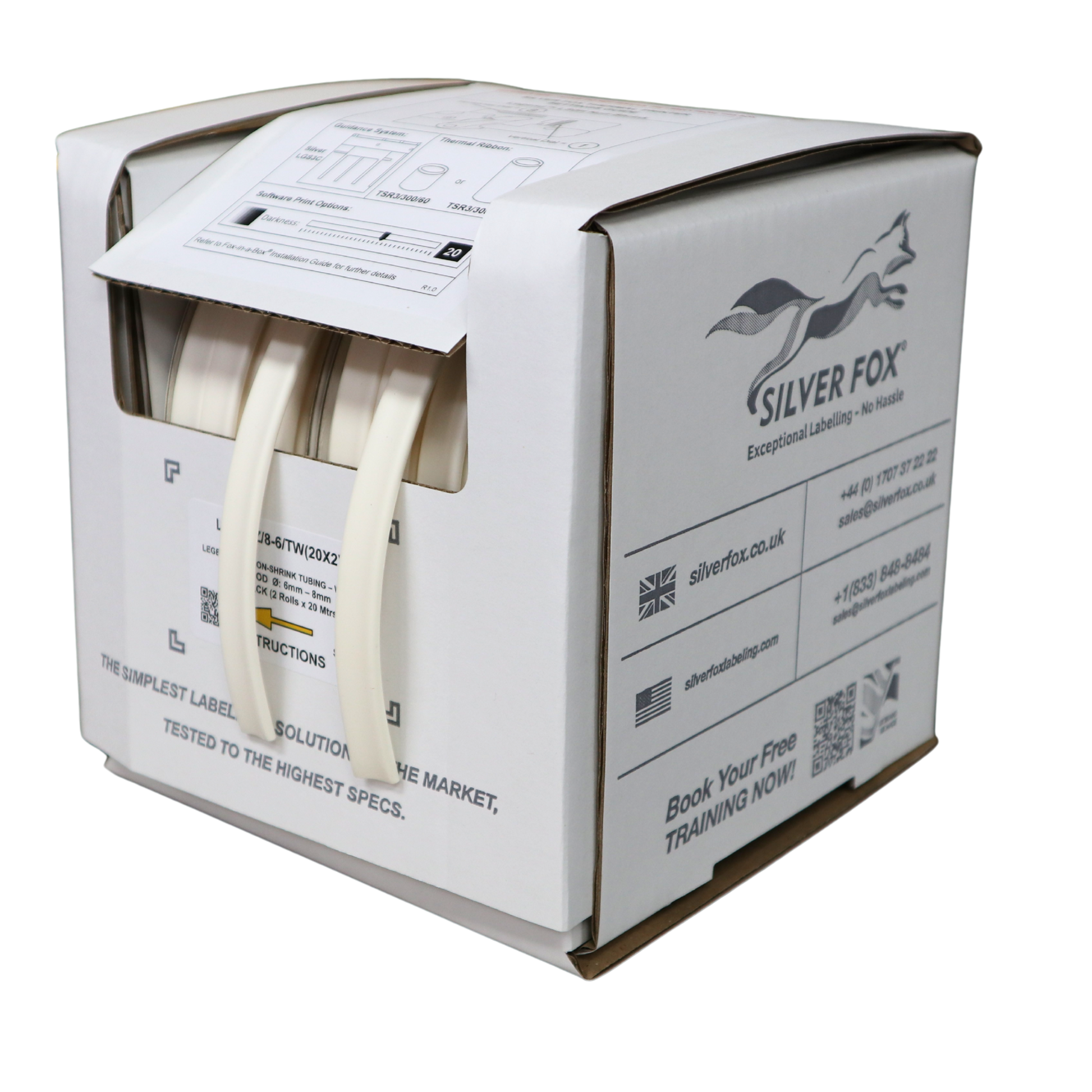

LNSTLZ/8-6/TW(20X2)
