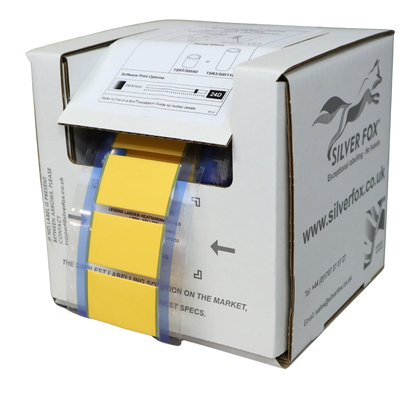

Legend™ LSZH Ladder Heatshrink Cable Markers
Legend™ LSZH Ladder Heatshrink Cable Markers

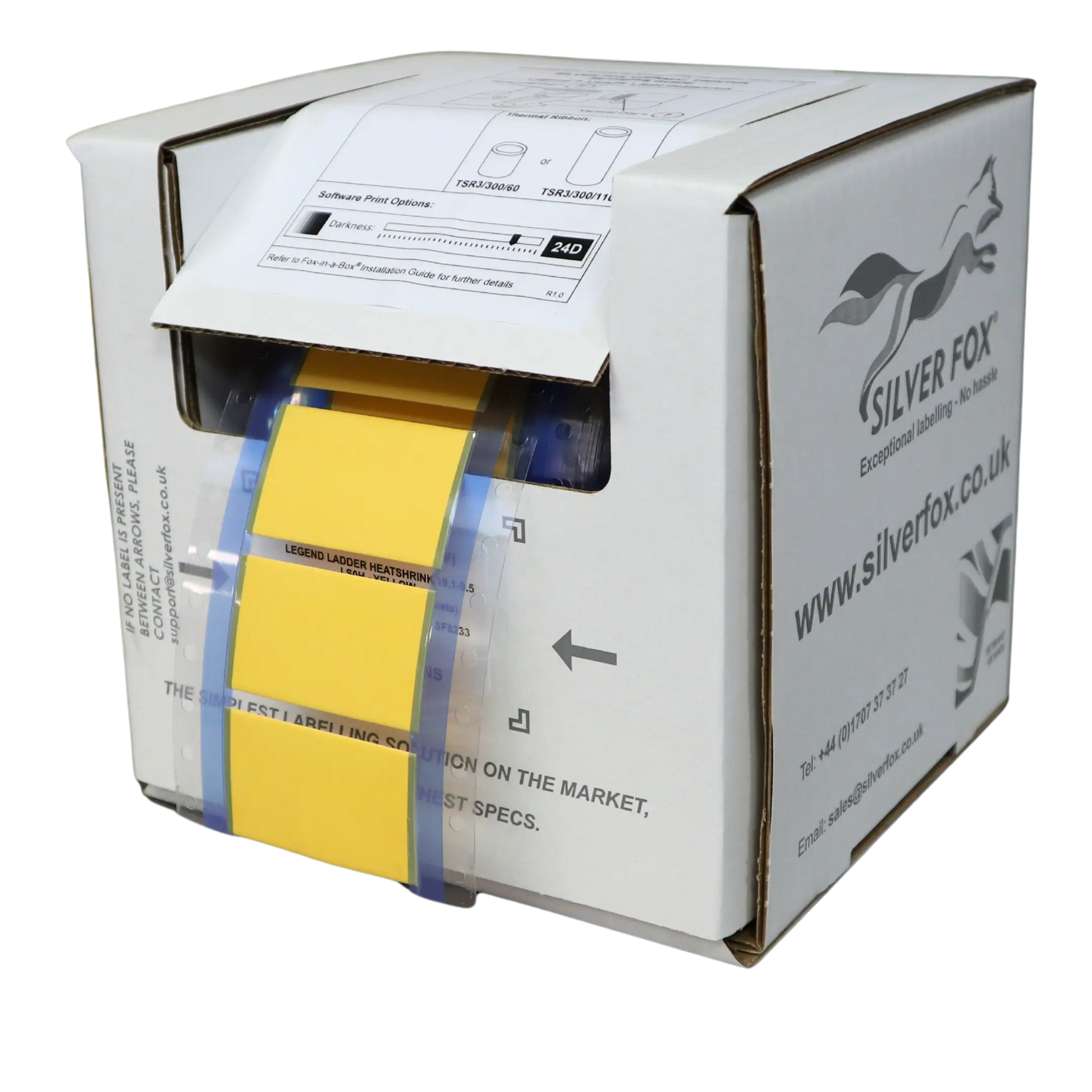

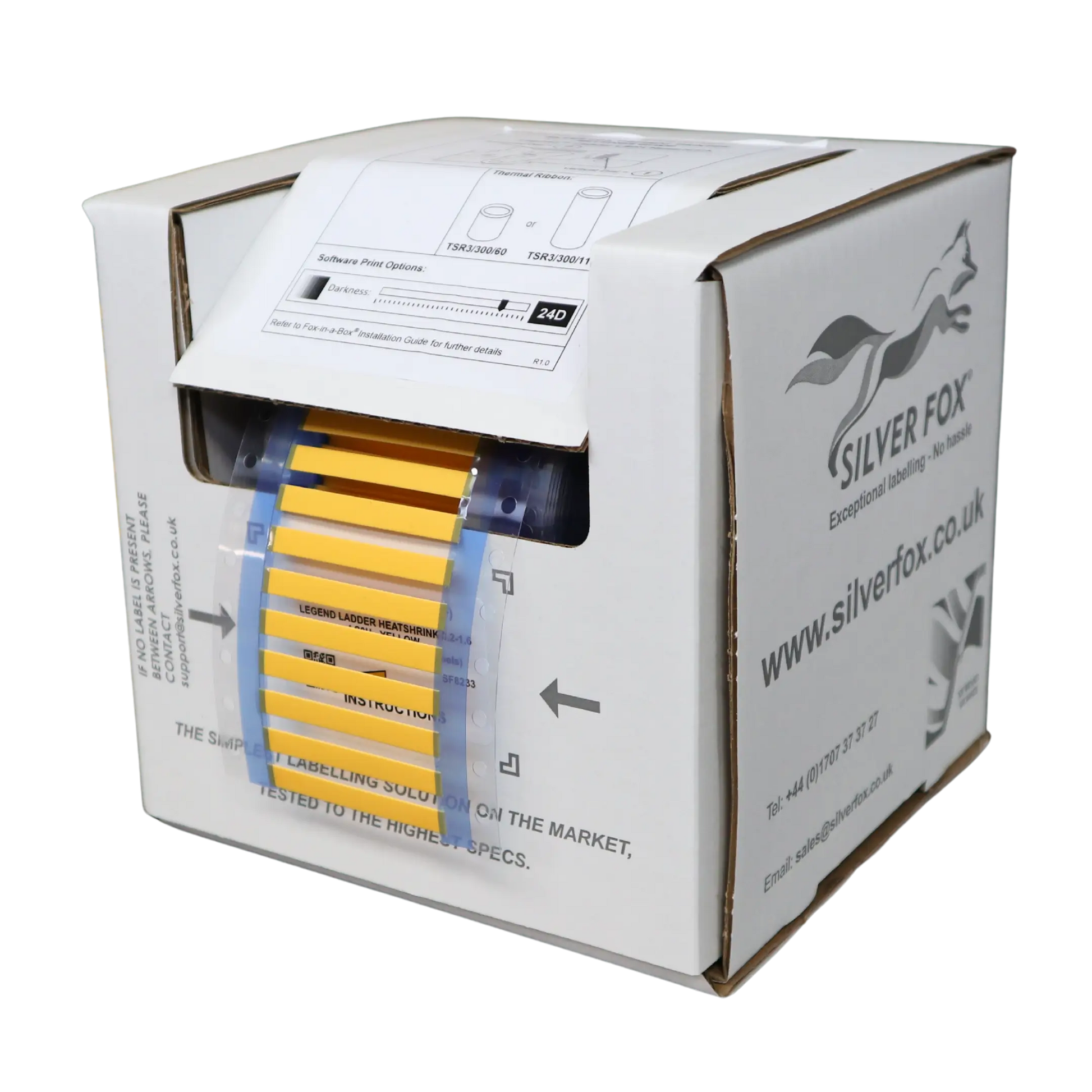

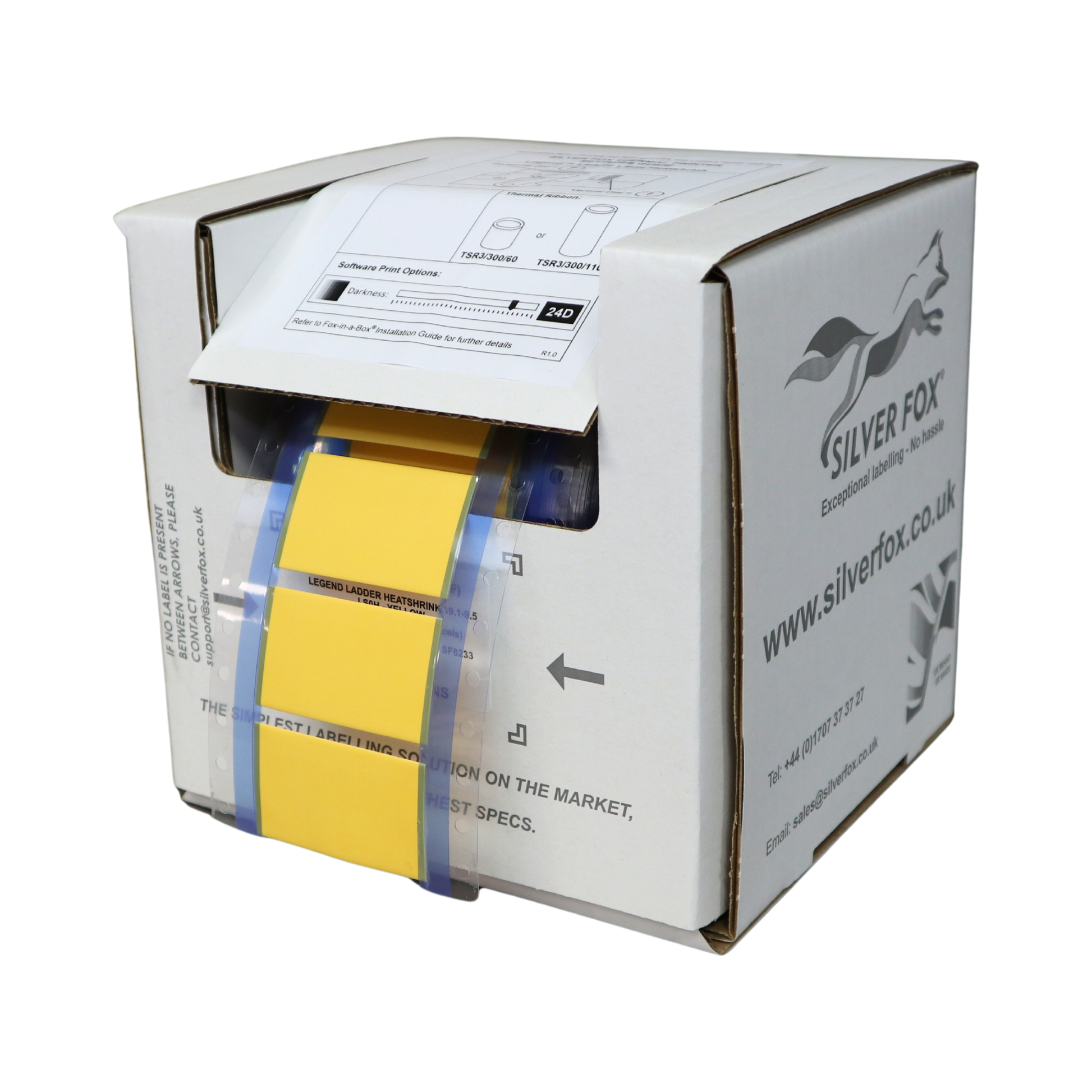

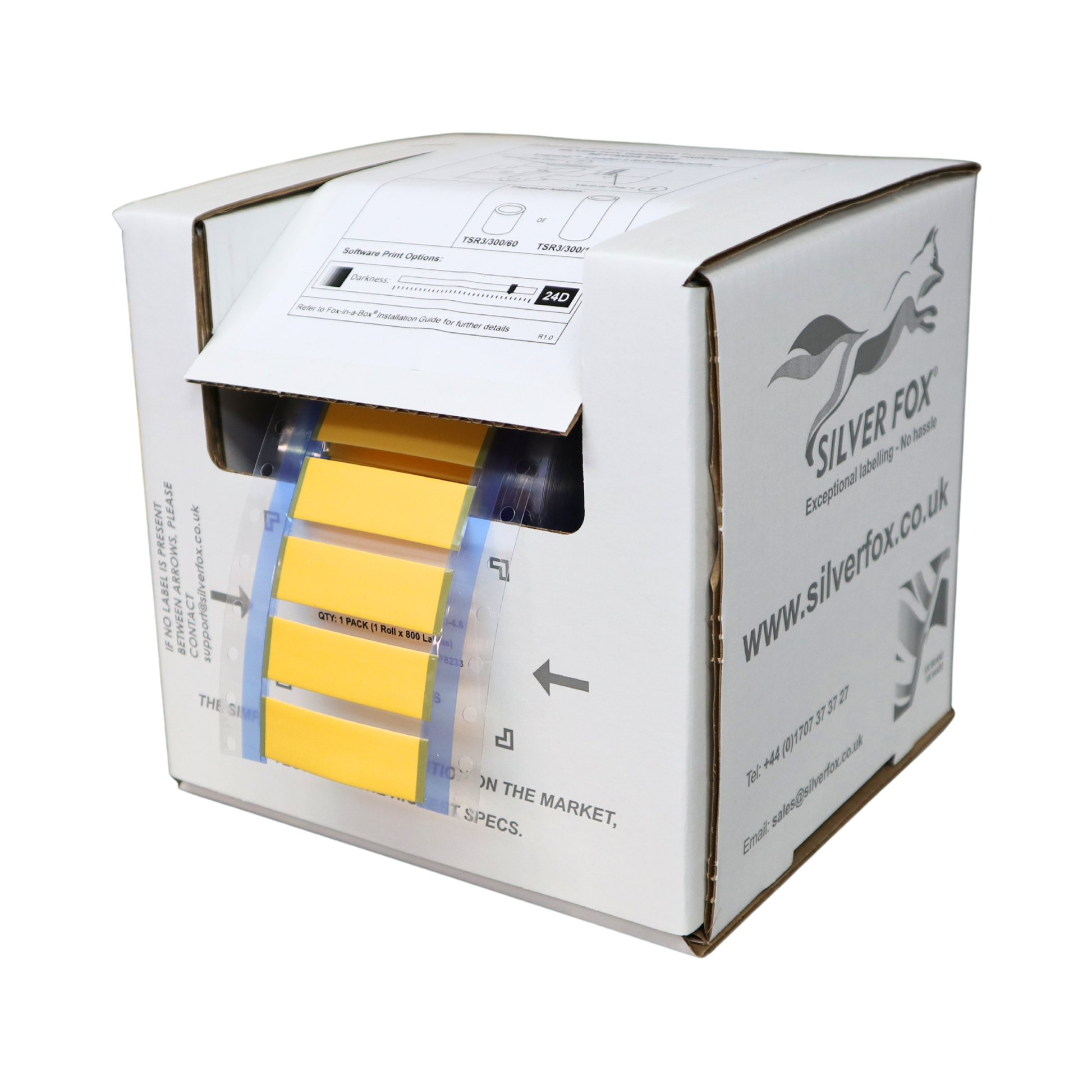

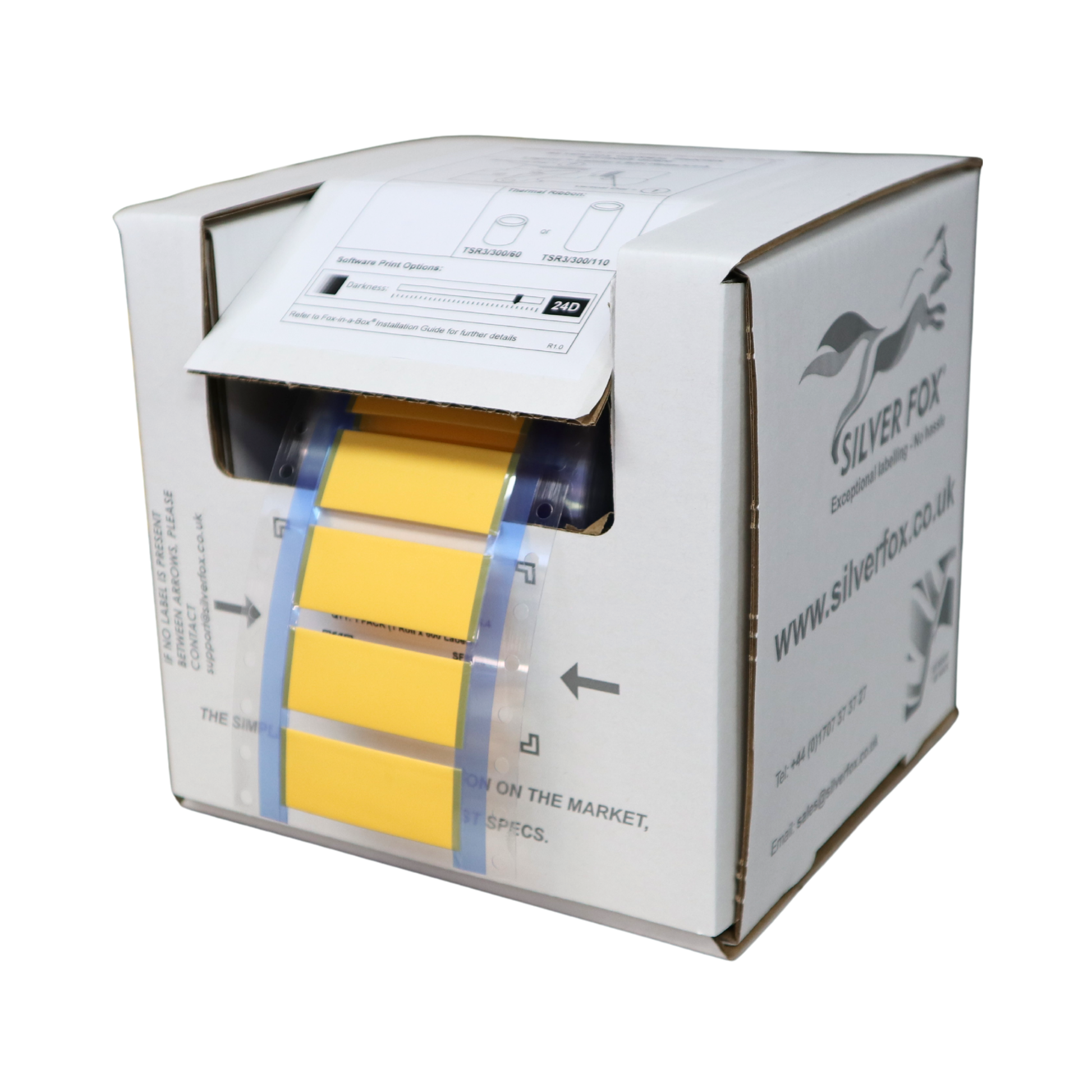

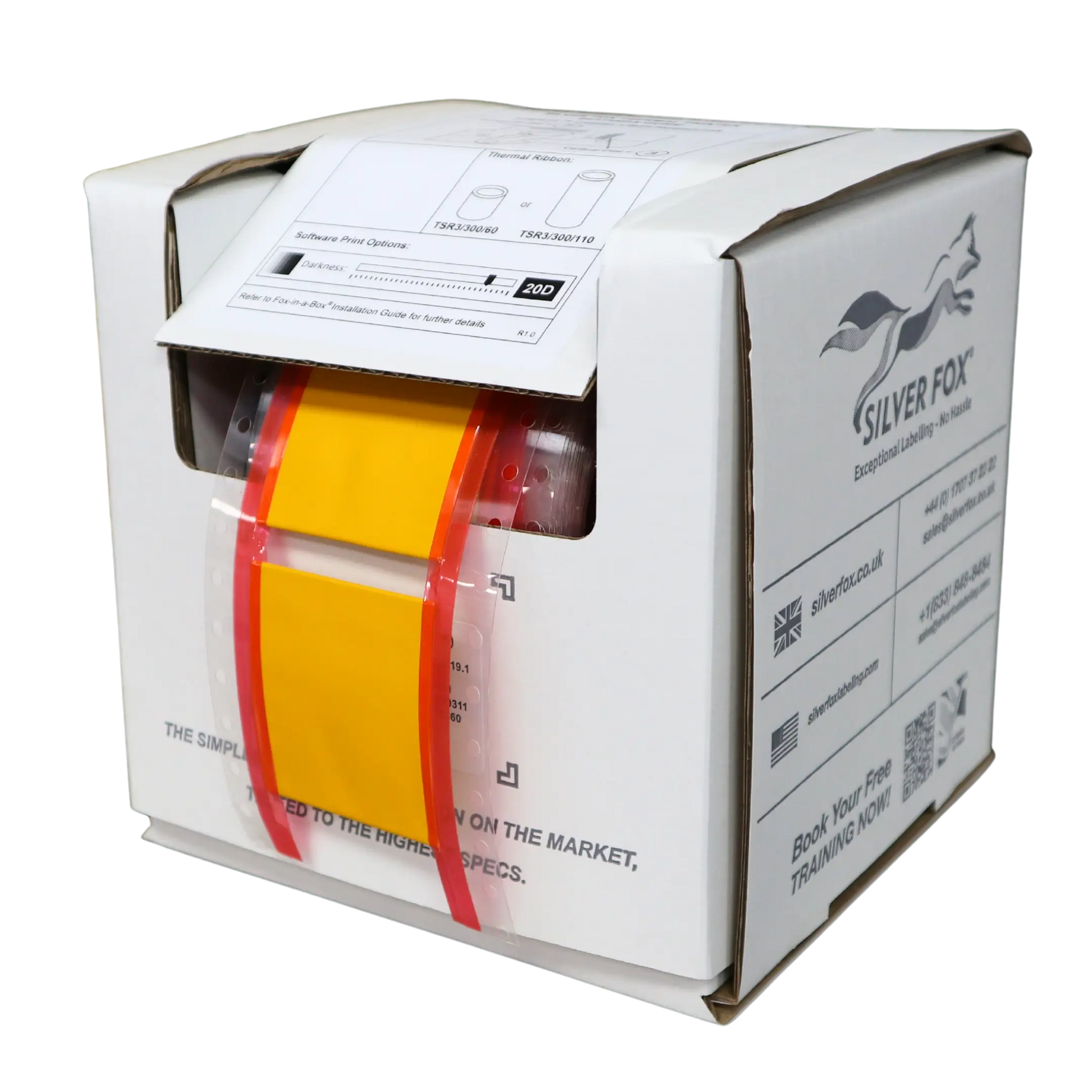

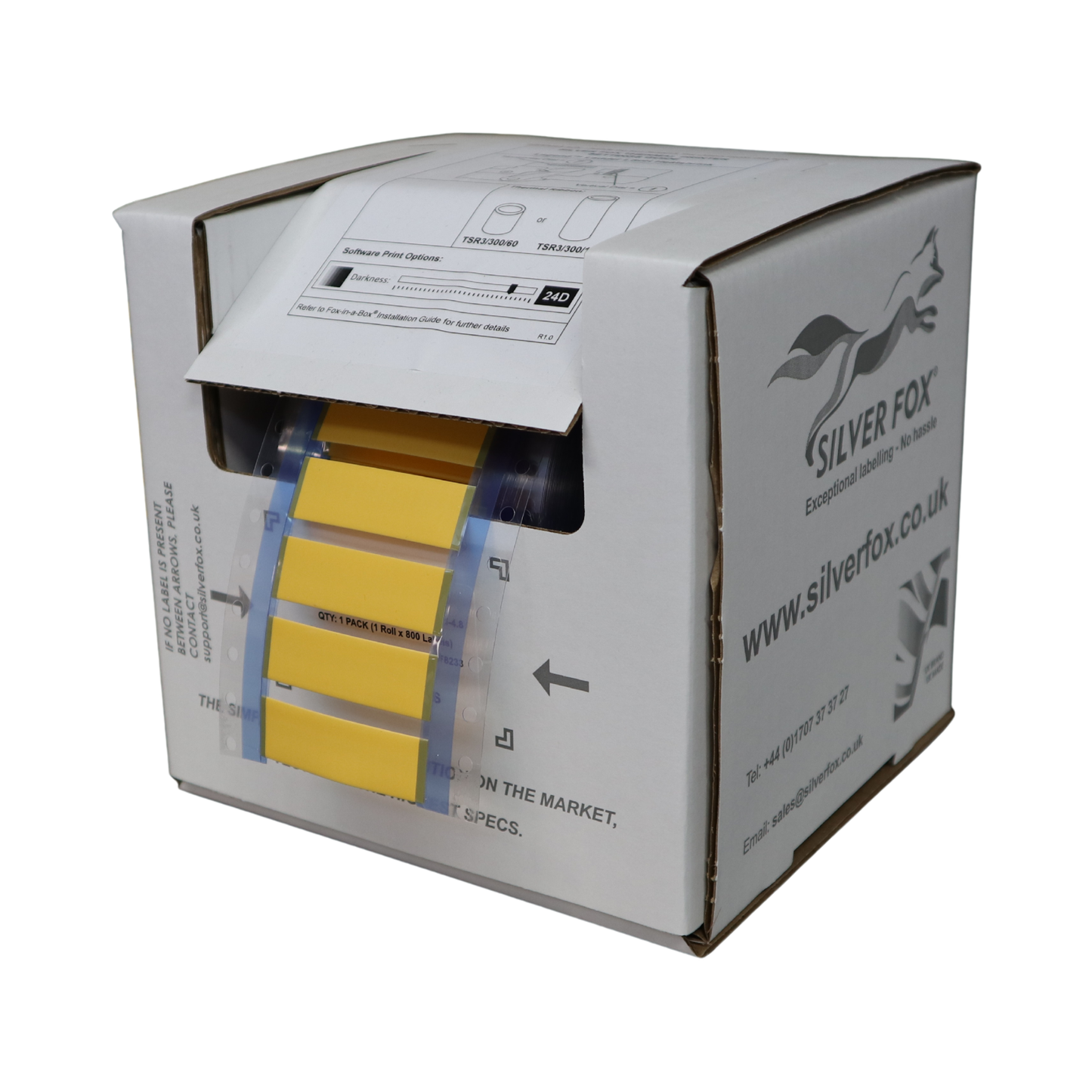

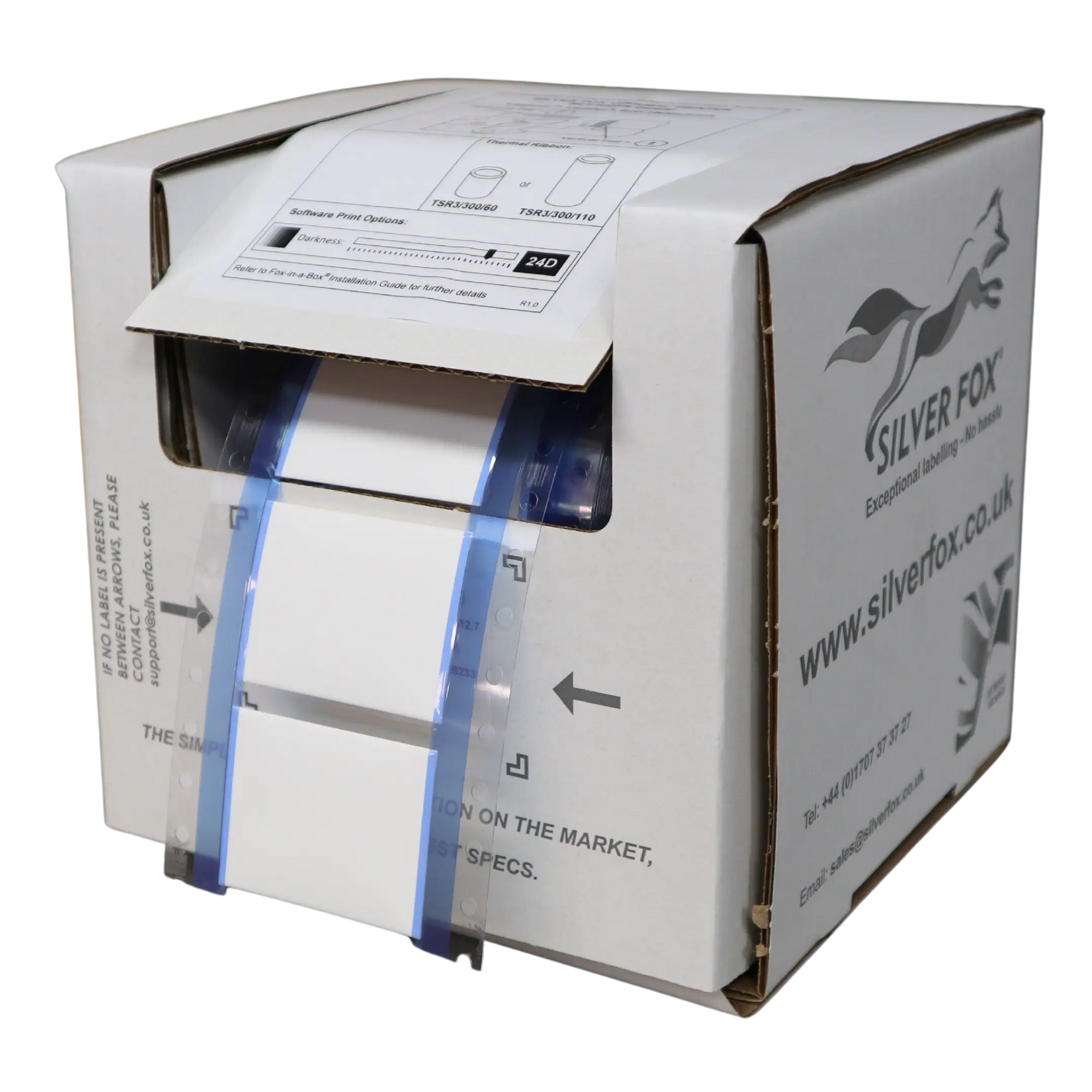

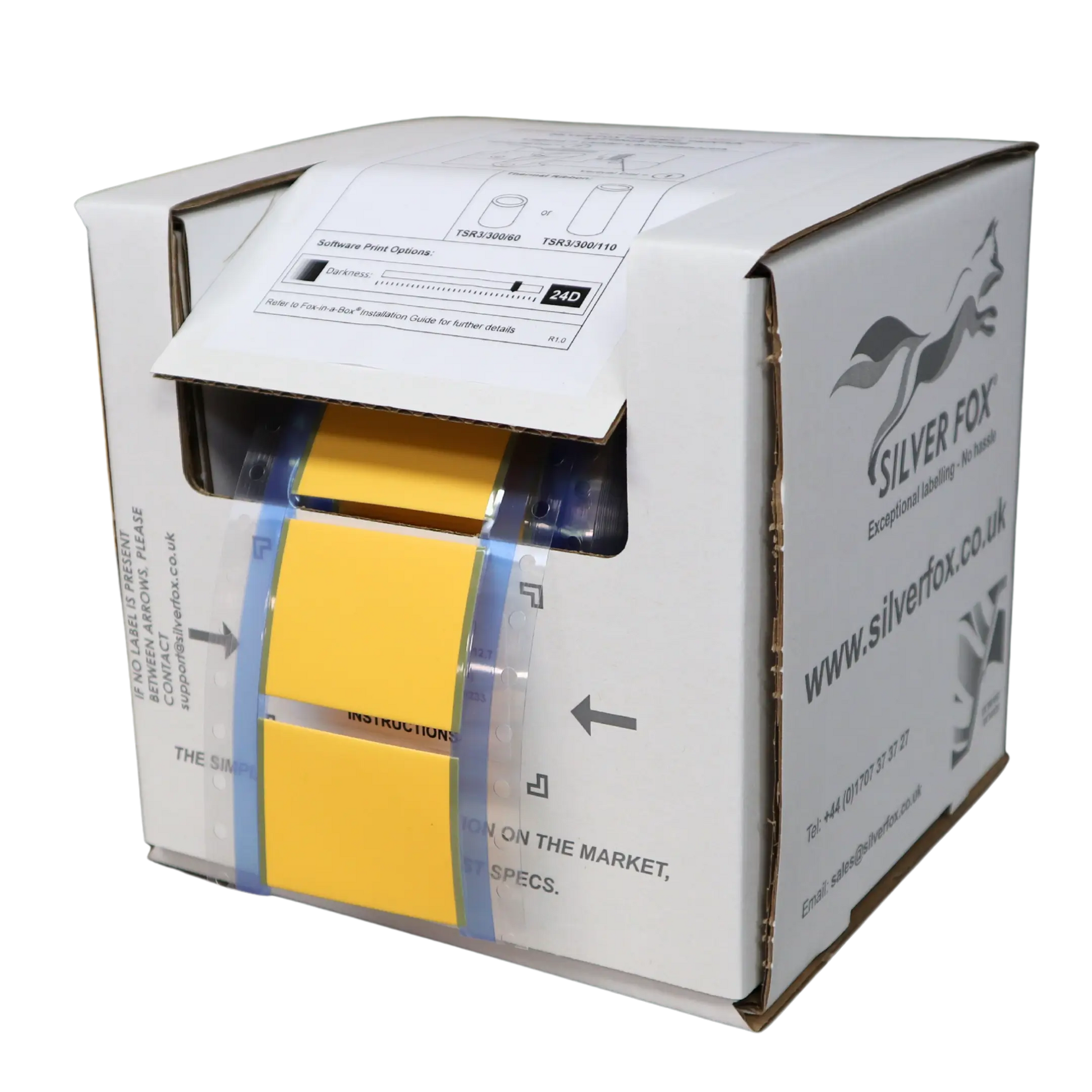

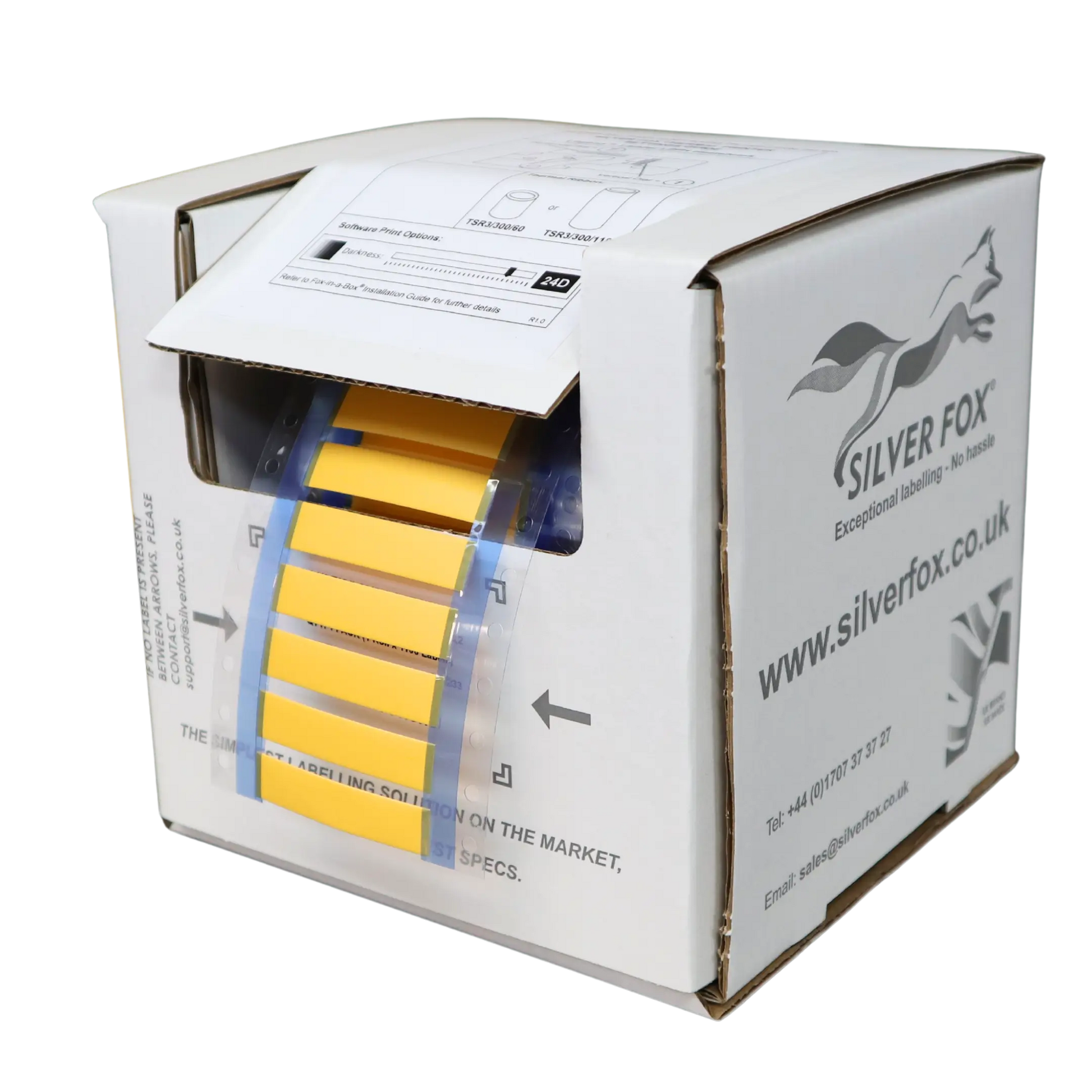

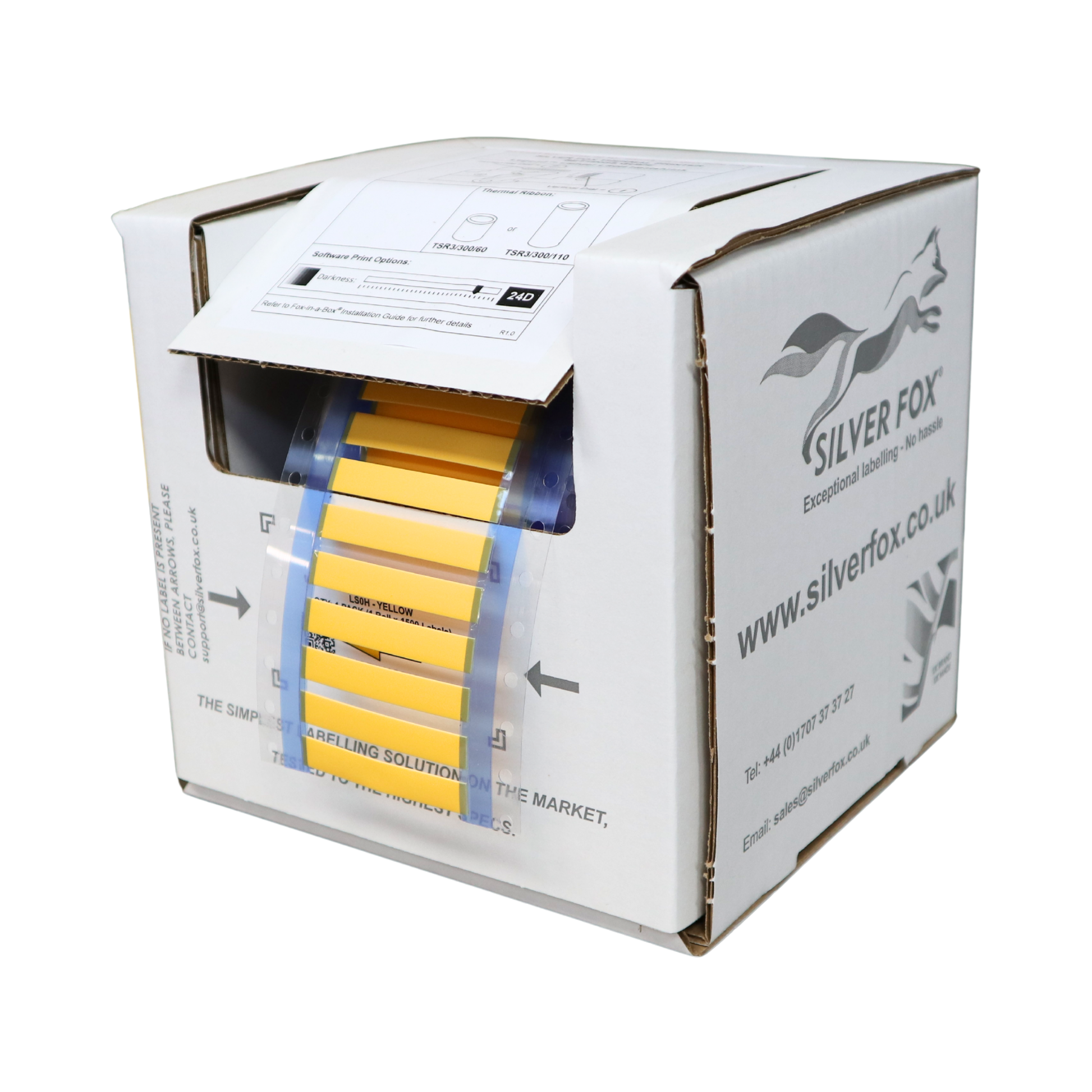

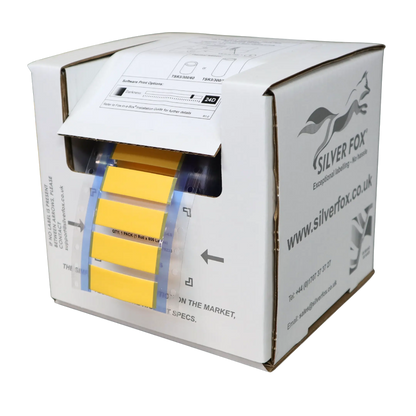

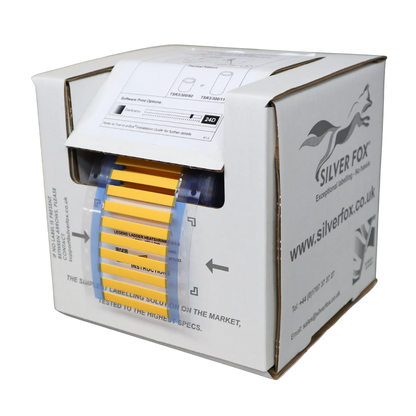

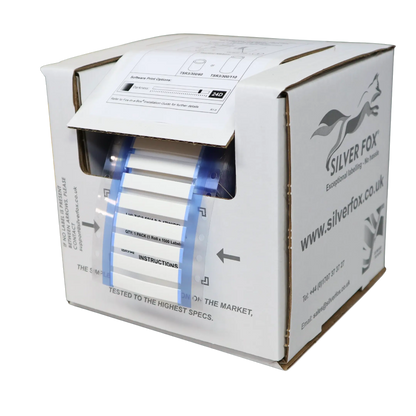

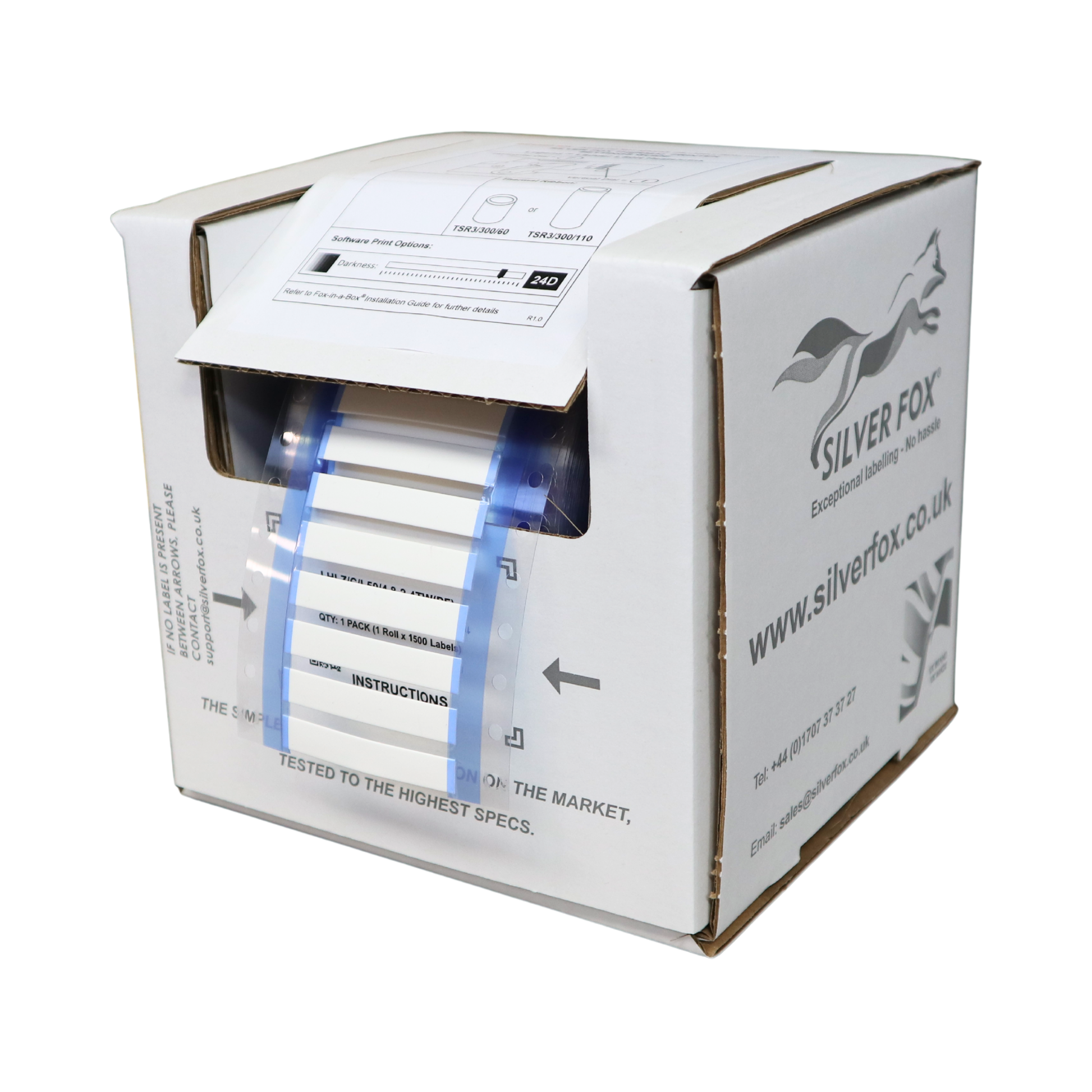

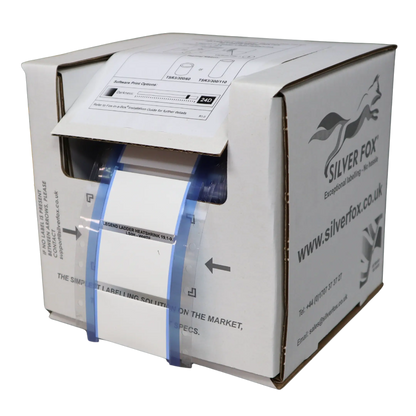

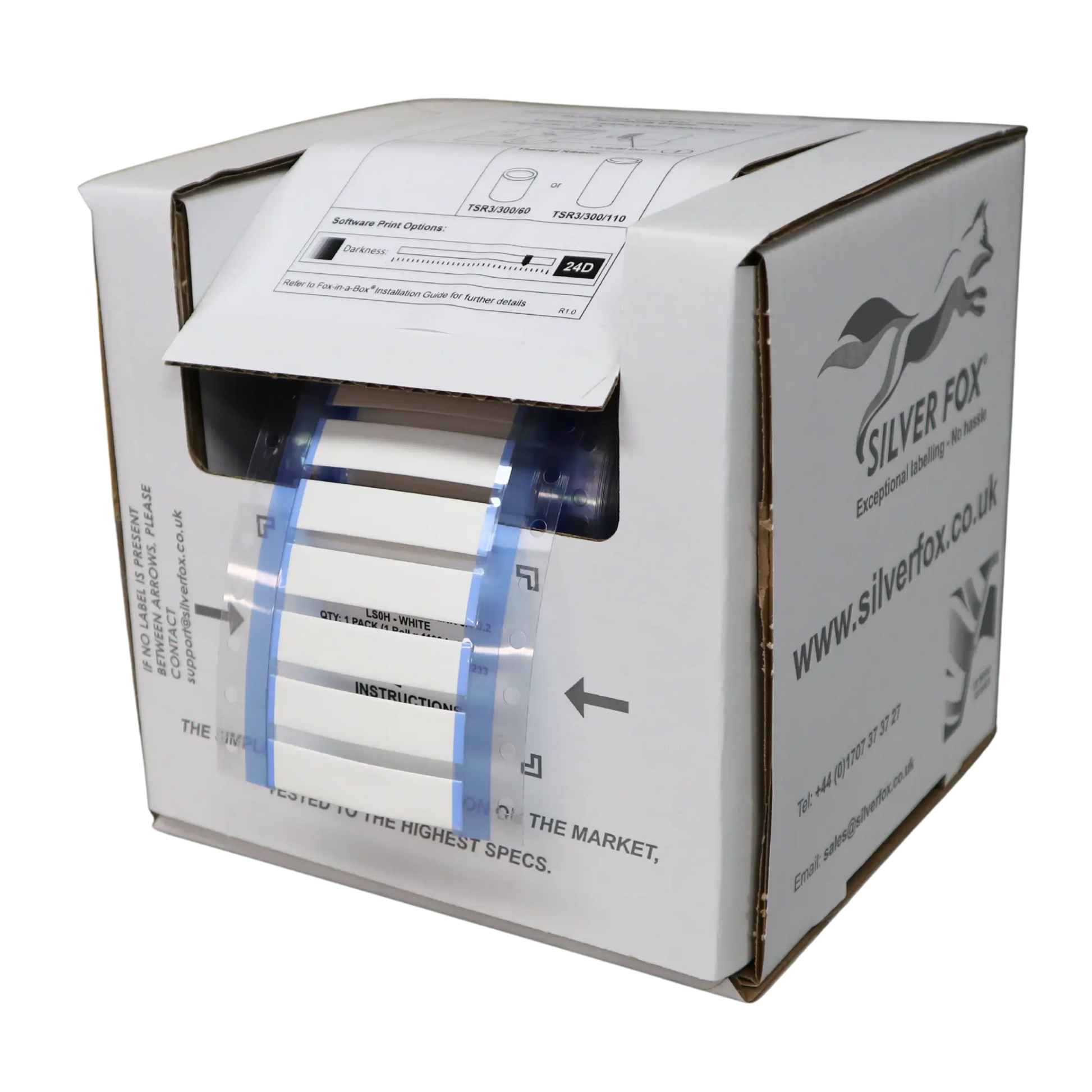

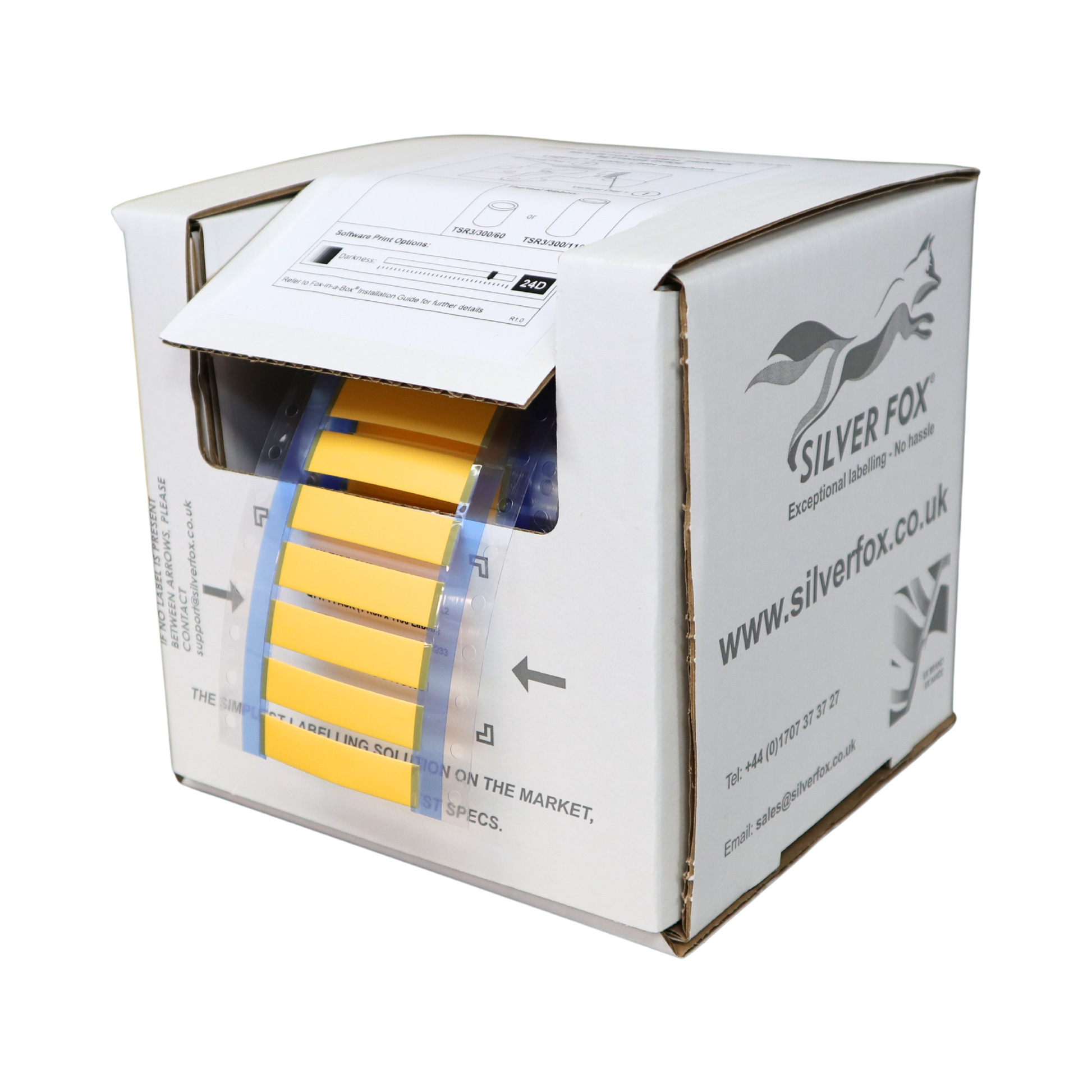

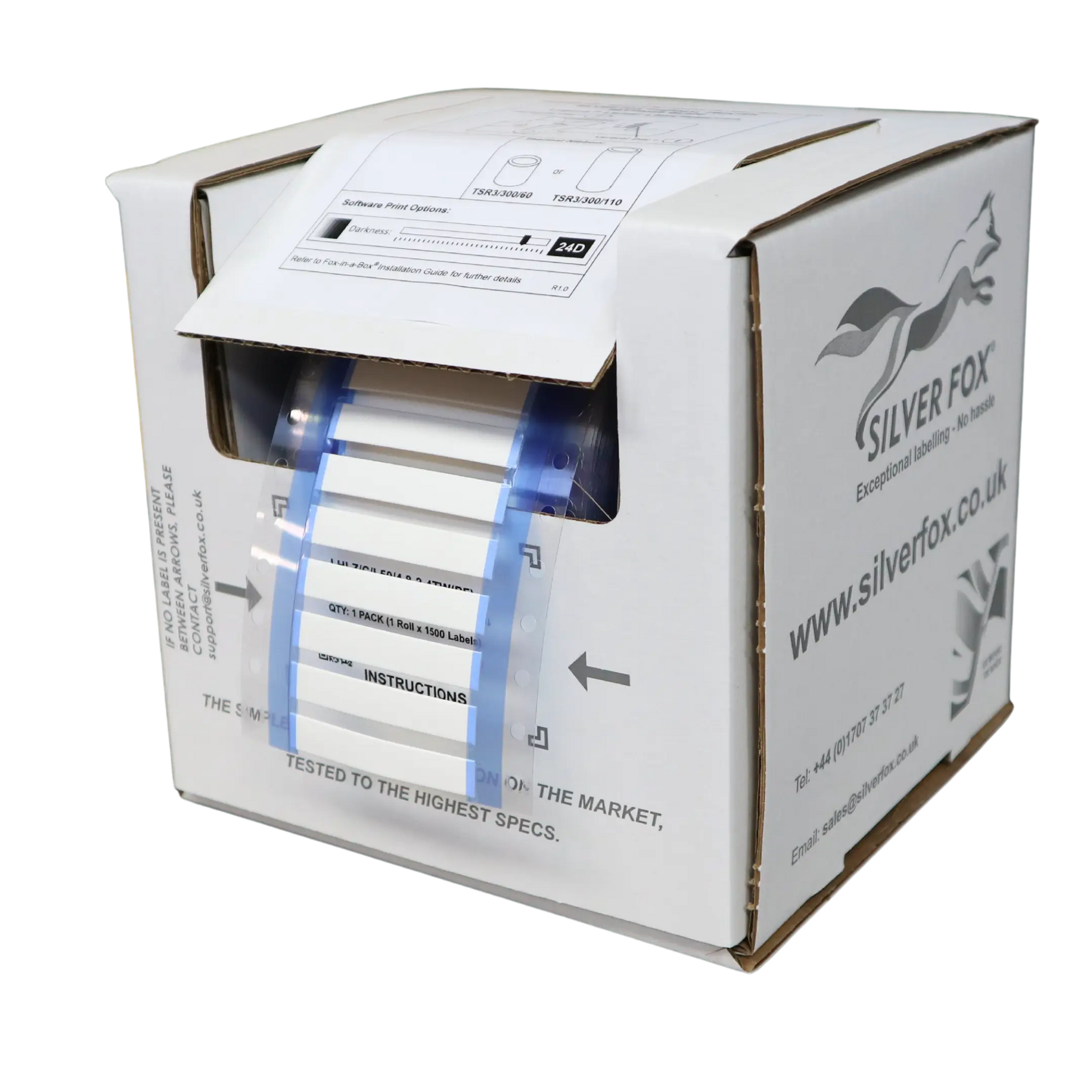

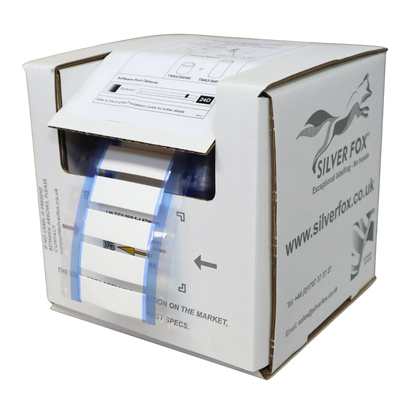

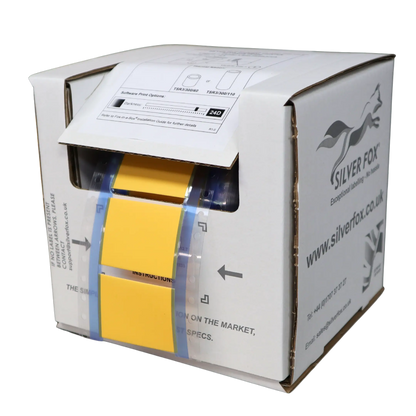

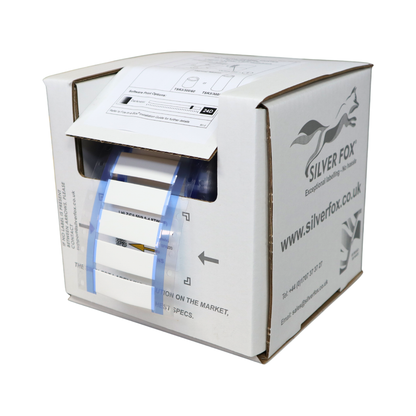

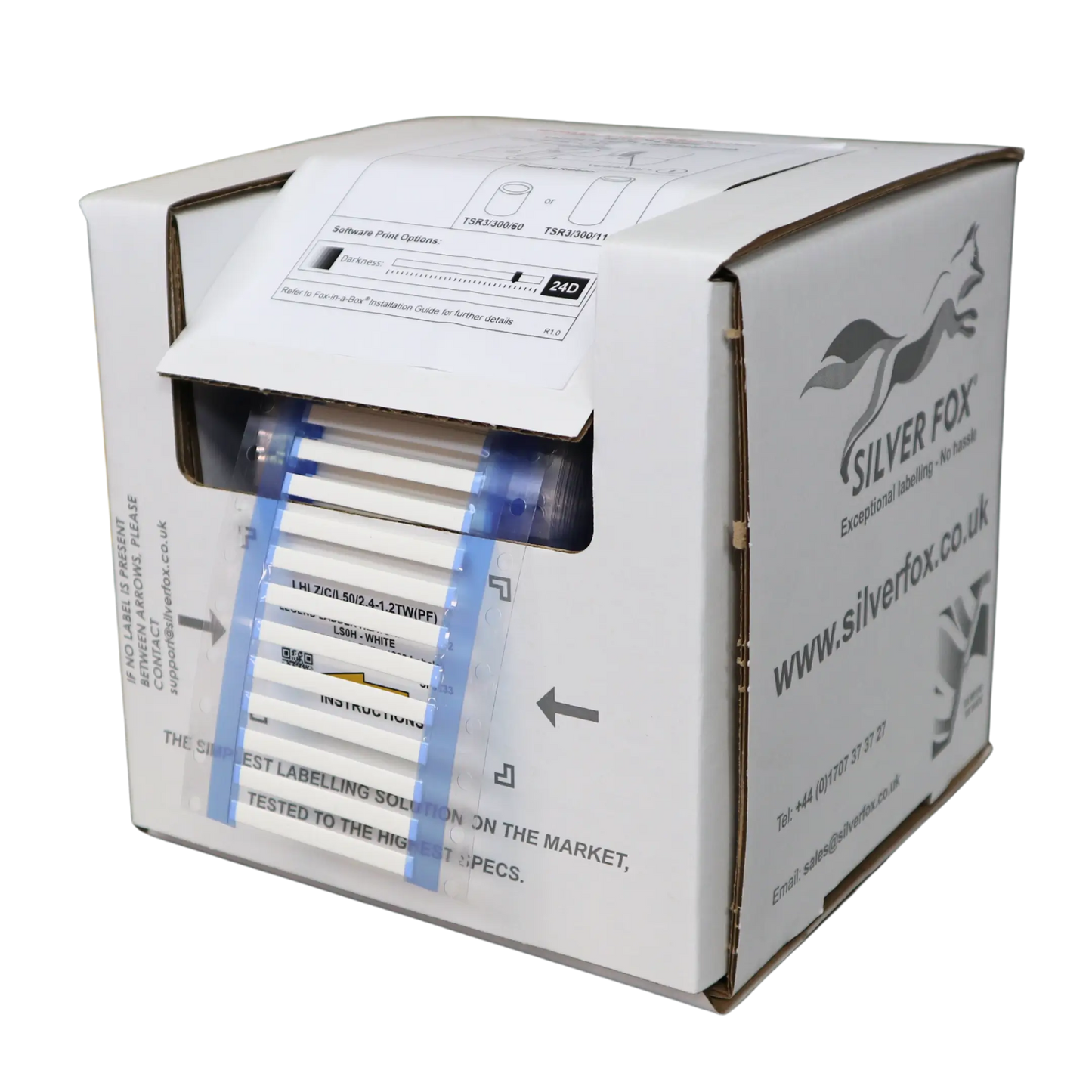

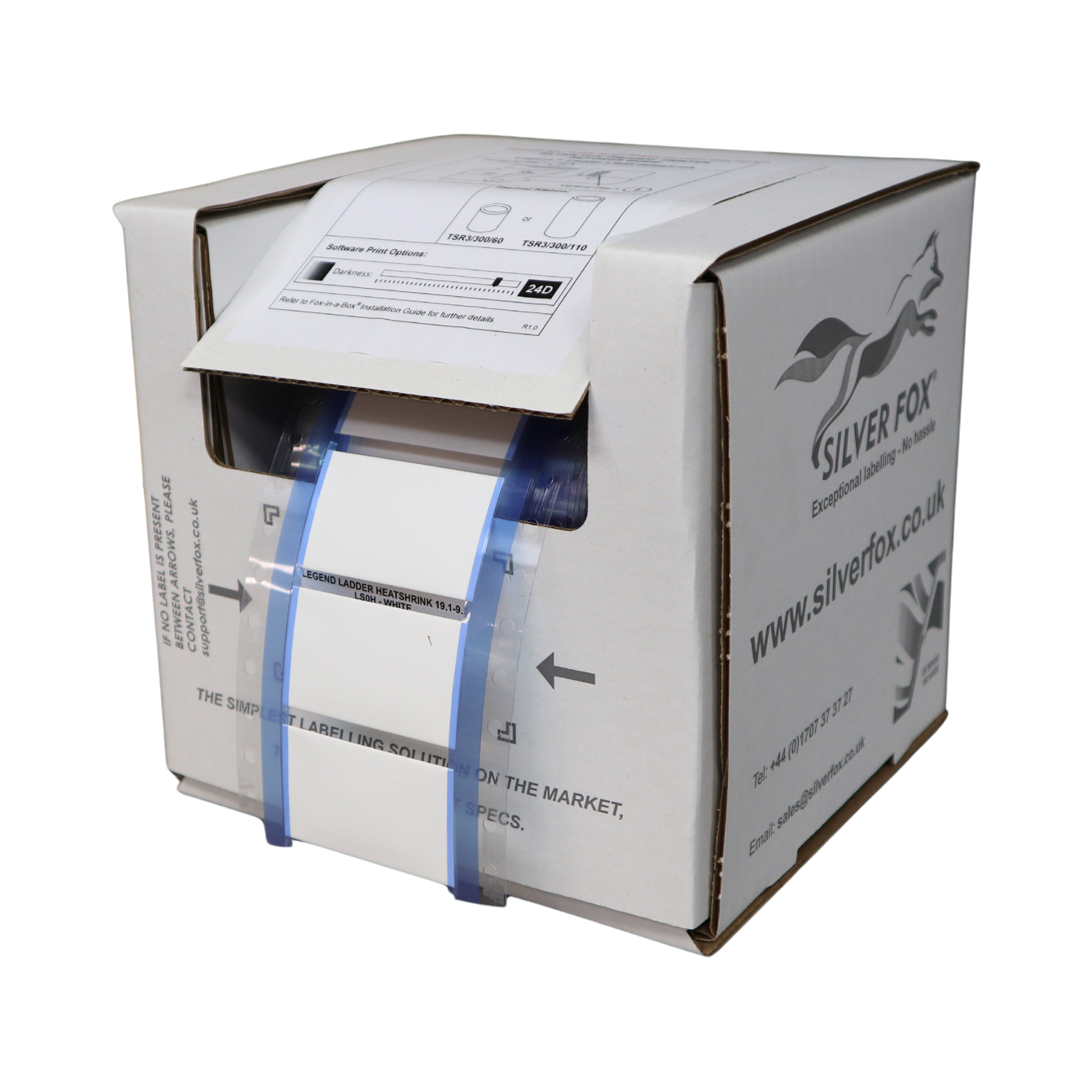

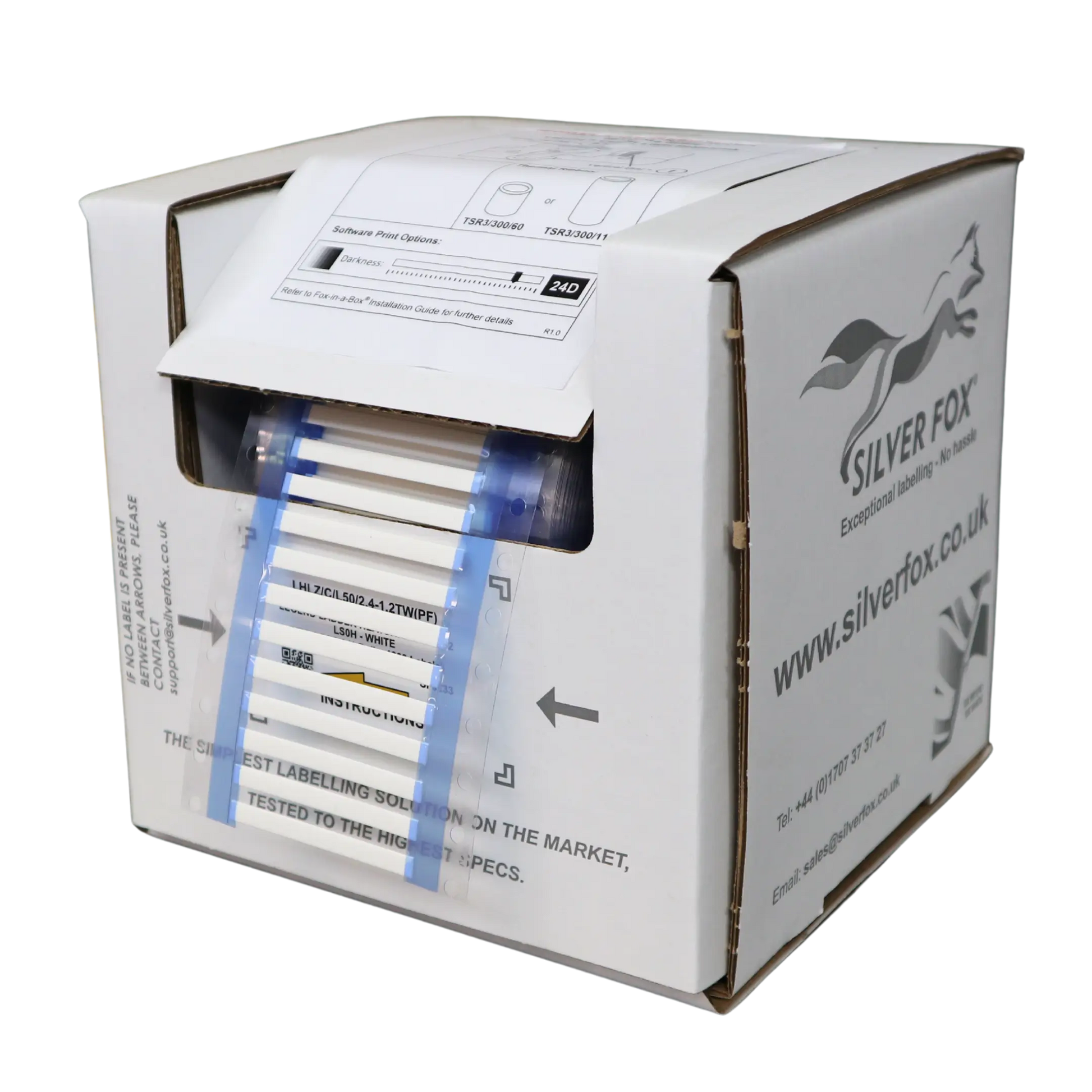

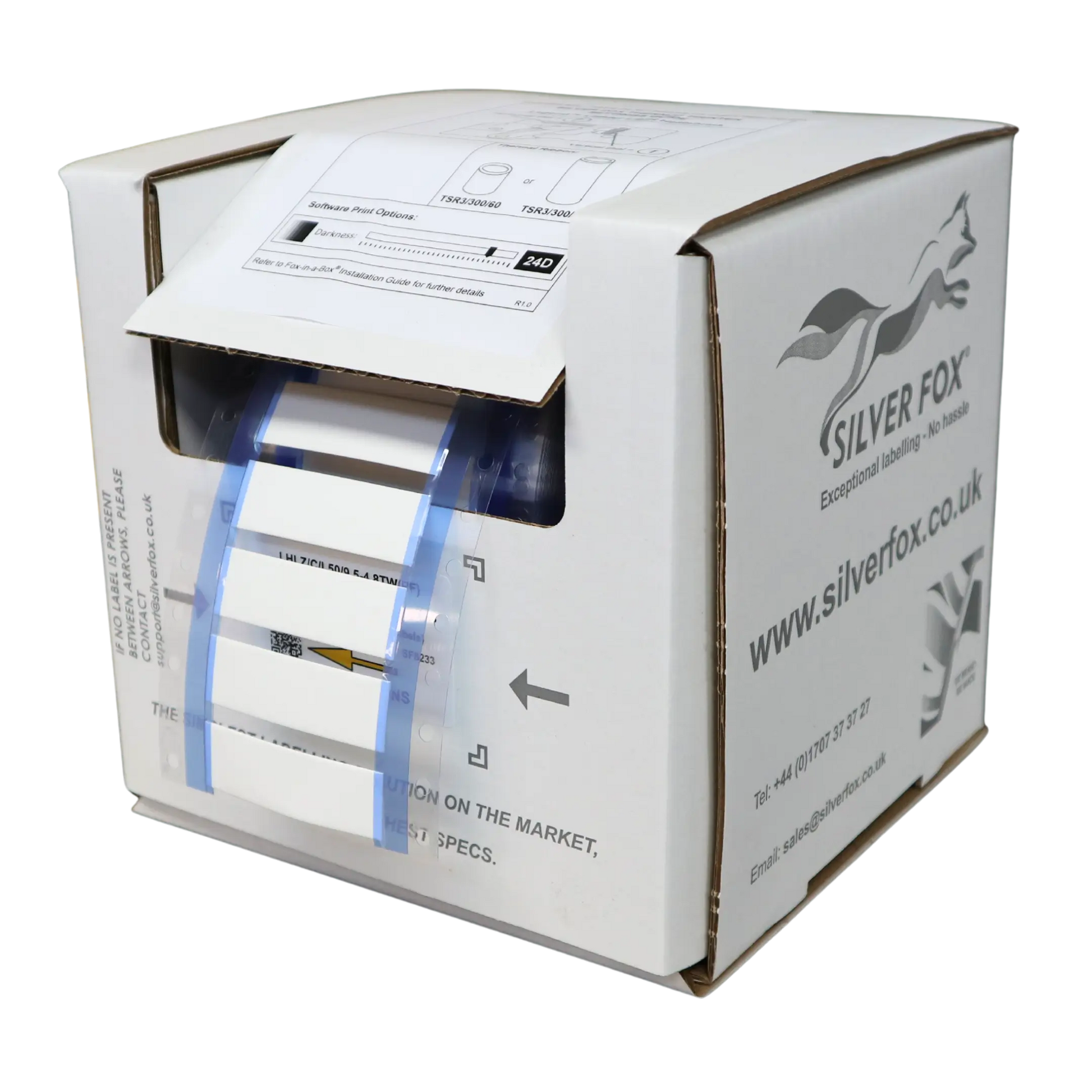

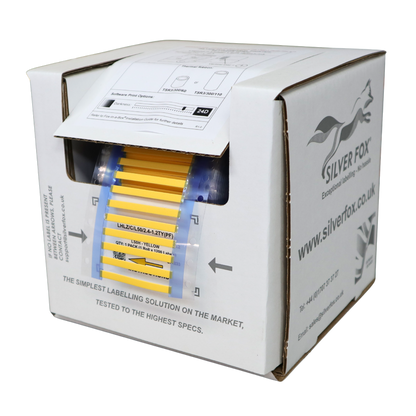

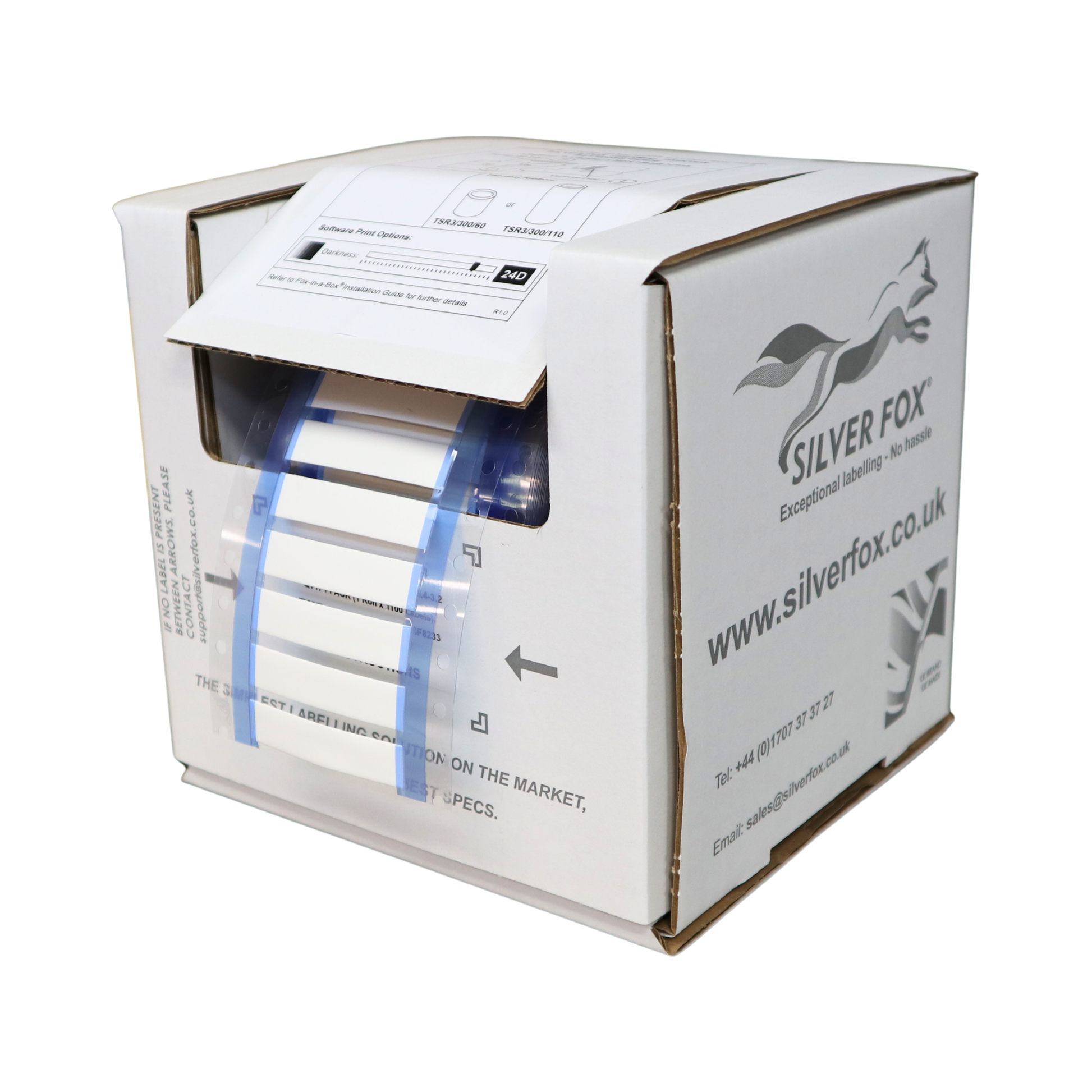

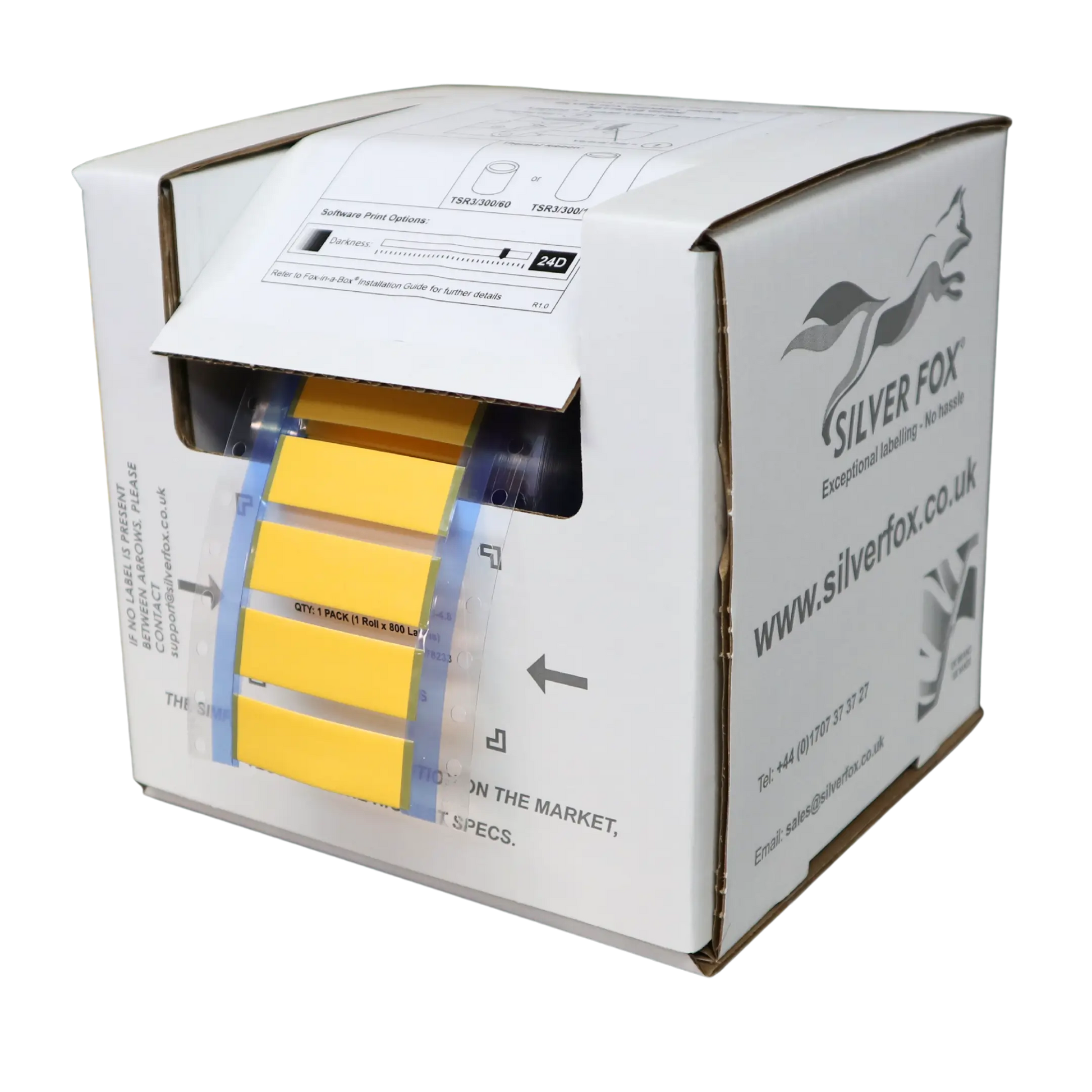

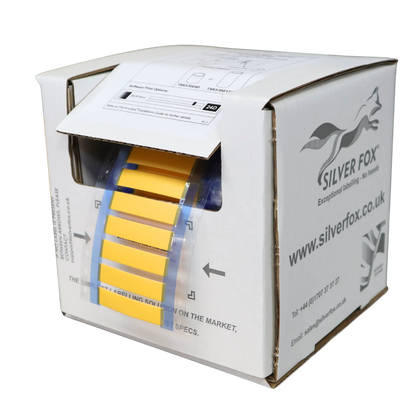

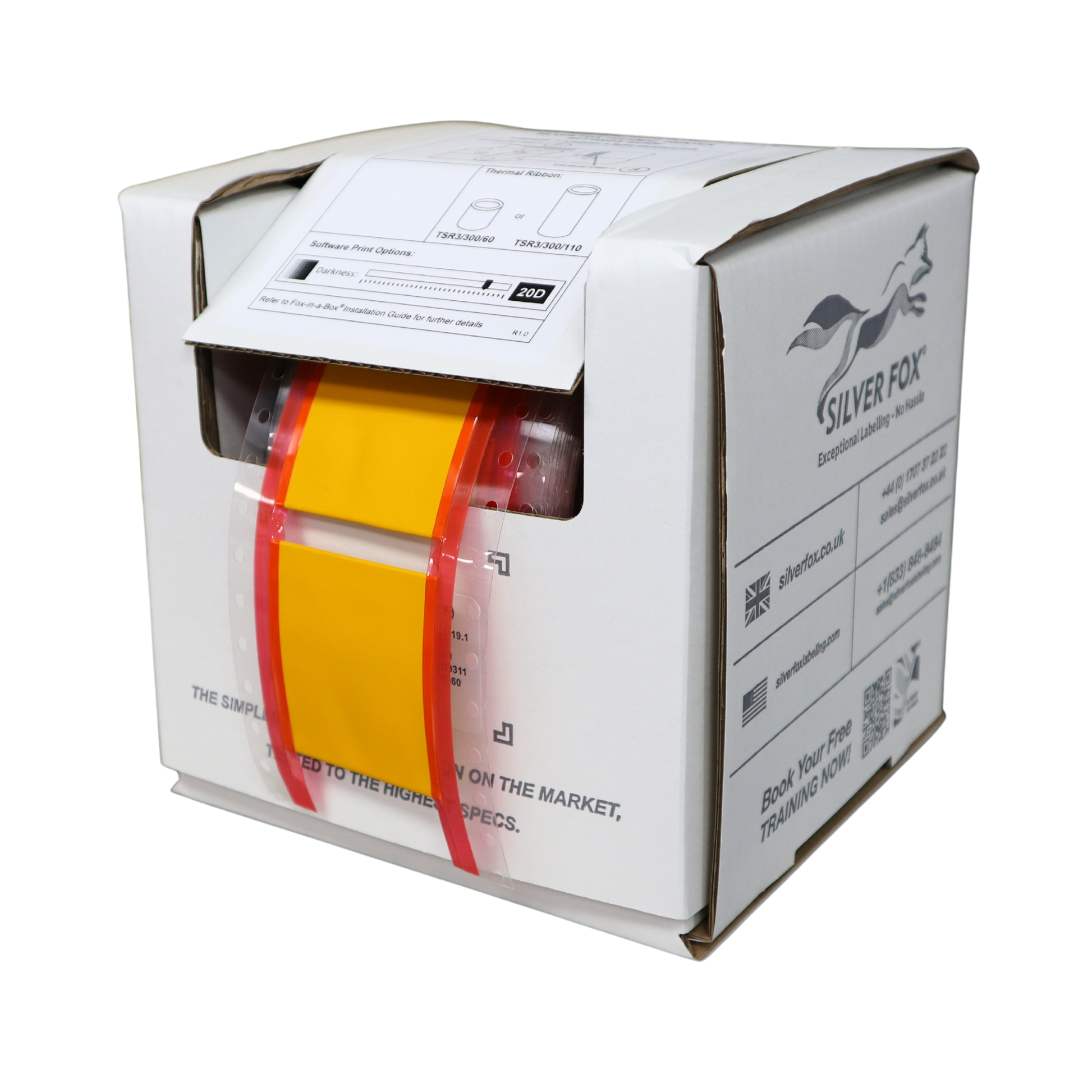

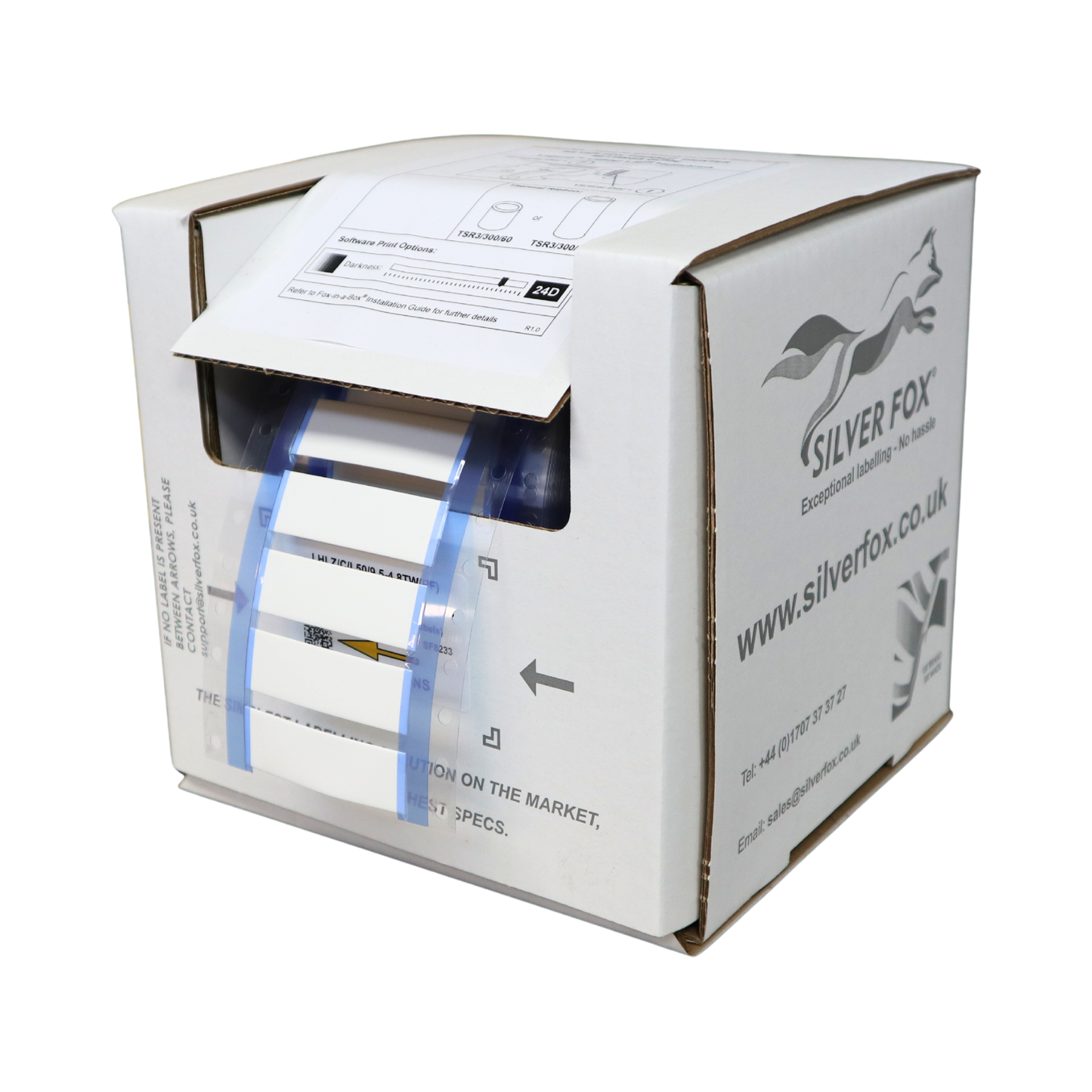

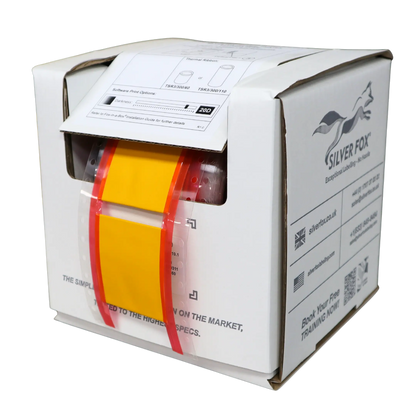

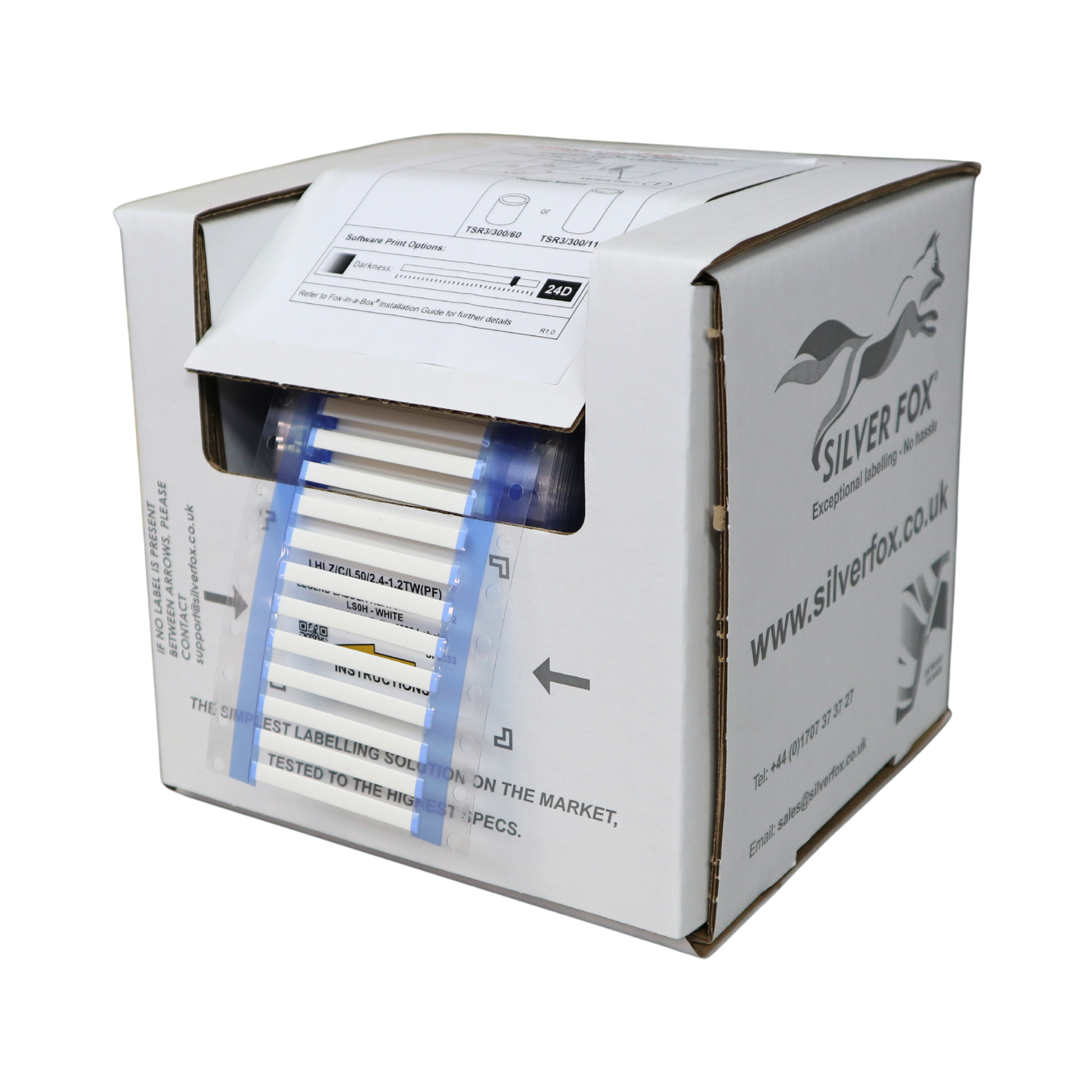

Legend™ Low-Smoke Zero-Halogen Ladder Heatshrink are halogen free shrinkable markers that are conveniently supplied in a ladder style format. With our bio-degradable all-in-one delivery, storage and dispenser boxes they can be rapidly printed with Silver Fox’s premium Fox-in-a-Box® thermal printer.
- 2:1 shrink ratio

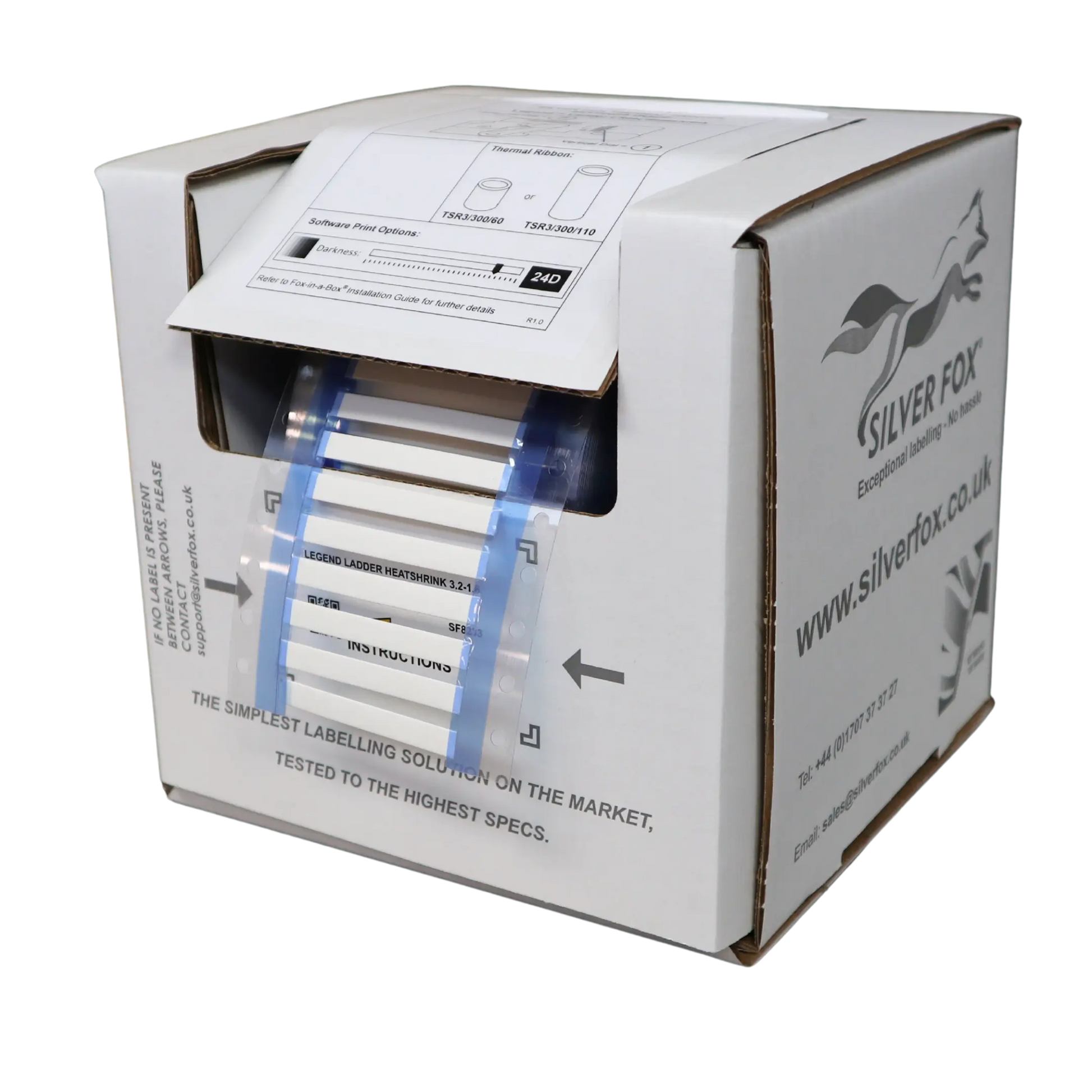

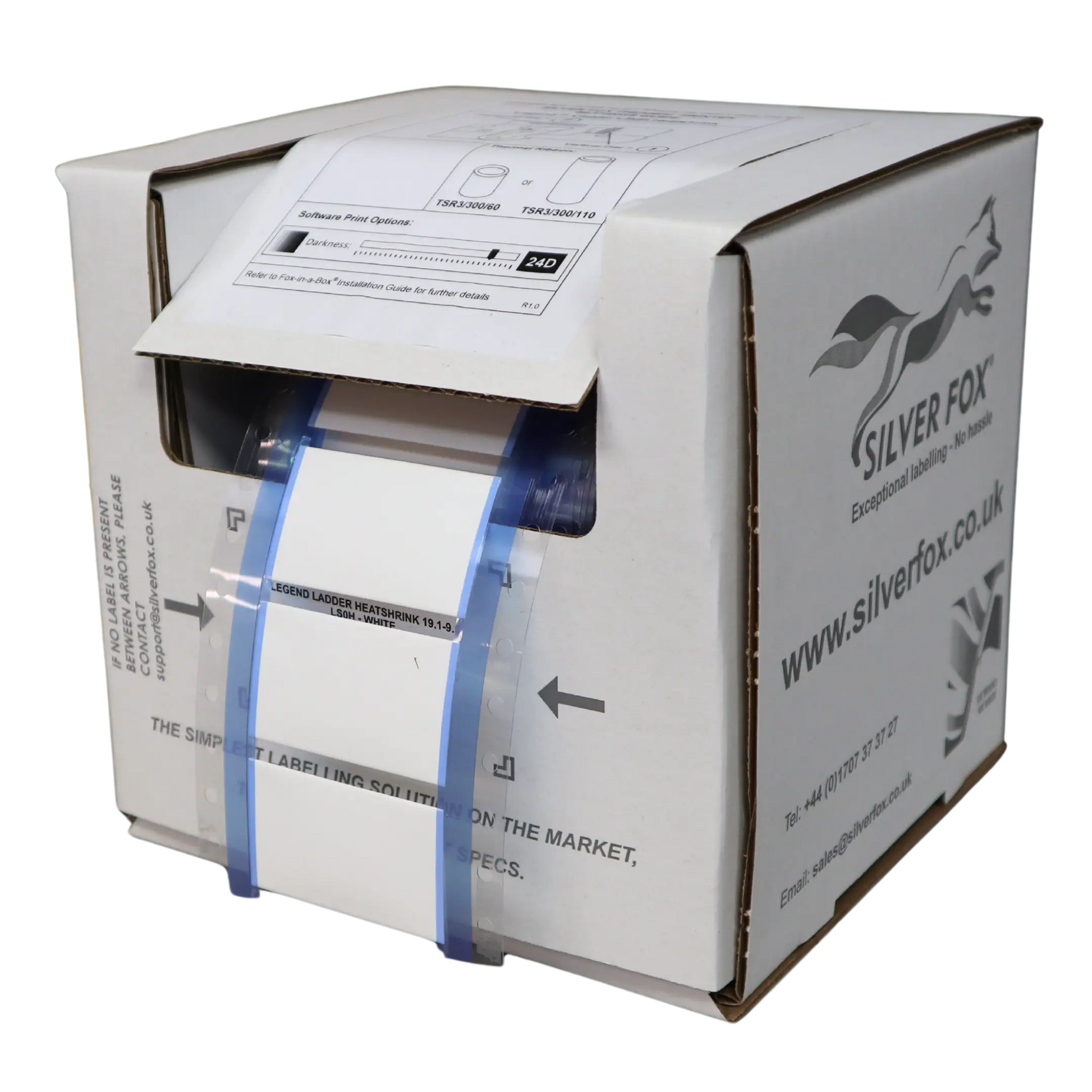

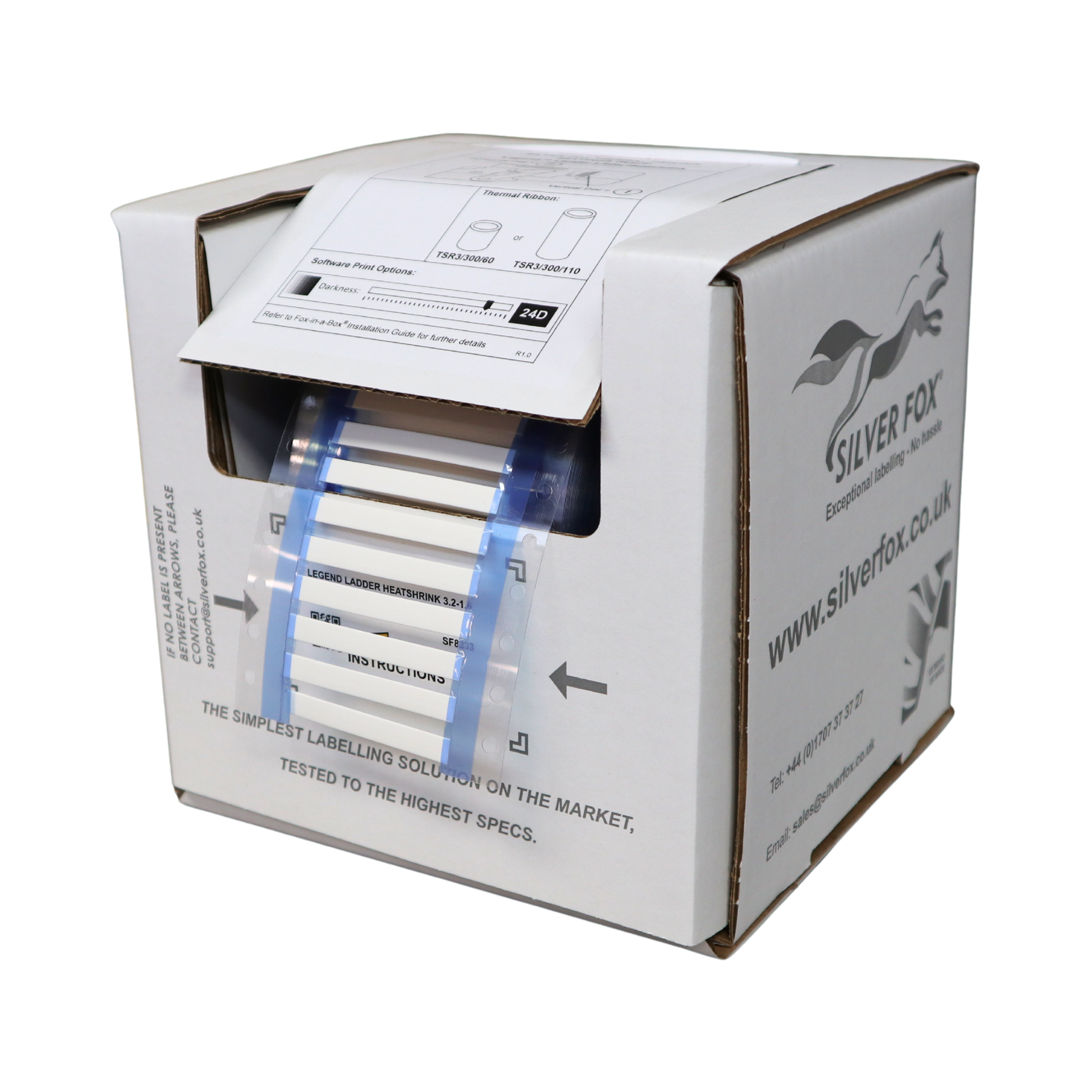

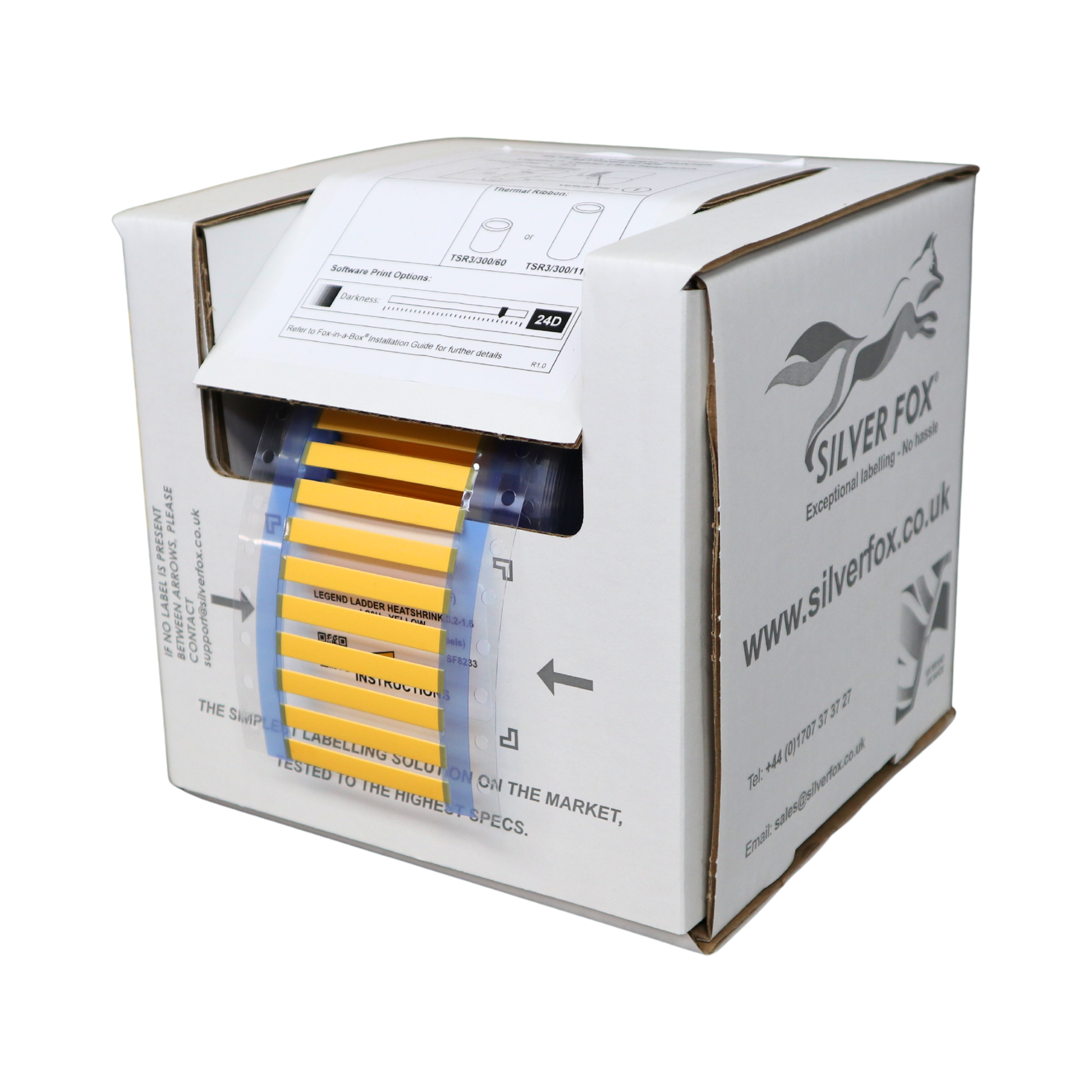

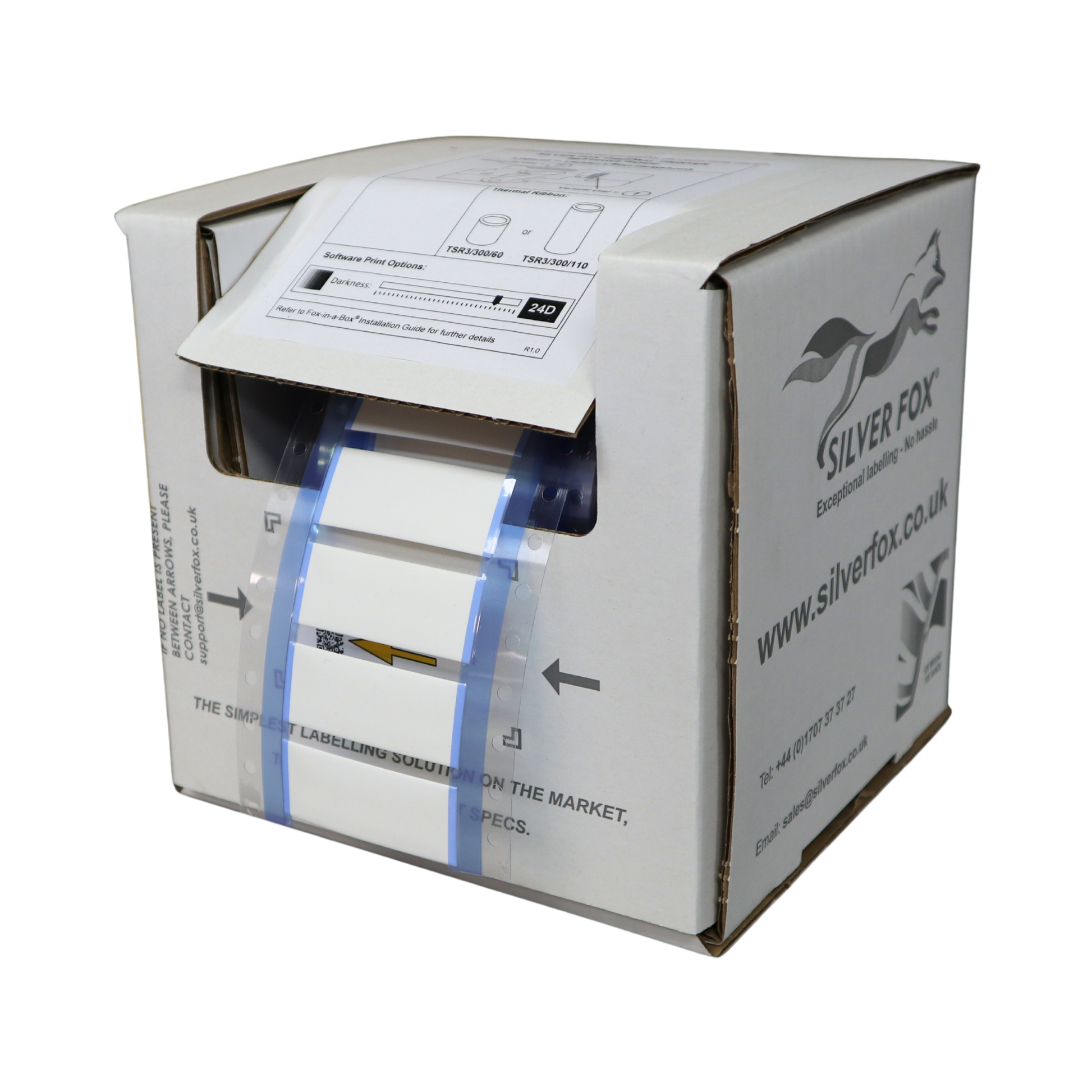

- Available in yellow & white
- Low smoke propagation & halogen free
- Self-extinguishing material

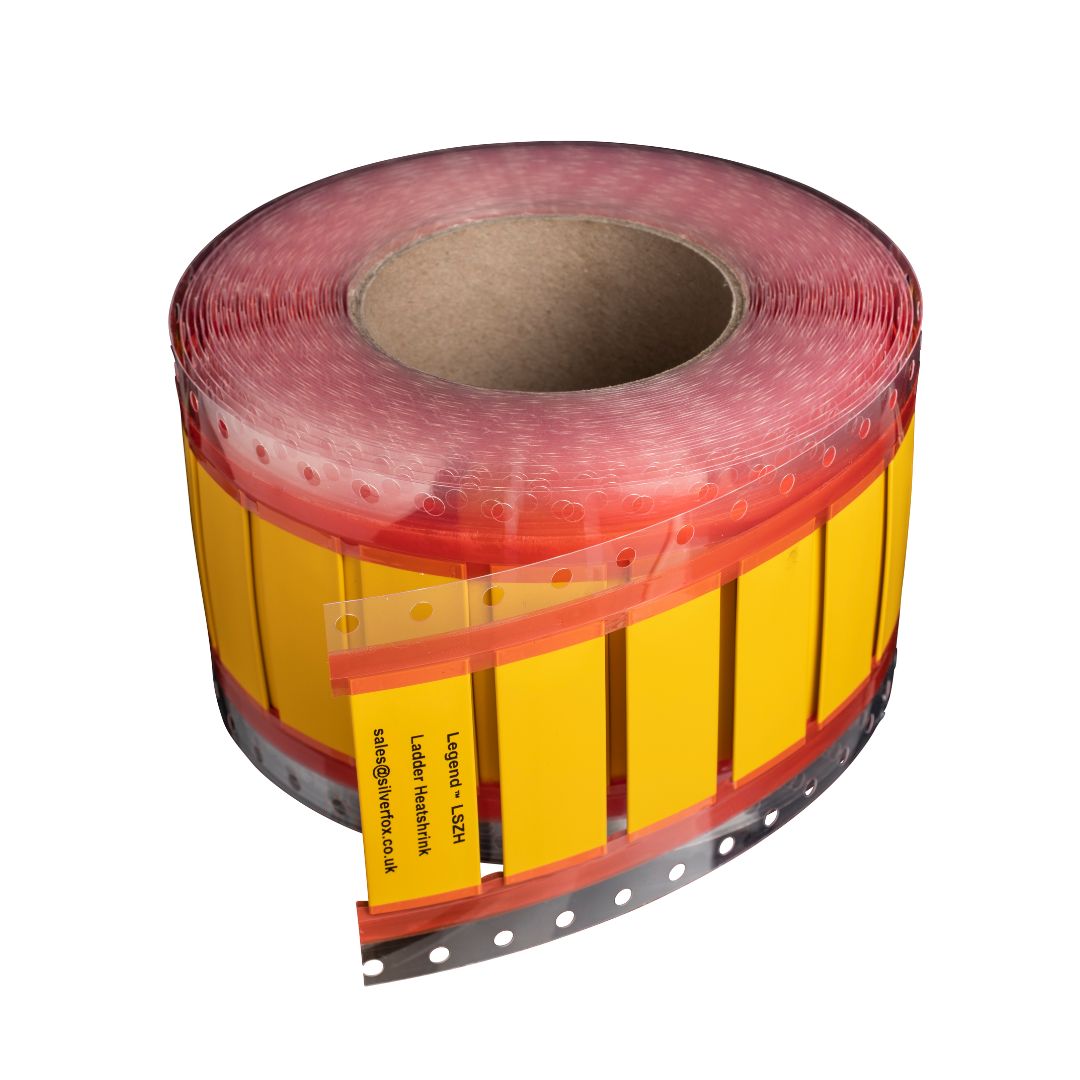

- Available in continuous roll format
Download Datasheet Here
*Barcoding/QR Coding/Graphics functionality is available via the Professional level Fox-in-a-Box®

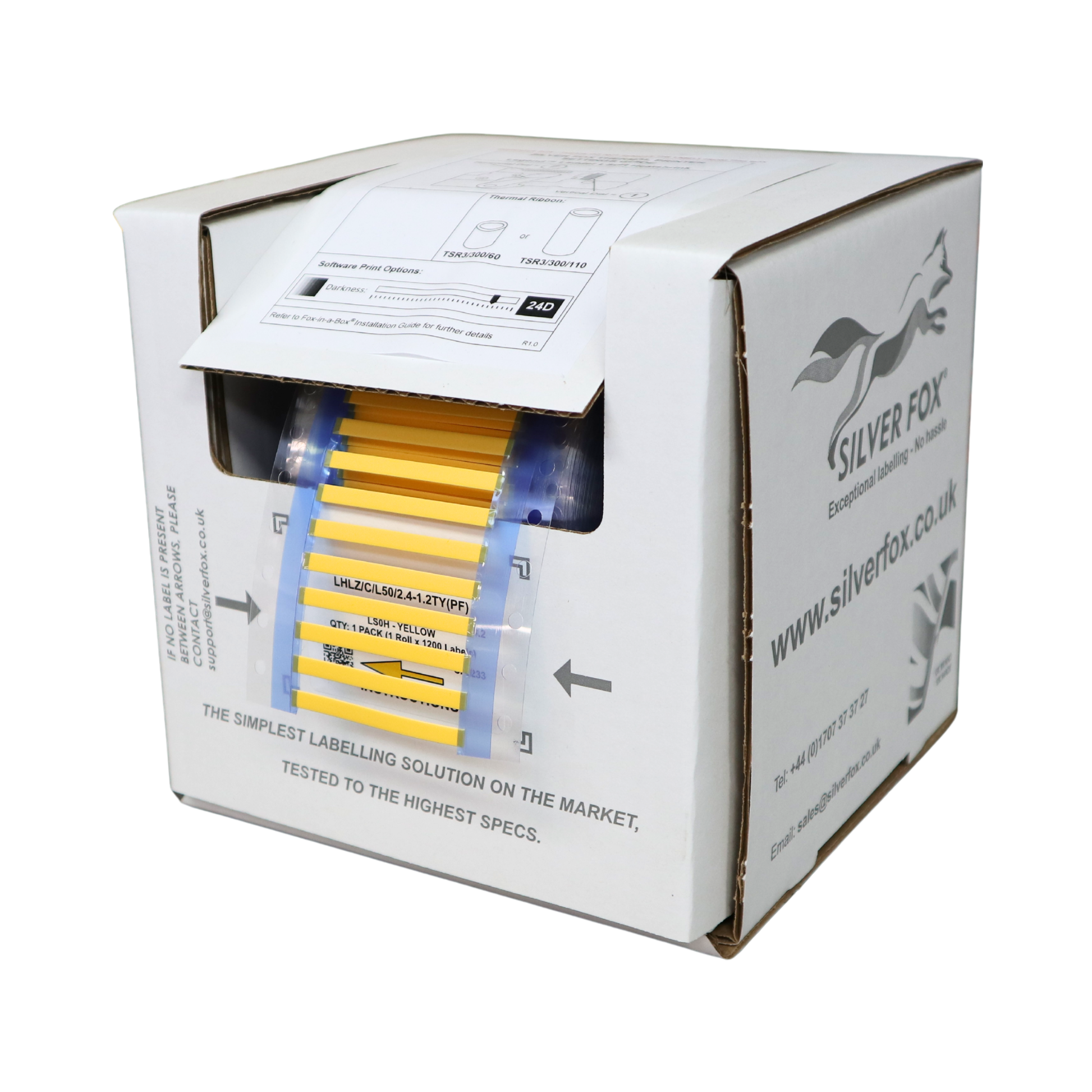

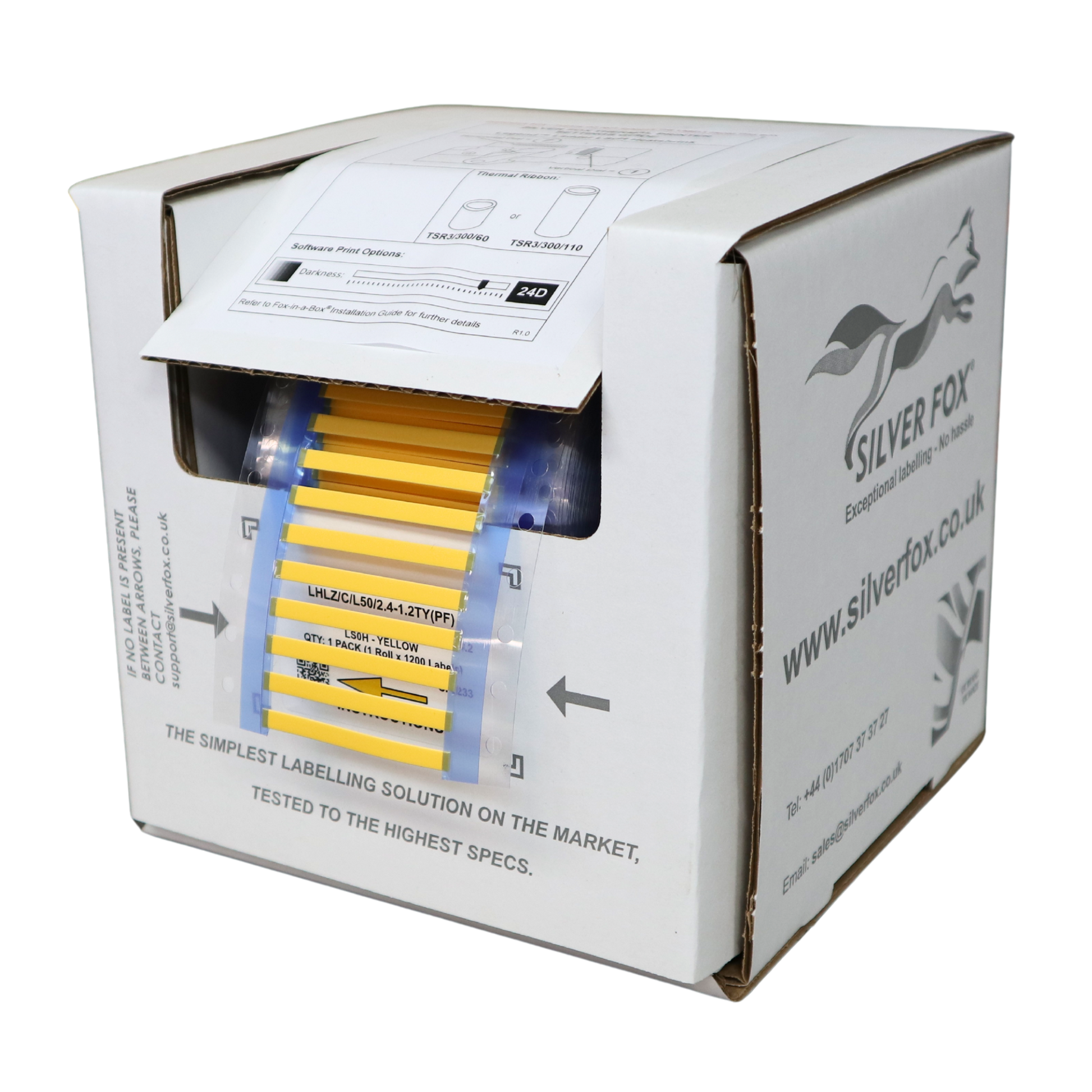

SKU:LHLZ/C/L50/2.4-1.2T(PF)Y | Labels Per Roll: 1500
The Legend™ Range is Trusted by...

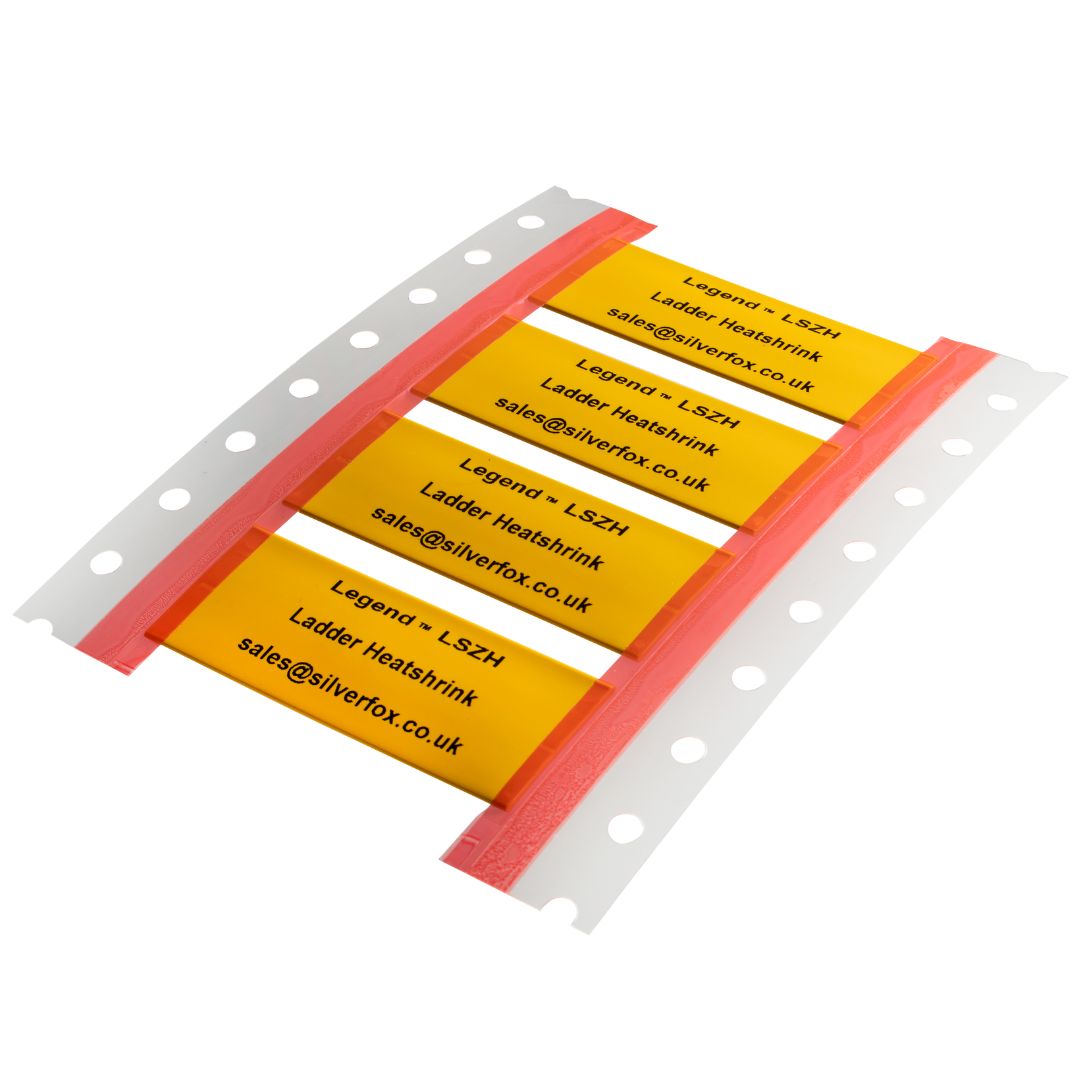

Efficient Ladder Style Format
Using the advanced or professional Fox-in-a-Box® cross-ferruling functionality you can print both ends of wire at the same time. This unique functionality cuts printing efforts in half and yields approximately 23,000, 25mm labels with our included 300m ribbon.
-
Low Smoke Zero Halogen
LSZH heatshrink is made of a premium halogen free, low smoke propagation material - an ideal choice for environments where safety and environmental concerns are paramount.
-
Preperforated 25mm width
With the 25mm width ladder style heat shrink you can print two idents at once cutting printing efforts in half.
-
Range of Diameters
Choose from an extensive range of diameters and colours to create a labelling system that aligns perfectly with your businesses needs and application environment.
And that's not all!
- Includes free of charge training
- Includes free of charge support
Technical Information
Material Specification
- Material: Polyolefin
- Shrink Ratio: 2-1
- Dielectric Strength: ≥ 20 kV/mm
- Halogen Free & Flame Retardant
- 115°C ( 239°F) – fully recovered
- Operating Temperature: -40°C to +105°C (-40°F to 221°F)
Available Dimensions
- Cable Shrink Diameter Ø (mm): 2.4-1.2, 3.2-1.6, 4.8-2.4, 6.4-3.2, 9.5-4.8, 12.7-6.4, 19.1-9.5, 25.4-12.7, 38.1-19.1
Product Testing
- Reach Compliant: Yes
- Network Rail: Authorised for Use
- Flame retardant UL224
- Oxygen Index & Flue Gas Density EN 45545-2
- Resistance to Solvents MIL-STD-202-215 w/change 1
Printing & Software Requirements
- To achieve the best printing results, we recommend using a Fox-in-a-Box® DTP-1 thermal printer along with TSR3/300 thermal transfer ribbons.
- Print via Fox-in-a-Box® thermal printer using ‘One software, One printer, One ribbon’ for our complete range of thermal labels.
*We are often asked whether the print will shrink when the tubing shrinks. Like all heatshrink yes, it does. Suggested ways to minimise the reduction in print size: Shrink the tubing from the reverse side to the printing. Some customers also advise using a font like Arial Narrow.
**For more information call our Sales Team on +44 (0)1707 37 37 27 or email sales@silverfox.co.uk
Available Colours
- Yellow & White
Storage Instructions
- Storage Instructions: Store between 50ºF (10ºC) and 77ºF (25ºC)
- Conditions: Keep in dark conditions
- Humidity Resistance: 35% to 65% RH
Printable Areas
- LEGEND™ Ladder Heatshrink LSZH Ø 12.7 - 6.4 | LHLZ/C/L25X2/12.7-6.4T: 22 x 22mm (x2)
- LEGEND™ Ladder Heatshrink LSZH Ø 19.1 - 9.5 | LHLZ/C/L25X2/19.1-9.5T: 22 x 32mm (x2)
- LEGEND™ Ladder Heatshrink LSZH Ø 2.4 - 1.2 | LHLZ/C/L25X2/2.4-1.2: 23.5 x 5mm (x2)
- LEGEND™ Ladder Heatshrink LSZH Ø 25.4 - 12.7 | LHLZ/C/L25X/25.4-12.7T: 22 x 41mm (x2)
- LEGEND™ Ladder Heatshrink LSZH Ø 3.2 - 1.6 | LHLZ/C/L25X2/3.2-1.6T: 22 x 7mm (x2)
- LEGEND™ Ladder LSZH Heatshrink Ø 4.8 - 2.4 | LHLZ/C/L25X2/4.8-2.4T: 22 x 8mm (x2)
- LEGEND™ Ladder LSZH Heatshrink Ø 6.4 - 3.2 | LHLZ/C/L25X2/6.4-3.2T: 22 x 10mm (x2)
- LEGEND™ Ladder LSZH Heatshrink Ø 9.5 - 4.8 | LHLZ/C/L25X2/9.5-4.8T: 22 x 15mm (x2)
- LEGEND™ Ladder LSZH Heatshrink Ø 12.7 - 6.4 | LHLZ/C/L50/12.7-6.4T: 50 x 19.5mm
- LEGEND™ Ladder LSZH Heatshrink Ø 19.1 - 9.5 | LHLZ/C/L50/19.1-9.5T: 50 x 31mm
- LEGEND™ Ladder LSZH Heatshrink Ø 2.4 - 1.2 | LHLZ/C/L50/2.4-1.2T: 49 x 4mm
- LEGEND™ Ladder LSZH Heatshrink Ø 25.4 - 12.7 | LHLZ/C/L50/25.4-12.7T: 50 x 40mm
- LEGEND™ Ladder LSZH Heatshrink Ø 3.2 - 1.6 | LHLZ/C/L50/3.2-1.6T: 49 x 4.8mm
- LEGEND™ Ladder LSZH Heatshrink Ø 38.1 - 19.1 | LHLZ/C/L50/38.1-19.1T: 49 x 64mm
- LEGEND™ Ladder LSZH Heatshrink Ø 4.8 - 2.4 | LHLZ/C/L50/4.8-2.4T: 49 x 8.5mm
- LEGEND™ Ladder LSZH Heatshrink Ø 6.4 - 3.2 | LHLZ/C/L50/6.4-3.2T: 50 x 9mm
- LEGEND™ Ladder LSZH Heatshrink Ø 9.5 - 4.8 | LHLZ/C/L50/9.5-4.8T: 44 x 15.1mm
Typical Applications

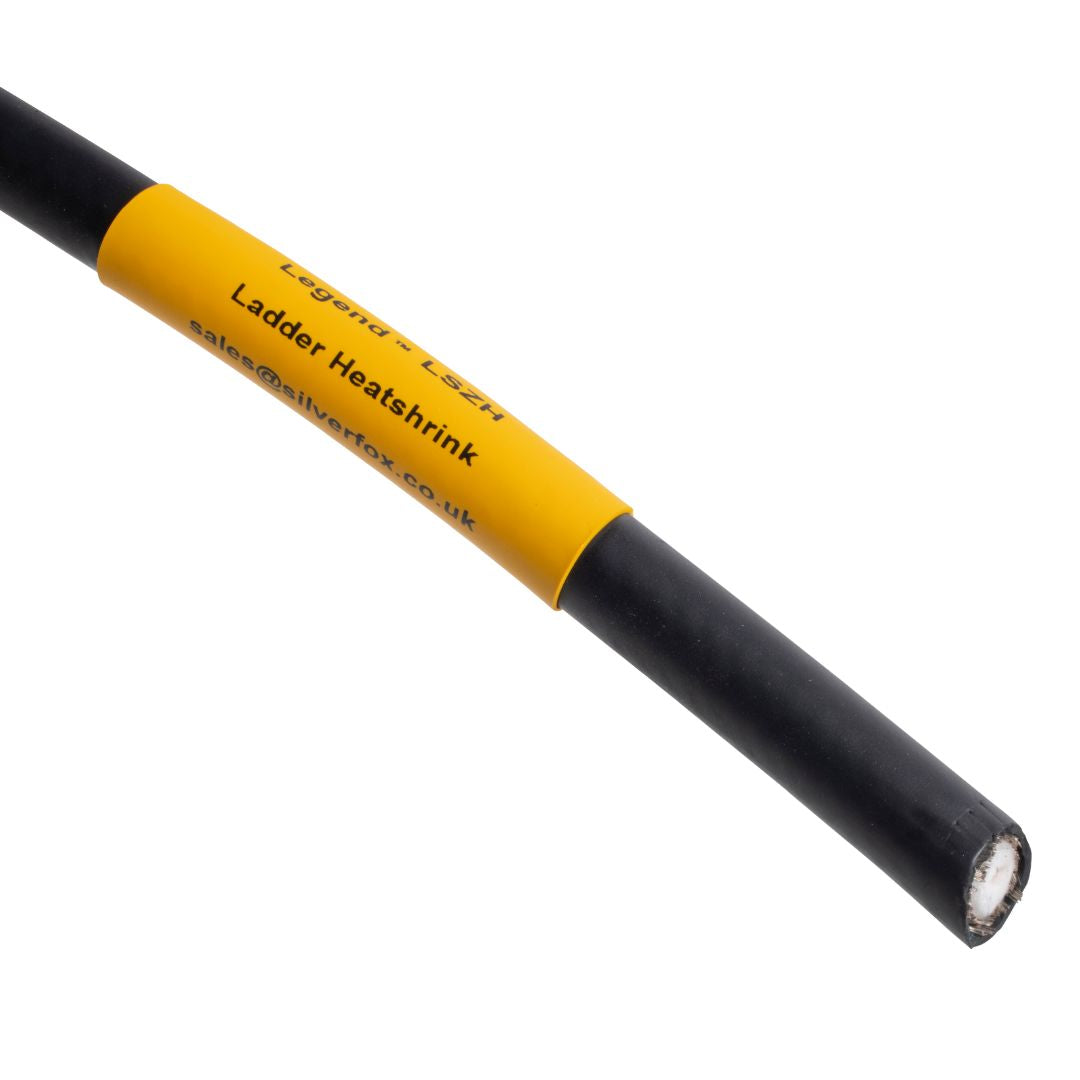

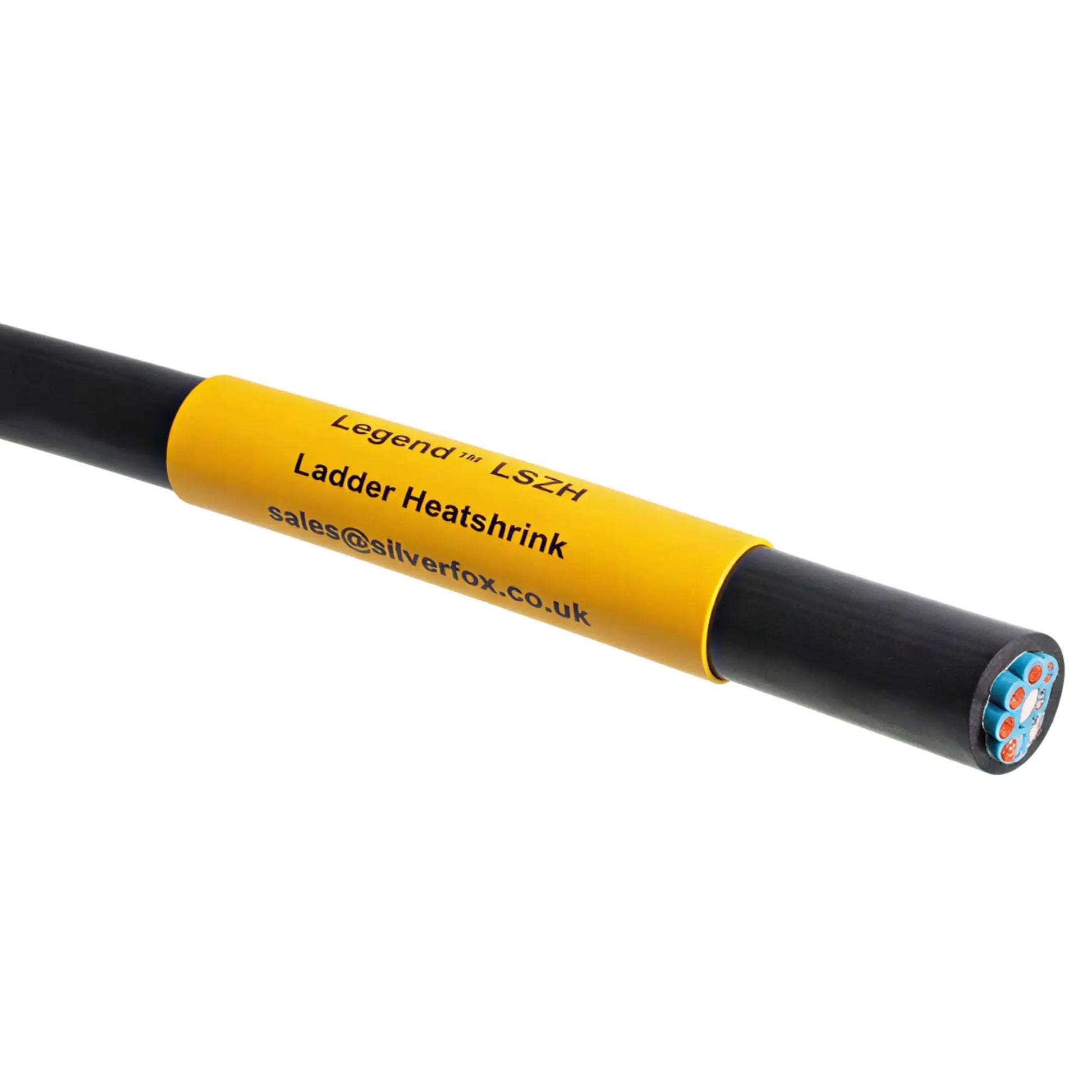

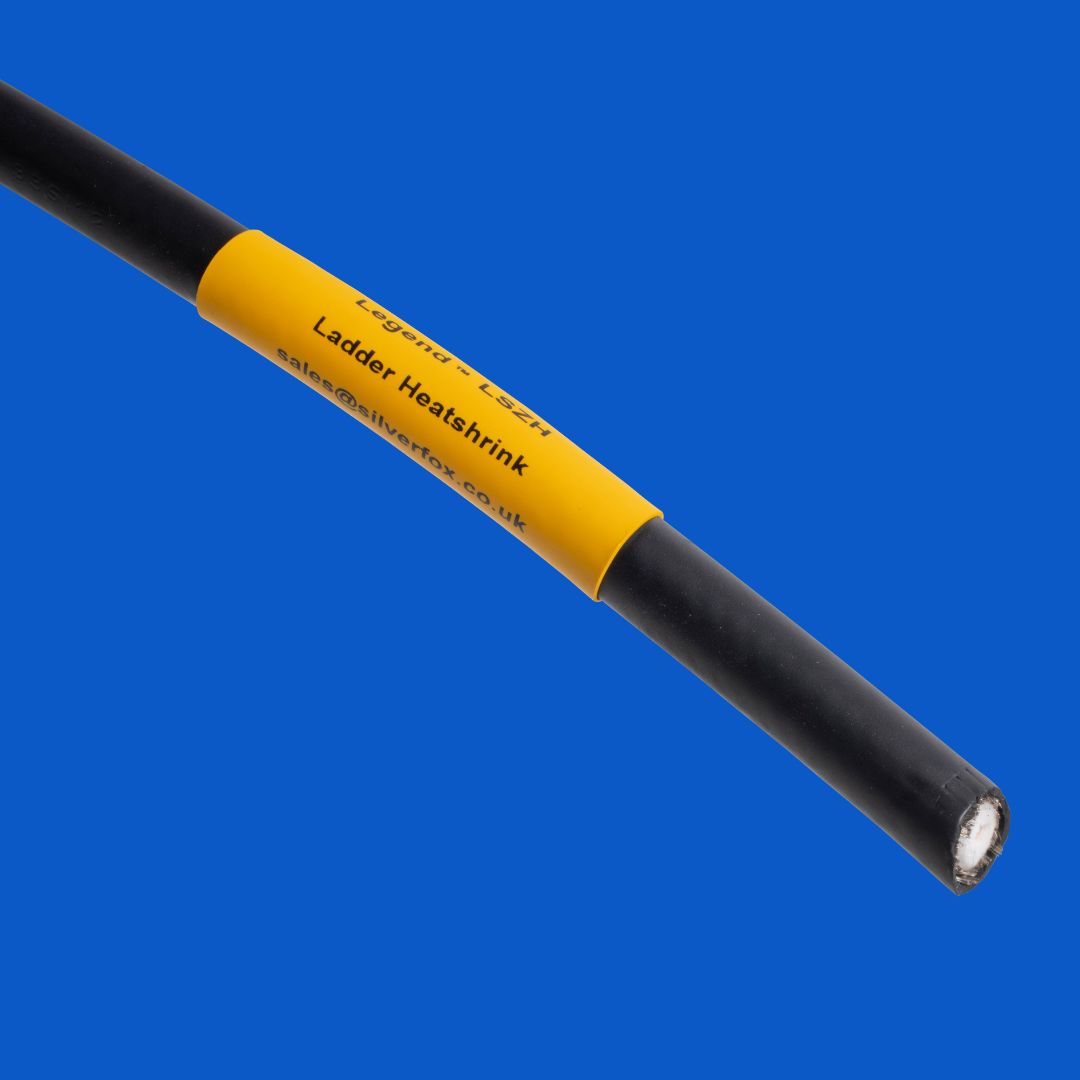

Heat shrink markers are highly adaptable and resistant to heat. They can conform to the shape of the cable, providing a secure fit. This can be particularly useful in environments where cables may be subject to movement or vibration.
How to load Legend™ LSZH Ladder Heatshrink

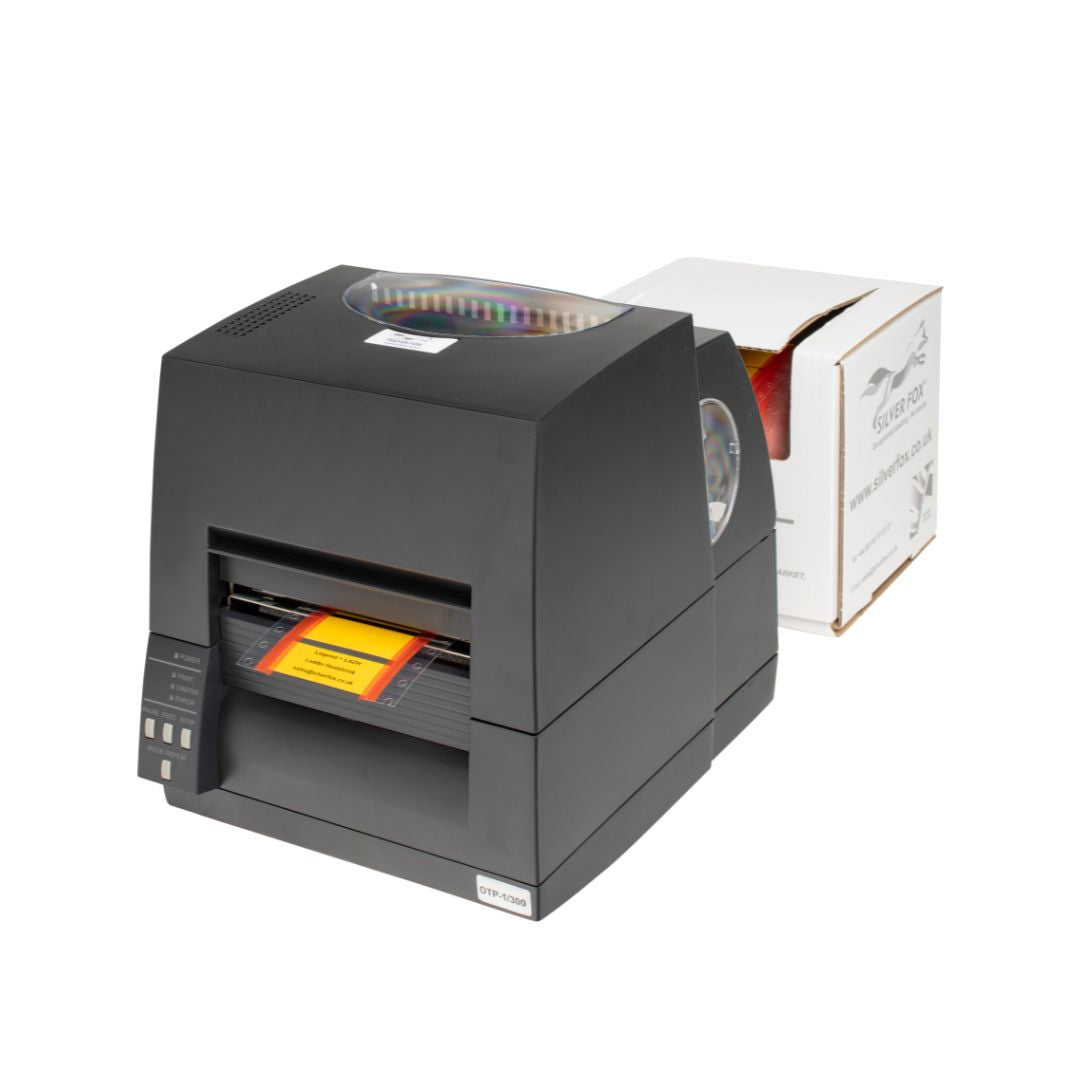

Print via the Fox-in-a-Box®
Designed for seamless compatibility, the Fox-in-a-Box® integrates with the Legend™ heatshrink range, ensuring optimal printing results. With the included Labacus Innovator® software, you can easily design and customise your labels, incorporating essential information, symbols, and barcodes.
