Legend™ Non-Shrink Cable Marker Rolls
Legend™ Non-Shrink Cable Marker Rolls

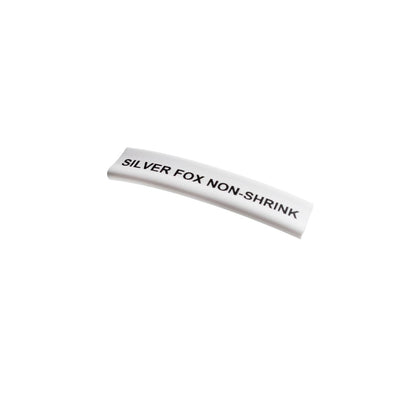

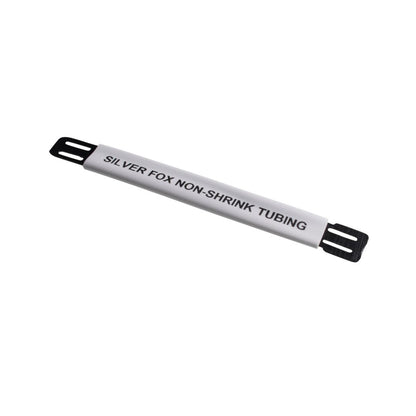

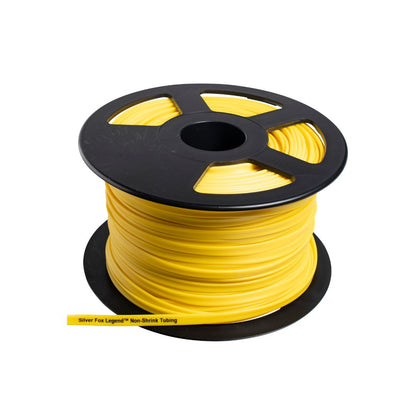

Legend™ Non-shrink Tubing is made from a durable PVC with a special oval shape that grips the wire and holds the label in position. With our bio-degradable all-in-one delivery, storage and dispenser boxes, they can be rapidly printed with Silver Fox’s premium Fox-in-a-Box® thermal printer.
- No heat gun permit is required
- Rapid printing on the Fox-in-a-Box®
- Available in yellow & white
- Made from durable PVC
- Available for a range of diameters
Download Datasheet Here
*Barcoding/QR Coding/Graphics functionality is available via the Professional level Fox-in-a-Box®
When printing with the Fox-in-a-Box®, the LGS3 guidance system is required.
SKU:LNST6-4(30)TY | Total Pack Length: 60m
Couldn't load pickup availability
The Legend™ Range is Trusted by...
FOX-IN-A-BOX® RANGE
Cut Printing Efforts in Half with Cross-Ferruling
Using the advanced or professional Fox-in-a-Box’s cross-ferruling functionality you can print both ends of wire at the same time. This unique functionality cuts printing efforts in half and yields approximately 23,000, 25mm labels with our included 300m ribbon.
-
Figure of 8 grip design

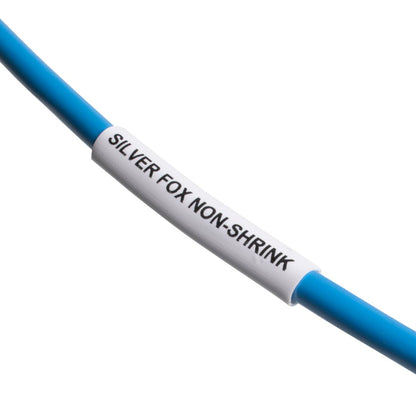

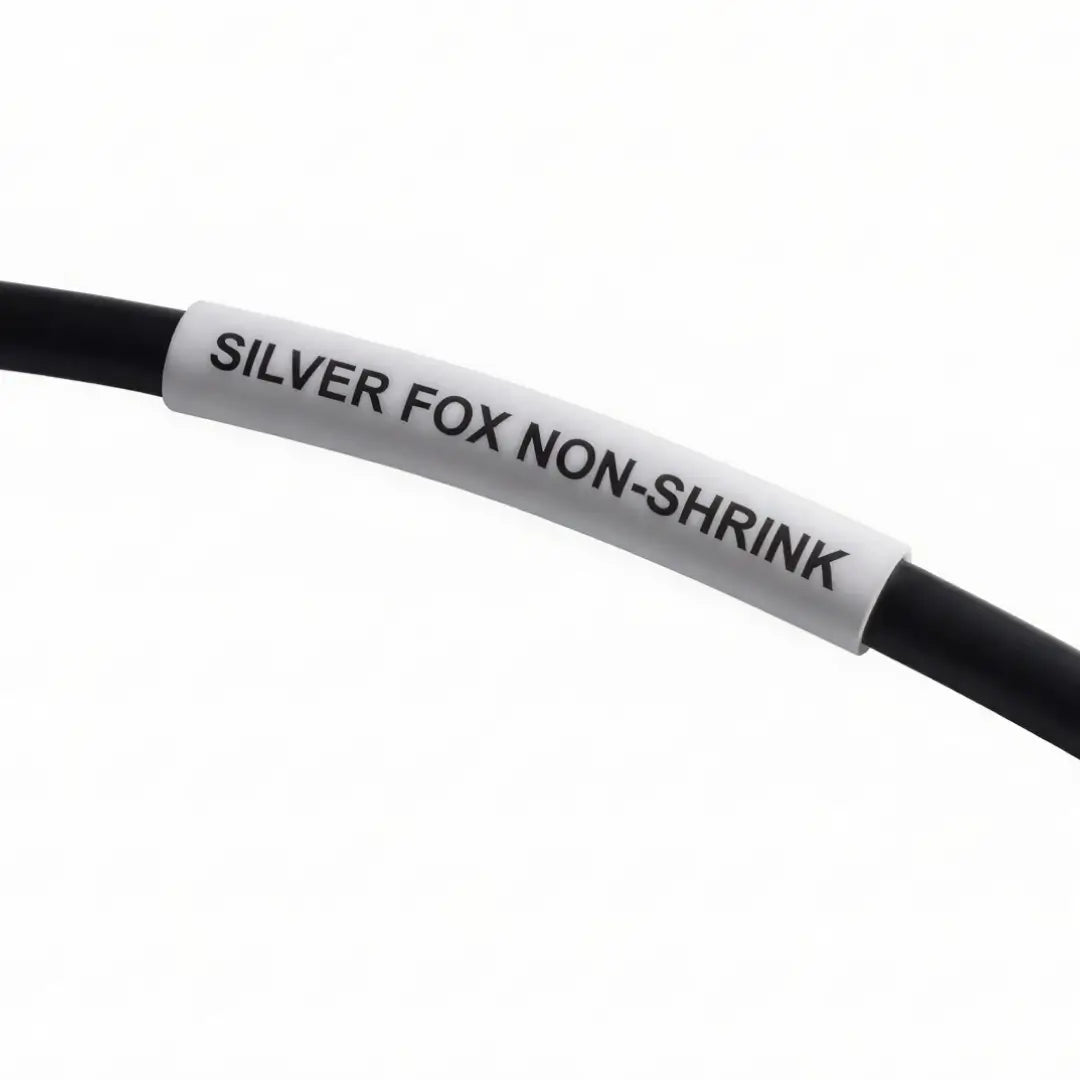

Our unique figure of 8 grip design enables the label to secure itself on the cable without adhesive or heatshrink. This oval design also means that each size covers a spread of cable diameters, reducing stock needs and costs.
-
Replacement for K-Type markers
Non-shrink markers are a powerful alternative to individual ferrules due to their fast print speed on the Fox-in-a-Box®.
-
No Hot Gun Required
Non-shrink tubing doesn’t require a heat gun, therefore it can be used in hazardous, flammable environments - this is particularly useful in the oil & gas industry.
And that's not all!
- Includes free of charge training
- Includes free of charge support
Technical Information
Material Specification
- Material: PVC
Available Dimensions
- Suitable Cable Diameter Ø (mm): 1-2, 1-3, 2-4, 3-5, 4-6
Product Testing
- UV Weathering ISO 4982 Part 3 Method A Cycle 2 - 4000 hrs (white) 1000
- hrs (yellow)
- Elevated temperature** MIL-STD-202G Method 108A - 1000 hrs @ 70°C to 85°C
- Low Temperature* MIL-STD-810F Method 502.4 - 72 hrs @ -40°C
- H2S Sour Gas Exposure (2% H2S)
- Salt Mist Spray EC60068-2-52 Test Kb Salt Mist (Cyclic)
- Resistance to Solvents MIL-STD-202-215 w/change 1
Printing & Software Requirements

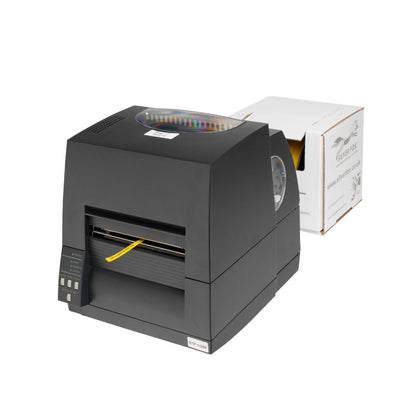

- To achieve the best printing results, we recommend using a Fox-in-a-Box® DTP-1 thermal printer along with TSR3/300 thermal transfer ribbons.
- Print via Fox-in-a-Box® thermal printer using ‘One software, One printer, One ribbon’ for our complete range of thermal labels. A 300m thermal ribbon will yield approximately 23,000 x 25mm labels.
*For more information call our Sales Team on +44 (0)1707 37 37 27 or email sales@silverfox.co.uk
Printable Areas
- LEGEND™ Non-Shrink Tube 2-1 150M x 2 Thermal | LNST2-1T: 10, 20, 25, 30, 50, 75, 100 x 3mm
- LEGEND™ Non-Shrink Tube 3-1 100M x 2 Thermal | LNST3-1T: 10, 20, 25, 30, 50, 75, 100 x 5mm
- LEGEND™ Non-Shrink Tube 4-2 75M x 2 Thermal | LNST4-2T: 10, 20, 25, 30, 50, 75, 100 x 6.5mm
- LEGEND™ Non-Shrink Tube 5-3 50M x 2 Thermal | LNST5-3T: 10, 20, 25, 30, 50, 75, 100 x 7mm
- LEGEND™ Non-Shrink Tube 6-4 30M x 2 Thermal | LNST6-4T: 10, 20, 25, 30, 50, 75, 100 x 9.5mm
Available Colours
- White & Yellow
Storage Instructions
- Storage Instructions: Store between 50ºF (10ºC) and 77ºF (25ºC)
- Conditions: Keep in dark conditions
- Humidity Resistance: 35% to 65% RH
FOX-IN-A-BOX® RANGE
Typical Applications
Ideal applications would be industrial Ethernet, data centres etc.
How to load Legend™ Non-Shrink Tubing
FOX-IN-A-BOX® RANGE
Print via the Fox-in-a-Box®
Designed for seamless compatibility, the Fox-in-a-Box® integrates with the Legend™ Non-Shrink range, ensuring optimal printing results. With the included Labacus Innovator® software, you can easily design and customise your labels, incorporating essential information, symbols, and barcodes.
Non-Shrink Markers vs Traditional Ferruling
