Prolab® A5 Equipment Labels
Prolab® A5 Equipment Labels

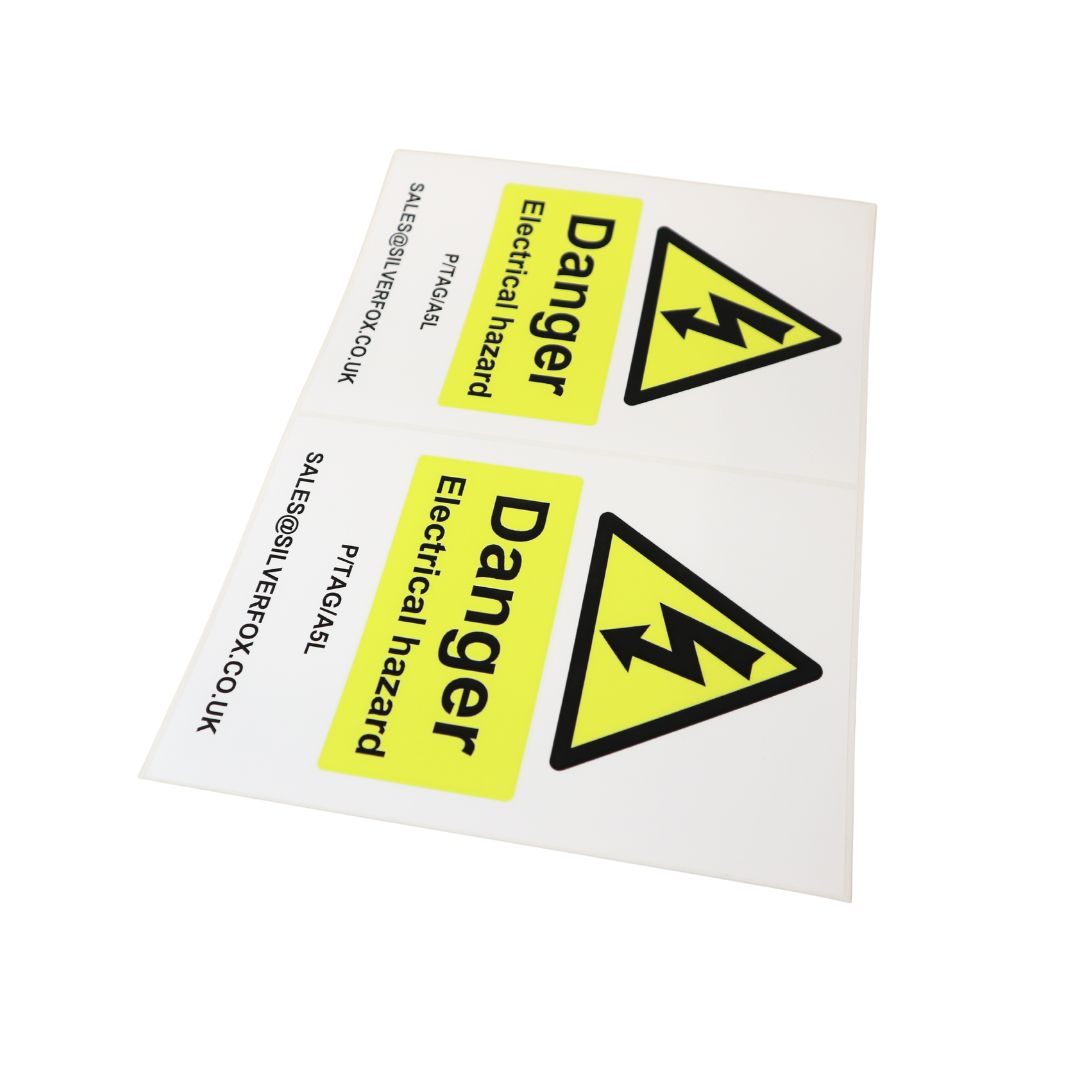

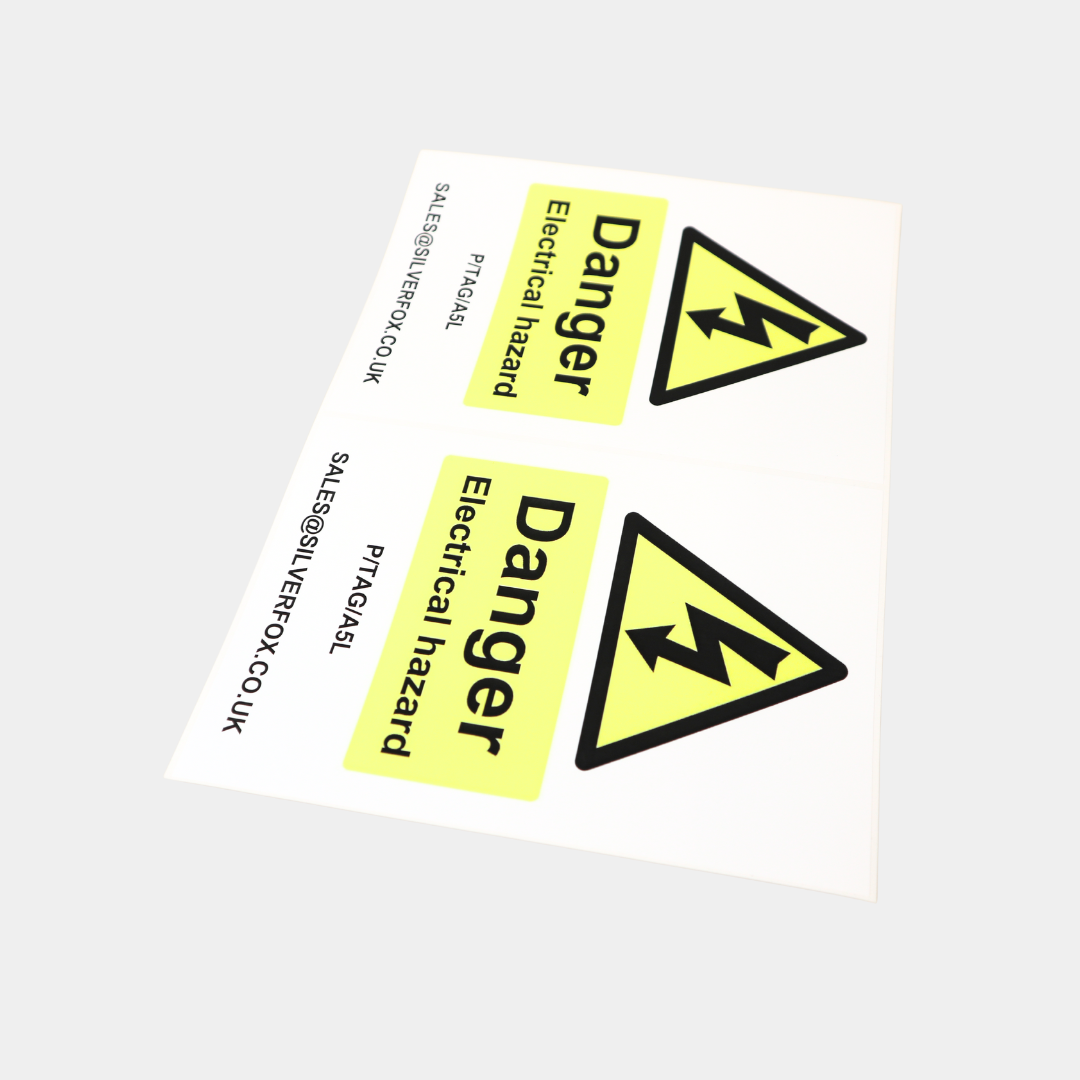

The Prolab® A5 Equipment Labels label is made from a durable polyester with a special laser print receptive surface. Using a strong acrylic adhesive backing the P/TAG label ensures long term bonding. Supplied as A4 sheets for convenient printing through any ordinary office laser printer with its normal cartridge.

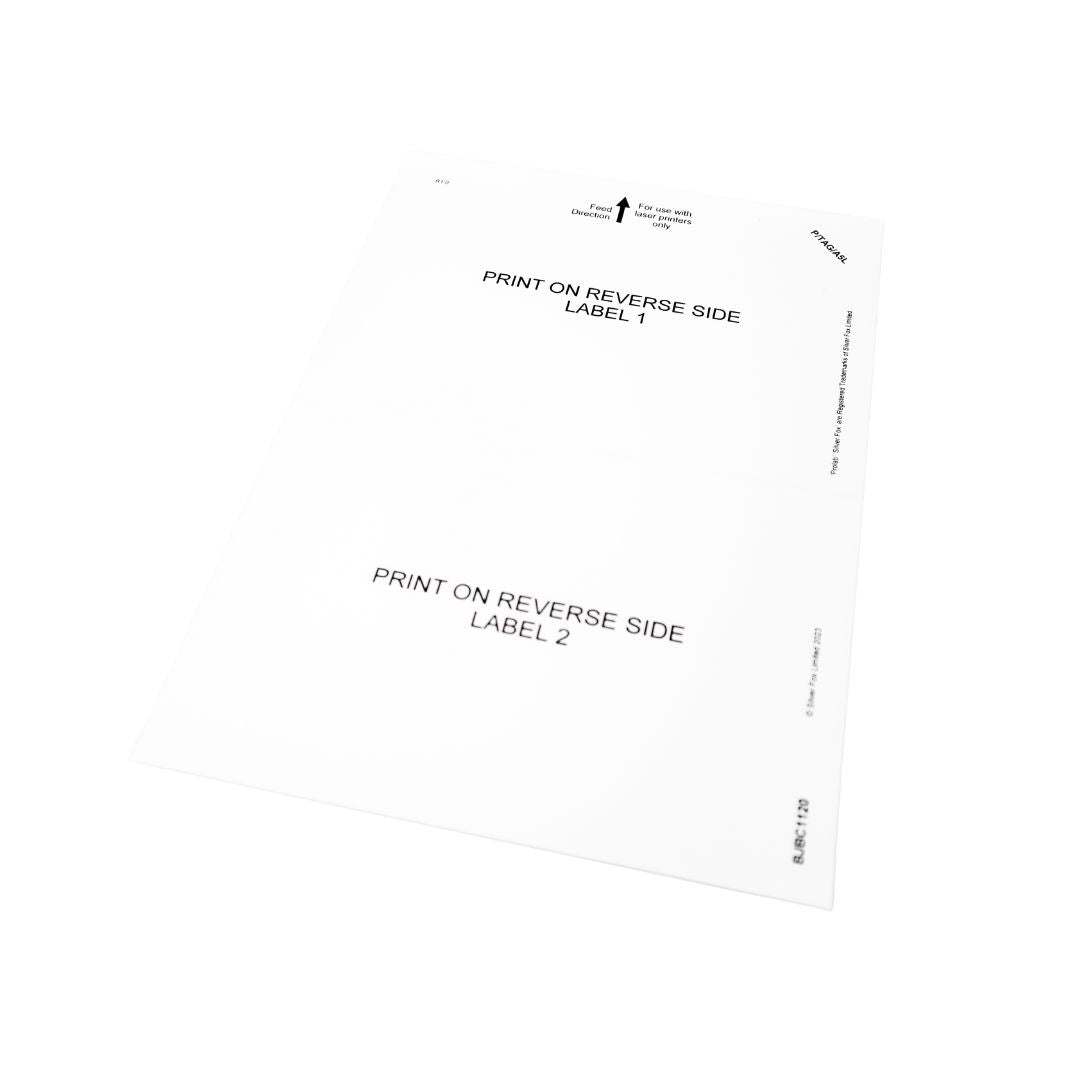

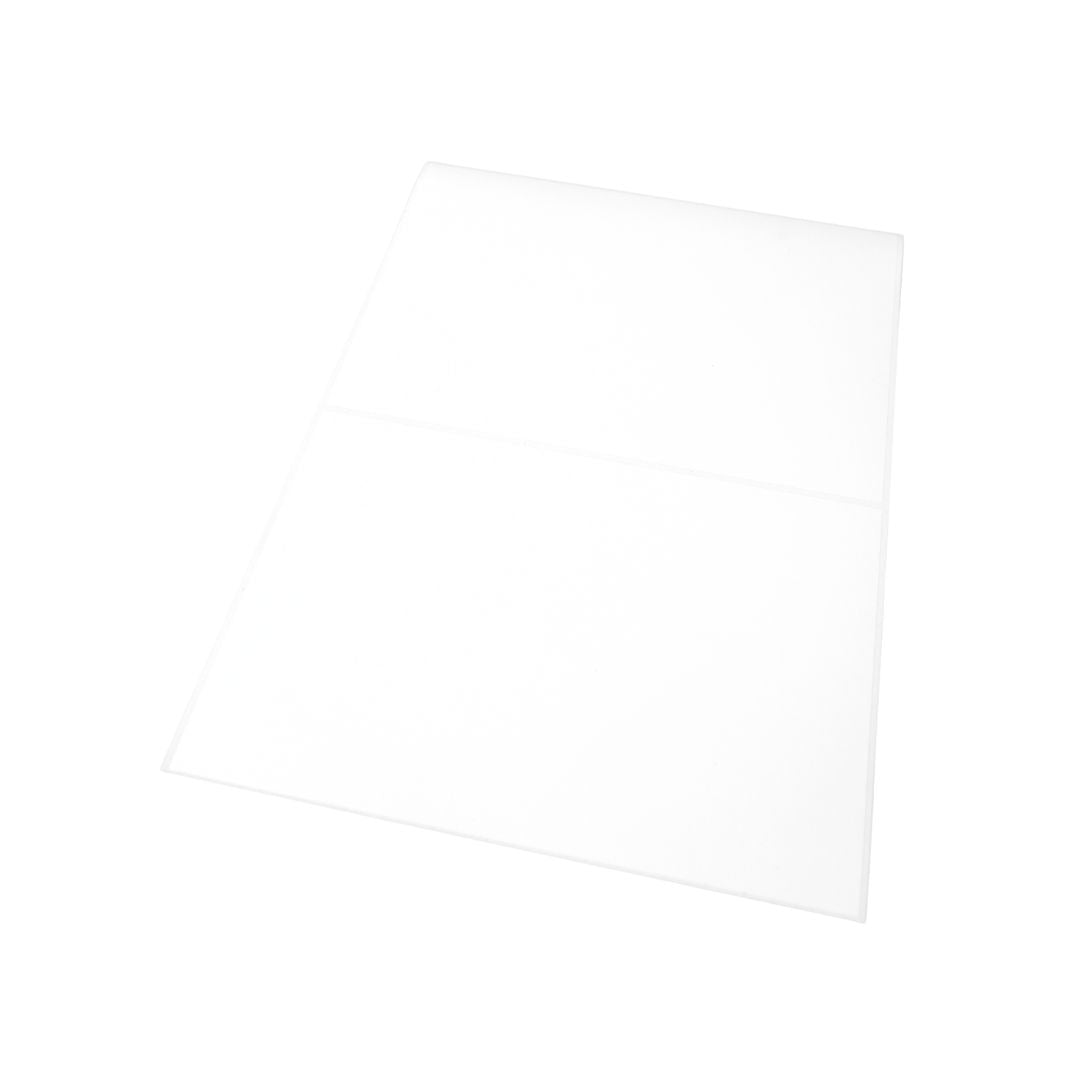

- Laser Printable A4 Sheets

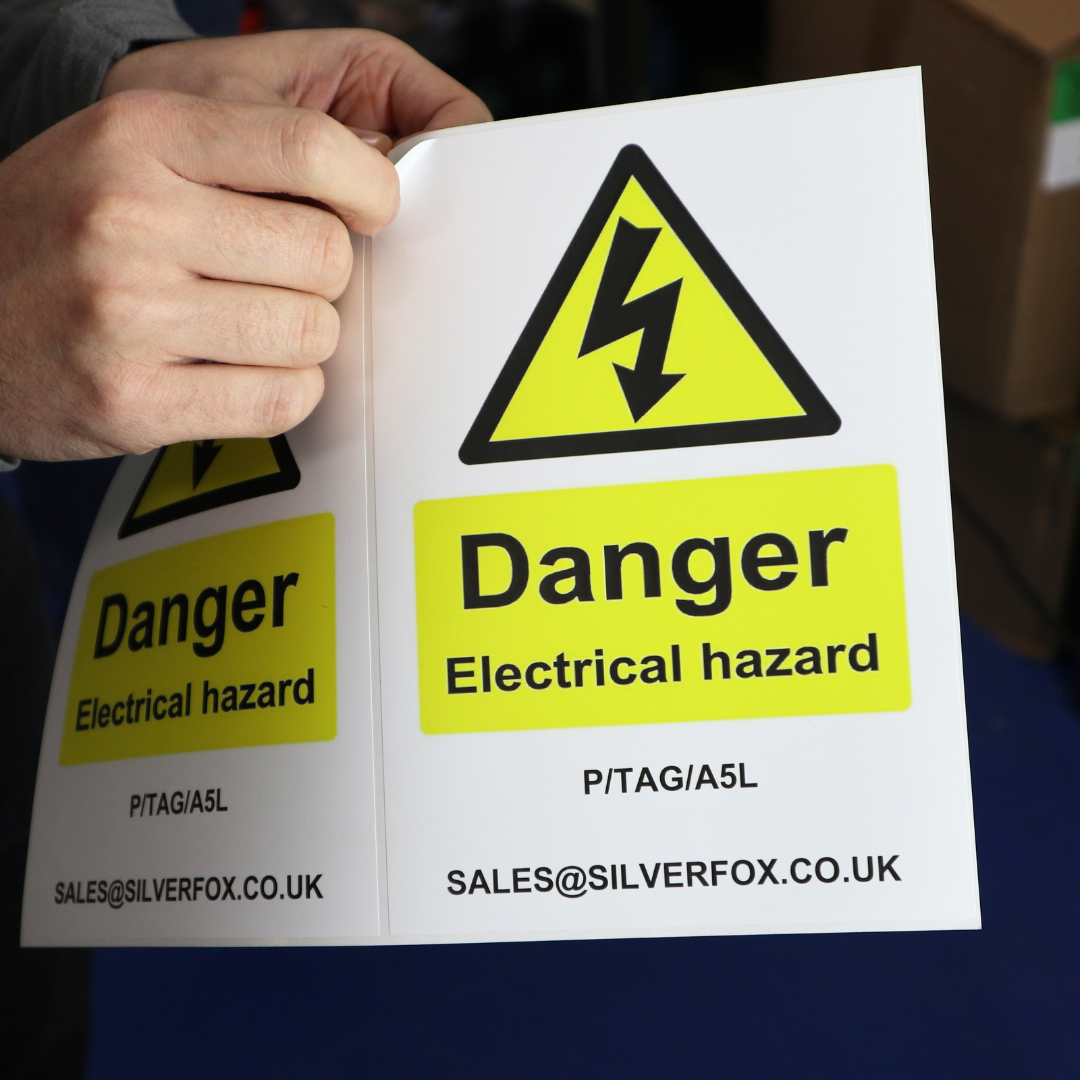

- Pre-perforated for rapid removal from sheet
- 3000 hours accelerated UV testing.
Download Datasheet Here
*Barcoding/QR Coding/Graphics functionality is available via the Professional level Labacus Innovator®
SKU:P/TAG/A5L(10)
Couldn't load pickup availability
The Prolab® Range is Trusted by...
LASER RANGE
No Special Equipment Needed
Print up to 504 labels in the same time it takes to print a piece of paper. Supplied in pre-cut A4 sheets, so that the labels can then be easily removed from the sheet.
-
Tolerant To High Temperature Testing
The finished printed labels have been successfully independently tested to 85°C for 1000 hours.
-
Tested For Durability
Although designed for internal use the printed white labels have been successfully independently tested for 3000 hours accelerated UV ageing.
-
Extensive Range Of Sizes
Choose from an extensive range of sizes to create a labelling system that aligns perfectly with your businesses needs.
Technical Information
Material Specification
- Material: Polyester
- Thickness: 50 Micron
- Release Liner: 75 Micron Synthetic
Available Dimensions
- Label Dimensions (mm): 60 x 36, 12 x 12, 14 x 38, 15 x 06, 15 x 12, 16 x 08, 17 x 09, 20 x 08, 22 x 07, 24 x 12, 26 x 10, 30 x 07, 30 x 30, 33 x 18, 38 x 12, 48 x 09, 55 x 22, A5, A4, 297 x 30
*Available in packs of 10 or 100 sheets
Project Testing
- Reach Compliant: Yes
- Low Temperature: MIL-STD-810F Method 502.4 - 72 hours @ -40°C
- Elevated Temperature: MIL-STD-202G Method 108A - 2000 hours @ 70°C to 100°C
- Hydrogen Sulphide H2S Sour Gas: Exposure (2% H2S)
- UV Weathering*: ISO 4982 Part 3 Method A Cycle 1 - 3000 hours
- Salt Mist Spray: IEC60068-2-52 Test Kb Salt Mist (Cyclic)
*Limited external applications generally away from direct sunlight but may be suitable in control
Printing & Software Requirements
- Print with your regular office laser printer
- Labacus Innovator® Basic/Advanced/Professional - Windows Only
- All templates included in Labacus Innovator® Software. To trial labels, no need to buy software. Download FOC Lite software (includes 3 days trial FOC of Basic/Advanced/Professional levels).
*For more information call our Sales Team on +44 (0)1707 37 37 27 or email sales@silverfox.co.uk
Printable Area
- PROLAB® P/TAG Labels - A5 Laser | P/TAG/A5: 210mm x 148.5mm
Available Colours
- White
*There is a small cost supplement for colour label packs.
**Also consider colour blocking label background on white labels using Advanced/Professional software and colour laser printer.
Storage Instructions
- Storage Instructions: Store between 50ºF (10ºC) and 77ºF (25ºC)
- Conditions: Keep in dark conditions
- Humidity Resistance: 35% to 65% RH
LASER RANGE
Typical Applications
Typically, they can be used for equipment/data outlets/patch panels etc. The P/TAG/A4L and the PS/29730L labels can be used to identify cabinets and also the panel designations within each cabinet. These labels can be used for a wide range of applications including faceplates, outlets and control panels. They are also suitable for general labelling.
P/TAG Testing
LASER RANGE
Print With Your Office Laser Printer & Labacus Innovator® Software
Since no special equipment is required, up to 504 labels can be printed in 20 seconds (the time it takes for the sheet to run through the printer) - using this solution is simple and fast.
