Prolab® Thermal Self-laminating wrap-around cable labels
Prolab® Thermal Self-laminating wrap-around cable labels

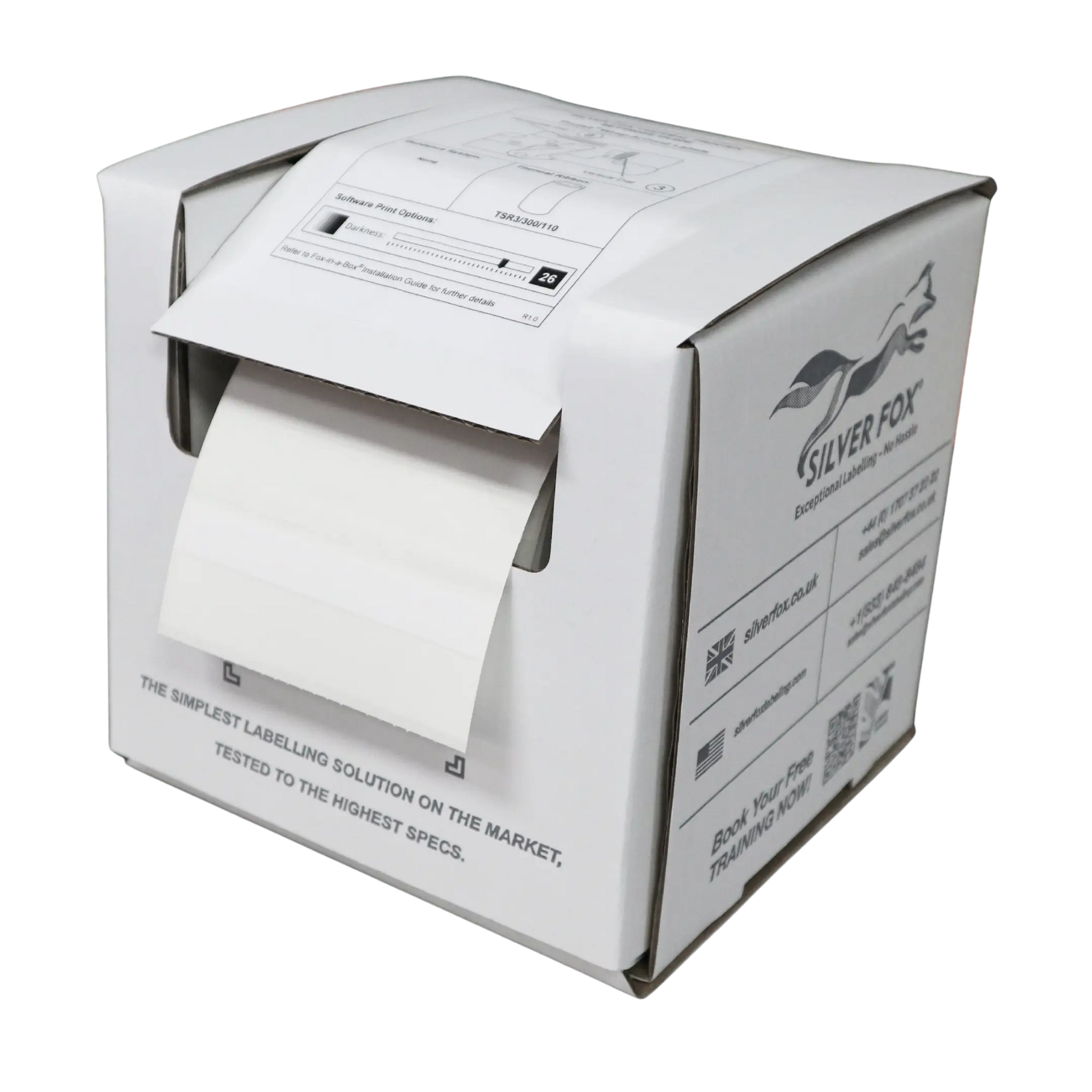

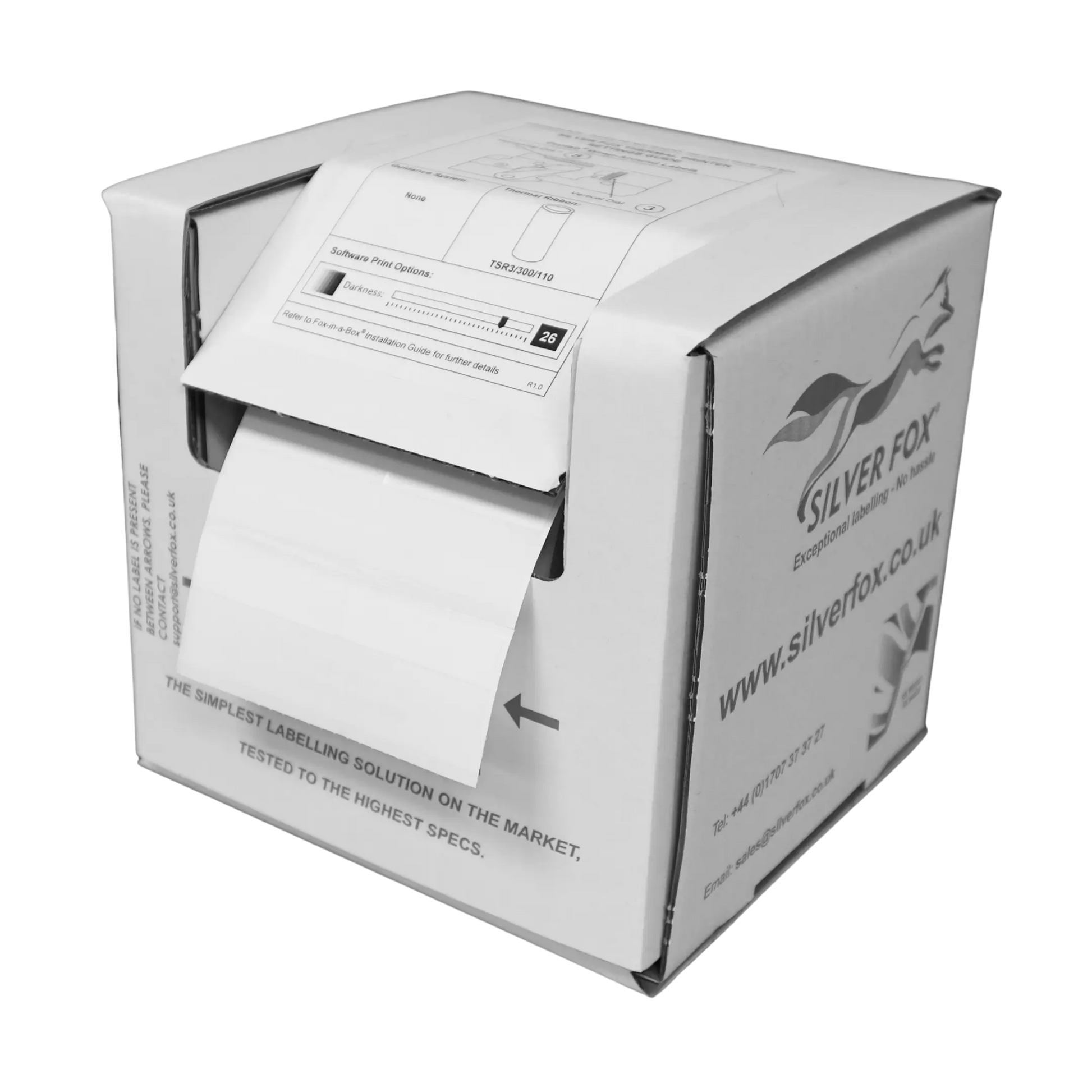

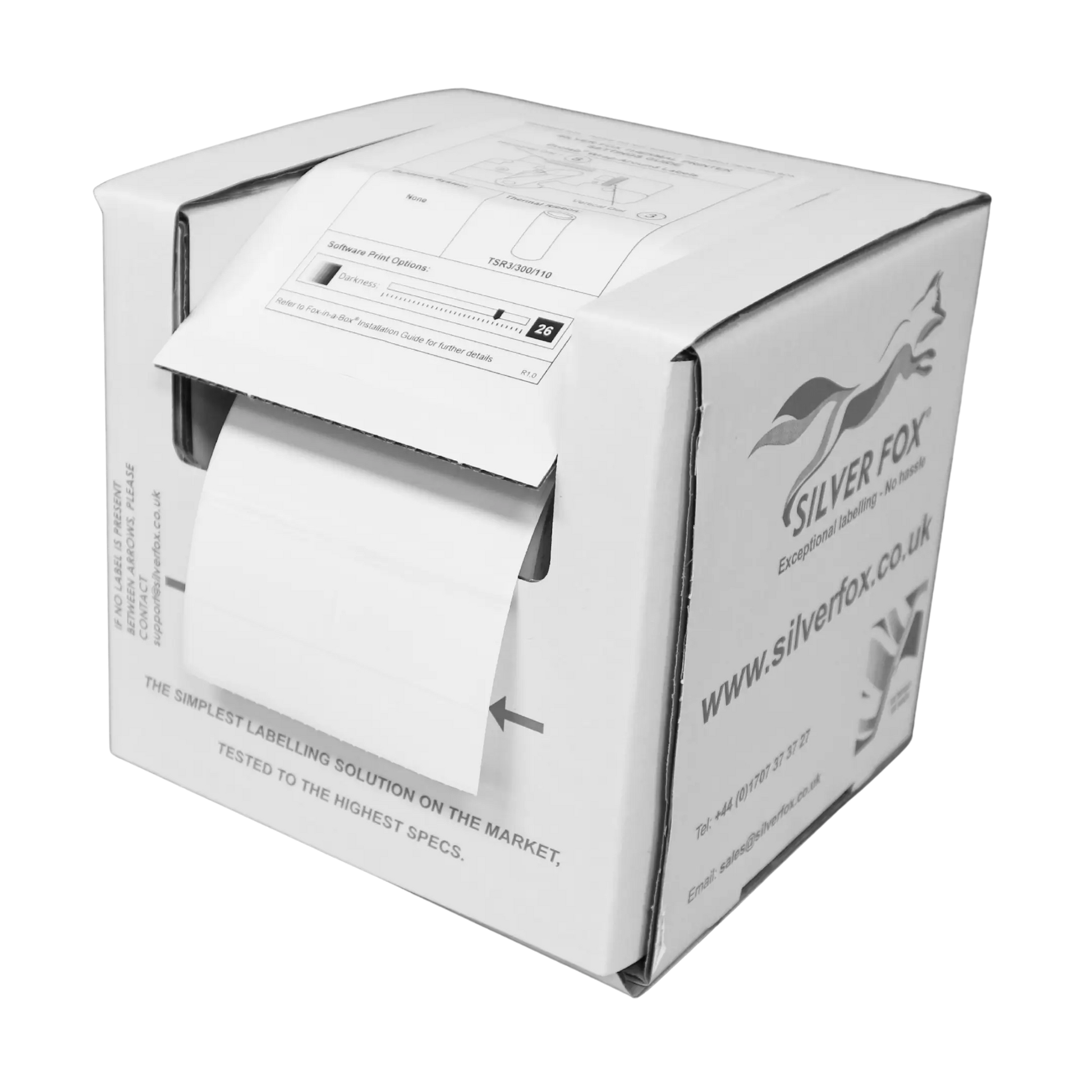

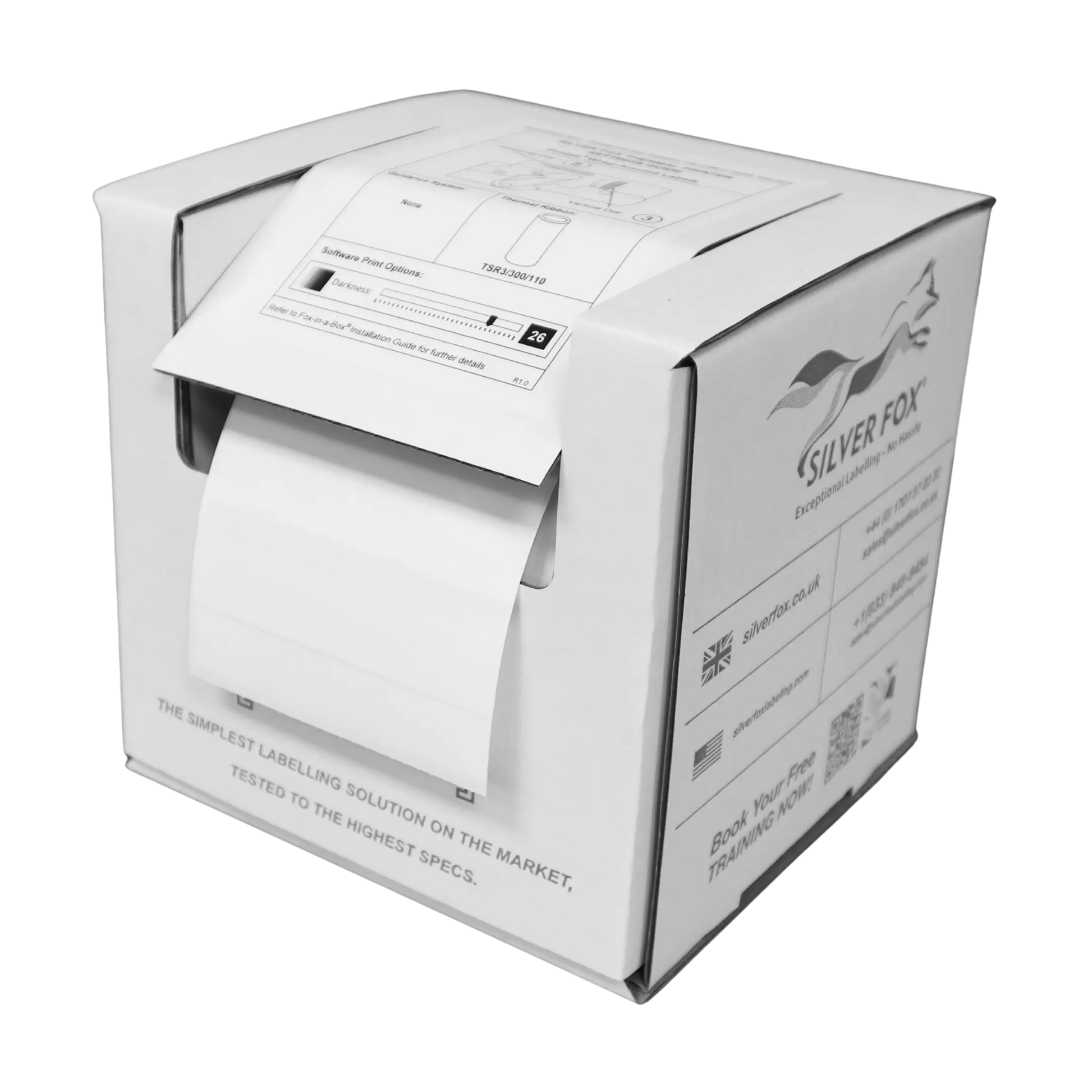

Prolab® polyethylene self-laminating wrap-around labels incorporate a strong long lasting acrylic adhesive and are ideal for data cabling. With our bio-degradable all-in-one delivery, storage and dispenser boxes they can be rapidly printed with Silver Fox’s premium Fox-in-a-Box® thermal printer.
- Rapid printing on the Fox-in-a-Box®
- 5000 labels supplied per roll
- Large print areas available
- Strong acrylic adhesive
- Available for multiple diameters
Download Datasheet Here
*Barcoding/QR Coding/Graphics functionality is available via the Professional level Fox-in-a-Box®
SKU:PSA1/07/2512T | Labels Per Roll: 5000
Couldn't load pickup availability
The Prolab® Range is Trusted by...
FOX-IN-A-BOX® RANGE
Time Saving with Prolab® Thermal wrap-arounds
Prolab® Thermal wrap-arounds are supplied in rolls of 5000! With our Fox-in-a-Box® thermal printer you can print at a rapid pace of 32 labels per second saving your engineers time and resources.
-
Print All Around The Cable
By choosing the labels with the deeper print areas this enables you to print IDs that are visible on all sides around the cable for quick identification.
-
Multiple Diameters & Print Areas
The labels incorporate a highly opaque printable area ensuring excellent levels of clarity for your message whatever the colour of the cable. Offer both 25mm and 50mm width labels the latter is useful for longer ID’s.
-
5000 Label Per Roll
Each roll boasts an impressive 5,000 labels, providing a substantial quantity to support long production cycles and minimize downtime due to roll changes.
And that's not all!
- Includes free of charge training
- Includes free of charge support
- Includes free of charge software updates
Technical Information
Material Specification
- Material: Polyethylene
- Thickness: 105 micron
Available Dimensions
- Cable Outer Diameter Ø (mm): 5-7, 5-8, 5-8
- Printable Area (mm): 25x12, 25x19, 25x24
Product Testing
- Reach Compliant: Yes
- Elevated Temperature*: MIL-STD-202G Method 108A - 2000 hrs @ 70oC to 100°C
- Low Temperature: MIL-STD-810F Method 502.4 - 72 hrs @ 40°C
- H2S Sour Gas: Exposure (2% H2S)
- Salt Mist Spray: EC60068-2-52 Test Kb Salt Mist (Cyclic)
- UV Weathering: ISO 4982 Part 3 Method A Cycle 1 - 500 hrs
Printing & Software Requirements
- To achieve the best printing results, we recommend using a Fox-in-a-Box® DTP-1 thermal printer along with TSR3/300 thermal transfer ribbons.
- Print via Fox-in-a-Box® thermal printer using ‘One software, One printer, One ribbon’ for our complete range of thermal labels. A 300m thermal ribbon will yield approximately 23,000 x 25mm labels.
*For more information call our Sales Team on +44 (0)1707 37 37 27 or email sales@silverfox.co.uk
Printable Areas
- PROLAB® Self-Lam Cable Label =<6mm - 25x19 | PSA1/06/2519T: 23 x 18mm
- PROLAB® Self-Lam Cable Label =<7mm - 25x12 | PSA1/07/2512T: 22 x 10mm
- PROLAB® Self-Lam Cable Label =<8mm - 25x24 | PSA1/08/2524T: 23 x 22mm
Available Colours
- White
Storage Instructions
- Storage Instructions Store between 50ºF (10ºC) and 77ºF (25ºC)
- Conditions Keep in dark conditions
- Humidity Resistance 35% to 65% RH
FOX-IN-A-BOX® RANGE
Typical Applications
Ideal applications would be industrial Ethernet, data centres etc.
How to load Prolab® Thermal Wrap-Arounds
FOX-IN-A-BOX® RANGE
Print via the Fox-in-a-Box®
Designed for seamless compatibility, the Fox-in-a-Box® integrates with the Prolab® Thermal Self-laminating wrap-around cable label range, ensuring optimal printing results. With the included Labacus Innovator® software, you can easily design and customise your labels, incorporating essential information, symbols, and barcodes.
