Fox-Flo® UV Stable, LSZH Tie-on Cable Labels
Fox-Flo® UV Stable, LSZH Tie-on Cable Labels
Fox-Flo® is one of the highest-tested labels on the market. Manufactured only by Silver Fox, Fox-Flo® ensures the greatest levels of durability in the most demanding of environments.
- Low Smoke Zero Halogen
- Plenum Rated
- Long-Term Outdoor Use (8,000 hrs accelerated UV)
- Rapid Printing on Fox-in-a-Box®
- PADS approved
- London Underground Approved
- Remote training to get you up and running as soon as possible.
- Ongoing remote support to ensure you hit your project deadlines.
- Feature updates to future-proof your investment so you stay on trend and don't need to buy a new solution next year.
The LGS4 guidance system is required to print these labels with the Fox-in-a-Box®
SKU:SKU: LCLZ1-5025TY | Labels Per Pack: 480
Lower Maintenance & Save Resources
Fox-Flo® tie-on cable labels provide long-lasting performance both internally and externally: reducing the need for frequent replacements and lowering the cost of future maintenance. Click below to save your time with Fox-Flo®.
London Underground Approved
Fox-Flo® labels have undergone rigorous testing to meet the stringent requirements of LUL1-085, ensuring their suitability for London Underground installations.
12-15 Years UV Stability
Fox-Flo® have been shown to withstand prolonged exposure to sunlight for 8000 accelerated UV hours, which is equivalent to 12-15 years in a Northern European climate.
Low Smoke Zero Halogen
Fox-Flo® labels are made of a premium low smoke zero halogen material - an ideal choice for environments where safety and environmental concerns are paramount.
And that's not all!
- Includes free of charge training
- Includes free of charge support
- Includes free of charge software updates
- Material: Fox-Flo® material, a premium LSZH (Low Smoke, Zero-Halogen) material carefully crafted in-house for its exceptional performance.
- Operational Temperature: -40°C to 100°C (-40°F to 212°F)
- X 10mm Range: 50 x 10, 70 x 10,
- X 15mm Range: 50 x 15, 70 x 15, 90 x 15, 110 x 15, 130 x 15
- X 25mm Range: 50 x 25, 70 x 25, 90 x 25, 110 x 25, 130 x 25
- X 50mm Range: 70 x 50, 90 x 50, 110 x 50, 110 x 50, 130 x 50
- 2 across available only in x 10mm
- 3 across available only in x 15mm
- Reach: Reach Compliant
- London Underground Approval: Fire Safety Performance of Material requirements of LUL 1-085.
- BS EN ISO 4589-2:1999 Oxygen Index (Material)
- BS 6853:1999 Annex D.8.3 Smoke Emission (Material)
- BS 6853:1999 Annex B.1 Toxic Fume (Material)
- EN 45545-2 R22 (Material)
- Tested to UL 94 Section 8 ‘Vertical Burning Test’ Rating V0 (Material)
- IMO FTPC Part 2 Smoke & Toxicity (Material)
- IMO FTPC Part 5 Surface Spread of Flames (Material)
- MIL-STD-810F Method 502.4 Low Temperature 72 hours @ -40°C Followed by manipulation test* (Printed Label)
- MIL-STD-202G Method 108A High Temperature 2000 hours @ 70°C to 100°C** (Printed Label)
- H2S Sour Gas Exposure (2% H2S) Hydrogen Sulphide (Printed Label)
- ISO 4982 Part 3 Method A Cycle 1 UV Weathering 8000 hours (Printed Label)
- IEC60068-2-52 Test Kb Salt Mist (Cyclic) Salt Mist Spray (Printed Label)
- Chemical / Solvent Resistance (Printed Label)
Printing & Software Requirements
- To achieve the best printing results, we recommend using a Fox-in-a-Box® DTP-1 thermal printer along with TSR3/300 thermal transfer ribbons.
- Print via Fox-in-a-Box® thermal printer using ‘One software, One printer, One ribbon’ for our complete range of thermal labels. A 300m thermal ribbon will yield approximately 3000 (x 90mm) length labels.
*For more information call our Sales Team on +44 (0)1707 37 37 27 or email email@example.com
- FOX-FLO® Tie-on (1 Across) 110 x 15mm: 80 x 14mm
- FOX-FLO® Tie-on (1 Across) 110 x 25mm: 80 x 24mm
- FOX-FLO® Tie-on (1 Across) 110 x 50mm: 74 x 49mm
- FOX-FLO® Tie-on (1 Across) 130 x 15mm: 100 x 14mm
- FOX-FLO® Tie-on (1 Across) 130 x 25mm: 100 x 24mm
- FOX-FLO® Tie-on (1 Across) 130 x 50mm: 94 x 49mm
- FOX-FLO® Tie-on (1 Across) 50 x 15mm: 20 x 14mm
- FOX-FLO® Tie-on (1 Across) 50 x 25mm: 20 x 24mm
- FOX-FLO® Tie-on (1 Across) 70 x 15mm: 40 x 14mm
- FOX-FLO® Tie-on (1 Across) 70 x 25mm: 40 x 24mm
- FOX-FLO® Tie-on (1 Across) 70 x 50mm: 34 x 49mm
- FOX-FLO® Tie-on (1 Across) 90 x 15mm: 60 x 14mm
- FOX-FLO® Tie-on (1 Across) 90 x 25mm: 60 x 24mm
- FOX-FLO® Tie-on (1 Across) 90 x 50mm: 54 x 49mm
- FOX-FLO® Tie-on (2 Across) 50 x 10mm: 28 x 8mm (x2)
- FOX-FLO® Tie-on (2 Across) 70 x 10mm: 48 x 8mm (x2)
- FOX-FLO® Tie-on (3 Across) 110 x 15mm: 80 x 14mm (x3)
- FOX-FLO® Tie-on (3 Across) 130 x 15mm: 100 x 14mm (x3)
- FOX-FLO® Tie-on (3 Across) 50 x 15mm: 20 x 14mm (x3)
- FOX-FLO® Tie-on (3 Across) 70 x 15mm: 40 x 14mm (x3)
- FOX-FLO® Tie-on (3 Across) 90 x 15mm: 60 x 14mm (x3)
- Magenta, White, Yellow, Blue, Orange, Red
*Earth option available to order. Contact firstname.lastname@example.org for more information
- Storage Instructions Store between 50ºF (10ºC) and 77ºF (25ºC)
- Conditions Keep in dark conditions
- Humidity Resistance 35% to 65% RH
Fox-Flo® is versatile and widely used in applications such as London Underground and Network Rail projects, offshore oil and gas installations, marine environments, and any industry where LSZH materials are a requirement.
How to load Fox-Flo®

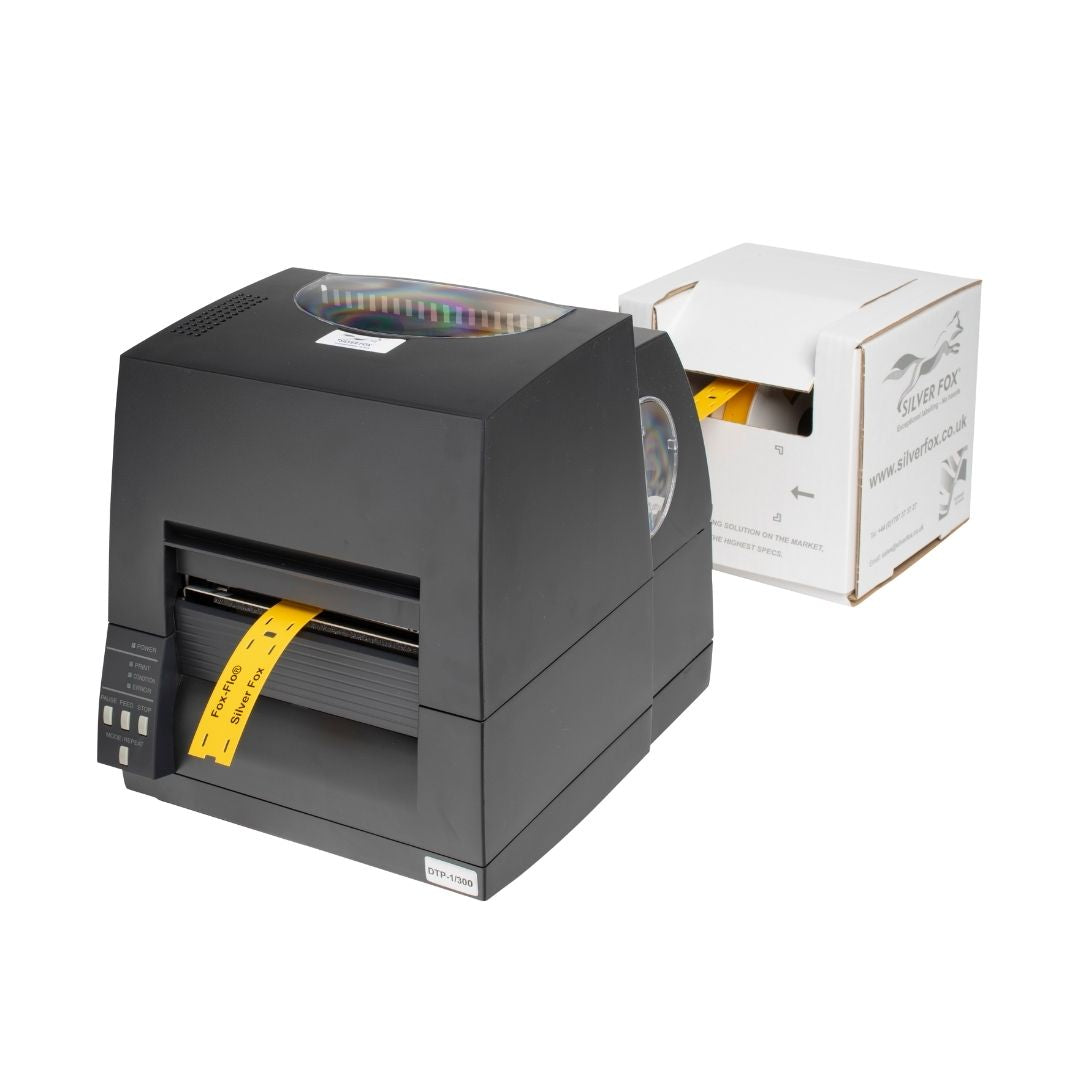

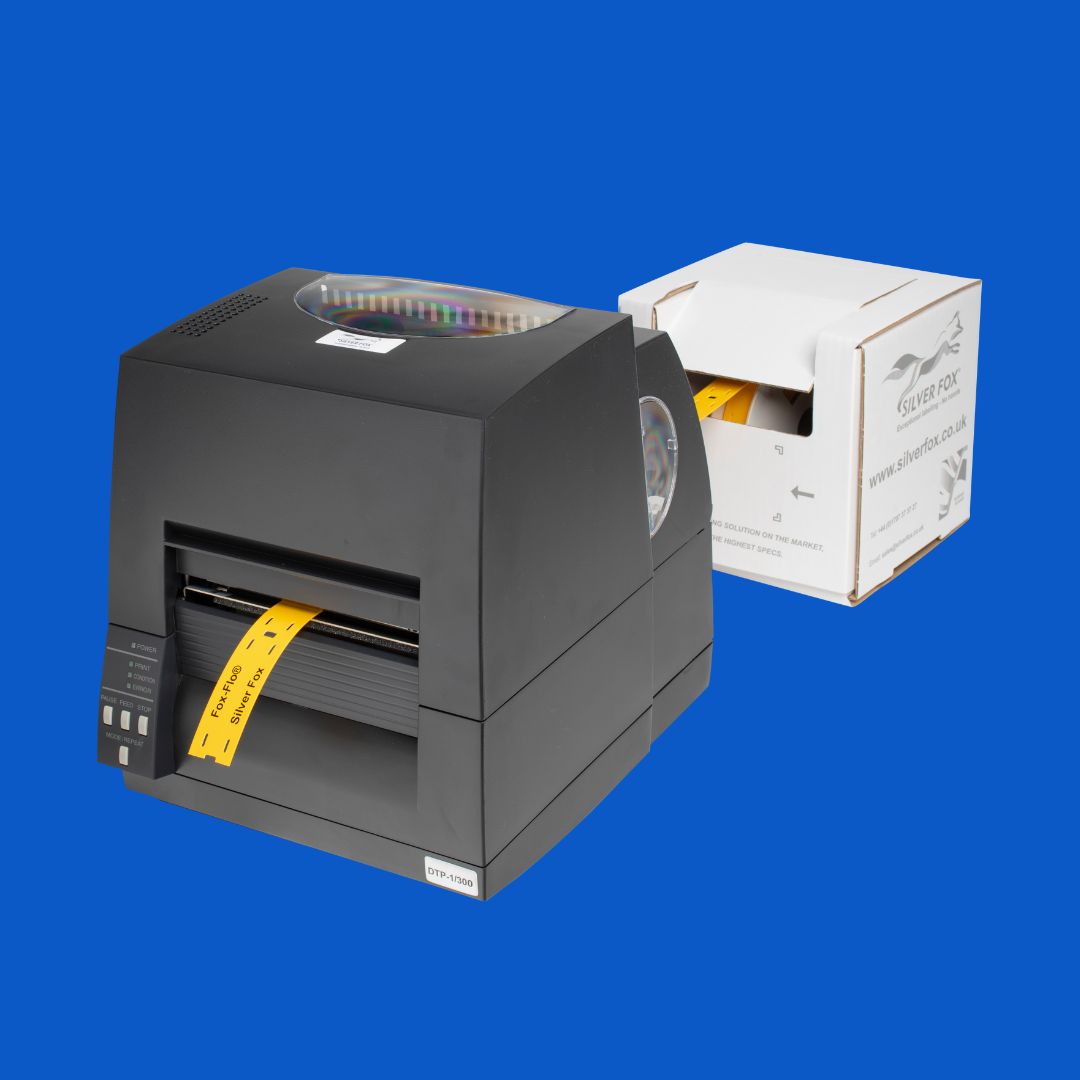

Print via the Fox-in-a-Box®
Designed for seamless compatibility, the Fox-in-a-Box® integrates with the Fox-Flo® label range, ensuring optimal printing results. With the included Labacus Innovator® software, you can easily design and customize your labels, incorporating essential information, symbols, and barcodes.
Fox-Flo vs Other LSZH Labels
Are Fox-Flo® labels suitable for outdoor use?
Yes, Fox-Flo® labels are UV stable, making them suitable for outdoor applications. They can withstand prolonged exposure to sunlight without fading or deteriorating.
Can I use any type of cable tie with Fox-Flo® labels?
Yes, Fox-Flo® labels can be securely attached using standard nylon or stainless-steel cable ties. This provides flexibility and convenience in choosing the most suitable cable tie for your application.
Are Fox-Flo® labels compatible with different cable sizes?
Absolutely! Fox-Flo® labels are designed to accommodate a wide range of cable sizes. You can apply them to cables with an outer diameter (OD) as small as 10mm and even larger.
Are Fox-Flo® labels compliant with safety regulations for hazardous environments?
Yes, Fox-Flo® labels are made from LSZH (Low Smoke, Zero-Halogen) material, which meets the stringent requirements for safety in hazardous environments. They have low smoke emission and do not release harmful halogens when exposed to heat or fire.
Can I customise the design and content of Fox-Flo® labels?
Absolutely! With the Fox-in-a-Box® system and Labacus Innovator software, you have full control over designing and customizing your Fox-Flo® labels. You can add text, graphics, barcodes, and other elements to create labels that meet your specific requirements.
