FOX-IN-A-BOX® RANGE

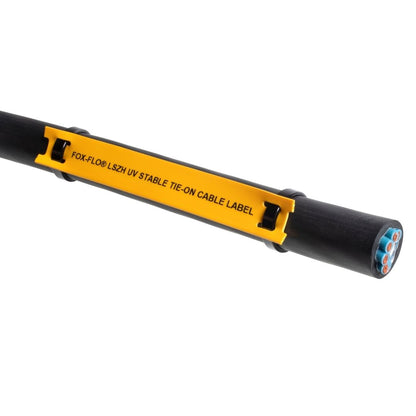

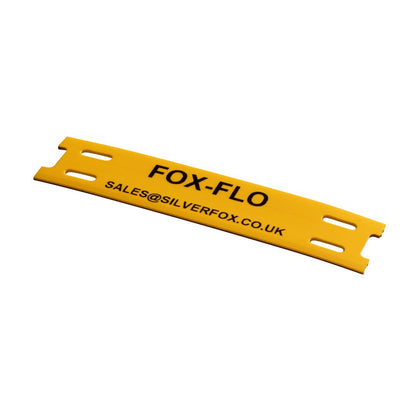

Fox-Flo® UV Stable, LSZH Tie-on Cable Labels

Fox-Flo® UV Stable, LSZH Tie-on Cable Labels

£449.95 GBP
£449.95 GBP
Sale Sold out

Fox-Flo® is one of the highest-tested labels on the market. Manufactured only by Silver Fox, Fox-Flo® ensures the greatest levels of durability in the most demanding of environments.

  • Low Smoke Zero Halogen
  • Plenum Rated
  • Long-Term Outdoor Use (8,000 hrs accelerated UV)
  • Rapid Printing on Fox-in-a-Box®
  • PADS approved
  • London Underground Approved

When printing with the Fox-in-a-Box® the user will receive the following, free of charge:

  • Remote training to get you up and running as soon as possible.
  • Ongoing remote support to ensure you hit your project deadlines.
  • Feature updates to future-proof your investment so you stay on trend and don't need to buy a new solution next year.

The LGS4 guidance system is required to print these labels with the Fox-in-a-Box®

Download Datasheet Here

LCLZ1-5025TY | Labels Per Pack: 480
View full details

Fox-Flo® is Trusted by...

1 5

FOX-IN-A-BOX® RANGE

Lower Maintenance & Save Resources

Fox-Flo® tie-on cable labels provide long-lasting performance both internally and externally: reducing the need for frequent replacements and lowering the cost of future maintenance. Click below to save your time with Fox-Flo®.

Purchase Fox-Flo® Today >

  • London Underground Approved

    Fox-Flo® labels have undergone rigorous testing to meet the stringent requirements of LUL1-085, ensuring their suitability for London Underground installations.

  • 12-15 Years UV Stability

    Fox-Flo® have been shown to withstand prolonged exposure to sunlight for 8000 accelerated UV hours, which is equivalent to 12-15 years in a Northern European climate.

  • Low Smoke Zero Halogen

    Fox-Flo® labels are made of a premium low smoke zero halogen material - an ideal choice for environments where safety and environmental concerns are paramount.

And that's not all!

  • Includes free of charge training
  • Includes free of charge support

Technical Information

Material Specification

  • Material: Fox-Flo® material, a premium LSZH (Low Smoke, Zero-Halogen) material carefully crafted in-house for its exceptional performance.
  • Operational Temperature:  -40°C to 100°C (-40°F to 212°F)

Available Dimensions

  • X 10mm Range: 50 x 10, 70 x 10,
  • X 15mm Range: 50 x 15, 70 x 15, 90 x 15, 110 x 15, 130 x 15
  • X 25mm Range: 50 x 25, 70 x 25, 90 x 25, 110 x 25, 130 x 25
  • X 50mm Range: 70 x 50, 90 x 50, 110 x 50, 110 x 50, 130 x 50
  • 2 across available only in x 10mm
  • 3 across available only in x 15mm

Product Testing

  • Reach: Reach Compliant
  • London Underground Approval: Fire Safety Performance of Material requirements of LUL 1-085.
  • BS EN ISO 4589-2:1999 Oxygen Index (Material)
  • BS 6853:1999 Annex D.8.3 Smoke Emission (Material)
  • BS 6853:1999 Annex B.1 Toxic Fume (Material)
  • EN 45545-2 R22 (Material)
  • Tested to UL 94 Section 8 ‘Vertical Burning Test’ Rating V0 (Material)
  • IMO FTPC Part 2 Smoke & Toxicity (Material)
  • IMO FTPC Part 5 Surface Spread of Flames (Material)
  • MIL-STD-810F Method 502.4 Low Temperature 72 hours @ -40°C Followed by manipulation test* (Printed Label)
  • MIL-STD-202G Method 108A High Temperature 2000 hours @ 70°C to 100°C** (Printed Label)
  • H2S Sour Gas Exposure (2% H2S) Hydrogen Sulphide (Printed Label)
  • ISO 4982 Part 3 Method A Cycle 1 UV Weathering 8000 hours (Printed Label)
  • IEC60068-2-52 Test Kb Salt Mist (Cyclic) Salt Mist Spray (Printed Label)
  • Chemical / Solvent Resistance (Printed Label)

Printing & Software Requirements

  • To achieve the best printing results, we recommend using a Fox-in-a-Box® DTP-1 thermal printer along with TSR3/300 thermal transfer ribbons.
  • Print via Fox-in-a-Box® thermal printer using ‘One software, One printer, One ribbon’ for our complete range of thermal labels. A 300m thermal ribbon will yield approximately 3000 (x 90mm) length labels.

*For more information call our Sales Team on +44 (0)1707 37 37 27 or email sales@silverfox.co.uk

Printable Area

  • FOX-FLO® Tie-on (1 Across) 110 x 15mm: 80 x 14mm
  • FOX-FLO® Tie-on (1 Across) 110 x 25mm: 80 x 24mm
  • FOX-FLO® Tie-on (1 Across) 110 x 50mm: 74 x 49mm
  • FOX-FLO® Tie-on (1 Across) 130 x 15mm: 100 x 14mm
  • FOX-FLO® Tie-on (1 Across) 130 x 25mm: 100 x 24mm
  • FOX-FLO® Tie-on (1 Across) 130 x 50mm: 94 x 49mm
  • FOX-FLO® Tie-on (1 Across) 50 x 15mm: 20 x 14mm
  • FOX-FLO® Tie-on (1 Across) 50 x 25mm: 20 x 24mm
  • FOX-FLO® Tie-on (1 Across) 70 x 15mm: 40 x 14mm
  • FOX-FLO® Tie-on (1 Across) 70 x 25mm: 40 x 24mm
  • FOX-FLO® Tie-on (1 Across) 70 x 50mm: 34 x 49mm
  • FOX-FLO® Tie-on (1 Across) 90 x 15mm: 60 x 14mm
  • FOX-FLO® Tie-on (1 Across) 90 x 25mm: 60 x 24mm
  • FOX-FLO® Tie-on (1 Across) 90 x 50mm: 54 x 49mm
  • FOX-FLO® Tie-on (2 Across) 50 x 10mm: 28 x 8mm (x2)
  • FOX-FLO® Tie-on (2 Across) 70 x 10mm: 48 x 8mm (x2)
  • FOX-FLO® Tie-on (3 Across) 110 x 15mm: 80 x 14mm (x3)
  • FOX-FLO® Tie-on (3 Across) 130 x 15mm: 100 x 14mm (x3)
  • FOX-FLO® Tie-on (3 Across) 50 x 15mm: 20 x 14mm (x3)
  • FOX-FLO® Tie-on (3 Across) 70 x 15mm: 40 x 14mm (x3)
  • FOX-FLO® Tie-on (3 Across) 90 x 15mm: 60 x 14mm (x3)

Available Colours

  • Magenta, White, Yellow, Blue, Orange, Red

*Earth option available to order. Contact sales@silverfox.co.uk for more information

Storage Instructions

  • Storage Instructions Store between 50ºF (10ºC) and 77ºF (25ºC)
  • Conditions Keep in dark conditions
  • Humidity Resistance 35% to 65% RH

FOX-IN-A-BOX® RANGE

Typical Applications

Fox-Flo® is versatile and widely used in applications such as London Underground and Network Rail projects, offshore oil and gas installations, marine environments, and any industry where LSZH materials are a requirement.

Purchase Fox-Flo® Today >

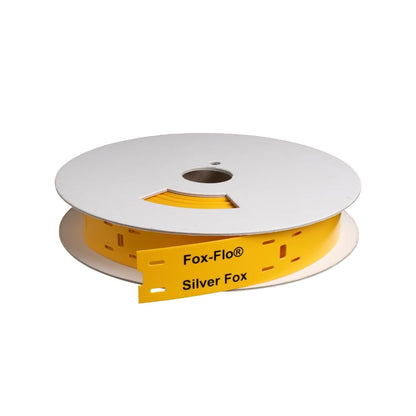

How to load Fox-Flo®

FOX-IN-A-BOX® RANGE

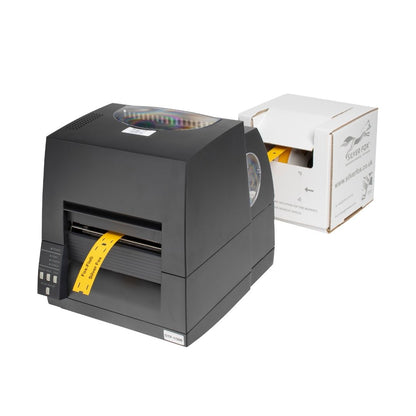

Print via the Fox-in-a-Box®

Designed for seamless compatibility, the Fox-in-a-Box® integrates with the Fox-Flo® label range, ensuring optimal printing results. With the included Labacus Innovator® software, you can easily design and customize your labels, incorporating essential information, symbols, and barcodes.

Learn More >

Fox-Flo vs Other LSZH Labels

Fox-Flo® FAQs

Are Fox-Flo® labels suitable for outdoor use?

Yes, Fox-Flo® labels are UV stable, making them suitable for outdoor applications. They can withstand prolonged exposure to sunlight without fading or deteriorating.

Can I use any type of cable tie with Fox-Flo® labels?

Yes, Fox-Flo® labels can be securely attached using standard nylon or stainless-steel cable ties. This provides flexibility and convenience in choosing the most suitable cable tie for your application.

Are Fox-Flo® labels compatible with different cable sizes?

Absolutely! Fox-Flo® labels are designed to accommodate a wide range of cable sizes. You can apply them to cables with an outer diameter (OD) as small as 10mm and even larger.

Are Fox-Flo® labels compliant with safety regulations for hazardous environments?

Yes, Fox-Flo® labels are made from LSZH (Low Smoke, Zero-Halogen) material, which meets the stringent requirements for safety in hazardous environments. They have low smoke emission and do not release harmful halogens when exposed to heat or fire.

Can I customise the design and content of Fox-Flo® labels?

Absolutely! With the Fox-in-a-Box® system and Labacus Innovator software, you have full control over designing and customizing your Fox-Flo® labels. You can add text, graphics, barcodes, and other elements to create labels that meet your specific requirements.
