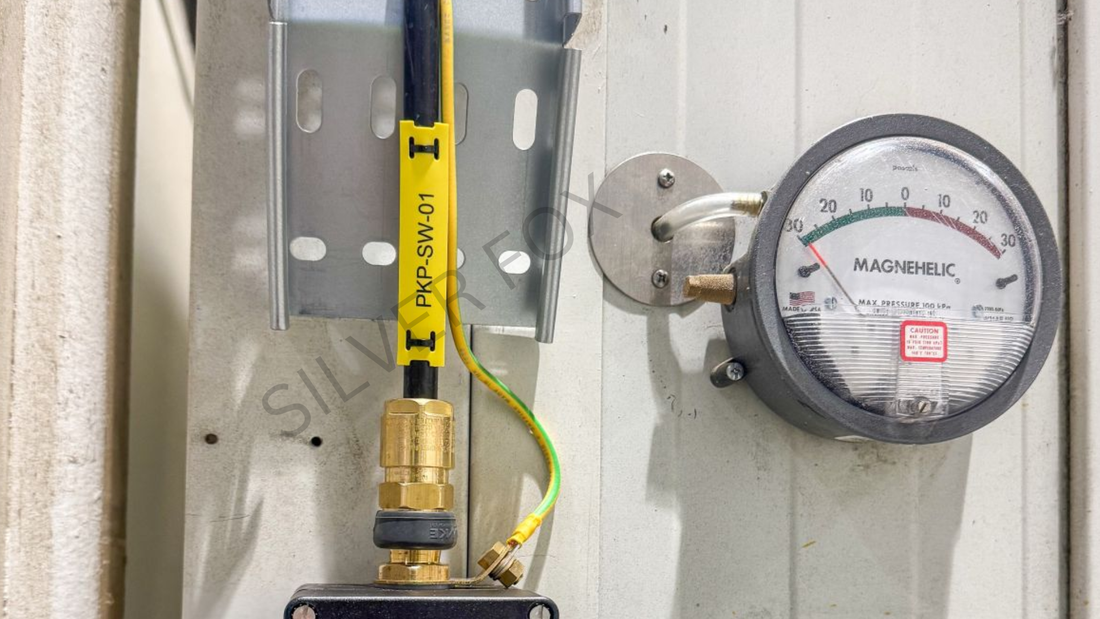

Cable Tie Tags and Tie-On Labels: A Practical Guide

Adhesive wrap around labels are the default choice for most structured cabling and indoor installations. They sit flush against the cable, create a low-profile identification, and the laminated versions protect the print from handling damage. But there are situations where adhesive labels are not suitable, and understanding these is the key to choosing the right label format at the specification stage.

In practice, many projects use both formats. Structured cabling in comms rooms gets wrap around labels, while outdoor cable runs, temporary installations, and process plant cabling get tie-on tags. Where small-diameter cables need identification but heatshrink is not practical (for example, when cables are already terminated), Fox-Flo® Non-Shrink Cable Markers offer a third option: a figure-of-eight grip that locks onto the cable without adhesive, heat, or cable ties. The Fox-in-a-Box® system prints tie-on labels, non-shrink markers, heatshrink, and wrap around labels using the same printer and software, so switching between formats on a single project adds no equipment overhead.

Silver Fox® manufactures three thermal tie-on label ranges, each in a different material to suit different environments and specifications. All three are printed using the Fox-in-a-Box® thermal transfer system with the LGS4 guidance system.

Fox-Flo® tie-on cable labels are the primary choice for harsh and safety-critical environments. They are manufactured from LSZH material as standard, which makes them suitable for environments where fire safety requirements mandate LSZH cables, such as underground rail, offshore platforms, and enclosed public spaces. The LSZH compliance means the labels match the cable standard rather than contradicting it. Fox-Flo® labels have been independently tested for UV weathering (8,000 hours), H2S sour gas exposure, salt mist spray, elevated and low temperature exposure, and carry a UL94 V0 rating.

Fox Zero halogen-free cable labels sit between Fox-Flo® and the standard Fox® range. They provide halogen-free performance for installations where halogen content must be controlled but the full LSZH specification is not required. Available in a wide range of sizes, Fox Zero labels attach with standard nylon or stainless-steel cable ties and are thermal transfer printed using Fox-in-a-Box®.

For laser-printed tie-on labels, Legend™ Laser Tie-On Cable Labels are supplied as A4 sheets that run through a standard office laser printer. This route suits projects where large quantities of labels need to be produced from a spreadsheet and the installation team will apply them in batches. Legend™ Thermal Tie-On Cable Labels offer the same format but are printed using the Fox-in-a-Box® system for higher durability print.

Tie-on labels are the default identification method in several specific application areas where adhesive alternatives struggle or fail entirely.

Outdoor cable runs: Cables exposed to direct sunlight, rain, frost, and temperature cycling place extreme demands on adhesive labels. Tie-on tags avoid the adhesive failure point entirely. Fox-Flo® labels are designed for extended outdoor service life with UV-stable material independently tested to 8,000 hours of accelerated UV ageing, representing 12-16 years in a Northern European climate.

Rail and underground: London Underground and Network Rail projects typically mandate LSZH materials for all components in trackside and tunnel environments. Fox-Flo® labels are approved for LUL projects and meet the fire, smoke, and toxicity requirements for these applications. Fox Zero labels may also be suitable where halogen-free performance is specified without the full LSZH requirement.

Temporary installations: Site power cables, temporary data feeds for events, and construction phase cabling all need identification that can be applied and removed without residue. Tie-on labels are simply cut off when the cable is decommissioned.

Process environments: In petrochemical plants, refineries, and manufacturing facilities where cables run through areas subject to oil mist, chemical splash, or high humidity, tie-on tags on durable substrates maintain identification where adhesive labels would lift. For a deeper look at selecting labels for these conditions, see our guide on choosing the right labelling supplier.

Retrofit labelling: Adding identification to existing, in-service cables that are already terminated and bundled. You cannot slide a wrap around label or heatshrink marker onto a cable that is already connected at both ends. A tie-on tag can be attached to any accessible point on the cable run. Where the cables are small enough for a non-shrink marker, Fox-Flo® Non-Shrink Cable Markers are another option, using a figure-of-eight grip that slides over the cable without heat or cable ties.

Immersion-cooled data centres: As single-phase immersion cooling with fluids such as Castrol ON becomes more common in data centres, labels inside the cooling tank must resist continuous contact with dielectric fluid without degrading or compromising the fluid. Silver Fox® Legend™ Tie-On labels have been shown to be resistant to Castrol ON dielectric cooling fluid, in both laser and thermal printed formats, giving operators confidence that identification remains legible over time in the immersion environment.

Silver Fox® Legend™ Tie-On labels are proven resistant to Castrol ON dielectric cooling fluid for immersion-cooled data centres. Learn more

Tie-on labels can be printed on demand or in batches depending on the project workflow and the label format chosen.

The Fox-in-a-Box® thermal transfer system prints Fox-Flo®, Fox Zero, and Fox® tie-on labels on demand using the LGS4 guidance system. The Labacus Innovator® software handles the label layout, number sequencing, and data import. For fleet-scale projects where hundreds or thousands of tie-on labels are needed, the software's spreadsheet import function allows the entire label run to be set up from a cable schedule and printed in a single session.

For laser-printed tie-on labels, the A4 sheet format means labels can be produced on any standard office laser printer without dedicated hardware. This approach is particularly efficient for pre-printing large batches in the office before an installation team heads to site.

The same Fox-in-a-Box® printer also handles non-shrink cable markers (using the LGS3 guidance system) and Legend™ Heatshrink markers, so one system covers tie-on labels, non-shrink markers, heatshrink, wrap around labels, and equipment labels. There is no waiting for a print service or external supplier, which means labelling does not become a bottleneck in the installation programme.

What are the most suitable tags for outdoor cable runs?

Fox-Flo® tie-on labels are designed for outdoor use. They are UV-stable, independently tested to 8,000 hours of accelerated UV ageing (equivalent to 12-16 years in Northern Europe), resistant to moisture, and manufactured from LSZH material. For the longest possible outdoor service life, thermal transfer printing with a resin ribbon provides the most durable print.

What is the difference between Fox-Flo®, Fox Zero, and Fox® tie-on labels?

All three are thermal transfer printed tie-on labels that attach with cable ties. Fox-Flo® is LSZH with the highest UV and fire performance, making it the choice for rail, offshore, and outdoor applications. Fox Zero is halogen-free and suits general industrial environments where halogen content must be controlled. Fox® is standard PVC for indoor and general-purpose use where fire performance is not a primary concern.

Are tie-on labels waterproof?

Fox-Flo® tie-on labels are designed to resist moisture and can be used in exposed outdoor environments. The thermal transfer print is bonded into the surface rather than sitting on top where it could be washed away. They are suitable for a wide range of wet environments, though sustained submersion is a different challenge that should be assessed on a case-by-case basis.

Can I print cable tie tags on a standard office printer?

Yes. Legend™ Laser Tie-On Cable Labels are supplied as A4 sheets that run through any standard office laser printer. For thermal transfer printed tie-on labels (Fox-Flo®, Fox Zero, or Fox®), a Fox-in-a-Box® system is required.

What is the difference between tie-on labels and non-shrink cable markers?

Tie-on labels hang from the cable on a cable tie and work on cables of any diameter, including large bundles. Non-shrink markers wrap directly around the cable in a figure-of-eight grip and are best suited to individual conductors in the 2-8mm diameter range. Both can be applied to already-terminated cables without the need for a heat gun. For a detailed comparison, see our guide to non-shrink cable markers.

Are tie-on labels suitable for permanent identification?

Yes. Tie-on labels are used for both permanent and temporary identification. Fox-Flo® labels are designed for long-term service with UV-stable materials and durable thermal transfer print. They are widely used for permanent outdoor cable identification in rail, utilities, telecoms, and oil and gas infrastructure.

Can tie-on labels be used in immersion-cooled data centres?

Legend™ Tie-On labels (both laser and thermal versions) have been shown to be resistant to Castrol ON dielectric cooling fluid. This makes them suitable for labelling cables, racks, and equipment inside single-phase immersion cooling tanks. See the Castrol ON fluid-resistant labels page for more detail.
